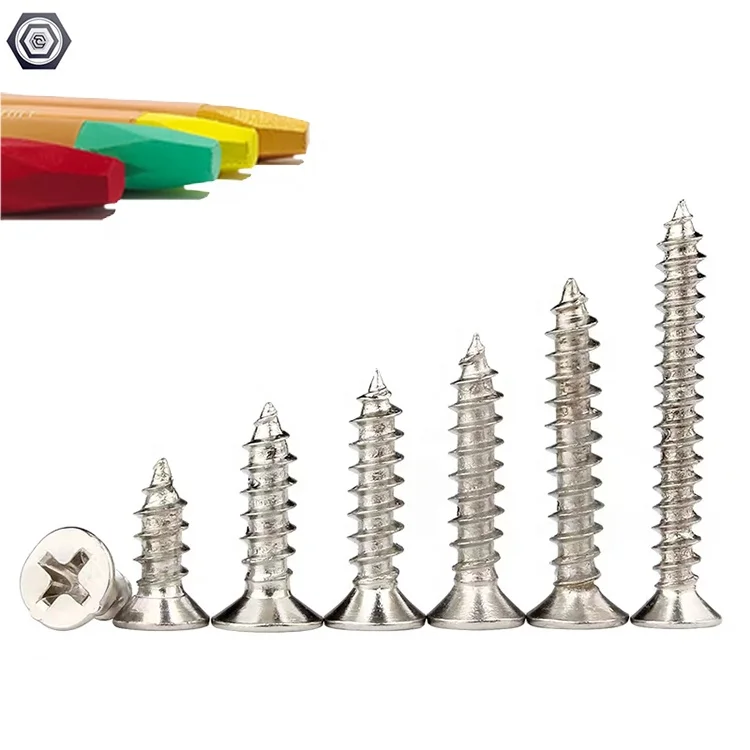

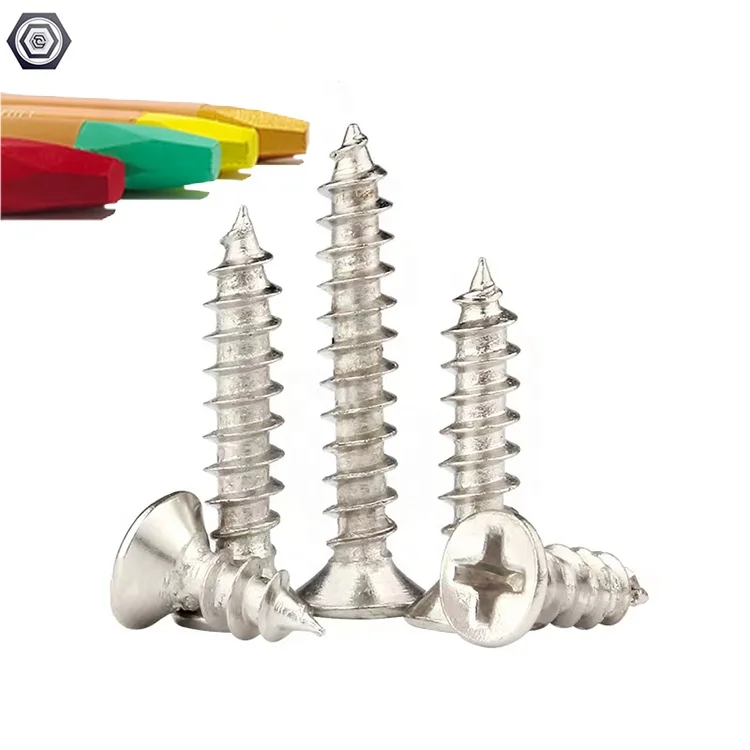

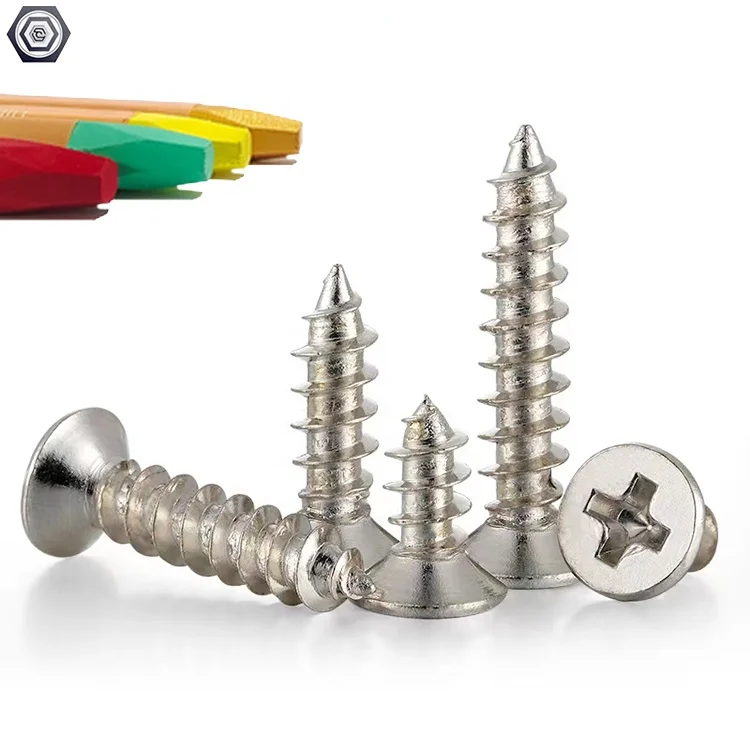

Philip countersunk Head Screws Silver Plated CKS head self tapping screw
- Category: >>>
- Supplier: Dongguan Guxiang Metalwork Co. Ltd.
Share on (1600619617425):
Product Overview
Description
Product Description
Phillips Drive Self Tapping Cap Screws / Carbon Steel Wafer Head Screws
Self-Tapping screw
The ability of a screw to advance when turned, while creating its own thread versus, say, machine screws which require a
pre-threaded nut or other female insert. Self-Tapping screws can cut their own threads as the screw is driven in to the material.
They function by having a cutting edge which drills away the material, making a tiny hole for the screw to go into. This has
nothing to do with the point of the screw but has everything to do with the threads which are designed to cut through the
material.
The ability of a screw to advance when turned, while creating its own thread versus, say, machine screws which require a
pre-threaded nut or other female insert. Self-Tapping screws can cut their own threads as the screw is driven in to the material.
They function by having a cutting edge which drills away the material, making a tiny hole for the screw to go into. This has
nothing to do with the point of the screw but has everything to do with the threads which are designed to cut through the
material.
Product Dimensions & Drawings | ||||||||||||||||
Specification composition: thread diameter * thread length * washer diameter (d*L*dc) | Specification | M1.4 | M1.7 | M2 | M2.3 | M2.6 | M3 | M4 | ||||||||
d (diameter) | 1.4 | 1.7 | 2 | 2.3 | 2.6 | 3 | 4 | |||||||||
dk (head diameter) | / | 3.56 | 3.8 | 3.99 | 4.05 | 5.08 | 6.67 | |||||||||
dc (washer diameter) | 4 | 5 | 5 | 5 | 6 | 6.95 | 8.51 | |||||||||
k (head thickness) | 1 | 1.03 | 1.3 | 1.41 | 1.79 | 2.53 | 3.17 | |||||||||
Note: The following data are for a single batch of the manual measurement results, there are positive and negative tolerances, the specific data please refer to our actual product, mind it, (unit: mm) | ||||||||||||||||
Produtc Name | self tapping philip carbon steel nickel screw |
Head | Countersunk head Phillips self-tapping screws |
Material | Carbon Steel,Stainless Steel |
Point | Sharp Point |
Packaging Details | inner plastic bag+carton+pallet |
Finish | Plain, black, zinc plated/according to your requirement |
Certification | ISO 9001:2015 and ISO10012:2003&IATF16949 |
Package | According to customers requirement |
Advantages of screw manufacturers

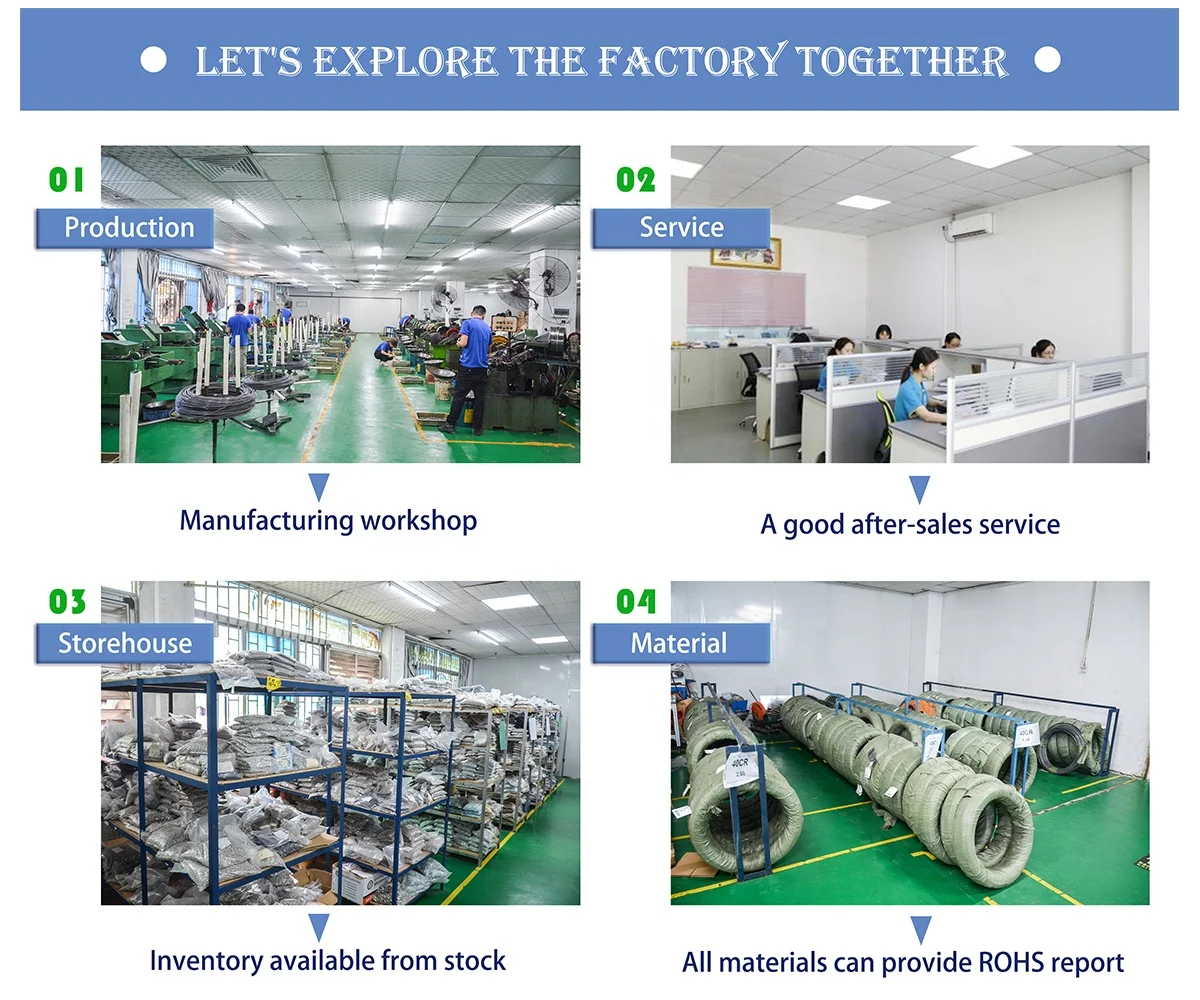

Dongguan Guxiang Metal Products Co., Ltd.
The factory has R&D, procurement, production, quality control, sales, after-sales and other departments, which can be customized according to customer requirements, and can also control product improvement, supply chain, production scheduling, inspection and testing, quality control, packaging, delivery and pre-sales After sale. In particular, the factory's own procurement, production and quality control can grasp the production progress in real time, with guaranteed delivery time and quality.
1.Homegrown: Sell your own products from your own factory
We are a factory, direct sales from the origin: our main products are precision screws, nuts, bolts, wrenches, stamping products, and we accept non-standard customization. Origin direct sales, absolute price advantage.
The factory has very important technical support
The company is a professional fastener manufacturer specializing in production, research and development and sales. The company's production base is located in the beautiful Hengli, Dongguan. It has a complete set of fastener production equipment at an advanced level, and uses an advanced modern enterprise management system to specialize in the production of national standard (GB), German standard (DIN) and American standard (IFI) of its own brands. ), Japanese standard (JIS) standard parts and non-standard parts. Has passed ISO90001 quality system certification and IATF16949 automotive quality management system certification. Product quality inspection includes incoming inspection, sample inspection, finished product inspection and shipment inspection.
Factory can create more value for customers

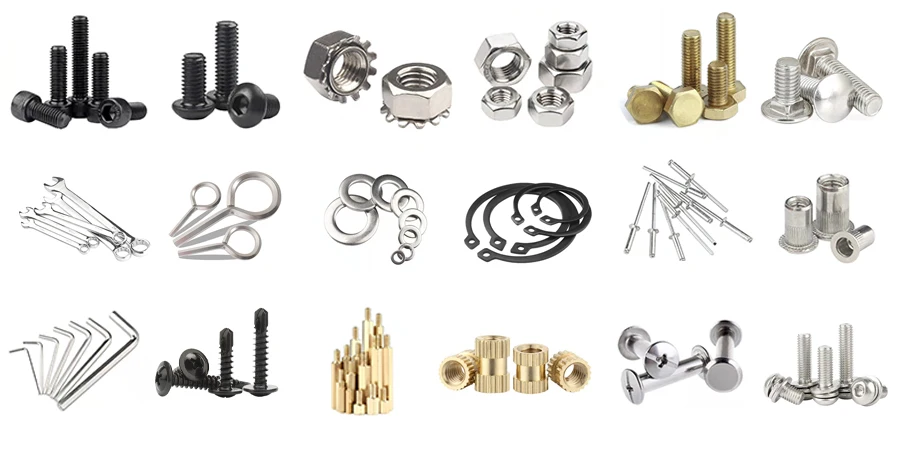

We provide our customers with personalized service. Experienced staff are always available to discuss your concerns with you to ensure complete customer satisfaction. In recent years, the company has introduced a series of advanced equipment, including dozens of imported cold forging machines, screw machines and other production equipment. Imported hardness tester and other testing equipment. Our main products are: machine screws, self-tapping screws, combination screws, step screws, special parts for lathes, stamping parts, nuts (hexagonal nuts, square nuts, nylon nuts, cap nuts, K caps, etc.), springs, flat washers Wait. Non-standard parts can be produced according to customer samples or drawings.
Processing custom series
Processing custom series: the optional product attributes are as follows
You can choose screw type, screw standard, material, material grade requirements, hardening conditions, surface treatment, customized logo, customized packaging, and other customized conditions.
Optional screw types | Hexagon socket machine screws, cross recessed machine screws, cross recessed self-tapping screws, slotted machine screws, Phillips machine screws, slotted self-tapping screws, Phillips slotted self-tapping screws, Torx with column machine screws, non-standard screws, Welding Screws, Beige Grooved Fiberboard Screws, Hexagon Head Self-tapping Screws, Hexagon Socket Self-tapping Screws, Cross Recessed Triangle Screws, Thumb Screws, Lifting Ring Screws, Six Star Slotted Machine Screws, Hexagon Head Wood Screws, Welding Nails, Cross Recessed Drywall screws, M-shaped slot machine screws, Eleven slotted machine screws, Cross-recessed fiberboard screws, Phillips socket screws, M-shaped slot self-tapping screws, Hexagon socket head machine screws with post |
Standard for optional screws | DIN,GB，ISO,ANSI,BS,JIS etc |
Optional screw material | 1006 (carbon steel), 1008 (carbon steel), 1008AL (carbon steel), 1018 (carbon steel), 1022 (carbon steel), 1035K (carbon steel), 1045K (carbon steel), 10B21 (carbon steel), 10B29 ( Carbon steel), 10B33 (carbon steel), 20# (carbon steel), 20Mn (carbon steel), 20MnTiB (alloy steel), 2205 (duplex stainless steel), 22A (carbon steel), 303, 304, 304HC Baosteel, 310S (stainless steel) ), 316, 316L, 35# (carbon steel), 35CrMo (alloy steel), 35K (carbon steel), 40Cr (alloy steel), 40CrMoV (alloy steel), 410, 42CrMo (alloy steel), 45# (carbon steel ), 45K (carbon steel), A2-70, A4-70, B7 (alloy steel), C15 (carbon steel), C20 (carbon steel), H65 (brass), ML15 (carbon steel), ML40Cr (carbon steel) ), PA66, PA66+30% glass fiber, PA66+50% glass fiber, PC, PEEK, PP, PPS, PVC, PVDF, Q195 (carbon steel), Q235 (carbon steel), RENY (white), RENY (black ), SCM435 (alloy steel), SCM440 (alloy steel), SWRCH22A (carbon steel), TA2 (titanium), TC4 (titanium alloy), high-grade nylon material, alloy steel, aluminum alloy, iron |
Optional screw material grades | 4.8; 6.8; 8.8; 10.9; 12.9; 14.9; A2-70；A4-70； A4-80 etc |
Optional screw hardening conditions | Vickers hardness: HV350-450; HV400-550; HV450-700; Rockwell hardness:Grade8.8 HRC22-32; Grade10.9 HRC32-39; Grade12.9 HRC39-44 |
Optional screw finish | 360° blue fall resistance, white zinc, natural color, natural color oiled, color zinc, color zinc (trivalent), dacromet, chrome plating, nickel plating, passivation, blackening, blackening +360° blue fall resistance , Blackening + Fall Resistance, Black Nickel, Black, Black Phosphating, Black Zinc, Black Zinc + Passivation + Sealing, Gray Phosphating, Mechanical Zinc, Geomet, Blue White Zinc, Blue Zinc, Blue Fall Resistance, Heat Zinc-plated, waxed, none, whitewashed, whitewashed + anti-fall, zinc-nickel alloy, color oxidation black |
Including the head shape of the screw, the drive type of the screw and the thread type of the screw can be customized
APPLICATION SCENE
Furniture decoration
Industry
Mechanical equipment
Medical device
Electronic equipment
Vehicle and boat accessories
