Factory Sale Fire Resistant Fiberglass Sleeve Oil Acid And Alkali Resistant Fire Sleeveing
- Category: >>>
- Supplier: Chizhou Pusheng Electrical & Material Technology Co. Ltd.
Share on (1600619624357):
Product Overview
Description
Products Description
Description:

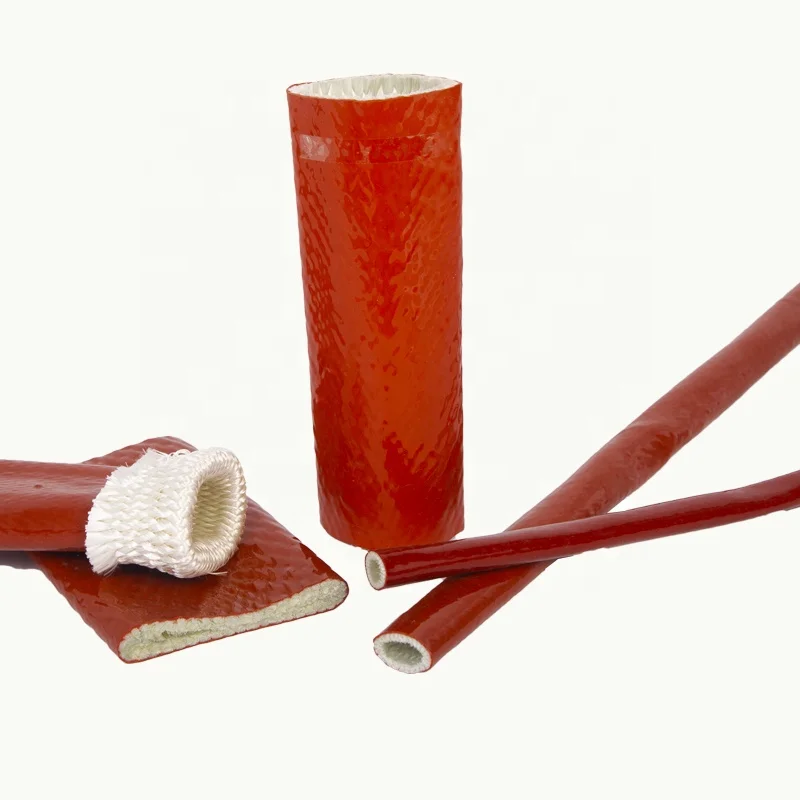

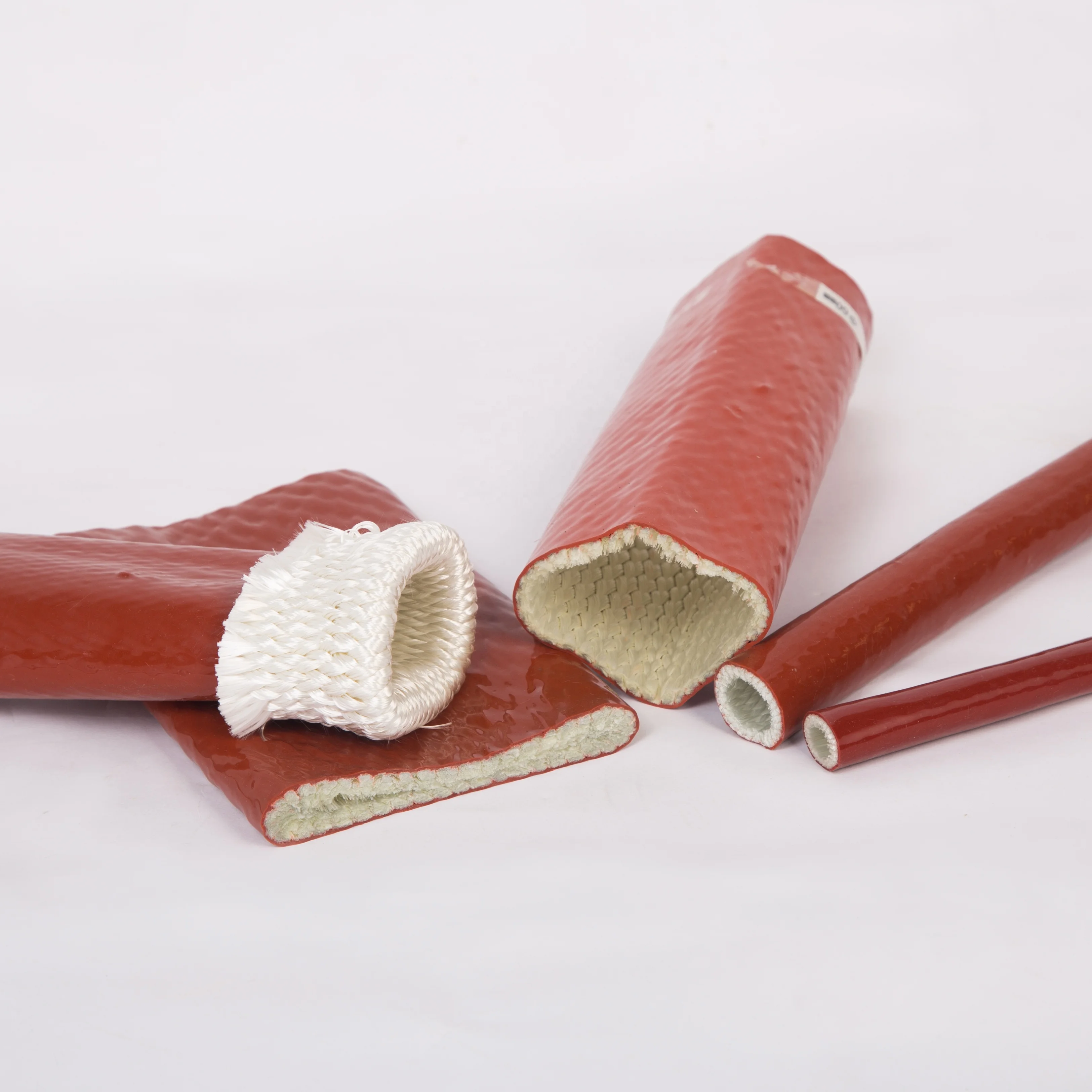

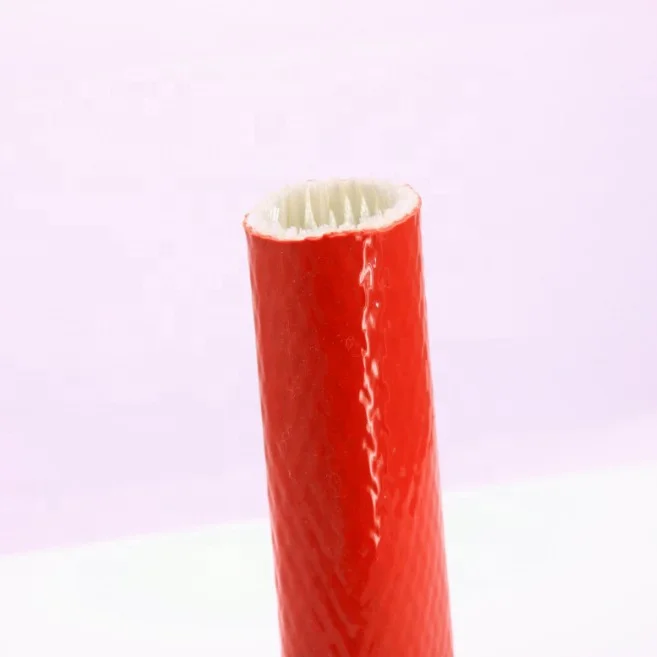

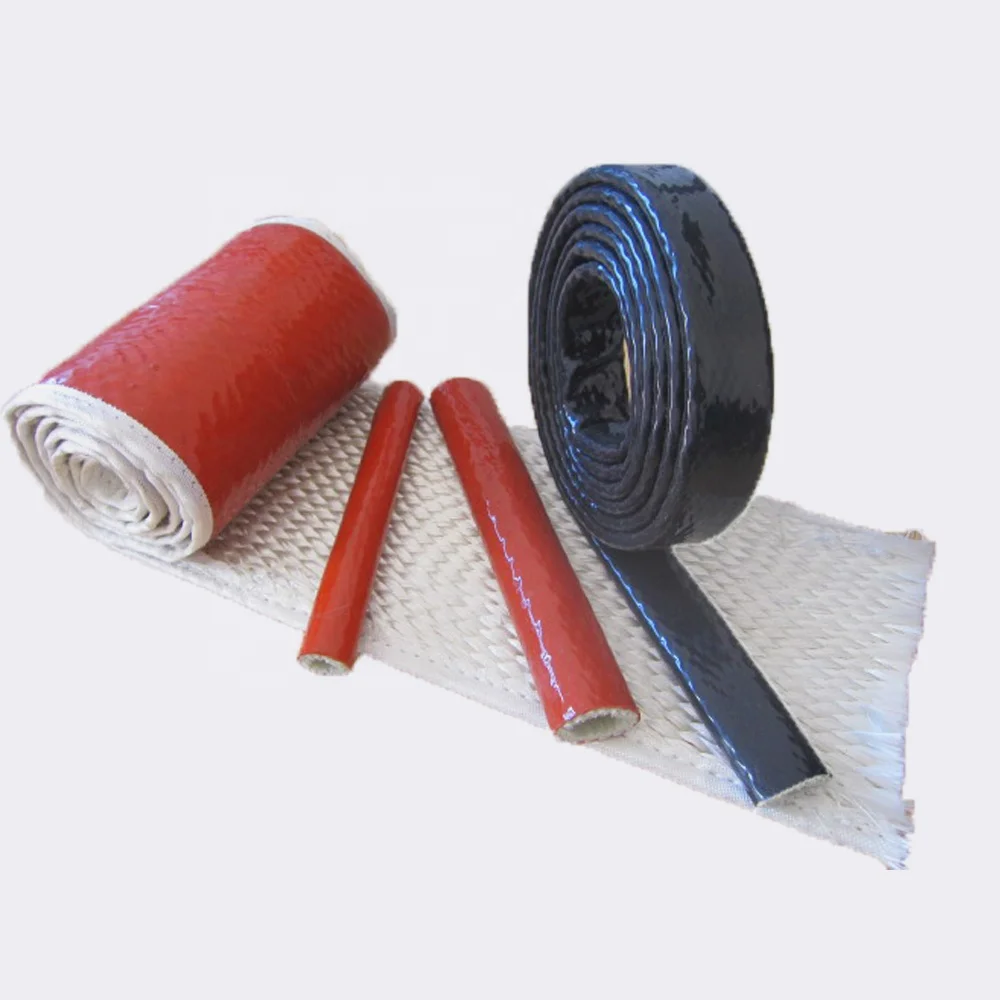

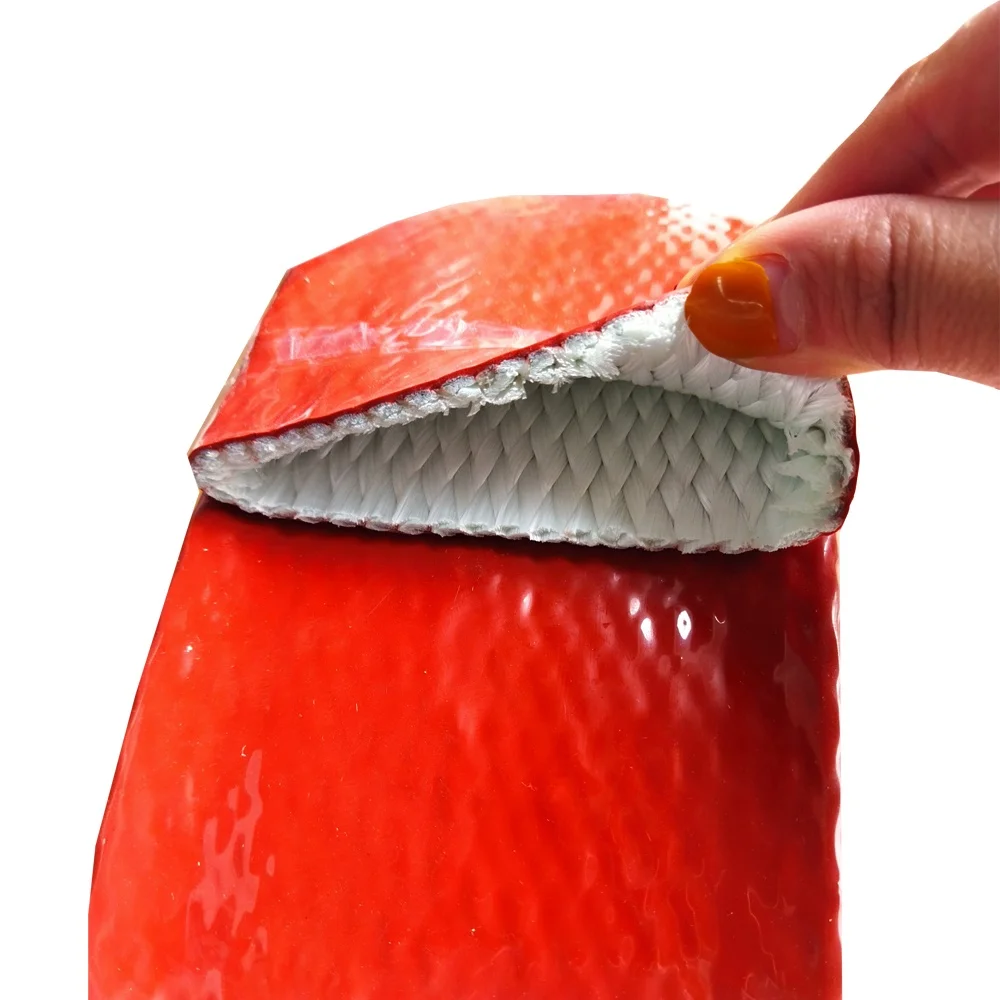

Fire sleeve is braided with e-grade fiberglass yarn and coated with silicone rubber. This sleeve is designed as a kind of heavy duty jacket to protect different kinds of hoses, wires and cables from the hazards of high heat and occasional flame. Sheds molten metal splash in steel plants, glass plants, foundries, cutting and welding shops. Good thermal insulation and fire proof performance make this sleeve reduce heat energy losses and protect employees from burning effectively.
Features:
Size : 6mm -150mm
Working tempt.:260°C. Short time peaks at 1650°C
Breakdown Voltage: 7kV -- 25kV
Color: iron oxide red, others on request.
Character: high tempt.& flame resistant, insulation,anti-aging,avoiding splashing of the molten iron, abrasion resistant, water-proof,oil acid and alkali resistant.
Working tempt.:260°C. Short time peaks at 1650°C
Breakdown Voltage: 7kV -- 25kV
Color: iron oxide red, others on request.
Character: high tempt.& flame resistant, insulation,anti-aging,avoiding splashing of the molten iron, abrasion resistant, water-proof,oil acid and alkali resistant.
Specifications: | ||||||
Inner Dia.(mm) | Inner Dia.(inch) | Wall Thickness (mm) | Roll length(m) | |||
Φ6 | 1/4 | 1.5 | 20 | |||
Φ8 | 5/16 | 1.6 | 20 | |||
Φ10 | 3/8 | 1.8 | 20 | |||
Φ13 | 1/2 | 1.9 | 20 | |||
Φ15 | 5/8 | 2.1 | 20 | |||
Φ20 | 3/4 | 2.4 | 20 | |||
Φ22 | 7/8 | 2.5 | 20 | |||
Φ25 | 1 | 2.6 | 20 | |||
Φ30 | 1-1/8 | 2.9 | 20 | |||
Φ32 | 1-1/4 | 3.0 | 20 | |||
Φ35 | 1-3/8 | 3.1 | 20 | |||
Φ38 | 1-1/2 | 3.2 | 20 | |||
Φ40 | 1-5/8 | 3.4 | 20 | |||
Φ45 | 1-3/4 | 3.4 | 20 | |||
Φ50 | 2 | 3.6 | 20 | |||
Φ55 | 2-1/4 | 3.7 | 20 | |||
Φ60 | 2-3/8 | 3.8 | 20 | |||
Φ65 | 2-1/2 | 3.8 | 20 | |||
Φ70 | 2-3/4 | 4.0 | 20 | |||
Φ75 | 3 | 4.1 | 20 | |||
Φ80 | 3-1/8 | 4.3 | 15 | |||
Φ85 | 3-1/4 | 4.3 | 15 | |||
Φ90 | 3-1/2 | 4.5 | 15 | |||
Φ95 | 3-3/4 | 4.5 | 15 | |||
Φ100 | 4 | 4.6 | 15 | |||
Φ105 | 4-1/8 | 4.7 | 10 | |||
Φ110 | 4-3/8 | 4.7 | 10 | |||
Φ115 | 4-1/2 | 4.7 | 10 | |||
Φ120 | 4-3/4 | 4.8 | 10 | |||
Φ125 | 5 | 4.8 | 10 | |||
Φ130 | 5-1/8 | 5.0 | 10 | |||
Φ140 | 5-1/2 | 5.2 | 10 | |||
Φ150 | 6 | 5.2 | 10 | |||
Application:
These sleeves are specially used in thermal place to cover electrical wire or fluid pipeline as a protection material, such as metallurgy and shipbuilding etc.
Why Choose Us
Why Pusheng?
1. Good quality with best price
2.Pusheng is ISO9001 factory and top leading manufacturing of fiberglass sleeving
3. Products with UL, Reach and RoHs approval
1. Good quality with best price
2.Pusheng is ISO9001 factory and top leading manufacturing of fiberglass sleeving
3. Products with UL, Reach and RoHs approval
Chizhou Pusheng Electrical & Material Technology Co.,Ltd(Chizhou Jiuhua High-Go Electrical & Material Co.,Ltd) was set up in 1996, located in Guichi High-Tech Industrial Park, Chizhou City, Anhui Province. We specialized in manufacturing all kinds of fiberglass sleeving such as polyurethane/acrylic/ fire sleeve etc.We have exported many countries like EU, India, Russia,USA,Singapore, South Korea etc.
Our company covers the areas of about 38000㎡, the number of employees is 87. Now the quantity of braiding machines is 600, and the number of coating machine is 37, and also complete test equipments. The monthly production capacity of our factory is 3000K meters.
Our company covers the areas of about 38000㎡, the number of employees is 87. Now the quantity of braiding machines is 600, and the number of coating machine is 37, and also complete test equipments. The monthly production capacity of our factory is 3000K meters.
Production Line
Exhibition
Certifications
FAQ
1. 24-hour online service guarantees timely reply about the details of any of our products .
2.High quality and best price promise profitable products and long relationship.
3. Supply the packing in accordance with your requirements.
4.All of our products are high tech ,they are environmental friendly.
5.Customized designs are acceptable, small order is acceptable.
6. Timely delivery.
7. Free samples for freight collect.
8.Good after sales service, we are 7/24 hours with you
2.High quality and best price promise profitable products and long relationship.
3. Supply the packing in accordance with your requirements.
4.All of our products are high tech ,they are environmental friendly.
5.Customized designs are acceptable, small order is acceptable.
6. Timely delivery.
7. Free samples for freight collect.
8.Good after sales service, we are 7/24 hours with you
