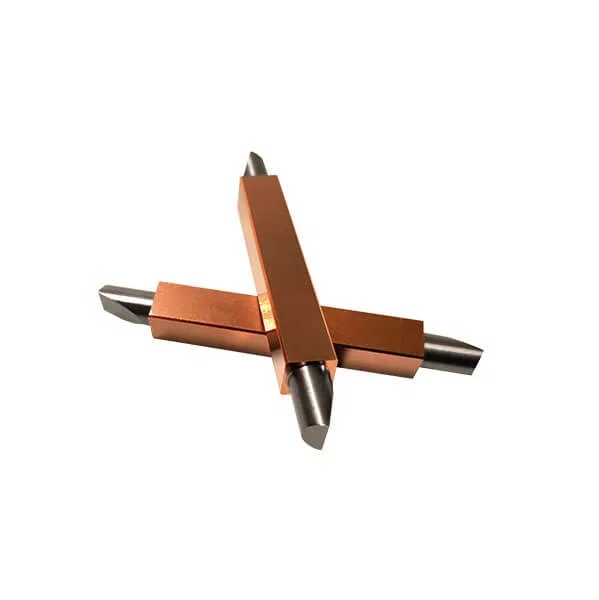

Spot Welder Resistance Welding Water Injection Spot welding head 16*50 chrome zirconium copper inlaid tungsten electrode welding
- Category: >>>
- Supplier: Yolo Materials Industry Co. Ltd.
Share on (1600619635292):
Product Overview
Description
PRODUCT SPECIFICATIONS
Item | Data |
Product name | NDB Resistance Spot Welding Electrode Tungsten back-up Copper Electrode for Auto Welding |
Materials | Pure Tungsten/ Pure Tungsten back-up Copper |
Welding method | Resistance Spot Welding |
Application | Auto parts welding |
Size | Customized |
Shape | All in one/ Back-up |
Package | Strong plastic boxes |

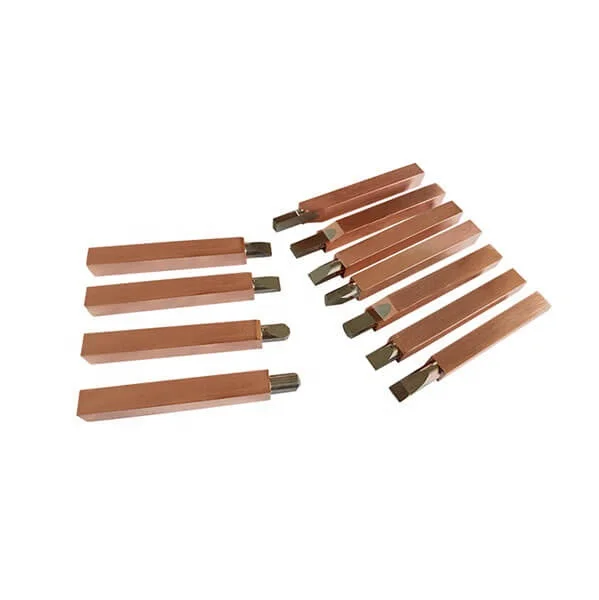

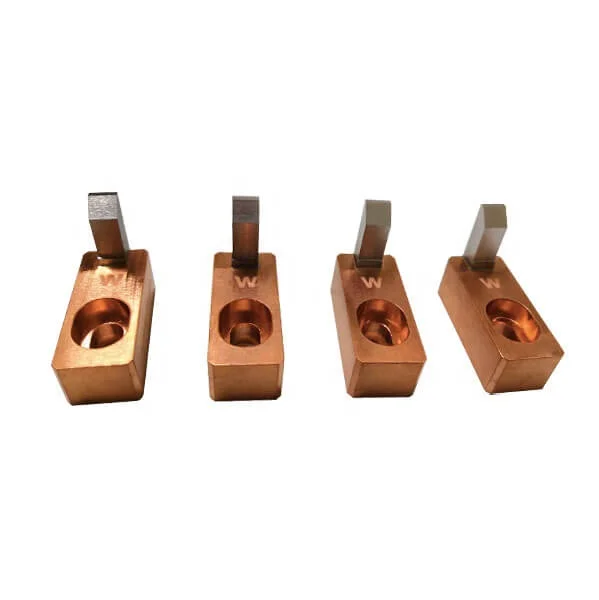

A. Copper Inlay Pure Tungsten
Tungsten tips with Beryllium copper shank
WLa20 insert with CuCrlZr shank
Tungsten insert with CuCrlZr shank
Tungsten insert with CuCrlZr shank
WLa10 insert with CuCrlZr shank

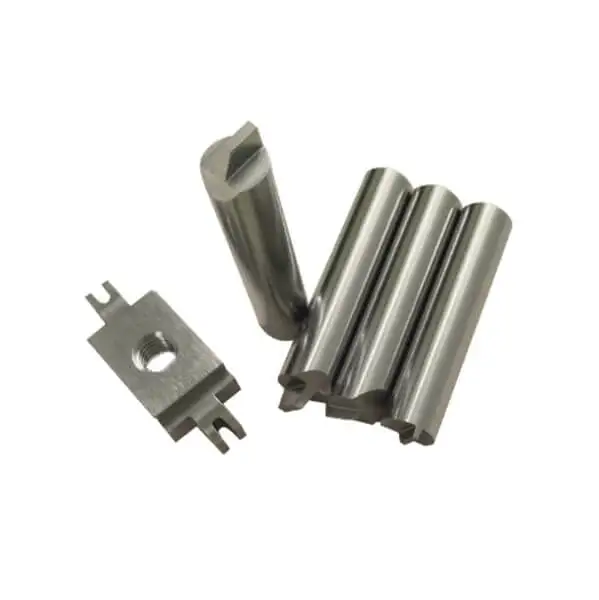

B. Copper Inlay Pure Molybdenum
Mo insert with CuCrlZr shank
TZM insert with CuCrlZr shank
Mo insert with copper shank
Lead Resistance Welding Electrode Manufacturer from China
They can be used in the following processes:
-Spot welding
-Roller seam welding
-Projection welding
-Upset welding
-Spot welding
-Roller seam welding
-Projection welding
-Upset welding
We always have a strong belief in showing "Made in China" to the world! Let us show you something.
NDB(Non-defective Bonding)
Lead Tungsten back-cast Copper technology in China
The end of the electrode can be continuously cooled, reducing the heat load of the end electrode head, so as to increase the service life of the electrode and reduce the production cost.
Please send us the inquiry with any formula of the drawings! We will revert to you ASAP!
There are no pores, no holes, no gaps, and the connection strength is > 120Mpa. In addition, the electrode end has high machining accuracy and a smooth finish below Ra0.8, the welding joints are stable, no false welding occurs, and the joints are firm.
we provide professional welding consumables manufacturing solutions for customers from all over the world.
* WLa (wolfram-lanthanum alloy)
* WCu (wolfram-copper alloy)
* ZM (wolfram-copper alloy)
* Pure Tungsten (99.95%)
* Pure Molybdenum (99.95%)

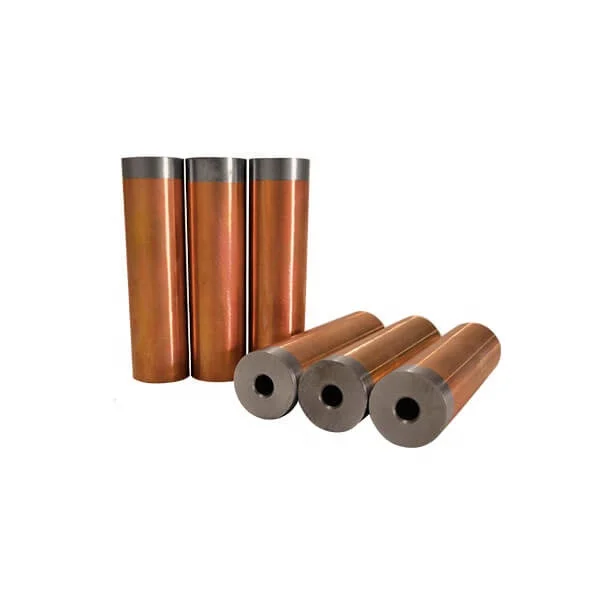

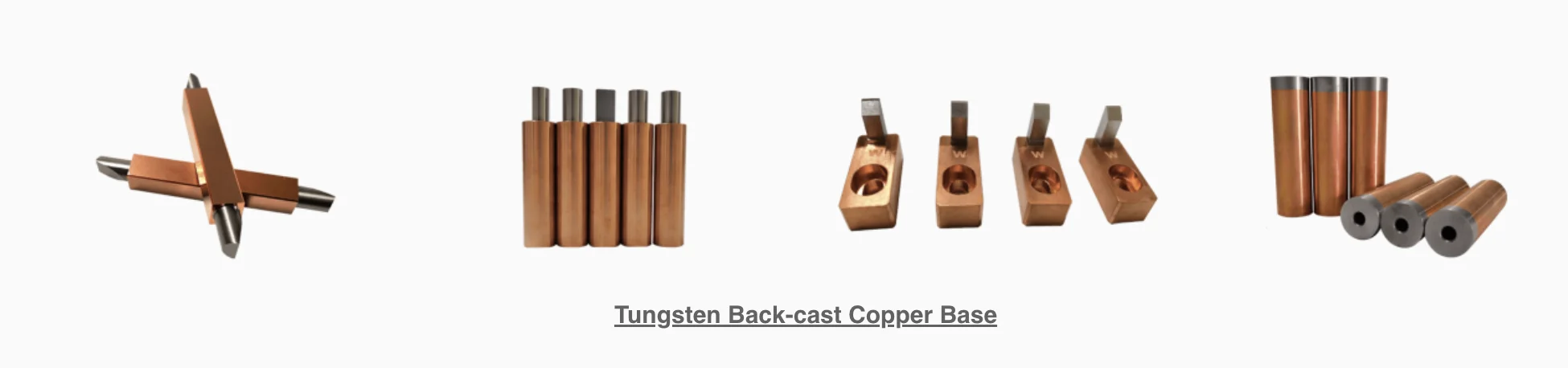

* Copper back-cast tungsten
* Copper back-cast molybdenum
* WCu (wolfram-copper alloy)
* ZM (wolfram-copper alloy)
* Pure Tungsten (99.95%)
* Pure Molybdenum (99.95%)
* Copper back-cast tungsten
* Copper back-cast molybdenum
1. NDB Technology
1. Yolo's adopts the most advanced NDB non defective bonding process without adding any solder. Copper is integrated with tungsten
and molybdenum refractory metals, no internal holes, and the connection strength is >130Mpa.
With excellent electrical and thermal conductivity, it ensures that the electrode tip can be continuously cooled, thereby
increasing the service life and reducing electrode consumption.
and molybdenum refractory metals, no internal holes, and the connection strength is >130Mpa.
With excellent electrical and thermal conductivity, it ensures that the electrode tip can be continuously cooled, thereby
increasing the service life and reducing electrode consumption.
2. High Density
3. Strong Materials Formula
Use special formula materials for resistance welding.
Adding rare earth elements can further optimize high temperature stability, creep resistance, high hardness, collision resistance, reliable solder joints, not easy to deform, and no faulty point.
4. Raw Materials
manufacturers of tungsten powder raw materials . The overall particle uniformity of APT raw materials we use is better than that
of other companies in the market, which can guarantee the overall quality.
Yolo: Uniform particle size
Title goes here.
* Wire harness
* Automobile motor
* Switch contact
* Ignition coil
* Brake electronic system
* Automobile motor
* Switch contact
* Ignition coil
* Brake electronic system
* Electromagnetic coil
* Sensor lead wire
* Welding copper strip
* Copper braided wire contact
* Sensor lead wire
* Welding copper strip
* Copper braided wire contact
