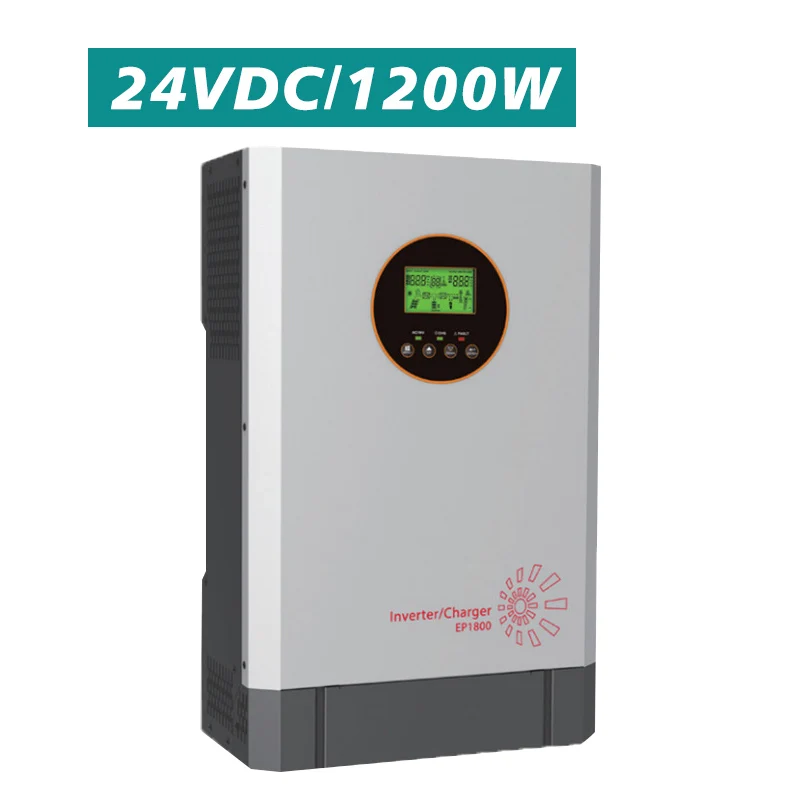

24VDC/1200W hybrid solar inverter 5kw with MPPT for solar power system for home and government
- Category: >>>
- Supplier: Gansu Times Power Technology Development Co. Ltd.
Share on (1600619640103):
Product Overview
Description
Product Description
This is a multi-function inverter/charger, combining functions ofinverter, solar charger and battery charger to offer uninterrupt-ible power support with portable size. lts comprehensive LCD display offers user-configurable and easy-accessible button oper-ation such as battery charging current,AC/solar charger priority, and acceptable input voltage based ondifferent applications.
Feature:
1.Pure sine wave inverter2.Configurable input voltage range for home appliances and personalcomputers via LCD setting
3.Confiqurable battery charging current based on applicationsvia LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compaf ble to mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperalure/ short circut protection
8.Smart battery charger deslgn for optimized battery perfarmance
9.Cold start function

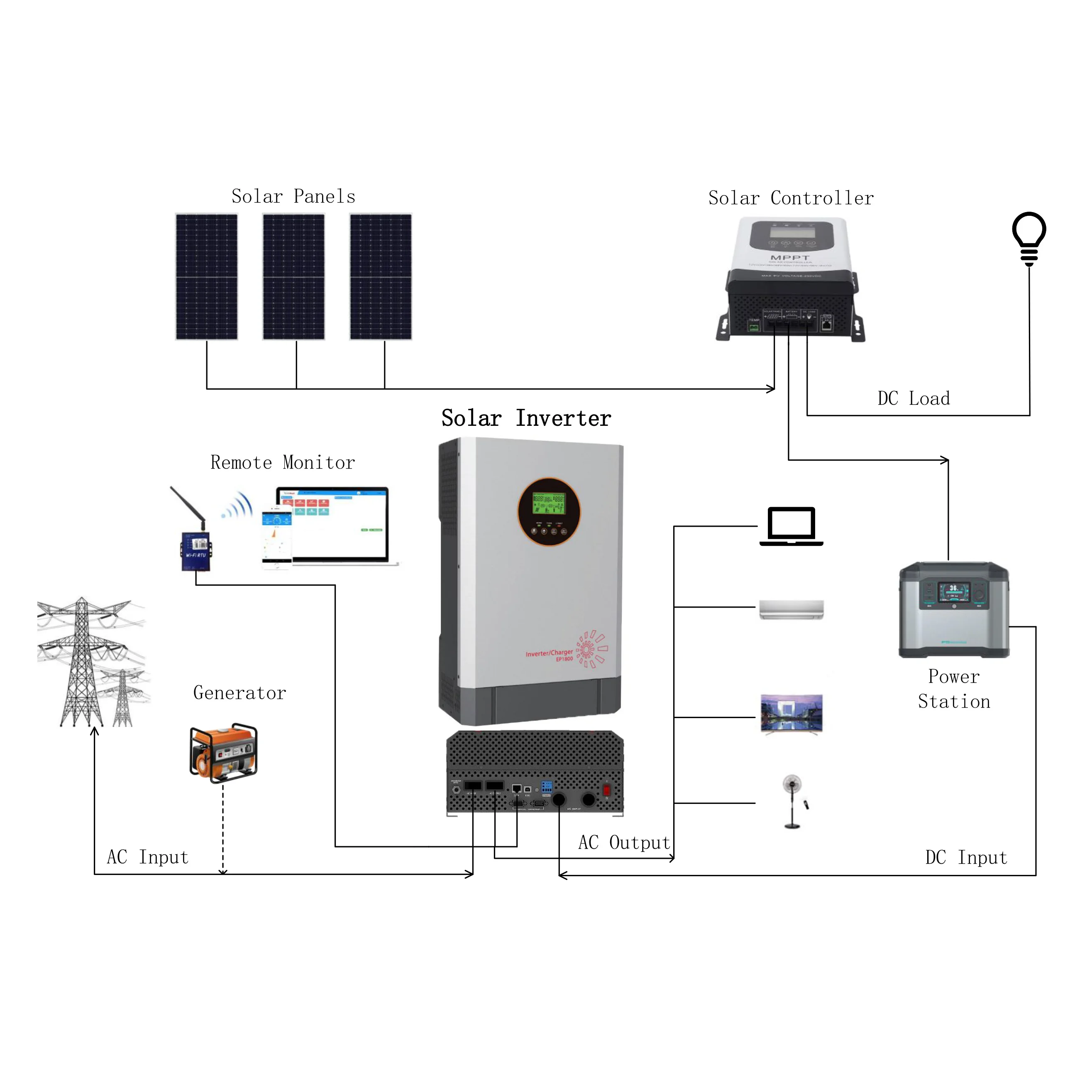

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Product parameters
Specification | ||||||||||||
Nominal Battery System Voltage | 12VDC | 24VDC | 48VDC | |||||||||
INVERTER OUTPUT | Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W | ||||||
Surge Power | 2000W | 4000W | 6000W | 8000W | 10000W | |||||||
Waveform | Pure sine wave | |||||||||||
Output Voltage Regulation | 230Vac+5% | |||||||||||
Oulput Frequency | 60Hz or50Hz | |||||||||||
Inverter Efidency (Peak) | 90% | |||||||||||
Transfer Time | 10ms typical(UPS.VDE); 20ms typical(APL) | |||||||||||
AC INPUT | Nominal input Voltage | 230VAC | ||||||||||
Selecable Voltage Range | 170~280VAC(UPS),90~280VAC(APL),184~253VAX(VDE) | |||||||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||||
BATTERY | Nominal voltage | 12VDC | 24VDC | 48VDC | ||||||||
Floating Charge Voltage | 13.7VDC | 27.4VDC | 54.8VDC | |||||||||
Overcharge Protection | 15VDC | 30VDC | 60VDC | |||||||||
CHARGER | Charging Current @Nominal Input Voltage | 10/20A | 20/30A | 20/30A | 1~60A | |||||||
Charging Algorithm | 3-Step(Fooded Battery, AGM/Ge/LEAD Batlery).4-Step(LI) | |||||||||||
Max Charging Current | 20A | 30A | 30A | 60A | ||||||||
Default Charging Current | 10A | 20A | 20A | 30A | ||||||||
PROTECTION | Nominal input Frequency | 50Hz/60Hz(Auto deteclion) | ||||||||||
Output Short Circuit Protection | Line mode:Circuit Bre aker; Batlery mode:Electronic Circuits | |||||||||||

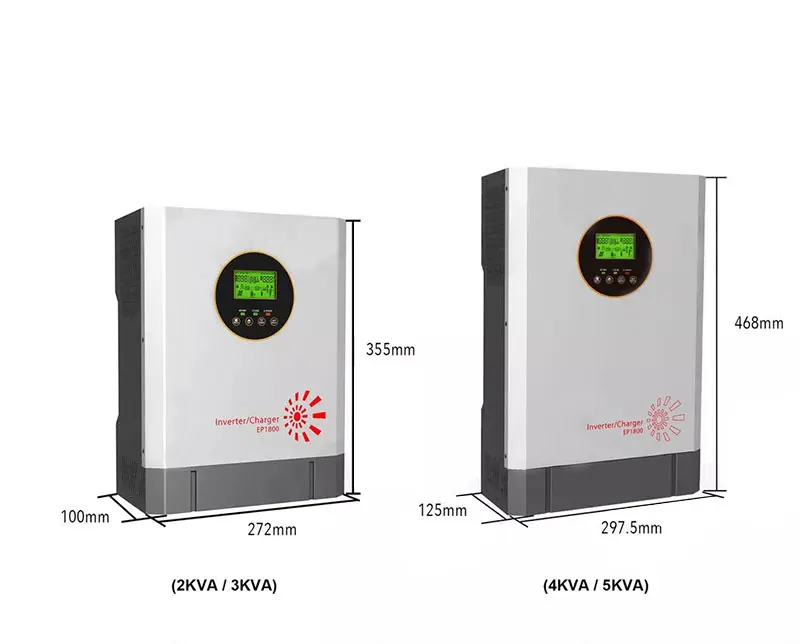

MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) (mm) | 240*316*95 | 272*355*100 | 297.5*468*125 | ||||||||
Net Weight (kg) | 5 | 6 | 6.8 | 11.5 | 12 | |||||||
Shipping Dimensions (W*H*D)(mm) | 410*300*178 | 356'272*135 | 488*295*141 | |||||||||
Shipping Weight(kg) | 6 | 7 | 8.0 | 10.0 | 10.5 | |||||||
OTHER | Operation Temper ature Range | -10℃ to 50℃ | ||||||||||
Storage temperature | -15℃~60℃ | |||||||||||
Audible Noise | 60dB MAX | |||||||||||
Display | LED+LCD | |||||||||||
Standard Warranty | 1 year | |||||||||||
Product Details

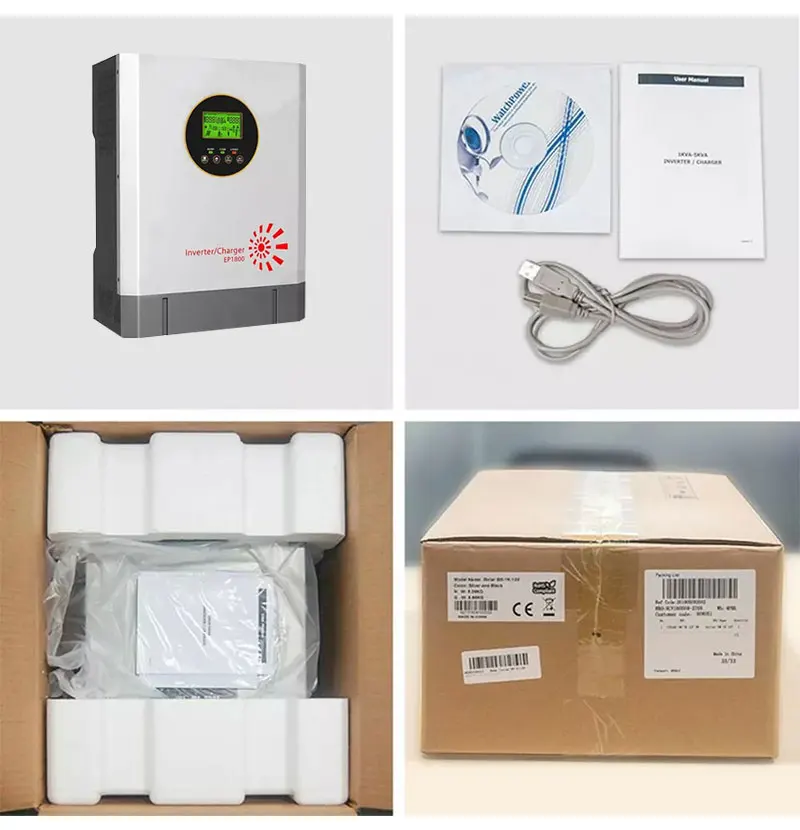

Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.

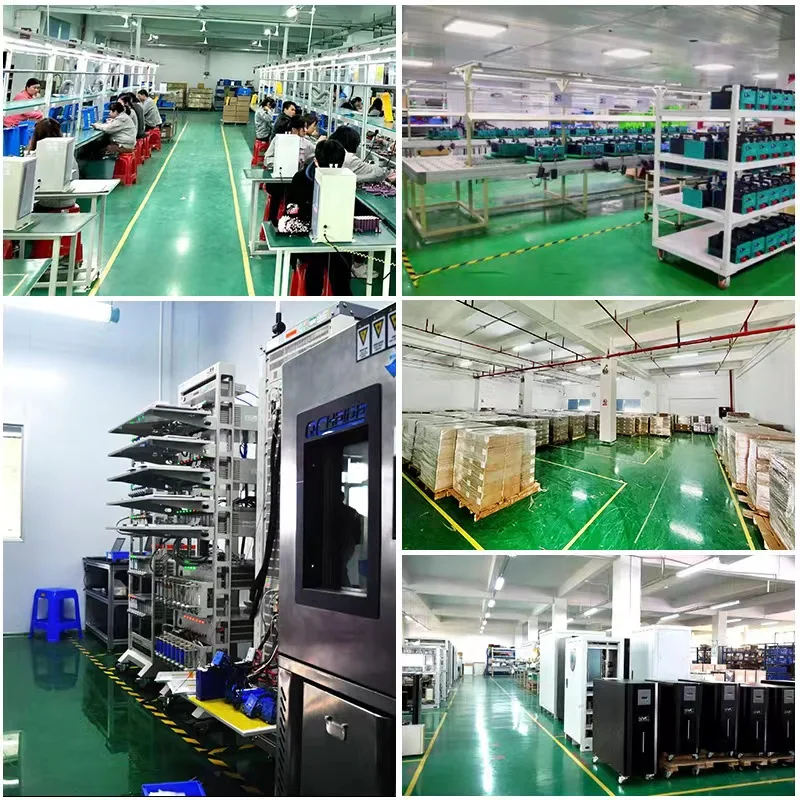

Company Profile
Exhibition
Package & Shipping
Contact us
FAQ
Q: Are you a factory or a trading company?
A: We are factory and trading company, over 6 years experience, welcome to visit.
Q: Is sample order acceptable?
A:Yes, for all batteries or battery packs, sample orders for testing quality is reasonable and acceptable.
Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from various big brands.And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment.
Q: What is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. The sample needs 5-10 days, mass production time needs 3-5weeks, it depends on order quantity.
Q: Is it OK to print my logo on the product?
A: Sure, please inform us formally before our production and confirm the design firstly based on our sample.
Q:How is your technical support?
A: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q: What should I do, if I don't have export experience or I have no cargo agent?
A: We have reliable forwarder agent and cooperating shipping company which can ship products to you by sea.
A: We are factory and trading company, over 6 years experience, welcome to visit.
Q: Is sample order acceptable?
A:Yes, for all batteries or battery packs, sample orders for testing quality is reasonable and acceptable.
Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from various big brands.And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment.
Q: What is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. The sample needs 5-10 days, mass production time needs 3-5weeks, it depends on order quantity.
Q: Is it OK to print my logo on the product?
A: Sure, please inform us formally before our production and confirm the design firstly based on our sample.
Q:How is your technical support?
A: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q: What should I do, if I don't have export experience or I have no cargo agent?
A: We have reliable forwarder agent and cooperating shipping company which can ship products to you by sea.
