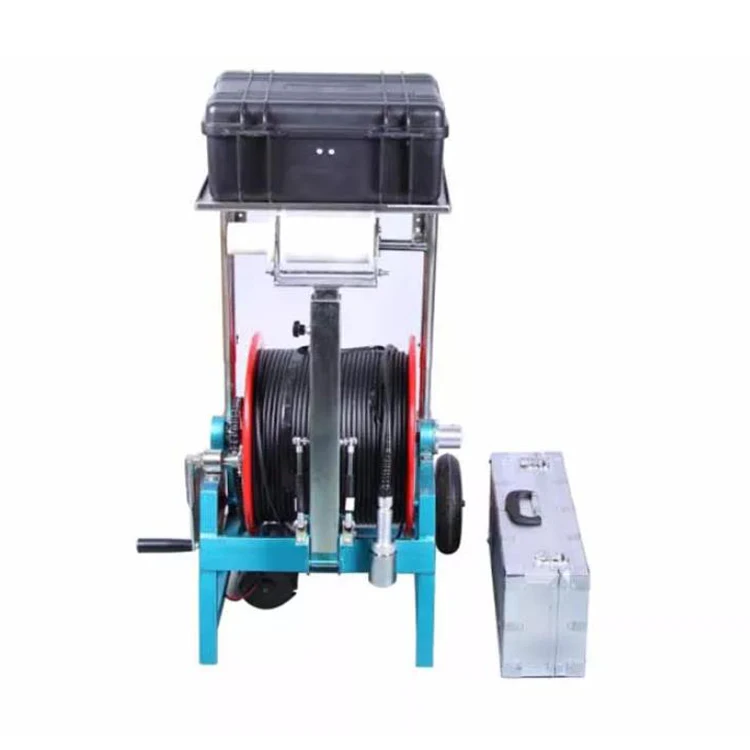

New 500m Down View Portable Underground Water Borehole Inspection Camera
- Category: >>>
- Supplier: Yantai Bede Machinery Co. Ltd.
Share on (1600619644908):
Product Overview
Description
Product Overview
New 500m Down View Portable Underground Water Borehole Inspection Camera

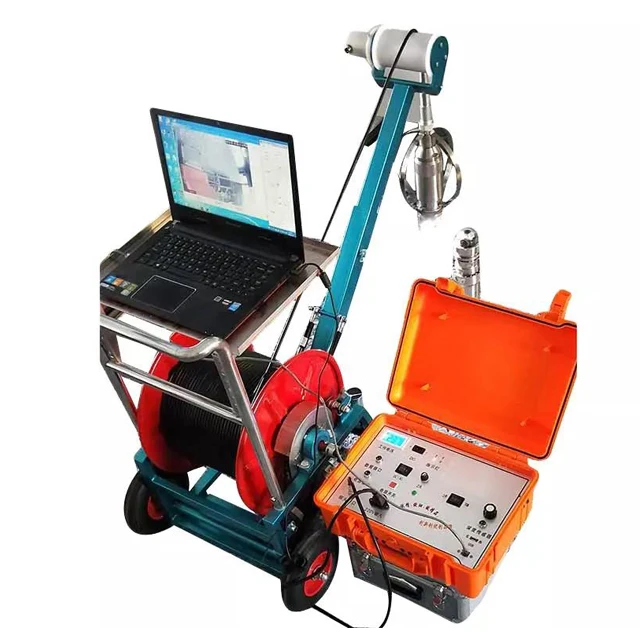

100-800m 360 degree pan tilt Downhole Survey Borehole Camera Downhole Waterwell Inspection Camera with Automatic cable is mainly used in underwater, borehole, water well drilling hole engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments.
FEATURES AT A GLANCE
360 degree pan tilt Downhole Survey Borehole Camera Downhole Waterwell Inspection Camera with Automatic cable can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.
New 500m Down View Portable Underground Water Borehole Inspection Camera
I. Physical button control system:
* ABS engineering plastic master control box / aviation aluminum alloy control box
* Voltage input: 220V / 12V
* Depth interface: connection depth sensor
* probe interface: connect probe, transmit video and power
* data interface: can write the well number, can calibrate the depth
* video system: ultra HD SD card video recorder, video, photo, direct back function, 16G SD card video system, maximum support 32G
* depth zero: please depth to zero before logging, in order to count accurately
* Depth display: depth real-time display to the control box display,
* display: 7 inch / 10 inch / 12 inch bright LED display,
* control box panel button operation of the direction and Angle of the downhole camera, rotation and camera light source brightness and focus length adjustment, and the rise and speed of the cable and camera probe
* 12v Battery power supply function, (available within 600 m of well depth
Product Paramenters
Main Features:
* Ø75/90mm PT camera head, pan 360 degree rotation, tilt 180degree rotation, front LED & focus adjustable
* Dia.90mm stainless steel CCD camera, 720TVL
* IP68 waterproof ,up to 200 Bars(20 MPA)
* 100-800m polypropylene auto cable with electrical and manual winch
* The cable will be arranged in order automatically when the winch take it back as the winch is with auto cable function
* Electric winch winding speed adjustable
* Depth counter, the depth shows on the display, the depth accuracy: 0.05m and it supports depth reset
* 7inch LCD display (12inch optional)
* DVR control box with video recording function
* 16G SD card(max 32G) to storage video
* Power supply: AC220V
* Ø75/90mm PT camera head, pan 360 degree rotation, tilt 180degree rotation, front LED & focus adjustable
* Dia.90mm stainless steel CCD camera, 720TVL
* IP68 waterproof ,up to 200 Bars(20 MPA)
* 100-800m polypropylene auto cable with electrical and manual winch
* The cable will be arranged in order automatically when the winch take it back as the winch is with auto cable function
* Electric winch winding speed adjustable
* Depth counter, the depth shows on the display, the depth accuracy: 0.05m and it supports depth reset
* 7inch LCD display (12inch optional)
* DVR control box with video recording function
* 16G SD card(max 32G) to storage video
* Power supply: AC220V
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS

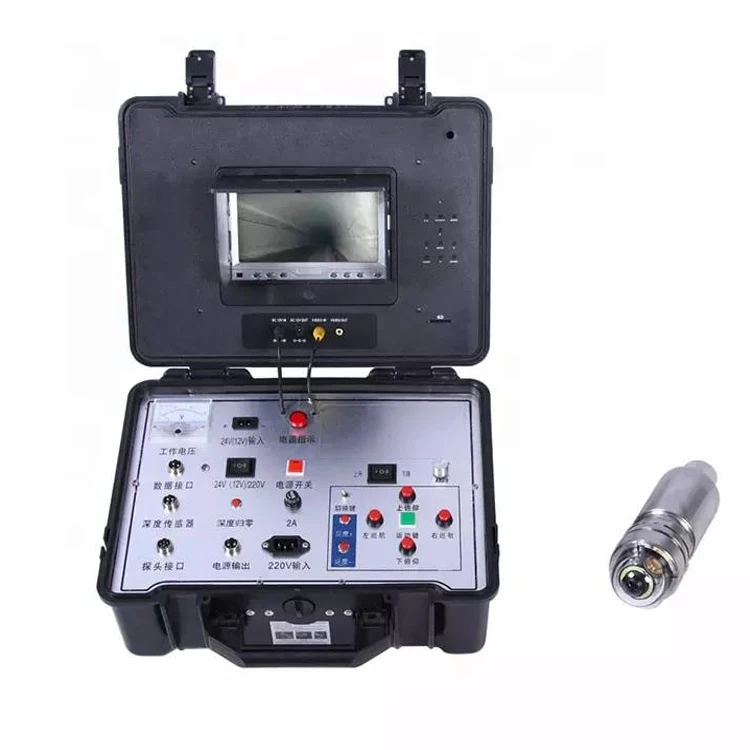

Control box | * ABS main control box control system * Voltage input: 220V * Depth interface: connect depth sensor * Probe interface: connect probe, transmit video and power * Data interface: can write the well number by itself, and can calibrate the depth by itself * Recording system: Ultra HD SD card recorder 16G SD card recording system, support up to 32G * Depth to zero: Please reset the depth to zero before logging, so that the count is accurate * Display: 7-inch high-brightness LED display with sunshade, visible outdoors * Control box panel buttons operate the direction and angle of the downhole camera, adjust the brightness and focus of the camera's light source, and raise and lower the speed of the cable and camera probe |

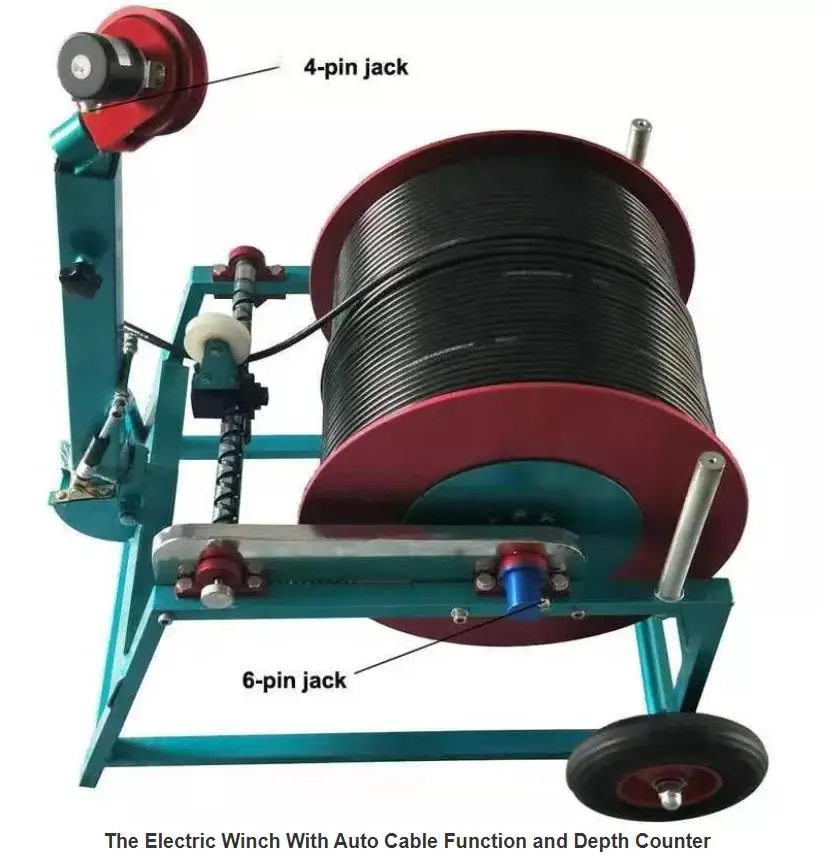

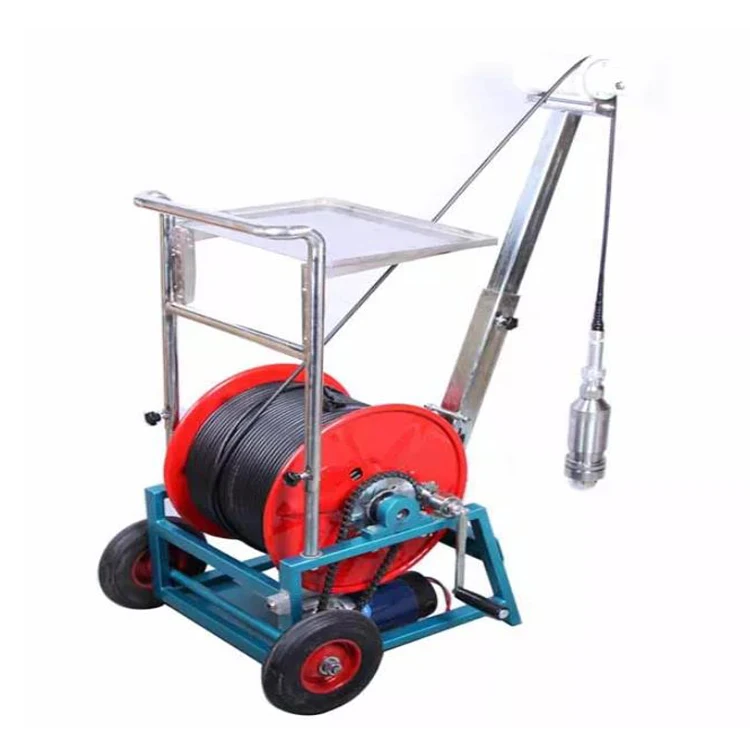

electric winch | * Electric & Manual winch * Winding speed:0~20m/min * Cable speed adjustable * Φ7.8mm polypropylene cable (100m-700m optional, auto cable function, the cable will be arranged in order automatically when the winch take it back) * Power supply: AC220V * Master box tray: stainless steel tray, removable and easy to transport * Pulley: Pulley is with depth sensor, the depth sensor can be used when it is connected with the main control box * Pulley support rods: retractable pulley rod, removable, the winch is equipped a hydraulic rod to prevent the strut shaking when working |

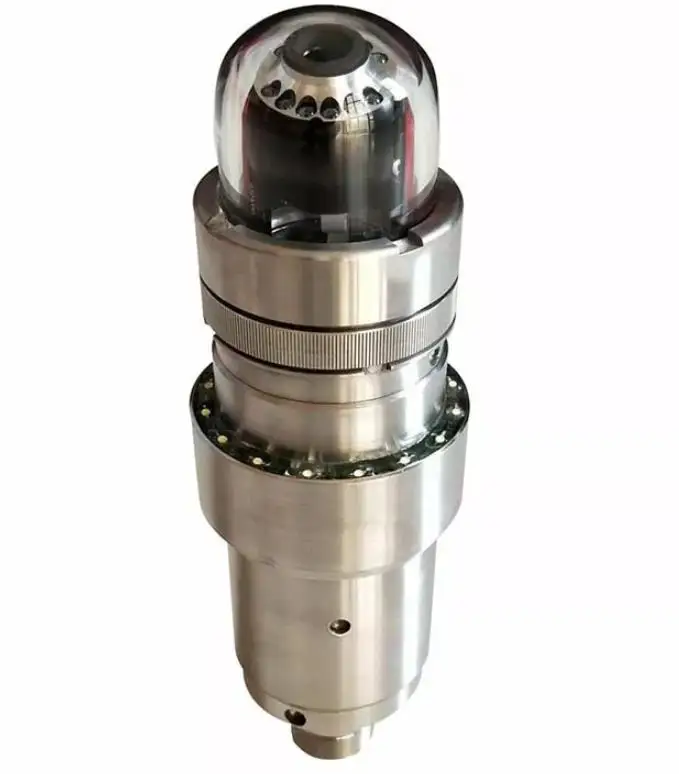

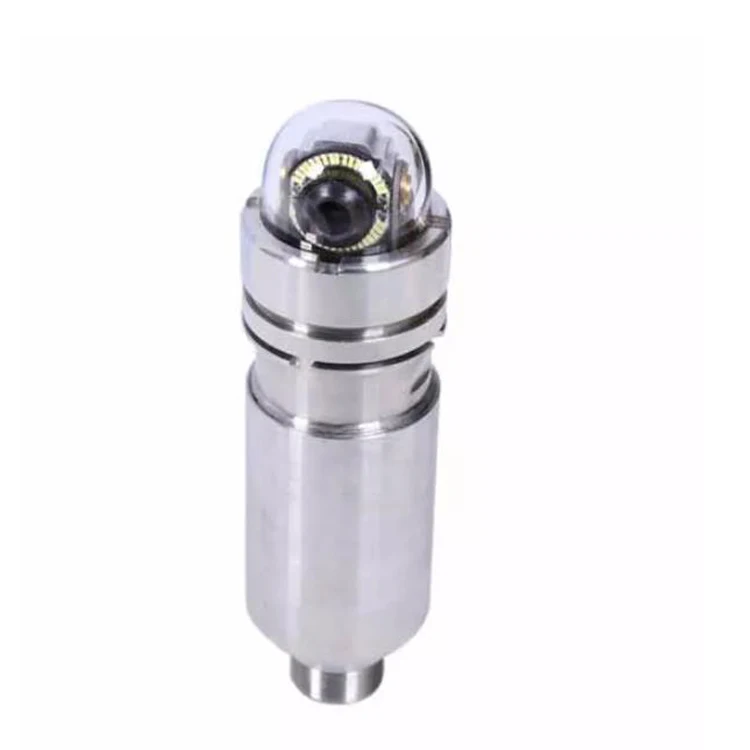

camera | * Camera size: Φ90mm Length: 30cm-34cm * Camera material: stainless steel housing. * Camera window: Explosion-proof optical acrylic glass or explosion-proof glass window * Camera pixel: CCD camera, 700 line HD low illumination * Lens angle: 360 ° circumference, infinite rotation clockwise and counterclockwise, tilt 180 °, dimming and focusing * Camera light: φ90mm camera probe, 12 high-beam lamp beads in front, 16 high-beam LED lamp beads at the rear * Probe pressure: 20MPA, maximum pressure depth up to 2000 meters |
Display | * 7 inch LCD monitor: * Aspect ratio: 4:3 * Contrast: 450:1 * Brightness: 800cd/m2 * Resolution: 1024 × 768 * Power DC 12V * Color system: PAL/NTSC/SECAM |
Other accessories | A copy of the manual a set of connecting cables, 5 sealing rings, a set of wearing parts |
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK

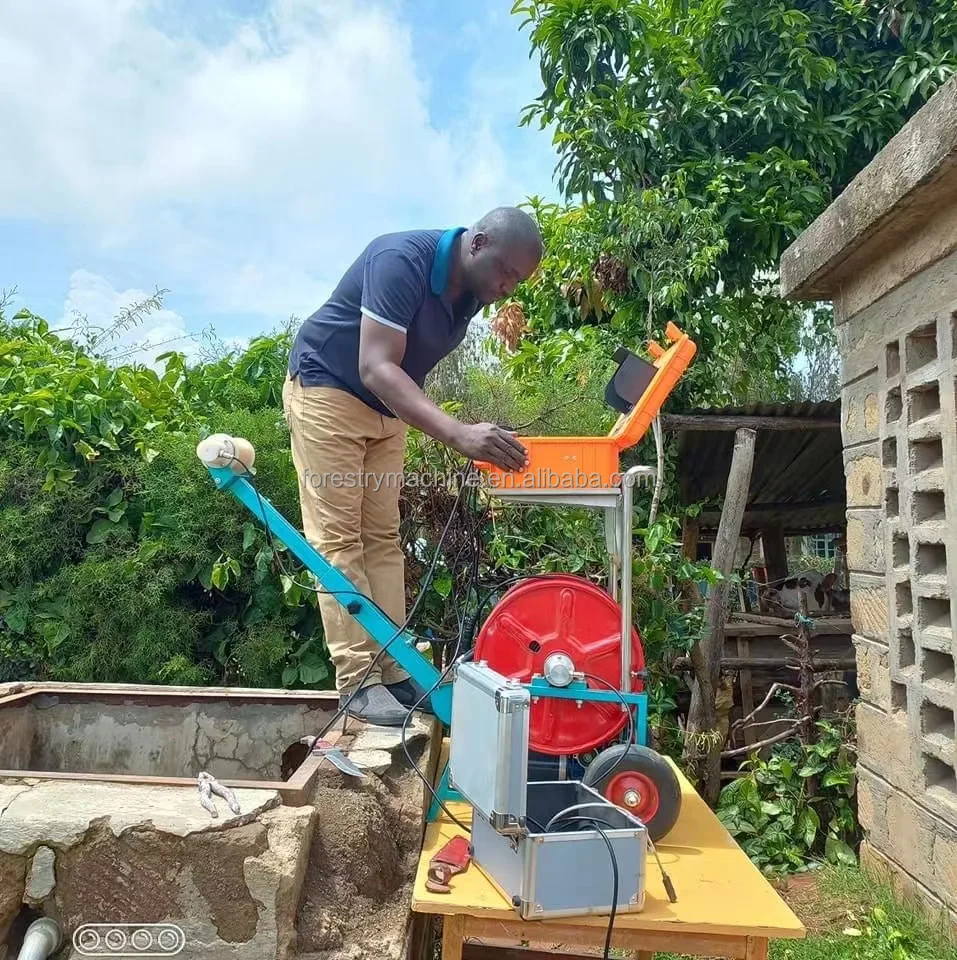

Successful Project
