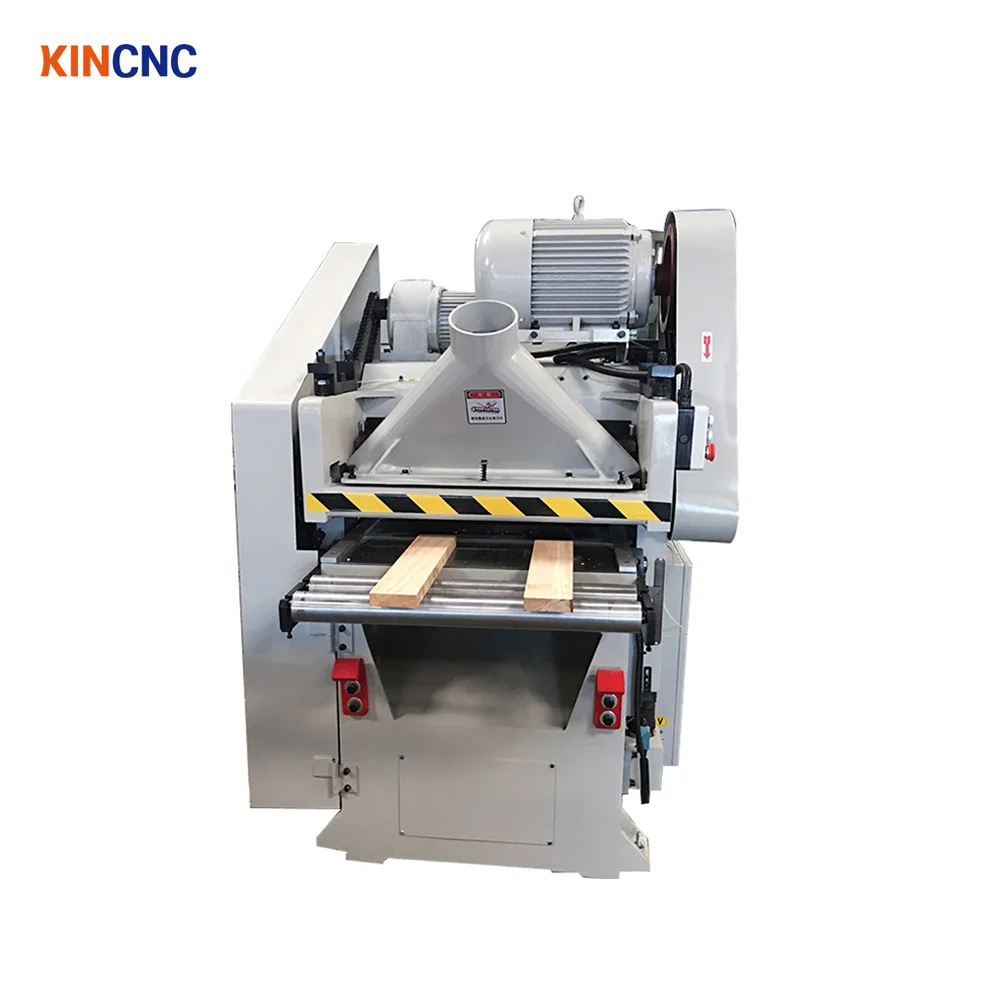

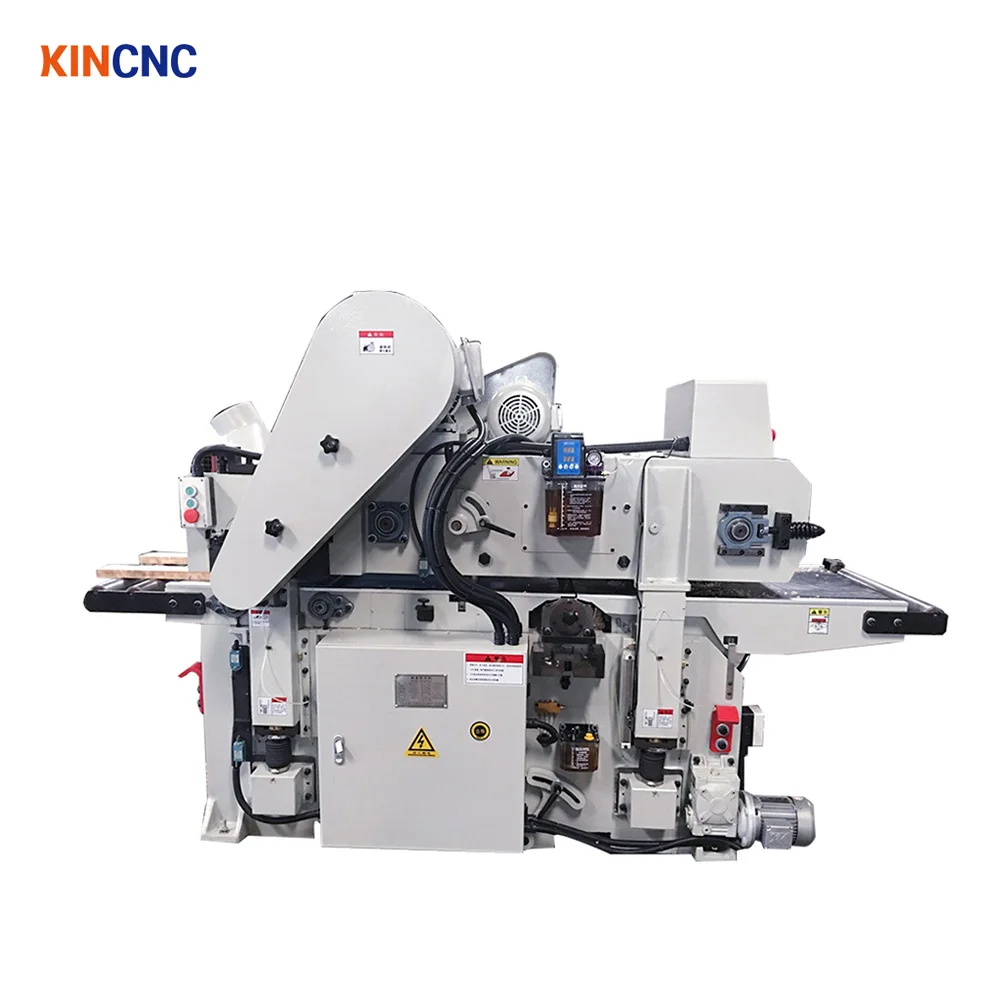

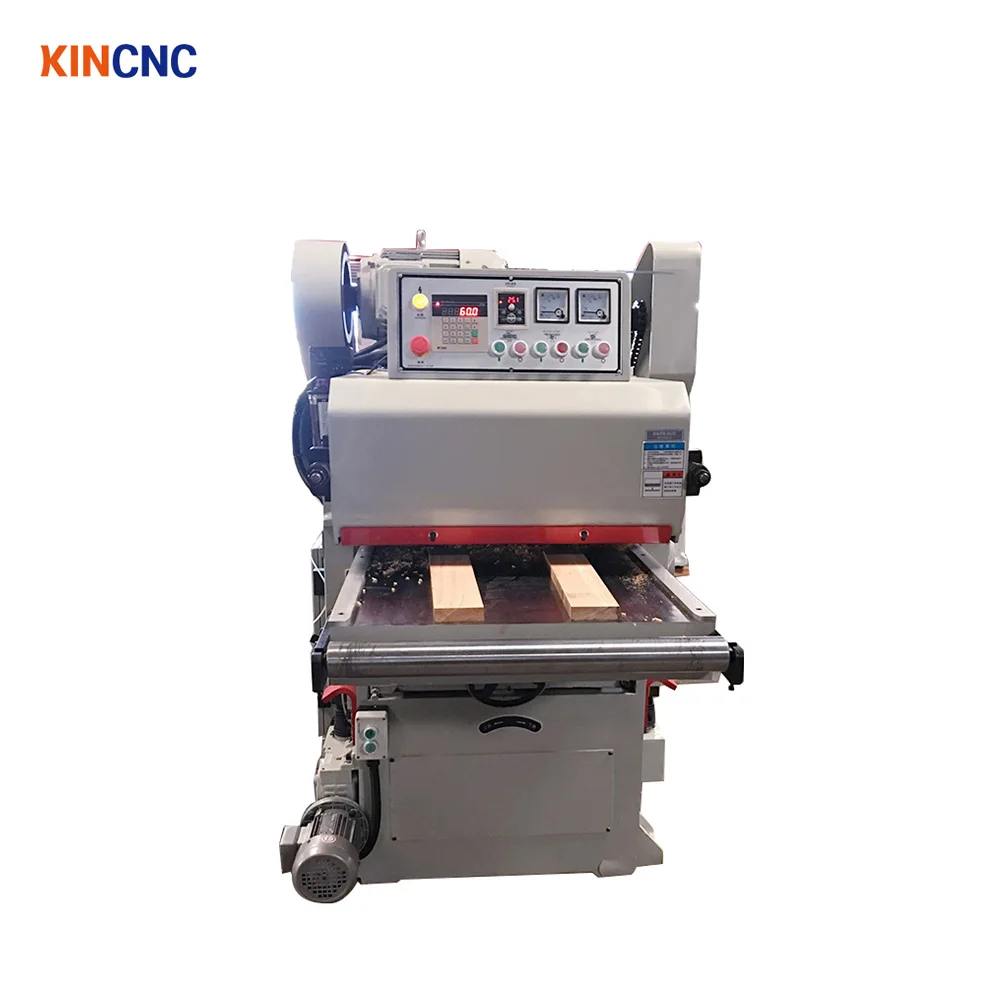

KINCNC High Quality Multifunction Double side Planer Woodworking Combined Surface Planer Thicknesser Double Side Planer
- Category: >>>
- Supplier: Qingdao Kincnc Technology Co. Ltd.
Share on (1600619654851):
Product Overview
Description
Products Description
Model | MB206F |
Max. working width | 25-610mm |
Max. working thickness | 10-150mm |
Min. working length | 260mm |
Max. cutting depth (upper spindle) | 4mm |
Max. cutting depth (bottom spindle) | 4mm |
Cutting Tool Spindle diameter | 100mm |
Cutting Spindle speed | 4800r/min |
Feeding speed | 7-16m/min |
Upper spindle motor power | 11kw(15HP) |
Bottom spindle motor | 7.5kw(7.5HP) |
Feeding motor power | 2.2kw(Stepless Speedl) |
Lifting motor power | 0.37kw |
Total motor power | 21.07kw |
Dust Exit Diameter | 150mm |
Overall size | 2500x1200x1750mm |
Packing size | 2600x1300x1850mm |
Net weight | 3500kg |
Applications:
Processing of single-side, double sides for sets of furniture, all kinds of woodiness material and laminated wood.
Features:
1.The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm, so the processing precision can be enhanced with powerful feeding.
2.With driven feeding roller structure, ensuring a stronger and smoother feeding. Also it is equipped with overloading protection mechanism.
3.The main parts such as machine frame and workable etc. are made from aged Cast iron and precisely machined, having the features of high accuracy and good vibration absorption.
4.Equipped with pressure plate which guarantees short workpiece can be smoothly machined, increasing production output.
5.Special speeding adjustment device combining with power torque worm reducer which enables it to select feeding speed according to actual requirement.

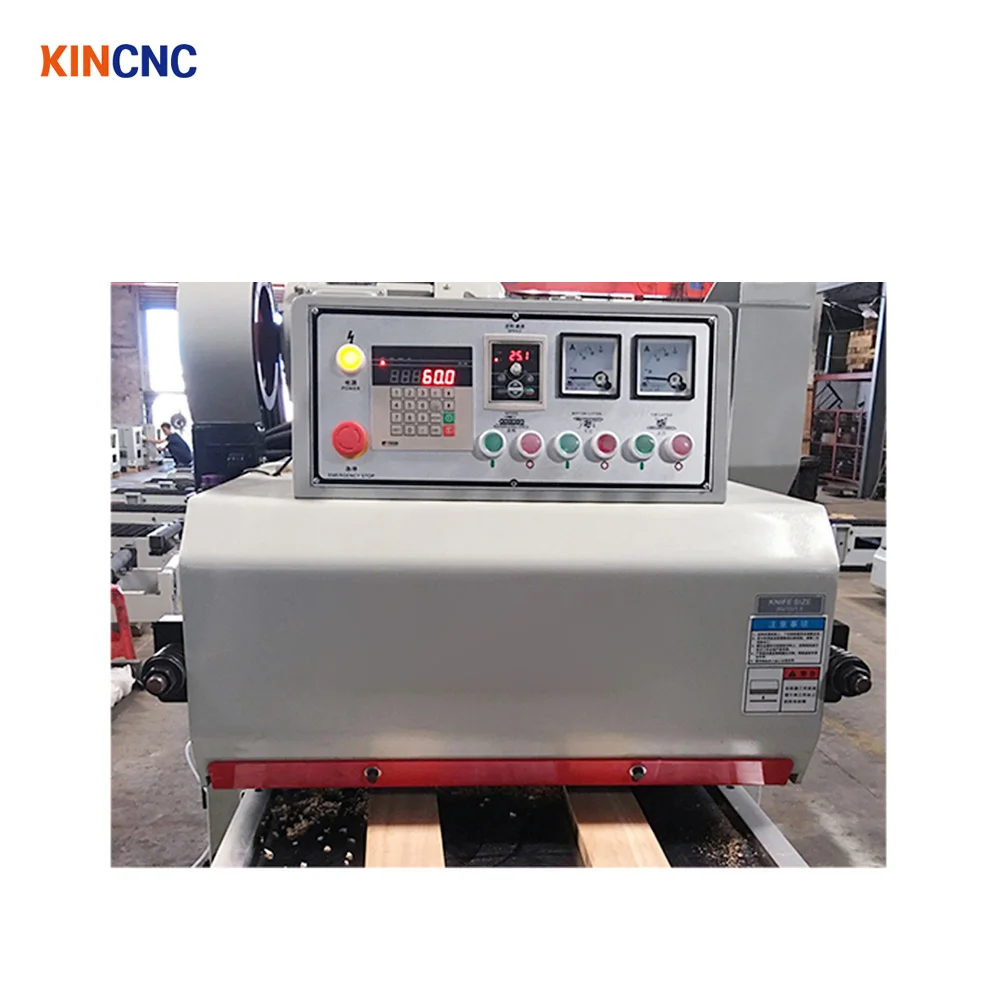

6.Equipped with imported digital display device. Operation is convenient and the working accuracy is up to 0.01mm. Also feeding speed can be shown.
Processing of single-side, double sides for sets of furniture, all kinds of woodiness material and laminated wood.
Features:
1.The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm, so the processing precision can be enhanced with powerful feeding.
2.With driven feeding roller structure, ensuring a stronger and smoother feeding. Also it is equipped with overloading protection mechanism.
3.The main parts such as machine frame and workable etc. are made from aged Cast iron and precisely machined, having the features of high accuracy and good vibration absorption.
4.Equipped with pressure plate which guarantees short workpiece can be smoothly machined, increasing production output.
5.Special speeding adjustment device combining with power torque worm reducer which enables it to select feeding speed according to actual requirement.
6.Equipped with imported digital display device. Operation is convenient and the working accuracy is up to 0.01mm. Also feeding speed can be shown.

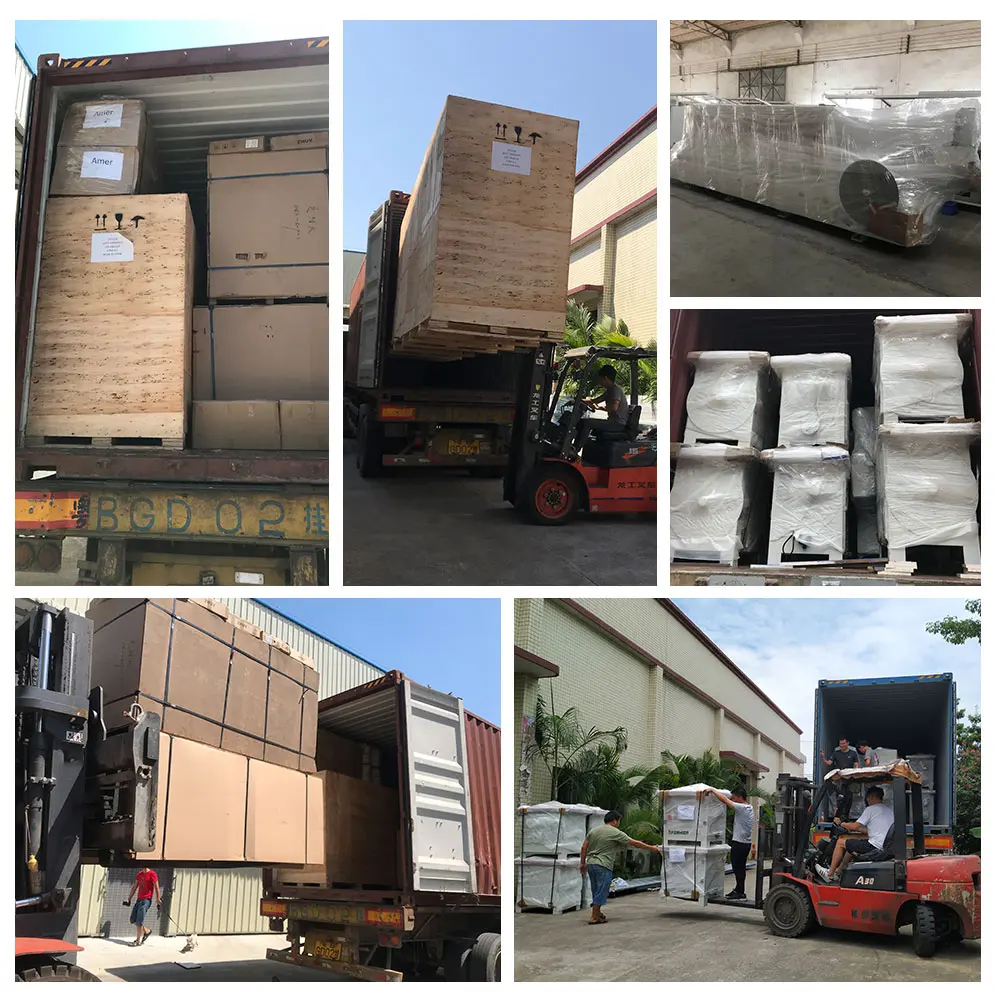

Product packaging
Related Products

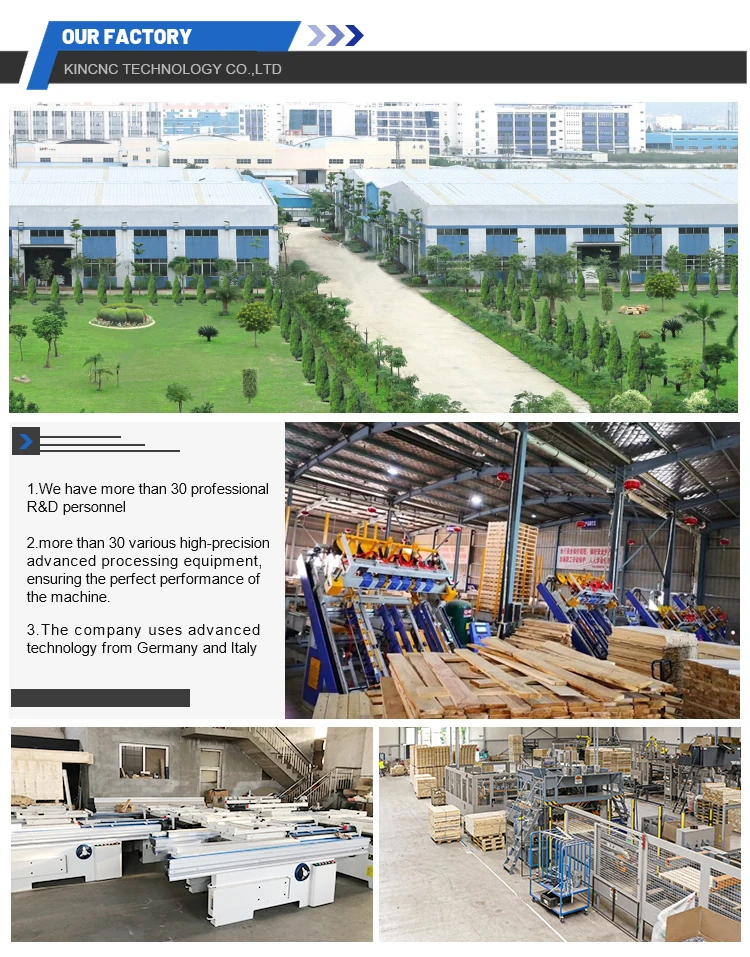

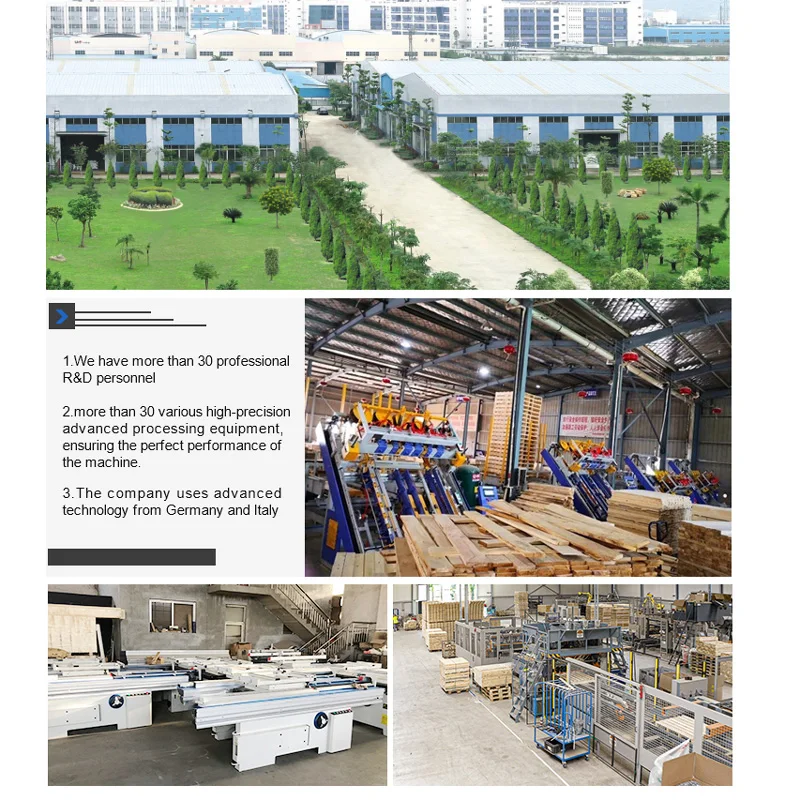

Company Profile
Qingdao KINCNC Technology Co., Ltd.
KINCNC is one leading manufacturing and exporting company of woodworking machine in China. We are committed to provide one-stop service to our customers all over the world.
Our machines are widely used in the woodworking industry with the following advantages:
20,000 m² Professional Factory
200+ Production Equipment
100+ Factory Employees
20+ QC Team
Cooperation With Enterprises From 130+ Countries
Strict quality control system is our core competitiveness. KINCNC uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
As a China famous brand, our products also exports around the world including Southeast Asia, Middle East, Africa, European, U.S.A. and so on. Our company managing idea is improving the high quality products. We are searching for the distributors around the world. Hope we can have the honor to cooperate with you.
Our machines are widely used in the woodworking industry with the following advantages:
20,000 m² Professional Factory
200+ Production Equipment
100+ Factory Employees
20+ QC Team
Cooperation With Enterprises From 130+ Countries
Strict quality control system is our core competitiveness. KINCNC uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
As a China famous brand, our products also exports around the world including Southeast Asia, Middle East, Africa, European, U.S.A. and so on. Our company managing idea is improving the high quality products. We are searching for the distributors around the world. Hope we can have the honor to cooperate with you.
FAQ
Q: This is the first time I use this kind of machine, is it easy operate?
A: Our machine is installed and tested well before shipment. There are guide video that show how to use machine, the English instruction book send to you with machines. If there is still have any question, we will provide free professional guide for you .
Q: If we buy machines from you, how about after-sale?
A: We have 24 hours on line after sale, and provide you 13 months warranty time. If there has any problem with your machine in the warranty time, we can provide free after sale.
Q: How can we get replacement parts?
A: Most of the spare parts are ready in stock. We will send it directly from our warehouse, If you have any need . You also can buy spare parts from local market, our spare parts are internationally accepted.
Q: Can you provide custom service?
A: Sure. Our machines can be customized according to buyers’ requirements. If you have any required, welcome you contact us, our engineer will help you solve it.
Q: What other machine do you offer?
A: We provide one-stop shop service of the machines for the buyers. Other kinds of machines, like sawing machine, wood pallet machine, wood block cutter, sanding machine etc., can be provided as well. If you have other need, please contact us on line, we will reply you ASAP.
Q: How solve the shipment ?
A: We can help you solve shipment, we have much experience on packing and shipping,If you have no much time deal with it, we can help you solve them. You can get machines from local port or place.
A: Our machine is installed and tested well before shipment. There are guide video that show how to use machine, the English instruction book send to you with machines. If there is still have any question, we will provide free professional guide for you .
Q: If we buy machines from you, how about after-sale?
A: We have 24 hours on line after sale, and provide you 13 months warranty time. If there has any problem with your machine in the warranty time, we can provide free after sale.
Q: How can we get replacement parts?
A: Most of the spare parts are ready in stock. We will send it directly from our warehouse, If you have any need . You also can buy spare parts from local market, our spare parts are internationally accepted.
Q: Can you provide custom service?
A: Sure. Our machines can be customized according to buyers’ requirements. If you have any required, welcome you contact us, our engineer will help you solve it.
Q: What other machine do you offer?
A: We provide one-stop shop service of the machines for the buyers. Other kinds of machines, like sawing machine, wood pallet machine, wood block cutter, sanding machine etc., can be provided as well. If you have other need, please contact us on line, we will reply you ASAP.
Q: How solve the shipment ?
A: We can help you solve shipment, we have much experience on packing and shipping,If you have no much time deal with it, we can help you solve them. You can get machines from local port or place.
