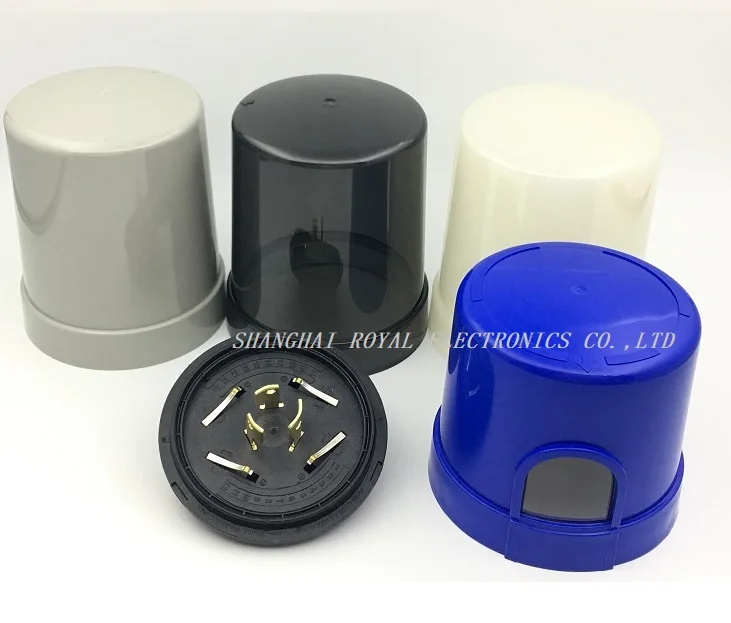

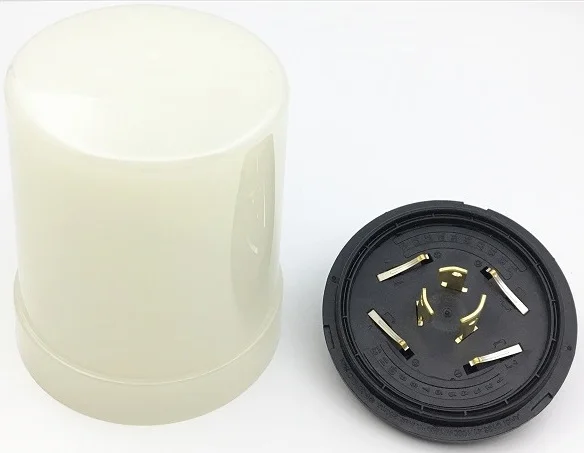

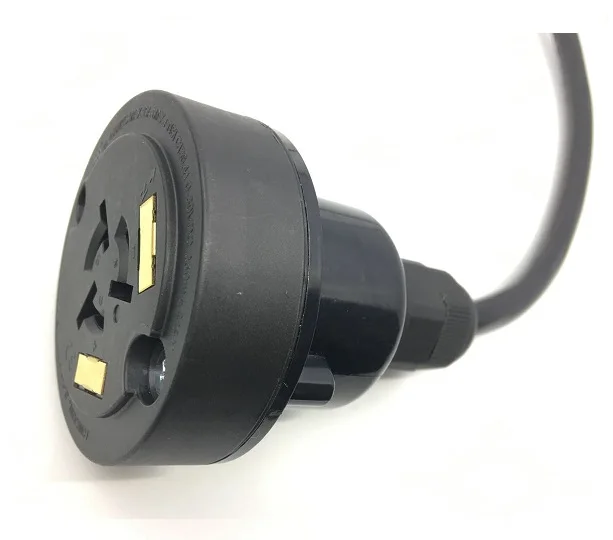

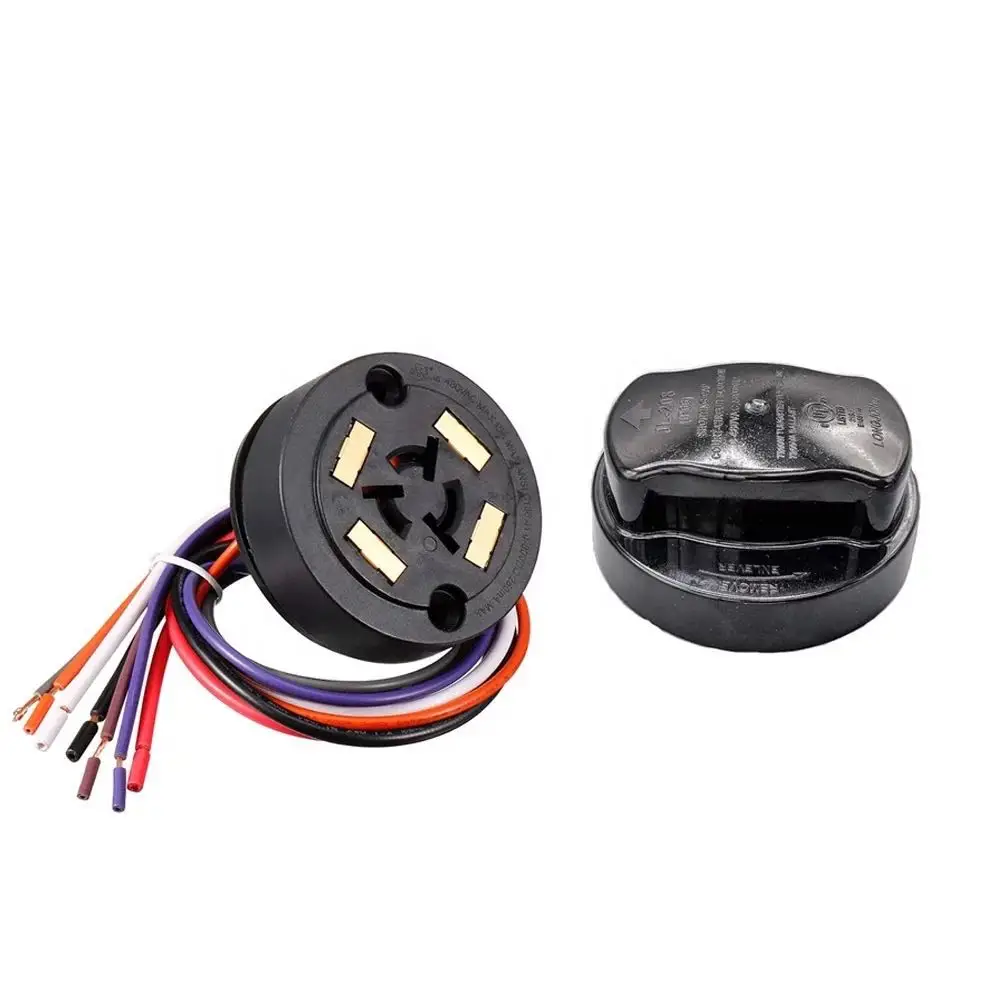

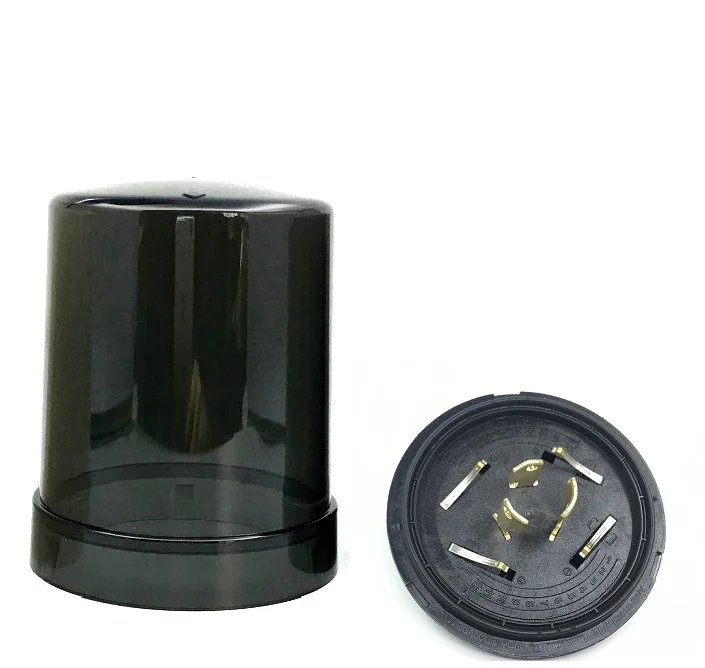

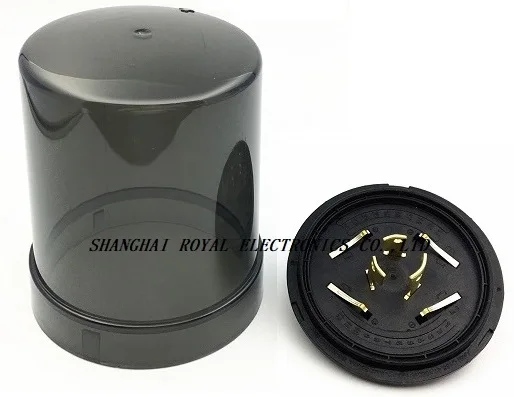

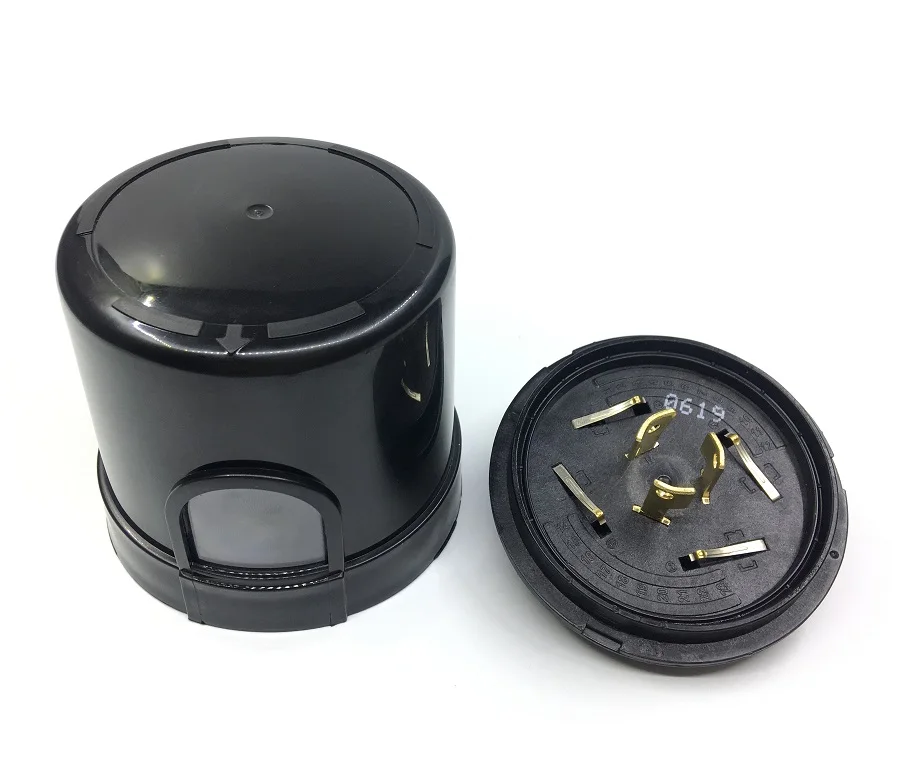

ANSI C136.41 5PIN 7PIN ANSIC136.41 nema socket Roadway Lighting Photocontrols base cover
- Category: >>>
- Supplier: Shanghai Garrein Industry Co. Ltd.
Share on (1600619726443):
Product Overview
Description
bai
You can also contact us directly as below :
Ph one : +86-15021834976
Sky pe : missbai5
Ema il : bai(at)firstlamp.com
Basic Specification:
Product Description and Details:
Materials of housing has UL approved, suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
| Loading Capacity | 15Amp Max. |
|---|---|
| Ambient Temperature | -40ºC ~ +80ºC |
| Holding Cover | Polycarbonate |
| Rated Voltage | 480VAC Max. |
| IP | IP65 |
| Style | Modern |
| Material | Polycarbonate |

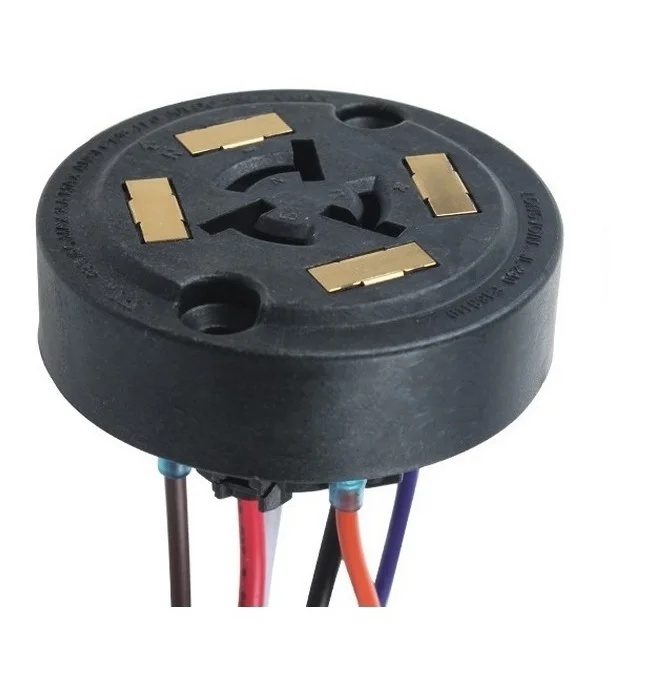

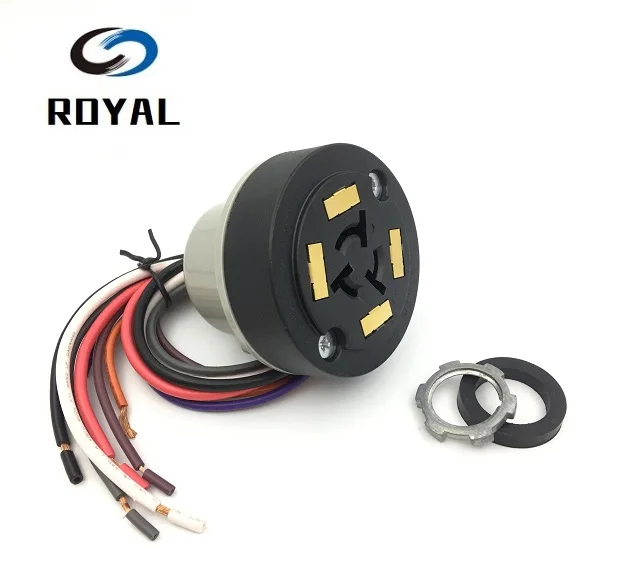

| Item No. | JL-240X/JL-240Y/JL-240Z14 |
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Power Loading | AWG#14: 15Amp max. / AWG#16: 10Amp max. |
| Optional Signal Loading | AWG#18: 30VDC, 0.25Amp max. |
| Ambient Temperature | -40ºC ~ +70ºC |
| Overall Dimensions (mm) | 65Dia.x 40 65Dia.x 67 |
| Accessory: Rear Cover | ° R option ° ° R option |
| Spring Holder | - ° - |
| Wall mount Back Cover | - - ° |
| Lock Nut | - - ° |
| Wall Mount Bracket | - - ° 30x(70+130) |
| Leads | 6" Min. (See Ordering Information) |
Installation:

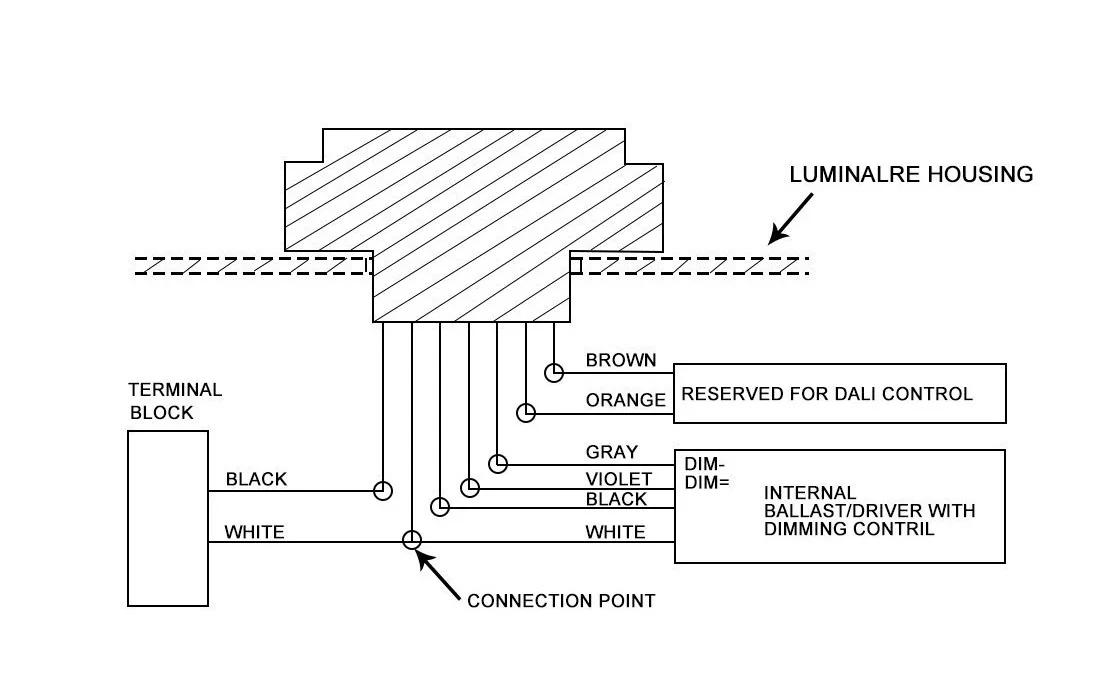

Disconnect power; wire the receptacle according
to the diagram in right hand. An arrow indicating NORTH on the top of the receptacle is used to
assist correct direction. Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Adjust the receptacle position if necessary.
JL-240Y series supports tool-free rotation.
JL-240Z series supports Wall-mount and rotation.
