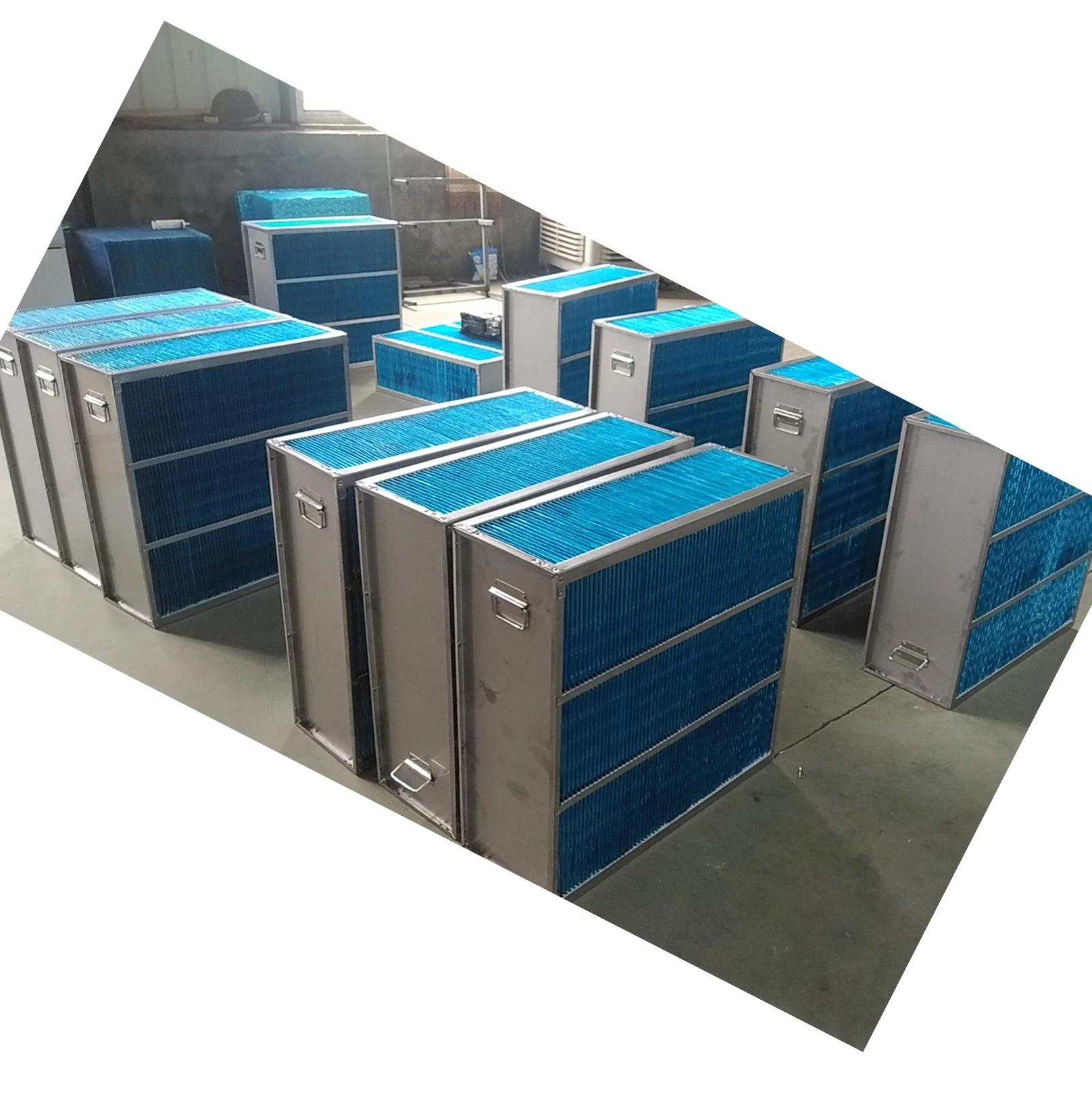

Countercurrent air to air heat exchanger core protection level IP55 customized according to customer requirements
- Category: >>>
- Supplier: Tianjin Yanxiang Electronic Science And Technology Co. Ltd.
Share on (1600619753576):
Product Overview
Description

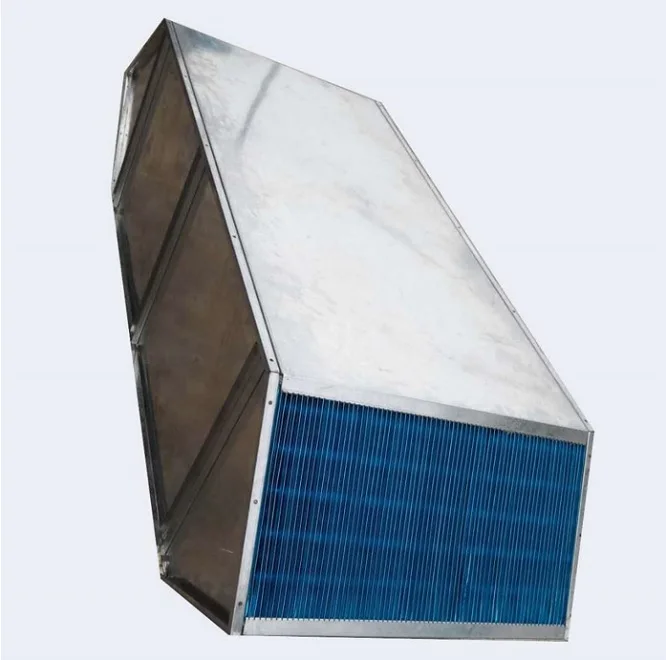

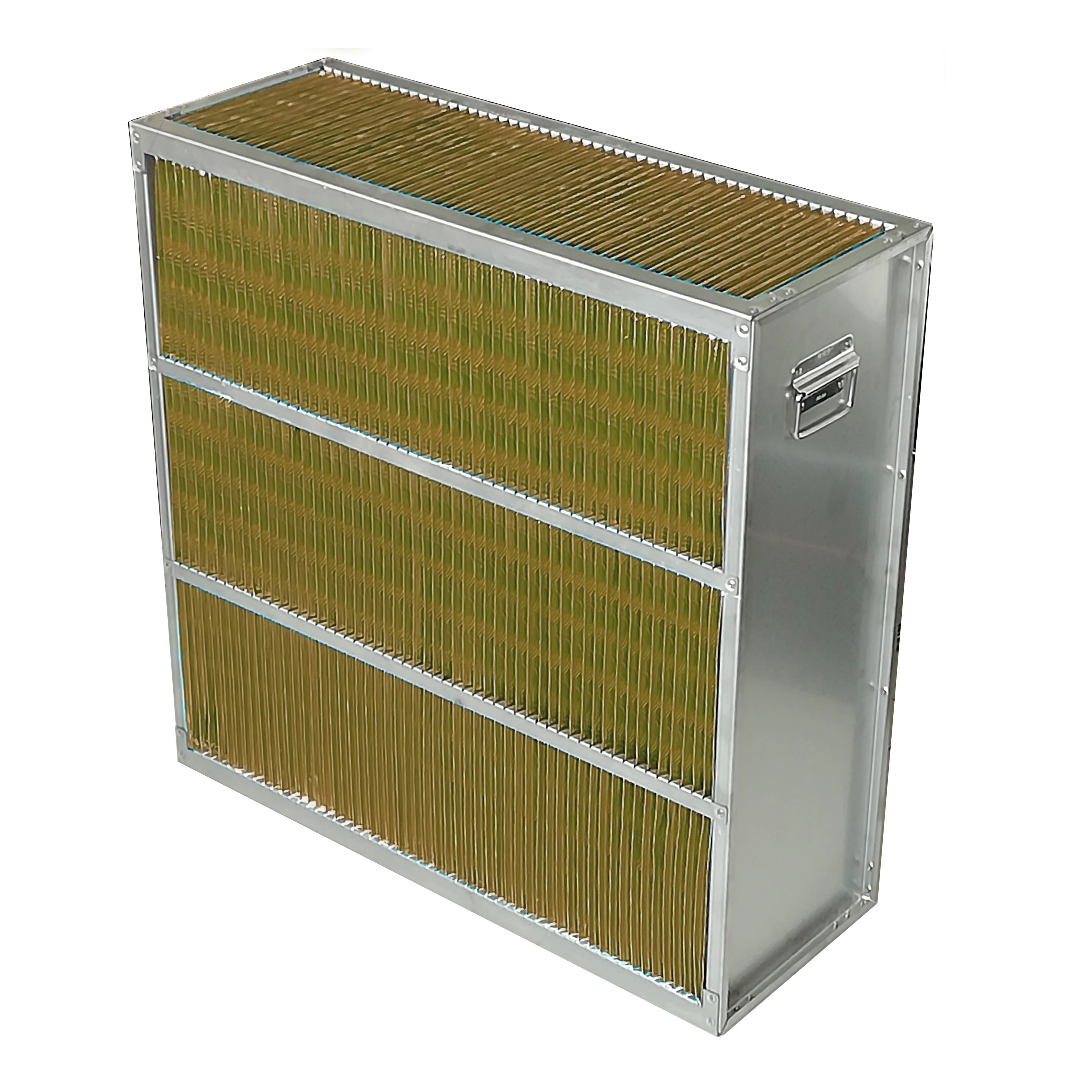

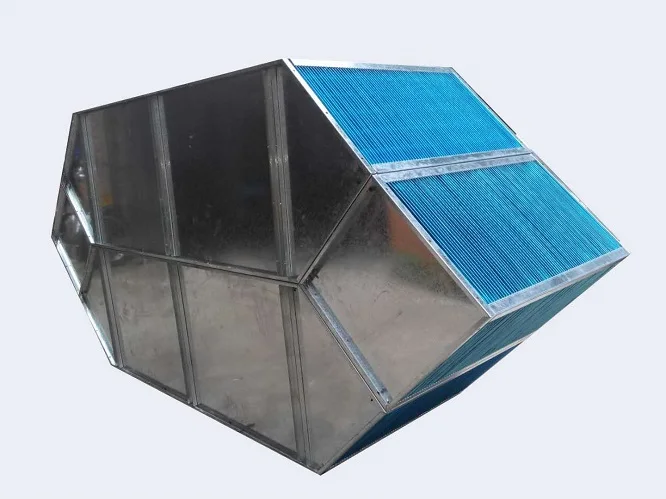

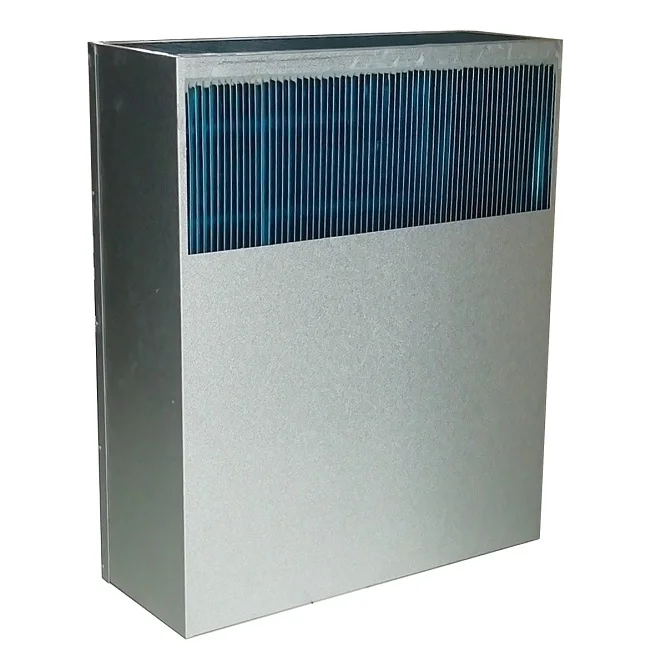

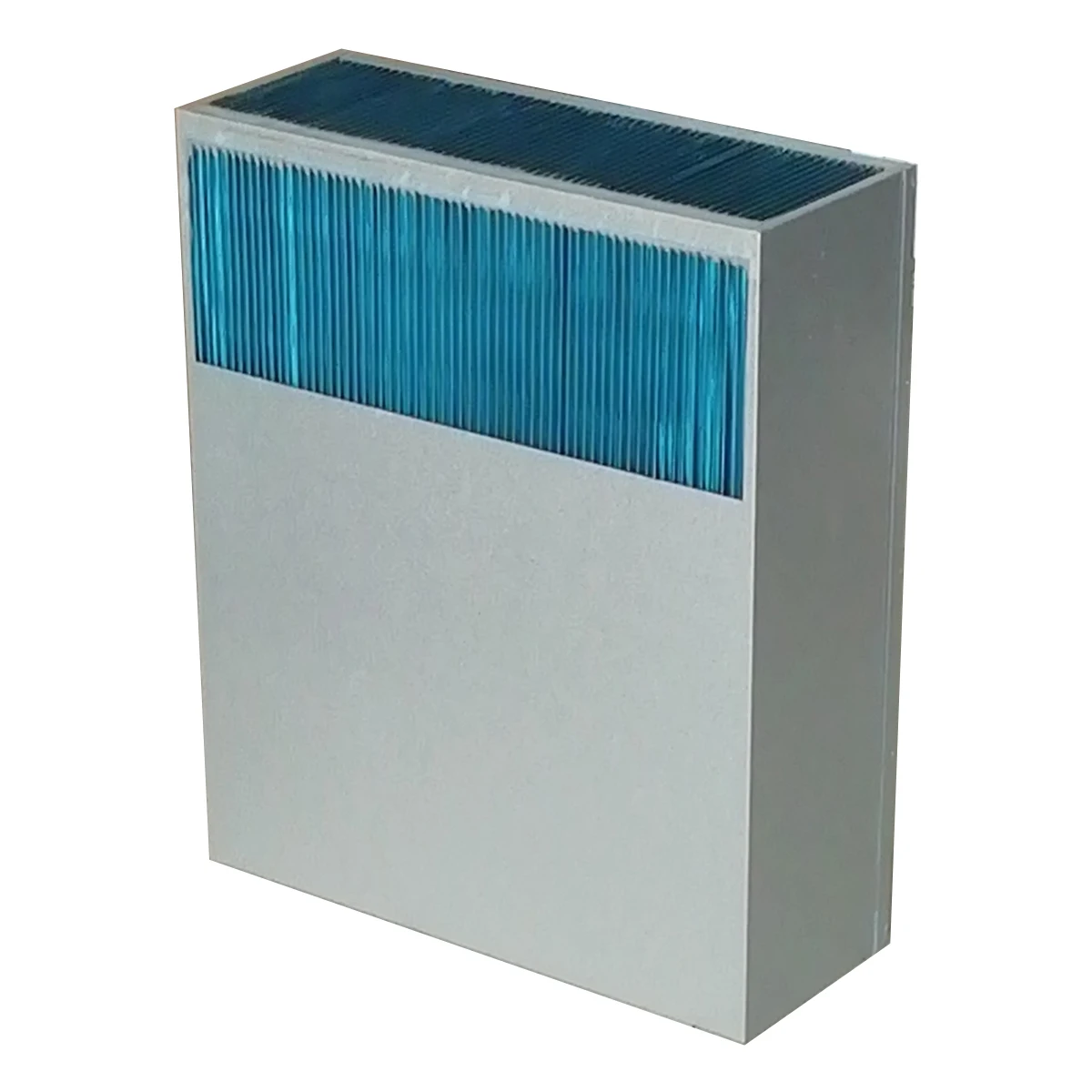

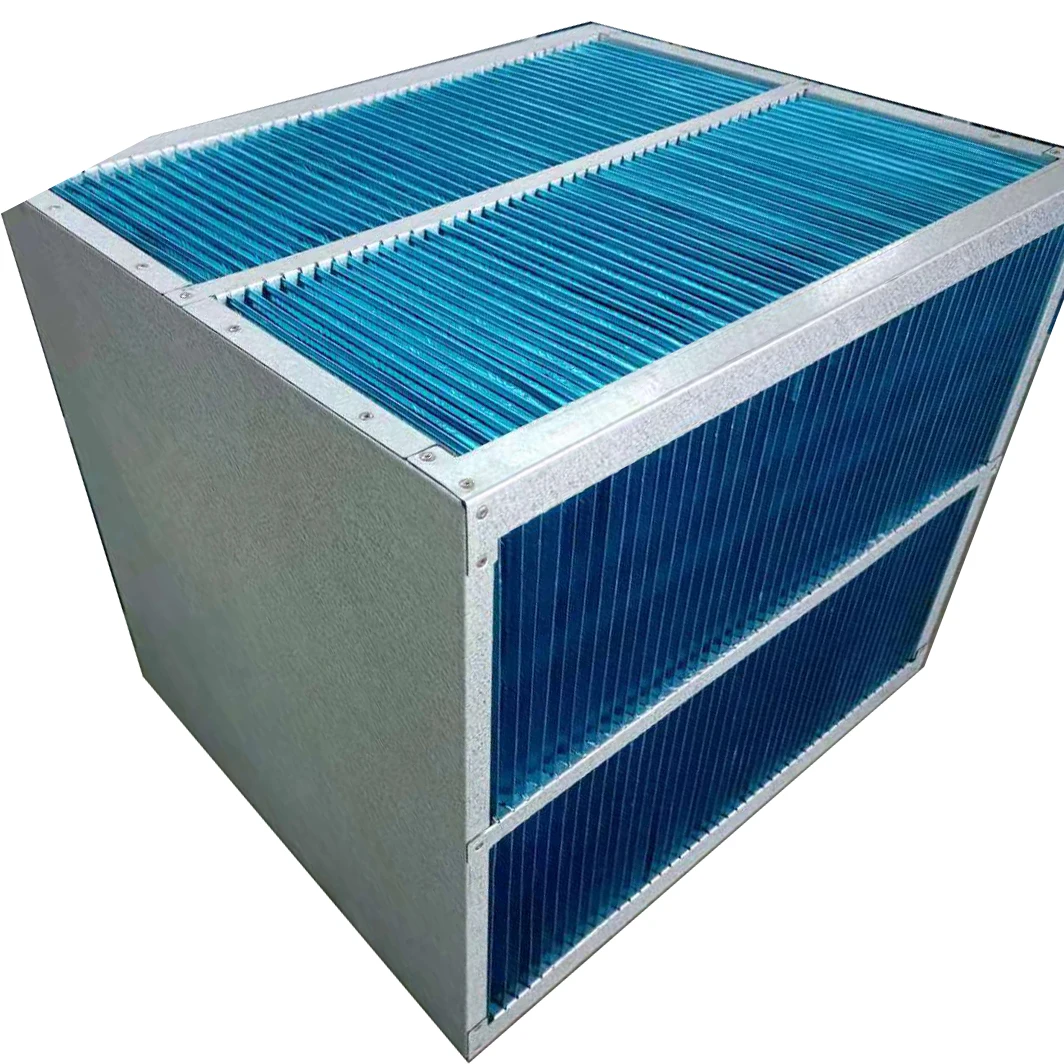

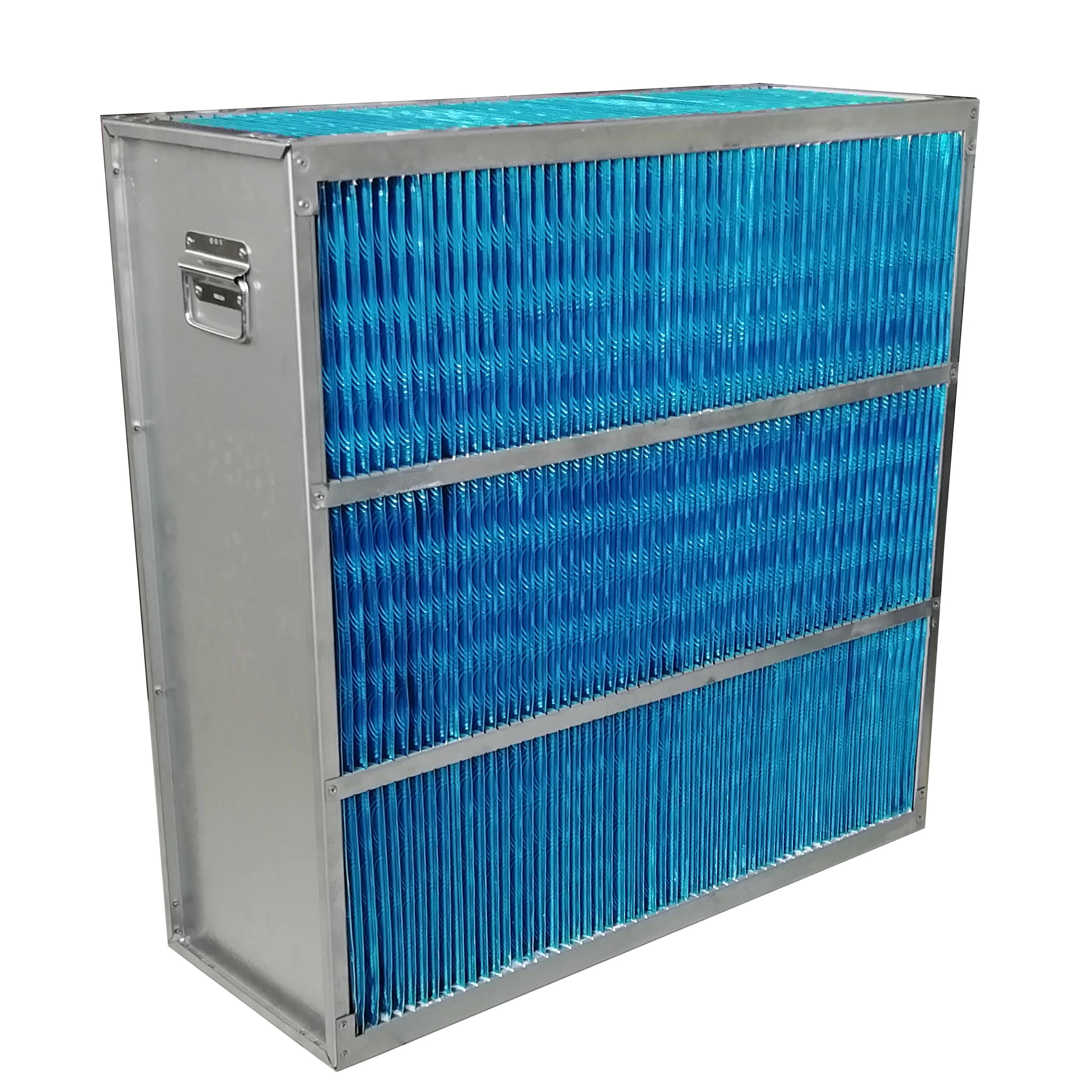

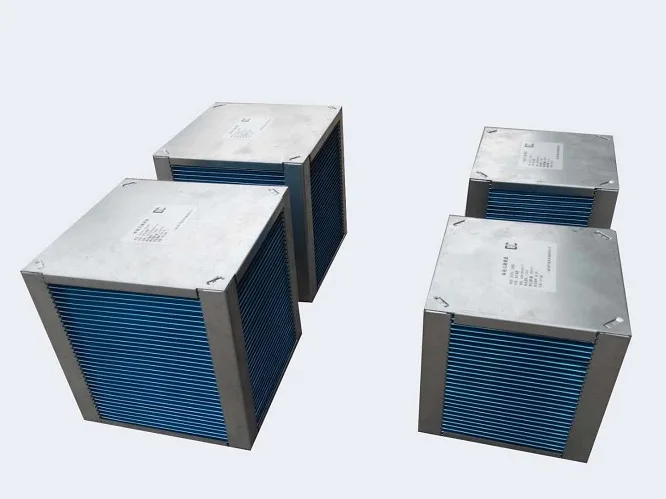

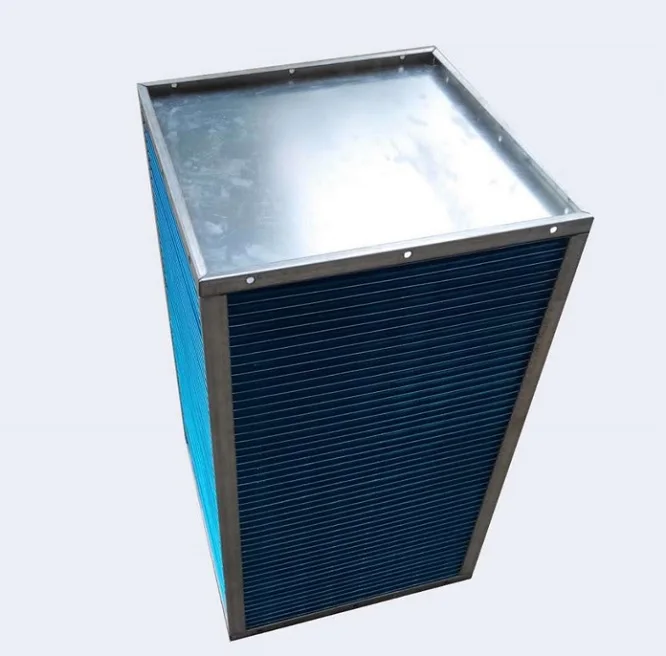

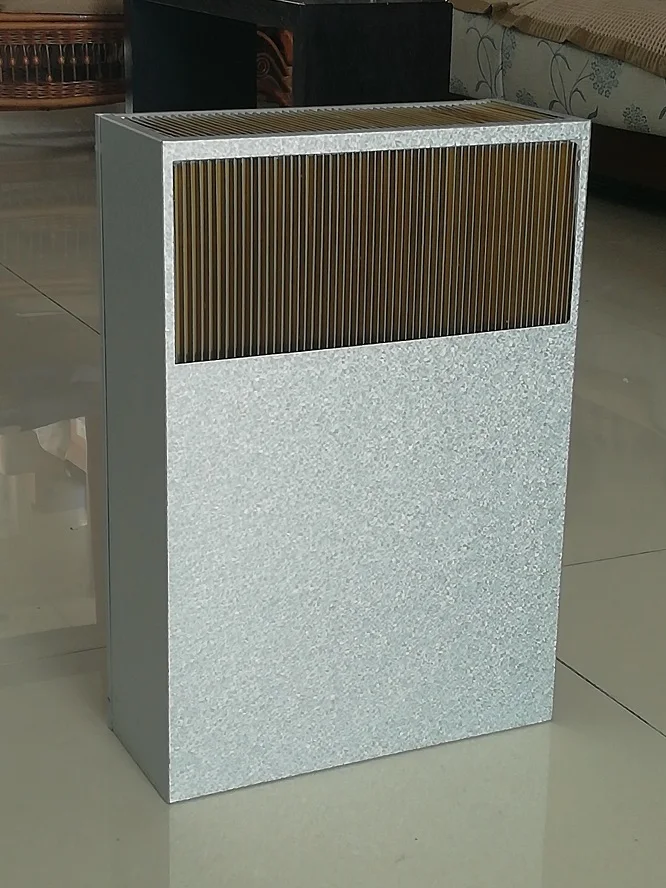

Counterflow air to air heat exchanger core
Hydrophilic coated or epoxy coated aluminum foil, 0.10~0.15mm
IP54 / IP55 protection grade
Shell 0.8~1.2mm galvanized steel
3.0~4.5mm pitch
Commonly Used Heat Exchanger Core Technical Data
Type | A (mm) | L (mm) | Pitch (mm) | Aluminum foil color | Type | A (mm) | L (mm) | Pitch (mm) | Aluminum foil color |
005 | 140 | 300, | 4.0 | Golden | 017 | 120 | 500 | 3.0 | Golden |
006 | 140 | 300, | 4.0 | Blue | 018 | 140 | 500 | 3.0 | Blue |
008 | 190 | 390, | 3.0 | Golden | 019 | 140 | 500 | 4.5 | Golden |
009 | 95 | 400 | 4.0 | Golden | 023 | 140 | 600 | 3.5 | Golden |
010 | 115 | 400 | 3.0 | Golden | 024 | 190 | 600 | 3.5 | Blue |
011 | 140 | 400, | 3.0 | Golden | 025 | 190 | 600 | 4.5 | Blue |
012 | 140 | 450, | 4.0 | Blue | 026 | 235 | 600 | 4.0 | Golden |
013 | 190 | 460 | 3.0 | Golden | 027 | 235 | 600 | 4.5 | Golden |
