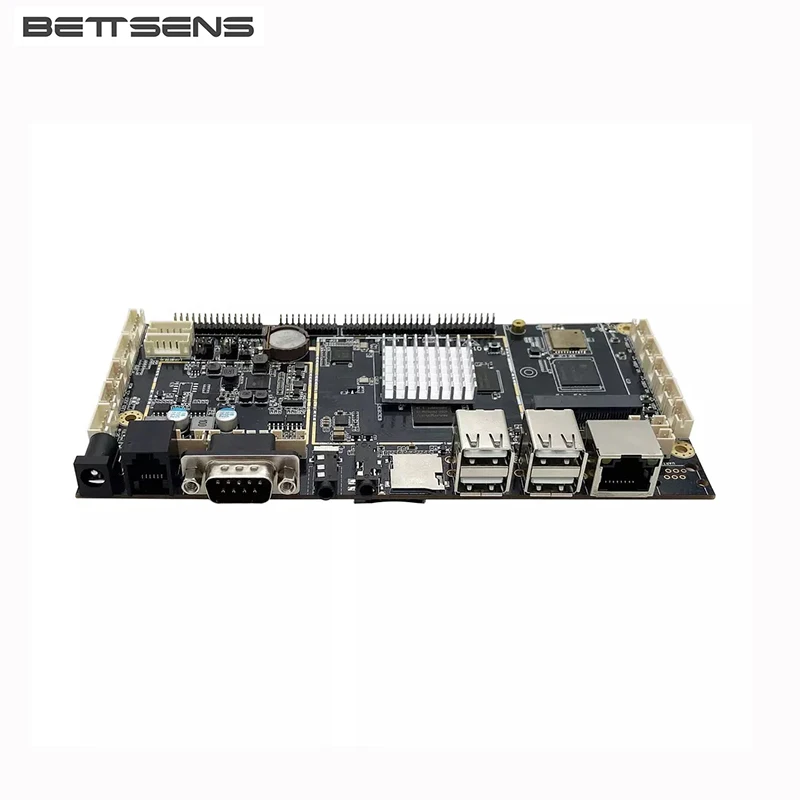

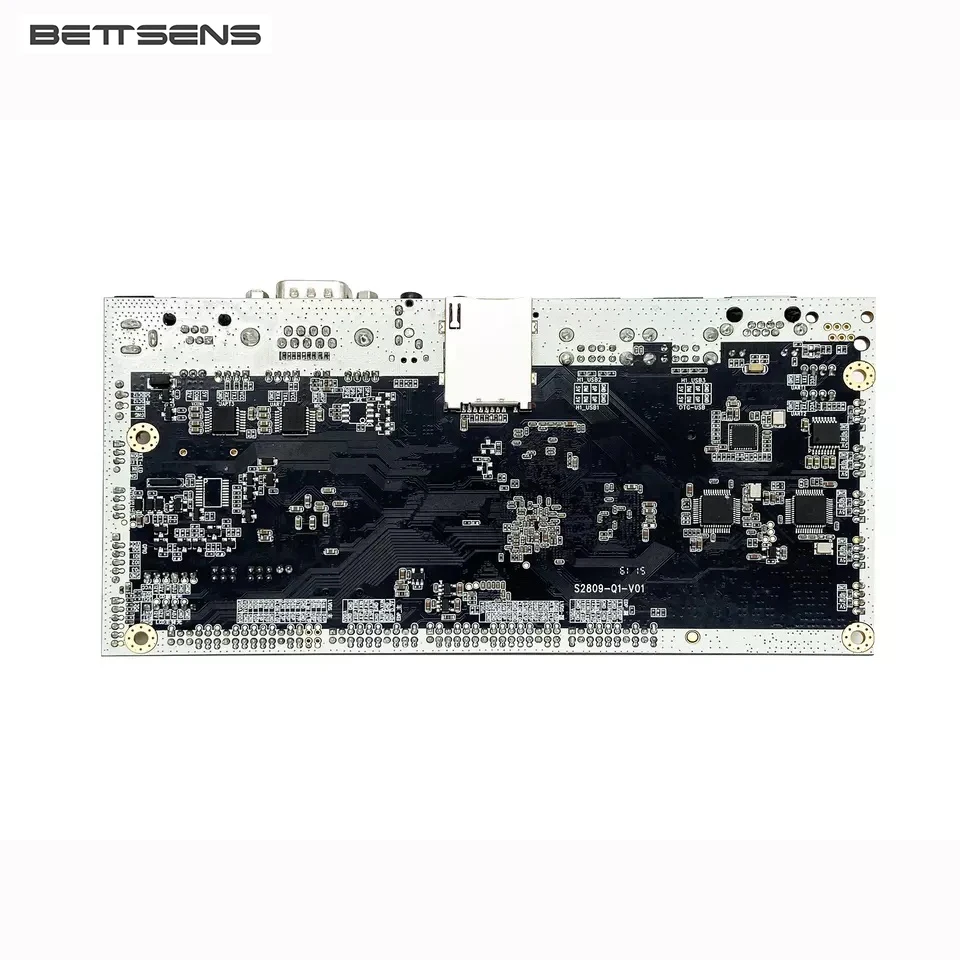

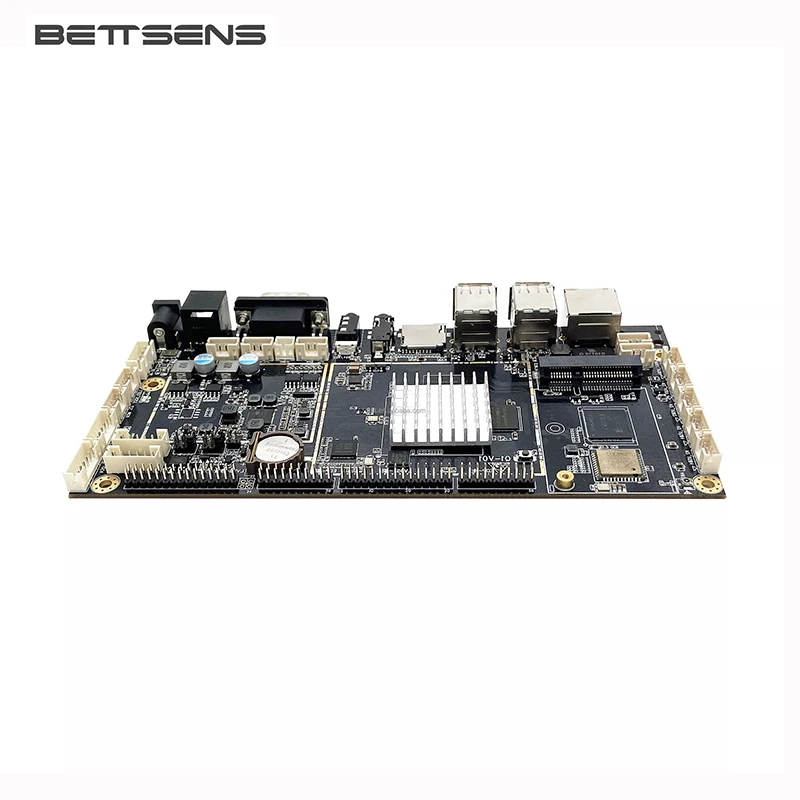

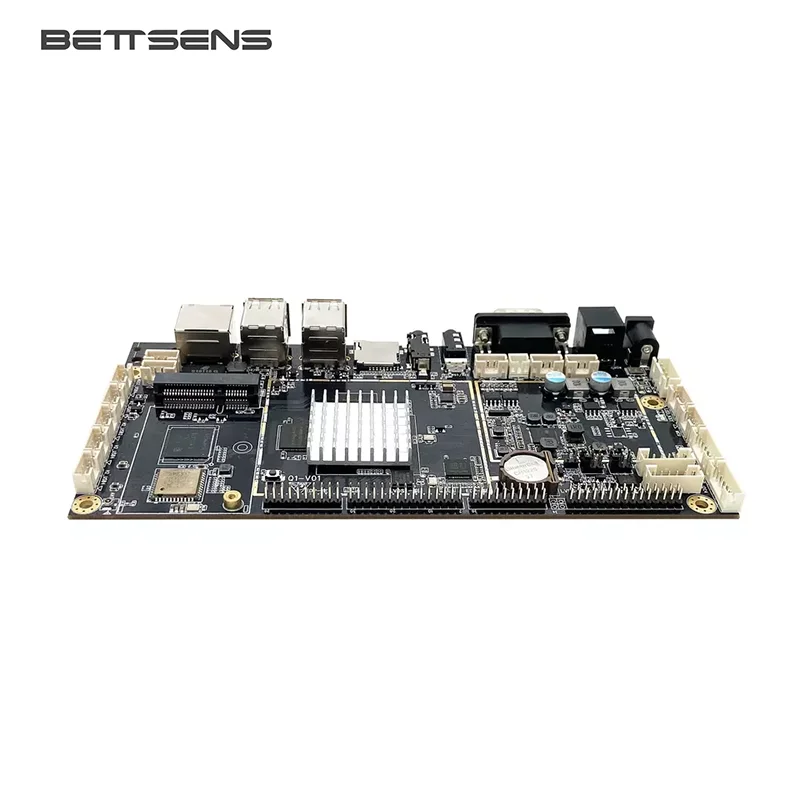

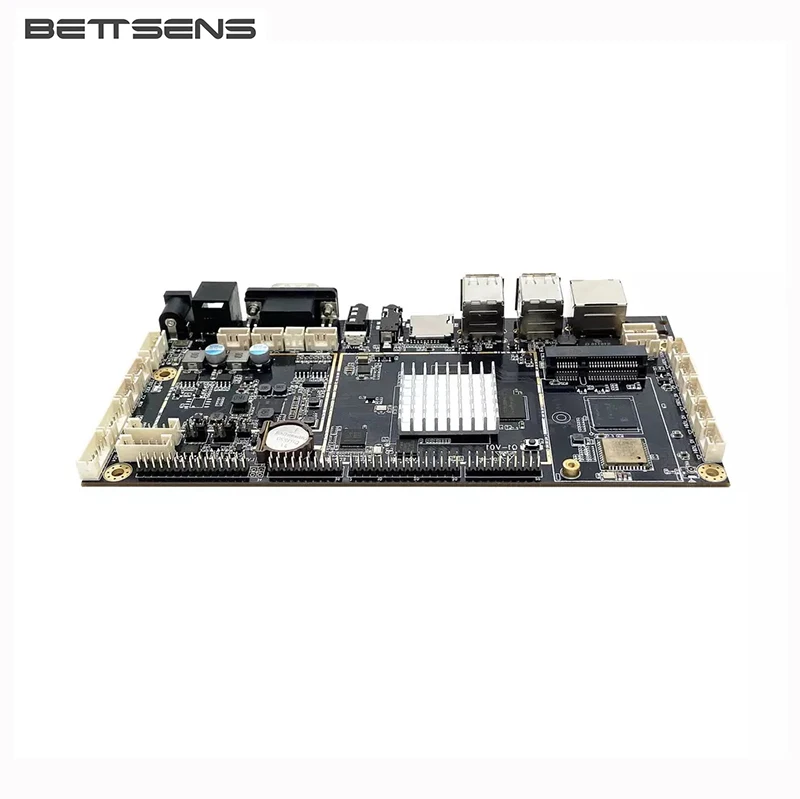

Android rk3288 kit android box board USB/LVDS/ETHERNET/MIPI/WIFI/BT4.1/eDP controller board
- Category: >>>
- Supplier: Shenzhen Bettsens Industrial Co. Ltd.
Share on (1600619759481):
Product Overview
Description
Product Description
Android OS with RK3288
Motherboard
RK3288/RK3568/RK3399
ROM EMMC 8GB/16G/32G optional
Dual Display IO: 1*HDMI, 1*LVDS
ROM EMMC 8GB/16G/32G optional
Dual Display IO: 1*HDMI, 1*LVDS
2-way UART (RS232), 1-way 4PIN socket RS485, 1-way 6PIN PH1.25 TTL
6 USB2.0 (4 USB HOST, 1 USB3.0, 1 USB TYPEC)
1* RJ45
1* RJ45
DC 12V
PRODUCT NAME | Android 7.1 RK3288 development board | ||
CPU | RK3288, Quad core A17, 1.8GHz frequencey | ||
RAM | Onboard DDR3 2GB, Optional 4GB | ||
STORAGE | EMMC FLASH 8GB/16G/32G optional (Default 8GB) | ||
OS | Android 7.1/8.0/9.0 | ||
WIRELESS | 1* WiFi&BT module, Wi-Fi 802.11b/g/n/ac, BT3.0/BT4.0, Onboard 3G/4G, PCIE deck | ||
POWER SUPPLY | DC 12V power supply and AC power adapter | ||
CASH DRAWER | 1 RJ11 socket | ||
DISPLAY PORTS | 2* EDP interface, 2* LVDS interface Support 4K screen | ||

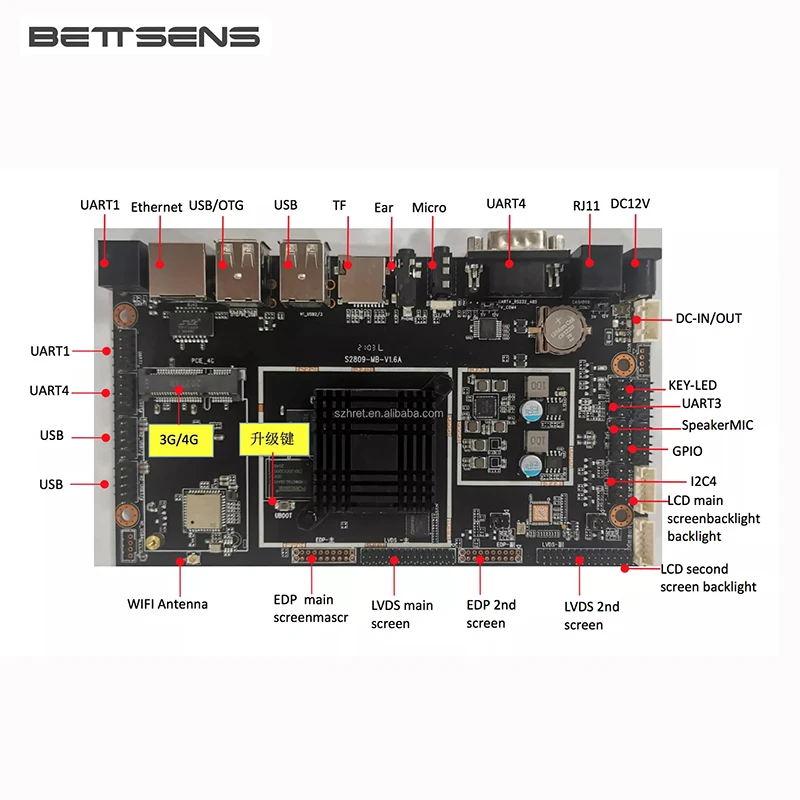

I/O PORTS | ◆ USB: 9 USB2.0 (8 USB HOST, 1 USB OTG), 5 built-in,4 external ◆ 1*RJ45 LAN ◆ COM: 3-way UART (compatible with RS232), 1 RJ45 socket type RS232 interface ◆ Storage: TF card, maximum support 128GB ◆ 1*I2C interface for GPIO port control 4 GPIO ports ◆ Camera interface: 1 30PIN socket FFC, MIPI interface can support 12MP | ||
CERTIFICATES | FCC, CE, RoHs, CAN/CSA-CISPR | ||
WORKING CONDITION | Working Temp. -20°C ~ 65°C (-4°F ~ 149°F) Storage Temp. -40°C ~ 80°C (-40°F ~ 176°F) Working Humidity 10% - 95% @40°C non-condensing | ||
SIZE | Product: 170*96mm | ||
WEIGHT | Product: 0.5kg | ||
Certifications
Related Products
Packing&Shipping
Usually we put the products in recyclable environmental protection plastic bags, and then pack them in cardboard boxes. Inside the carton, there is anti-collision foam as a support, which can withstand a drop impact from a height of 0.8 meters.
Company Introduction
Bettsens has been working in the field of industrial computer since 2012. From the beginning of the trade business of international brands, to owning independent research and development, own brand, authorized production and assembly, etc., we have accumulated rich resources and experience. We have established a complete sales and after-sales system in China. In the global market, we provide global partners with 1-5 years of after-sales quality assurance and lifetime technical support.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ) for current models?
A: For ready stocks or current available models, Just 1 set as sample order is acceptable.
2.Q: Are you a factory or a trading company?
A: We are one of the most professional computer manufacturers located in Shenzhen China.
3.Q: What about the after-service?
A: We offer 1-5 years quality warranty depends on the models and commerical conditions. After the warranty period, we can repair it for free, but charge for parts is needed. We offer the lifetime technical service support.
4.Q: Can you provide OEM/ODM service?
A: Yes, we can do the customization services. Please advise the CPU, memory, SSD or HDD, WIFI, interface ports, OS, Logo, colors, package box and labels request. The prices will be varied according to the quantity and specifications.
5.Q: Can I have my own logo on the devices?
A: Yes, MOQ is 100 sets, or extra cost will be charged for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: We can do a lot of customization for your bulk order, including but not limited on put your logo and labels on the device and package, make some color options for you, make the booting interface with your logo or brand.
7.Q: What kind of Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7/10 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, for current ready models 1-3 days for sample order, and 7-20 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW, FOB, CIF & CNF price and accept T/T, L/C, Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment for me from China to my place?
A: Yes, for sample orders, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
