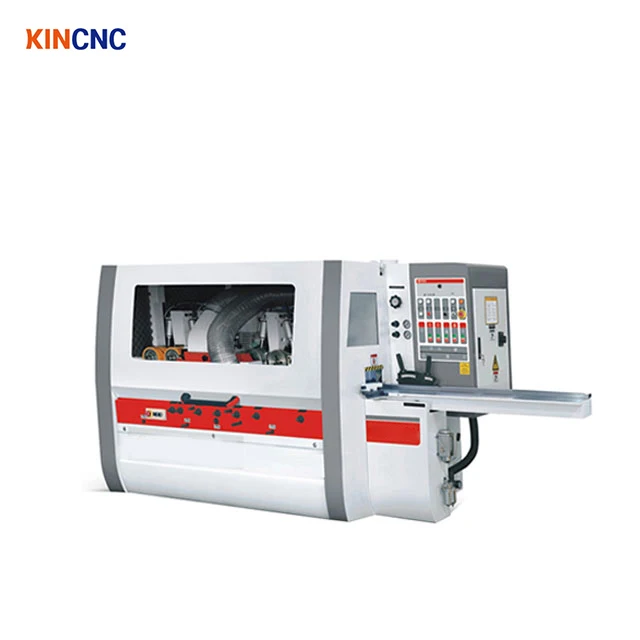

KINCNC Hot Sale Heavy Duty Woodworking Four Sided Planer 4 Side Moulder For Wood
- Category: >>>
- Supplier: Qingdao Kincnc Technology Co. Ltd.
Share on (1600619815083):
Product Overview
Description
Products Description
Model | MBQ512A |
Max.working width | 120mm |
Min.working width | 25mm |
Max.working thickness | 100mm |
Min.working thinkness | 8mm |
Spindle amounts | 5pcs |
Spindle speed | 6000rpn |
Feed speed | 5-22m/min |
Spindle diameter | φ40mm |
Cutter diameter First bottom cutter | φ125 |
Right vertical cutter | φ125-φ160 |
Left vertical cutter | φ125-φ160 |
First top cutter | φ125-φ160 |
Second bottom spindle | φ125-φ160 |
Motor power First bottom cutter | 3kw/4hp |
Right vertical cutter | 3kw/4hp |
Left vertical cutter | 3kw/4hp |
Fist top cutter | 4kw/5.5hp |
Second bottom cutter | 3kw/4hp |
Feed motor | 3kw/4hp |
Beam elevation | 0.55kw/0.75hp |
Total power | 18.75kw/23.25hp |
Feeding wheel Dia. | 140*35*50 |
Suction hood Dia. | φ125 |
Overall dimensions | 2900*1200*1610mm |
Packing dimensions | 3100x1400x1700mm |
Weight | 1830kg |

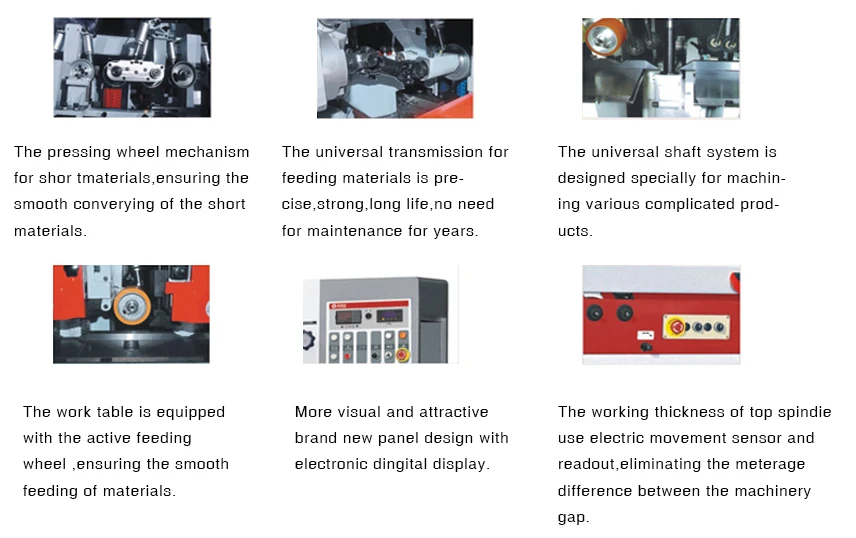

Advantage And Features:
1.This adopts frequency conversion material feeding, material feeding speed ranges from 8-35m/min.
2.Each main shaft is driven by independent electric motor, cutting force is powerful.
3.Main shaft is adjustable to focus on the front, operation is convenient.
4.Hard chrome plating worktable is durable.
5.Equips with auxiliary unit alarming lack of material, it effectively improves smooth feed-in while lack of material.
6.Multi-group drive rollers improve feeding efficiency.
7.Adopts central charging system, features convenience and promptness.
8.International brands electrical parts are applied for good stability.
9.On the horizontal axis with the front support means to improve the rigidity of the spindle.
10.Spare parts are thick and solid to maintain high precision,high stability and high reliability.
11.Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
12.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
1.This adopts frequency conversion material feeding, material feeding speed ranges from 8-35m/min.
2.Each main shaft is driven by independent electric motor, cutting force is powerful.
3.Main shaft is adjustable to focus on the front, operation is convenient.
4.Hard chrome plating worktable is durable.
5.Equips with auxiliary unit alarming lack of material, it effectively improves smooth feed-in while lack of material.
6.Multi-group drive rollers improve feeding efficiency.
7.Adopts central charging system, features convenience and promptness.
8.International brands electrical parts are applied for good stability.
9.On the horizontal axis with the front support means to improve the rigidity of the spindle.
10.Spare parts are thick and solid to maintain high precision,high stability and high reliability.
11.Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
12.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Product packaging
Related Products
Company Profile
Qingdao KINCNC Technology Co., Ltd.
KINCNC is one leading manufacturing and exporting company of woodworking machine in China. We are committed to provide one-stop service to our customers all over the world.
Our machines are widely used in the woodworking industry with the following advantages:
20,000 m² Professional Factory
200+ Production Equipment
100+ Factory Employees
20+ QC Team
Cooperation With Enterprises From 130+ Countries

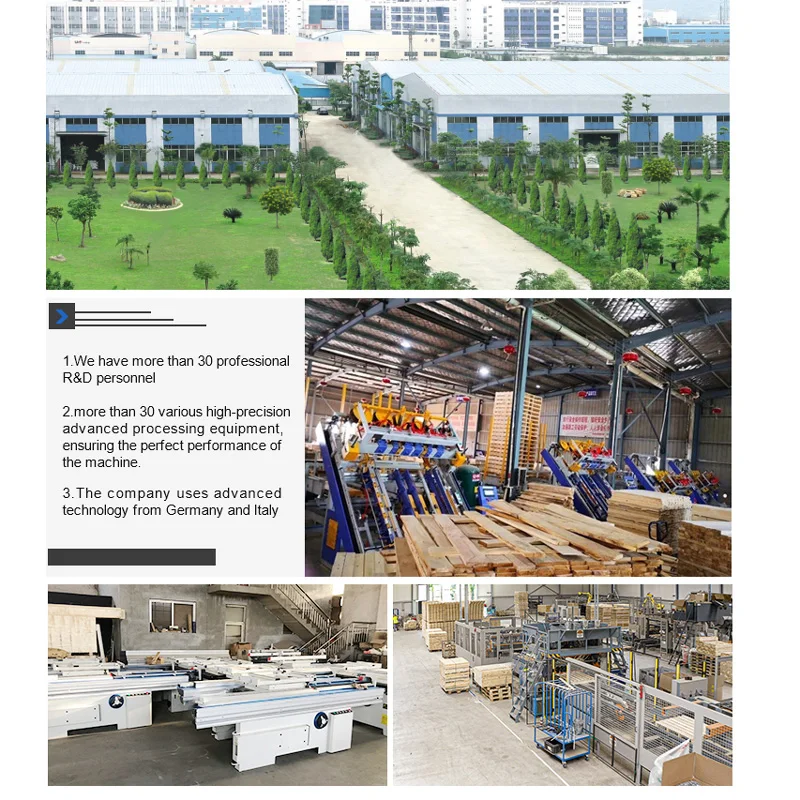

Strict quality control system is our core competitiveness. KINCNC uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
As a China famous brand, our products also exports around the world including Southeast Asia, Middle East, Africa, European, U.S.A. and so on. Our company managing idea is improving the high quality products. We are searching for the distributors around the world. Hope we can have the honor to cooperate with you.
Our machines are widely used in the woodworking industry with the following advantages:
20,000 m² Professional Factory
200+ Production Equipment
100+ Factory Employees
20+ QC Team
Cooperation With Enterprises From 130+ Countries
Strict quality control system is our core competitiveness. KINCNC uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
As a China famous brand, our products also exports around the world including Southeast Asia, Middle East, Africa, European, U.S.A. and so on. Our company managing idea is improving the high quality products. We are searching for the distributors around the world. Hope we can have the honor to cooperate with you.
FAQ
Q: This is the first time I use this kind of machine, is it easy operate?
A: Our machine is installed and tested well before shipment. There are guide video that show how to use machine, the English instruction book send to you with machines. If there is still have any question, we will provide free professional guide for you .
Q: If we buy machines from you, how about after-sale?
A: We have 24 hours on line after sale, and provide you 13 months warranty time. If there has any problem with your machine in the warranty time, we can provide free after sale.
Q: How can we get replacement parts?
A: Most of the spare parts are ready in stock. We will send it directly from our warehouse, If you have any need . You also can buy spare parts from local market, our spare parts are internationally accepted.
Q: Can you provide custom service?
A: Sure. Our machines can be customized according to buyers’ requirements. If you have any required, welcome you contact us, our engineer will help you solve it.
Q: What other machine do you offer?

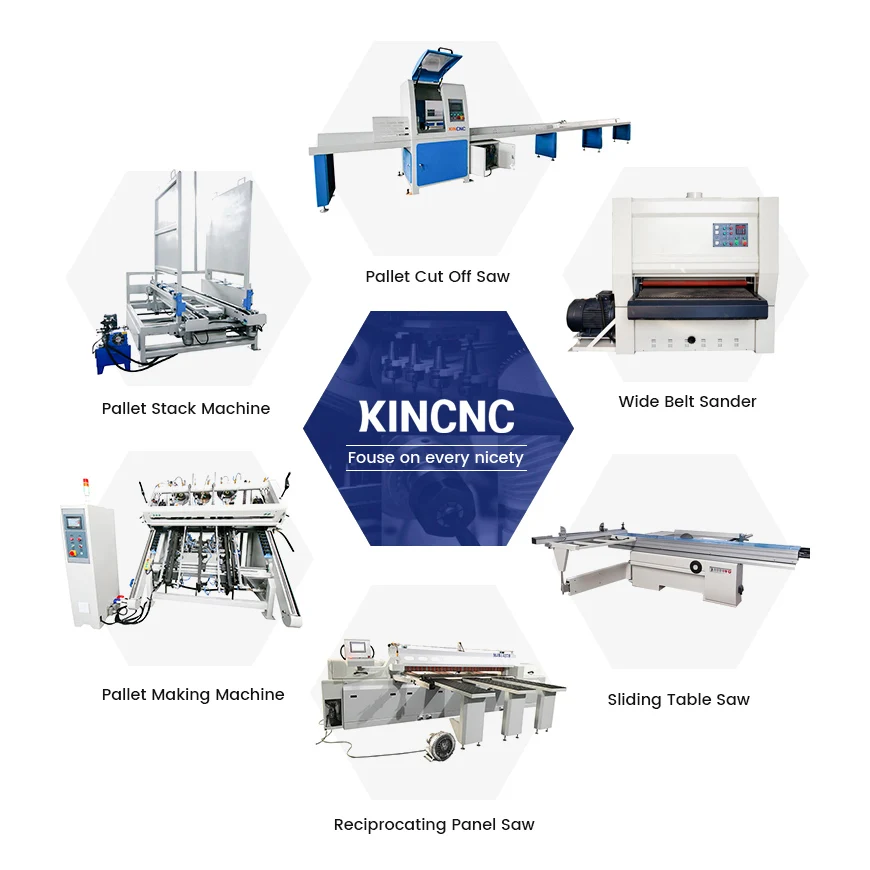

A: We provide one-stop shop service of the machines for the buyers. Other kinds of machines, like sawing machine, wood pallet machine, wood block cutter, sanding machine etc., can be provided as well. If you have other need, please contact us on line, we will reply you ASAP.
Q: How solve the shipment ?
A: We can help you solve shipment, we have much experience on packing and shipping,If you have no much time deal with it, we can help you solve them. You can get machines from local port or place.
A: Our machine is installed and tested well before shipment. There are guide video that show how to use machine, the English instruction book send to you with machines. If there is still have any question, we will provide free professional guide for you .
Q: If we buy machines from you, how about after-sale?
A: We have 24 hours on line after sale, and provide you 13 months warranty time. If there has any problem with your machine in the warranty time, we can provide free after sale.
Q: How can we get replacement parts?
A: Most of the spare parts are ready in stock. We will send it directly from our warehouse, If you have any need . You also can buy spare parts from local market, our spare parts are internationally accepted.
Q: Can you provide custom service?
A: Sure. Our machines can be customized according to buyers’ requirements. If you have any required, welcome you contact us, our engineer will help you solve it.
Q: What other machine do you offer?
A: We provide one-stop shop service of the machines for the buyers. Other kinds of machines, like sawing machine, wood pallet machine, wood block cutter, sanding machine etc., can be provided as well. If you have other need, please contact us on line, we will reply you ASAP.
Q: How solve the shipment ?
A: We can help you solve shipment, we have much experience on packing and shipping,If you have no much time deal with it, we can help you solve them. You can get machines from local port or place.
