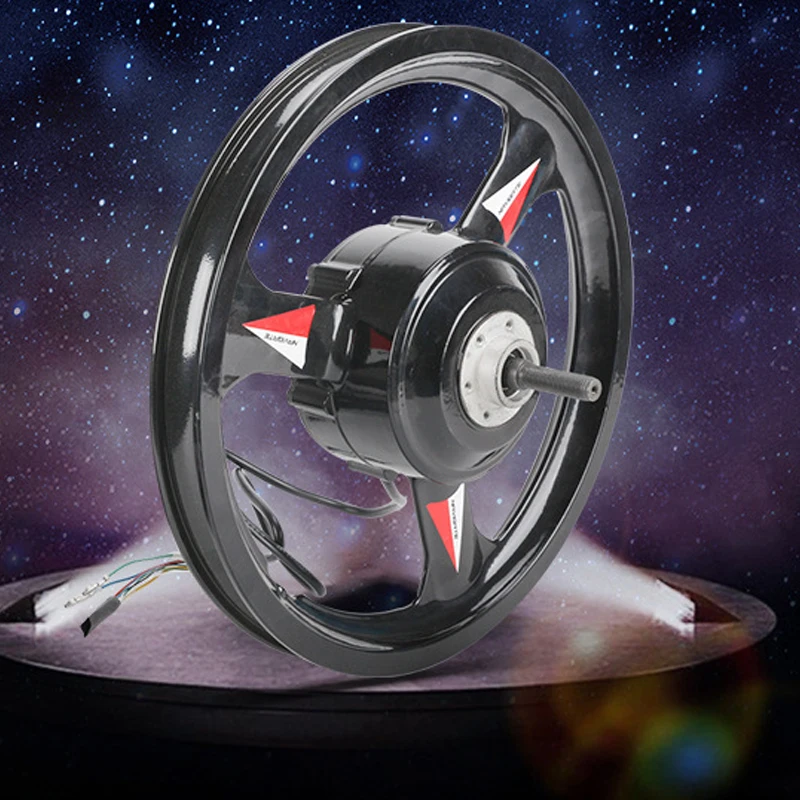

Customized 250w350w500w750w1000w magnesium alloy motor integrated hub 20 inch 4.0 E BIKE motor fat wheel bicycle motor
- Category: >>>
- Supplier: Yiwu Qianqi Bicycle Co. Ltd.
Share on (1600619817246):
Product Overview
Description
Product Description
型号： Product Type： | QH-SYM6-500 | 前叉距 (mm)： Open Size Front (mm)： | 135 |
轮径寸数 (IN)： Wheel Size (IN)： | 20 | 后叉距 (mm)： Open Size Rear （mm）： | 170-190 |
额定电压 (V)： Rated Voltage (V)： | 36/48/60 | 驱动方式： Drive： | 后置 Rear |
空载电流 (A) No-load current (A) | 1.2 | 出线方式： Cable Location： | 主轴中心出线 右侧 Shaft center right |
额定电流 (A) Rated current (A) | 12 | 辐条规格： Spoke Specification： | 无 no |
额定力矩 (N)： Rated torque (N)： | 9.0 | 霍尔： Hall Sensor： | 可选 Optional |
额定功率 (W)： Rated Power (W)： | 500 | 速度显示： Speed Display： | 可选 Optional |
额定时速 (km/h)： Rated Speed (km/h)： | 20-35 | 表面处理： Surface： | 黑色 Black painted |
额定效率 (%)： Rated Efficiency (%)： | ≧80 | 前置刹车方式： Brake Type for Front： | 碟刹 saucer Brake |
减速比： Reduction Ratio： | 1：4.2 | 后置刹车方式： Brake Type for Rear： | 碟刹 saucer Brake |
前置轮子重量 (Kg)： Weight(Front wheel) (Kg)： | 噪音 (db)： Noise (db)： | < 50 | |
后置电机重量 (kg)： Weight(Rear motor) (kg)： | 防水等级： Waterproof Grade： | IP54 |
Specification
item | value |
Voltage | 36V |
Design | Brushless |
Style | Two rounds |
Place of Origin | China |
Zhejiang | |
Model Number | QH-SYM3-500(20) |
Brand Name | QH |
Product name | Magnesium alloy Hub Motor |
Color | Matte black, glossy black |
Model | QH-SYM3-500 (20) |
Voltage | 48v (customizable 36v60v) |
Powe | 500w (customizable 250w 350w 750w 1000w) |
Product certification | CCC, CE, FCC |
Product type | brushless DC motor |
Wheel diameter inches | 20 inches |
Driving mode | rear |
Rear fork distance | 170mm/190mm |
