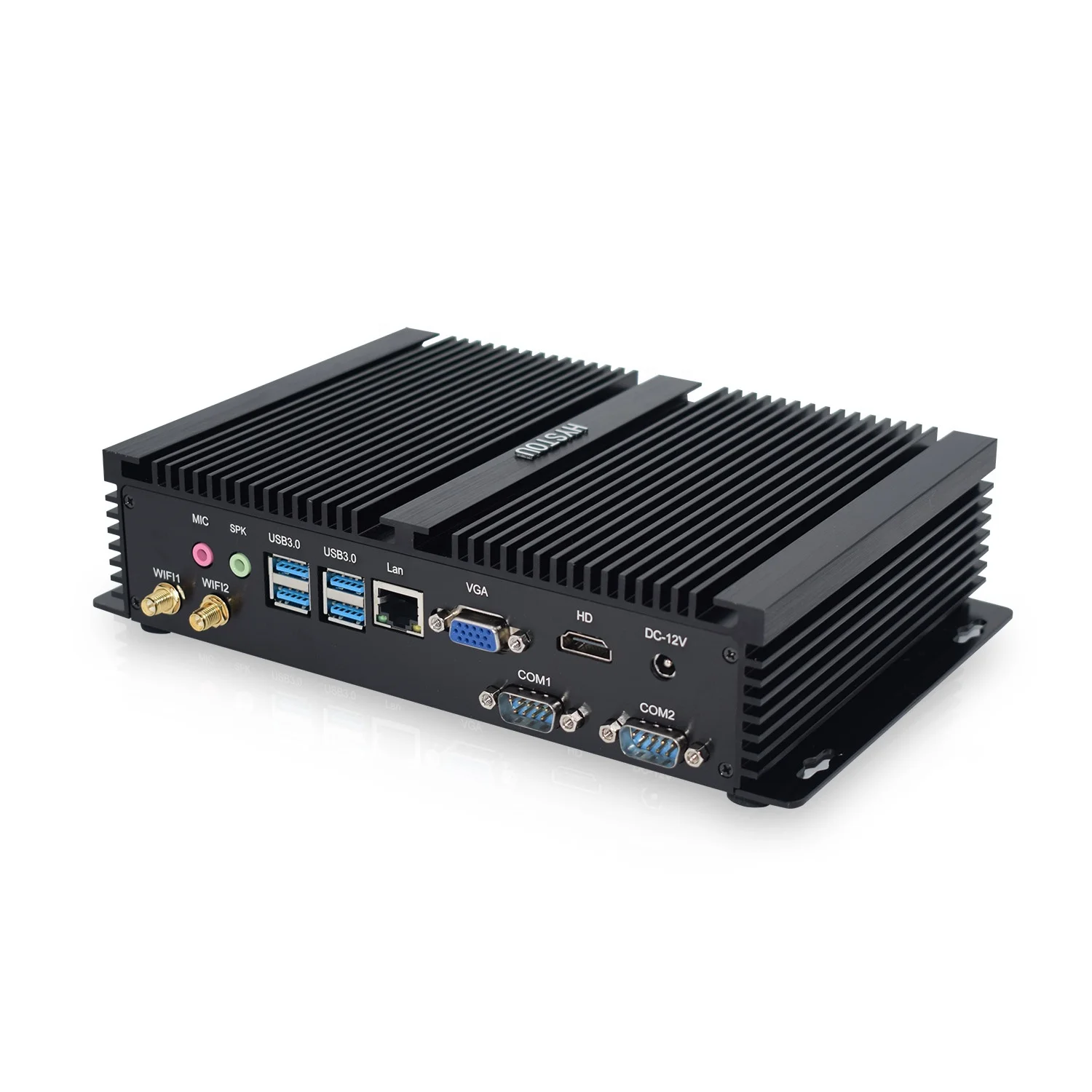

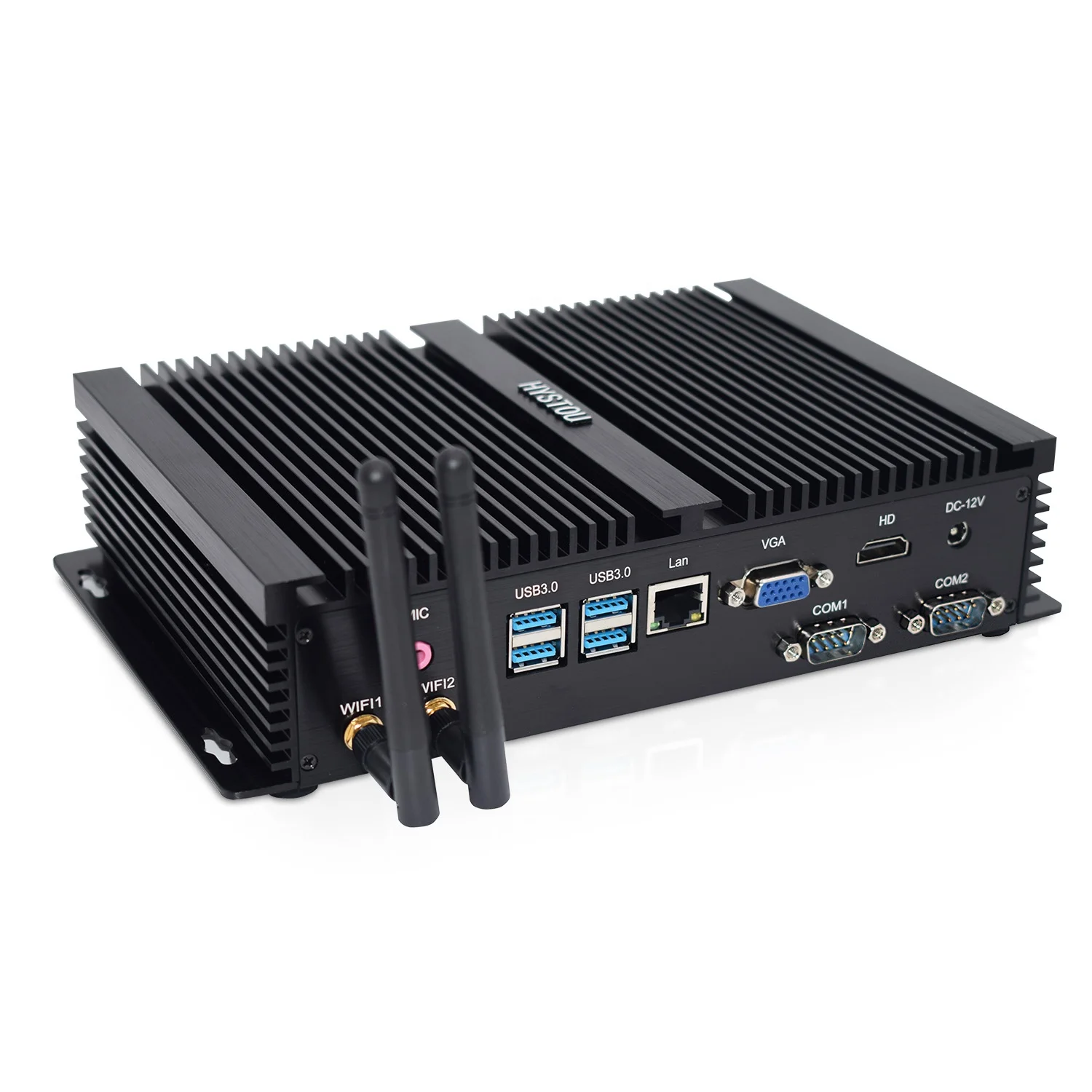

Mini PC Intel Core i5 3317U i3 3217U Win XP Celeron 1037U ITX Industrial Fanless Desktop HD MI VGA Dual Display Rugged PC AES
- Category: >>>
- Supplier: Xuzhou Venoen Technology Co. Ltd.
Share on (1600619895877):
Product Overview
Description
Product Description
Industrial Fanless Mini PC Ce-leron 1037U i5 3317U Barebone RS232 COM HD VGA Dual Display wifi win XP Linux Desktop computer
2. Support Win XP/7/8/10, Linux, Ubuntu OS, and more;
3. Support two hard disk, one m.2 NV-ME SSD and one 2.5inch HDD/SSD, and we free send 2.5inch SATA cables
4. Ultra-compact and lightweight mini PC 2kg;
5. Low power consumption only 16W, energy-saving up to 90% compare to traditional desktop computers;
6. Support VESA mounted on the back of monitor, we free send VESA mount;
7. Support Wake-on-LAN, Automatically power on when power failure, support virtualization.
8. Extensive connectivity, 2x Gigabit LAN, 4x RS232, 4x USB 3.0 ports , Combo audio;
9. Support WiFi connected to network;
10. Aluminum case & Fanless passive cooling offer you zero noise experience.
Feature
1. On-board with Intel Core 8th/7th Gen processors, enough performance for your every day computing needs, it's one high cost-effective mini PC;
2. Support Win XP/7/8/10, Linux, Ubuntu OS, and more;
3. Support two hard disk, one m.2 NV-ME SSD and one 2.5inch HDD/SSD, and we free send 2.5inch SATA cables
4. Ultra-compact and lightweight mini PC 2kg;
5. Low power consumption only 16W, energy-saving up to 90% compare to traditional desktop computers;
6. Support VESA mounted on the back of monitor, we free send VESA mount;
7. Support Wake-on-LAN, Automatically power on when power failure, support virtualization.
8. Extensive connectivity, 2x Gigabit LAN, 4x RS232, 4x USB 3.0 ports , Combo audio;
9. Support WiFi connected to network;
10. Aluminum case & Fanless passive cooling offer you zero noise experience.
Processor | in-tel Ce-leron 1037U |
Case Material | All Aluminium Alloy 23.4*15*5CM |
OS | Win XP/7/8/10,pfSense, Sophos, VyOS, Linux iptables, Untangle, Endian, ROS, ect |
Graphics | Integrated In-tel HD Graphics |
Memory Type | DDR3L 1333/1600MHz 1.35V Max upto 8GB |

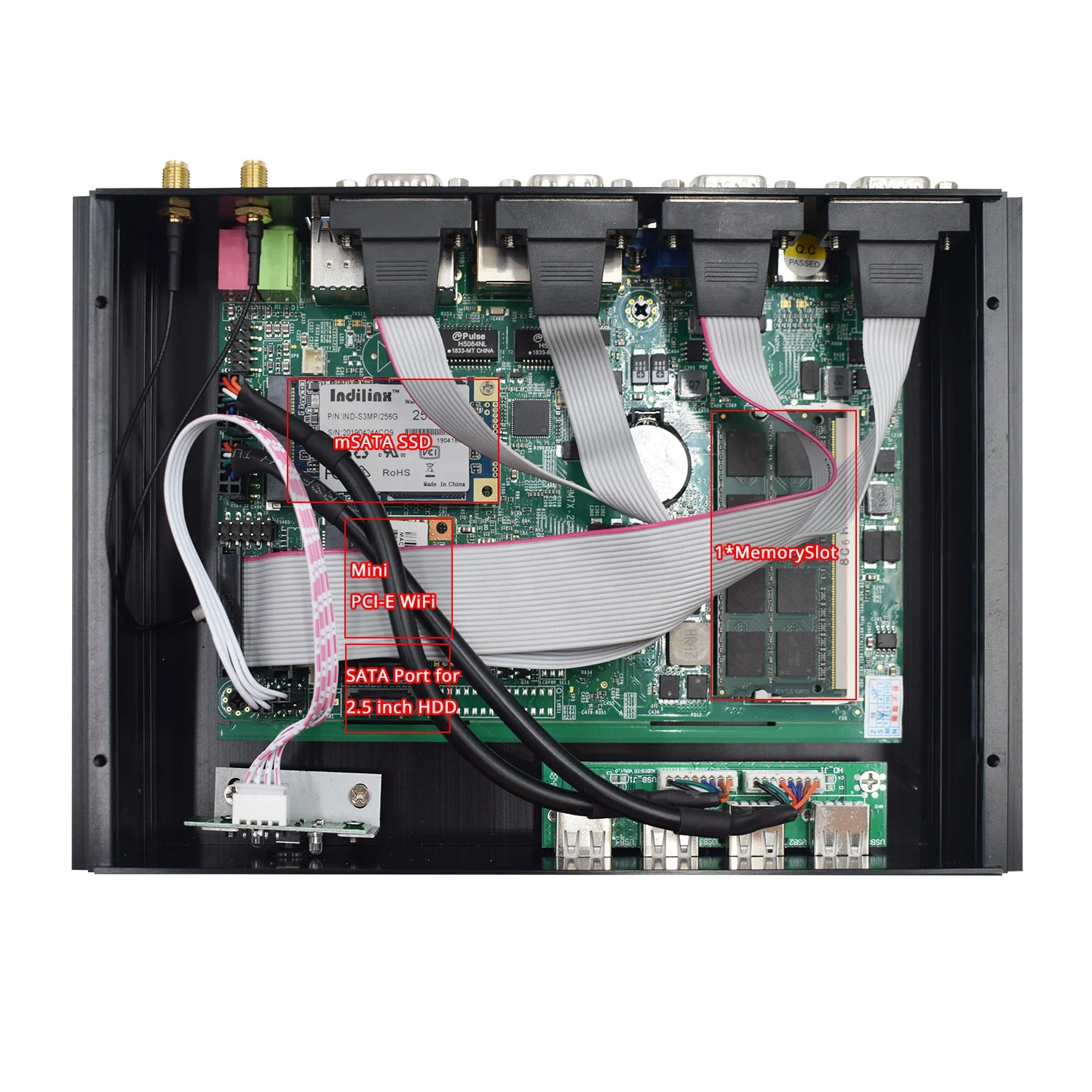

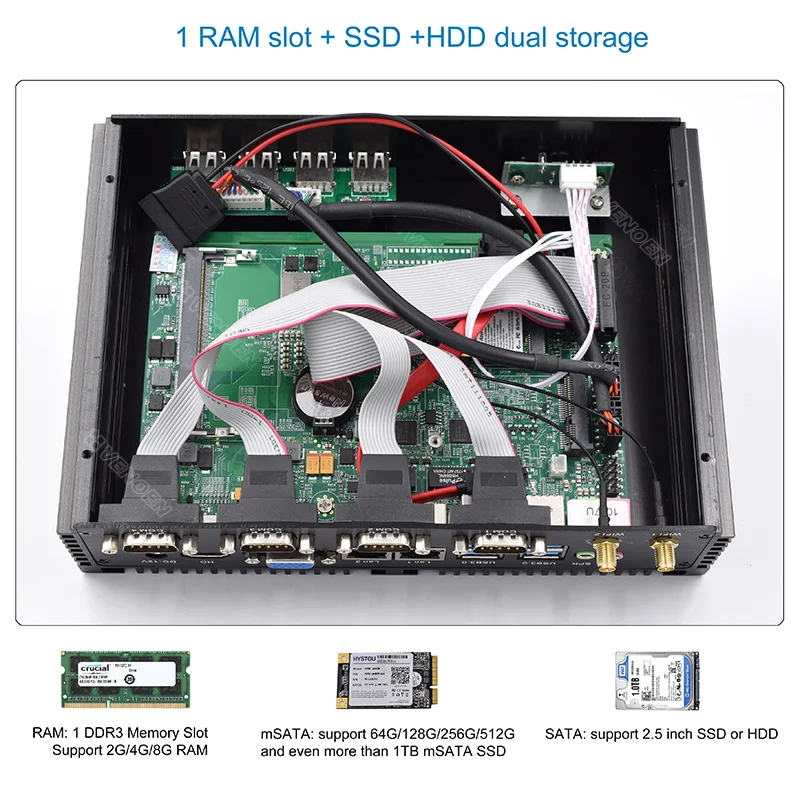

Storage | Support mSATA+2.5'' Hard Disk |
Ethernet | 10/100/1000Mbps BaseT LAN |
Wireless | 300M dual band WiFi with 2 antennas |

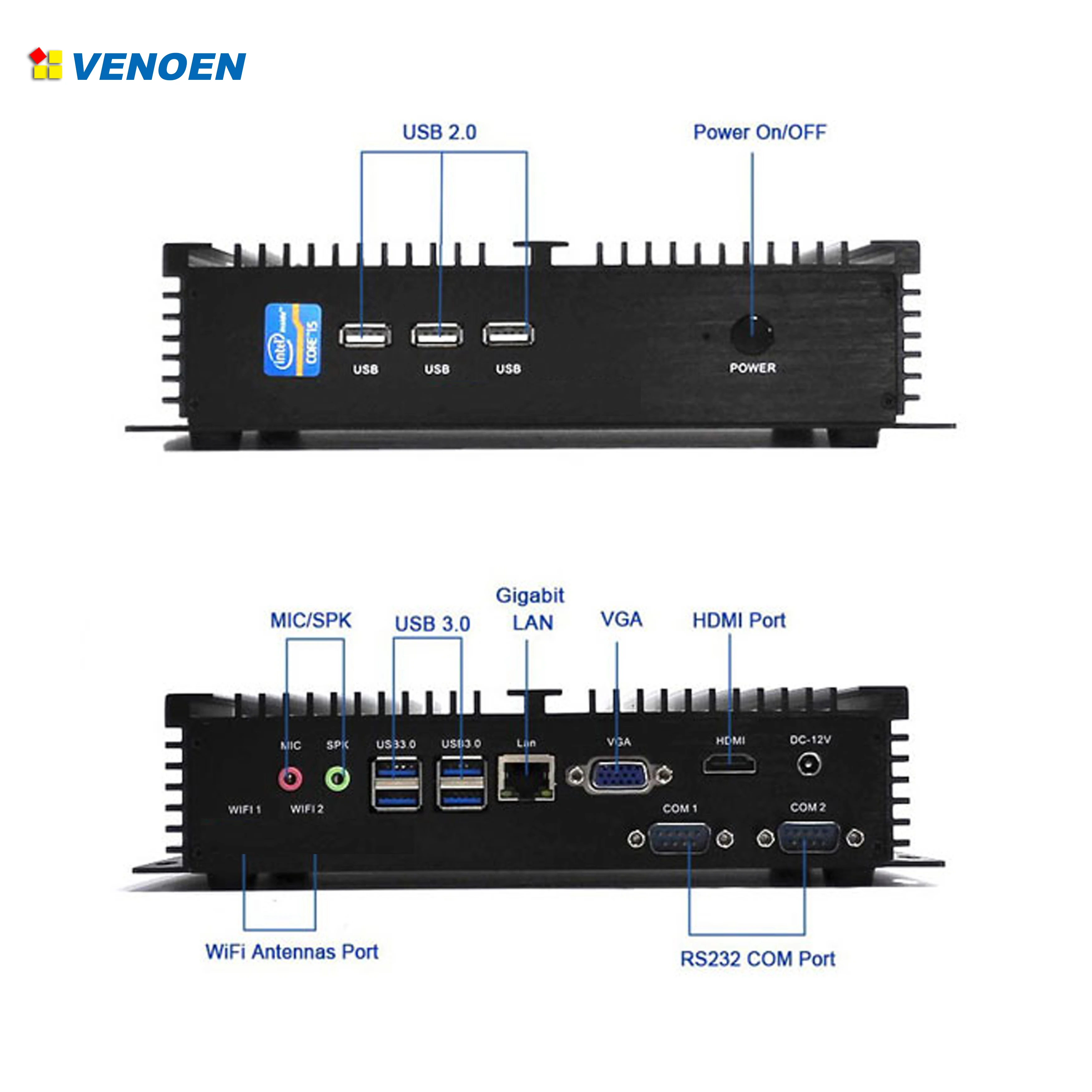

I/O Ports | 2*Gigabit RJ45 LAN 4*USB 3.0, 4*USB 2.01*HD 1*VGA 1*DC-12V/5A 2*RJ-45 |
Cooling System | Fanless passive Cooling or fan cooling |
Mounting Type | VESA/DIN RAIL |
NIC | 2*10/100/1000/Controller |
Input | AC 100-240V 50-60Hz |
Output | DC12V-5A |
Weight | NW 1.7KG |
Durability | Sable Running for 7x24Hours |
BIOS | Support Wake-on-LAN, virtualization, automatically power on when power failure function |
Chassis Material | Fanless construction, passive cooling, aluminum case |
Product Use
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Packing&Shipping

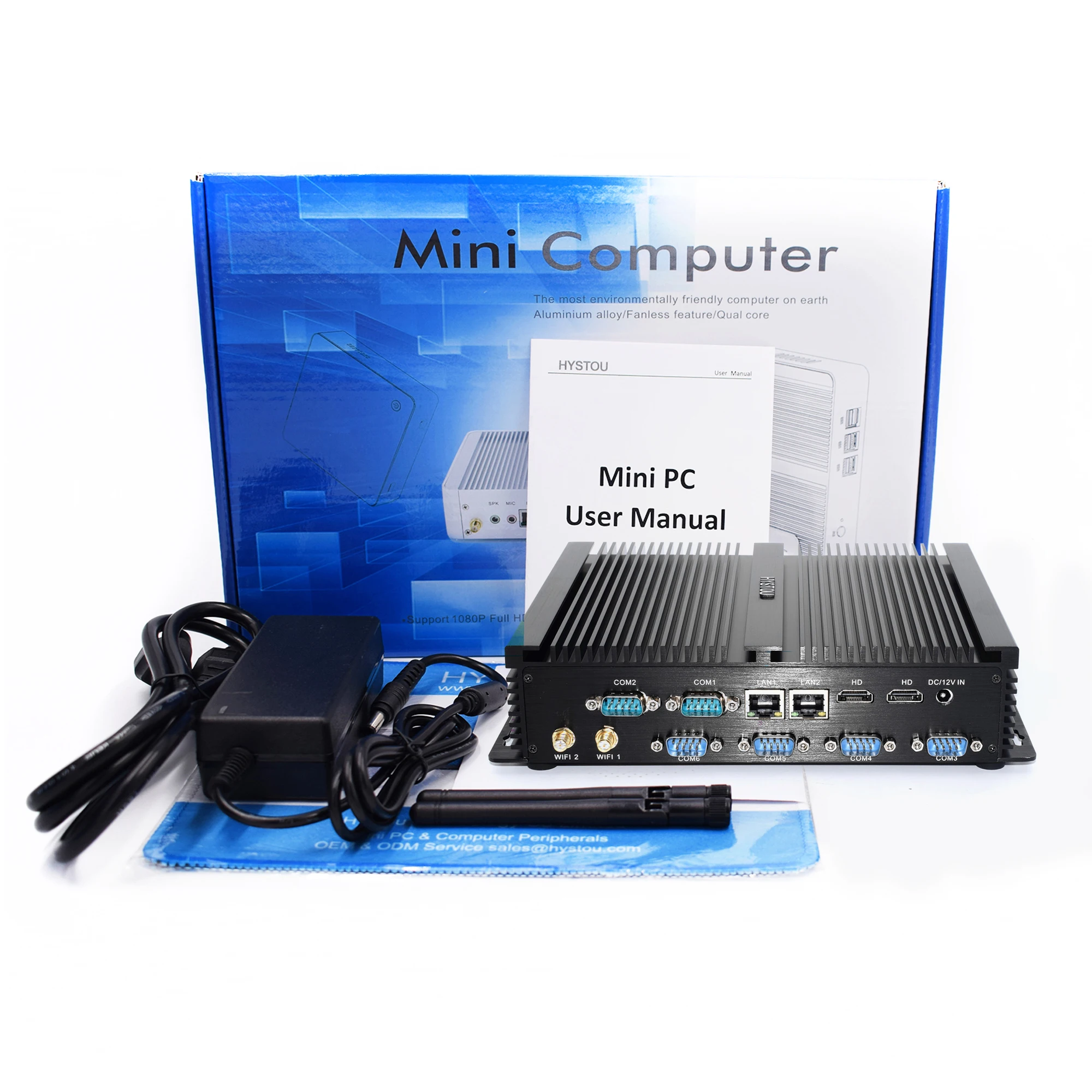

Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
