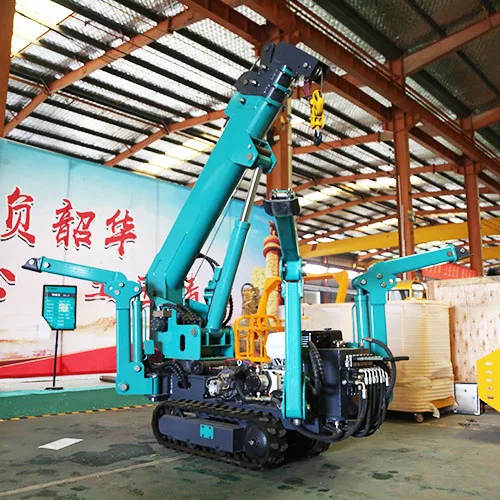

Flexible 8 Ton Mini Spider Crane Micro Telescopic Crawler Crane Lift Spider Crane For Sale
- Category: >>>
- Supplier: Zhong Yun Intelligent Machinery (yantai) Corp. Ltd.
Share on (1600619904783):
Product Overview
Description

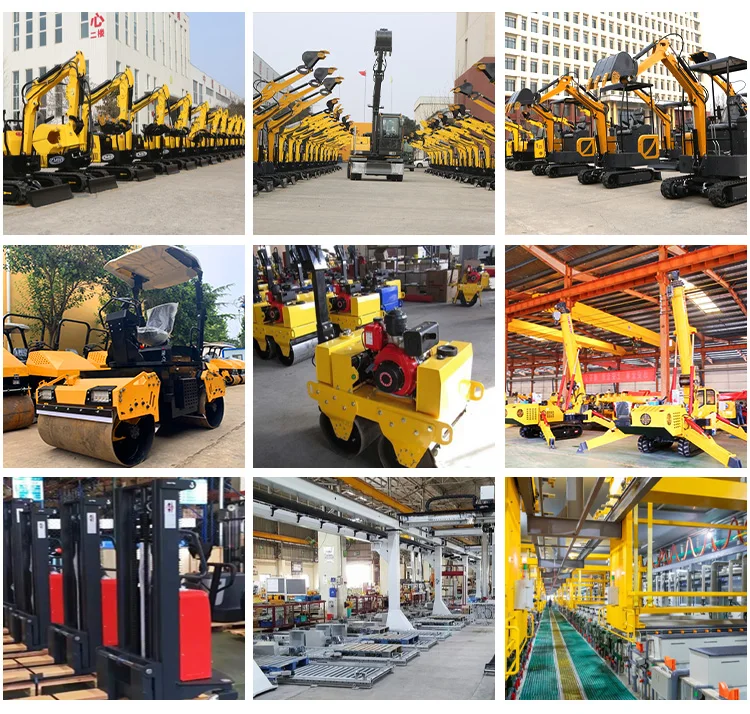

Company Profile
Products Description
With the characteristics of small size, light weight, low pressure on the ground, and the ability to work flexibly in a limited space, the spider crane can also be used to hoist and transport some landscape trees/landscape trees.

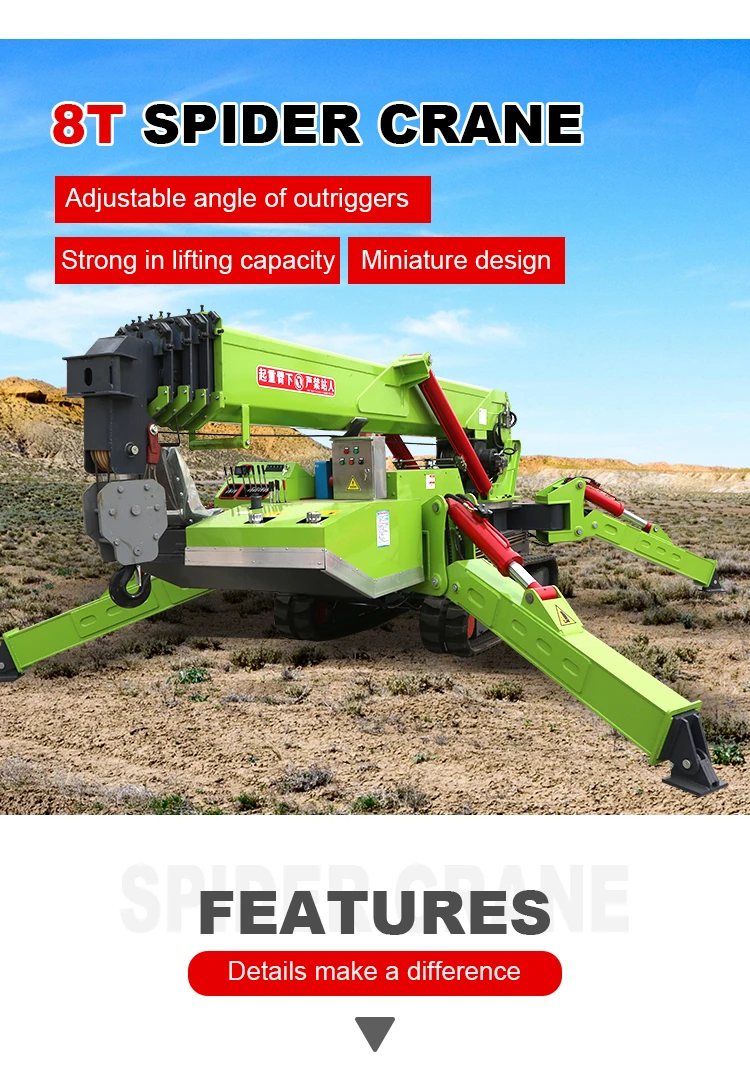

Features of spider hanger;
1. Spider crane, suitable for occasions with small space.

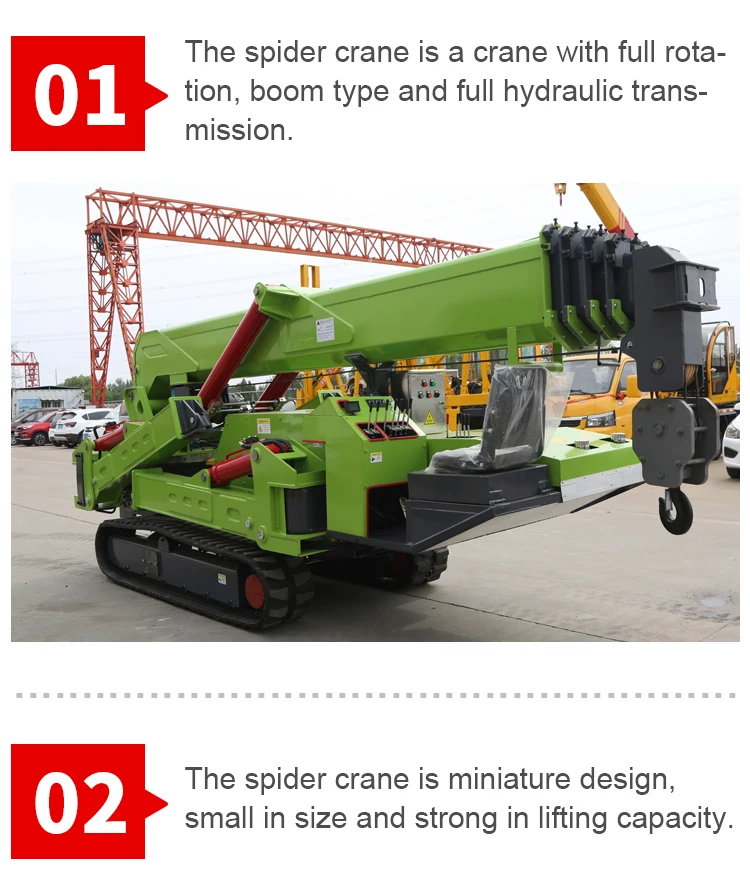

2. The spider crane is a crane with full rotation, boom type and full hydraulic transmission.
3. The main boom is 4-5 sections, the main boom section adopts a U-shaped structure, and the single-stage telescopic oil cylinder and wire rope telescopic mechanism can realize the main boom synchronous expansion and contraction.
4. Double insurance of marking line and alarm for the extreme use of boom telescopic
5. The cranes are equipped with radiators, which are more conducive to high temperature work in summer
Spider cranes are small in size, heavy in load, and can be hoisted, which is unmatched by ordinary cranes. For example, in basements, workshops and other operating environments, ordinary machines cannot enter, and tower cranes on roofs, indoors, shopping malls or densely populated places There is no way to run, but the micro crawler spider crane can easily..zmwm12
Features of spider hanger;
1. Spider crane, suitable for occasions with small space.
2. The spider crane is a crane with full rotation, boom type and full hydraulic transmission.
3. The main boom is 4-5 sections, the main boom section adopts a U-shaped structure, and the single-stage telescopic oil cylinder and wire rope telescopic mechanism can realize the main boom synchronous expansion and contraction.
4. Double insurance of marking line and alarm for the extreme use of boom telescopic
5. The cranes are equipped with radiators, which are more conducive to high temperature work in summer
Spider cranes are small in size, heavy in load, and can be hoisted, which is unmatched by ordinary cranes. For example, in basements, workshops and other operating environments, ordinary machines cannot enter, and tower cranes on roofs, indoors, shopping malls or densely populated places There is no way to run, but the micro crawler spider crane can easily..zmwm12
Product Paramenters
Maximum working radius | 16m × 0.2t | ||
Maximum ground lift | 17mX 0.9t | ||
winch | Hook up speed | 0- 10 m/min | |
Wire Rope Specifications | Φ10mm × 120m | ||
Telescopic device | Boom form | 5 -stage boom | |
Boom length | 4.5m-16m | ||
undulating device | Boom angle/time | 0-7 5 °/13sec | |
gyratory device | Rotation angle/speed | 0-360° (continuous)/60sec | |
outrigger | Outrigger Action Form | Hydraulic automatic support + manual unscrewing | |
Maximum extension (mm) | 6300 (L) X 4600 (Rear) 、 (Front) | ||
walking device | way of walking | Hydraulic motor drive, two-speed ( rubber track ) | |
Walking speed | 0-5.5 km /h | ||
Gradeability | 20° (36%) | ||
motor | Voltage | AC380V | |
engine | Producer | Yunnei | |
Type/displacement | YN27GBZ/2.7L | ||
Start method | Electric start | ||
Startup performance | -5°C~40°C | ||
fuel/volume | Diesel / 45 L | ||
battery capacity | 24v 45AH | ||
Fuel consumption | 230 g/kW-h | ||
noise level | Rated speed≤81.5dBA (1m) | ||
operating system | Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) | |
The standard configuration | Diesel engine and electric motor (dual power) | ||
Vehicle size | Length 4950*width 1560*height 2235 | ||
Craftsmanship | Paint assembly process | ||

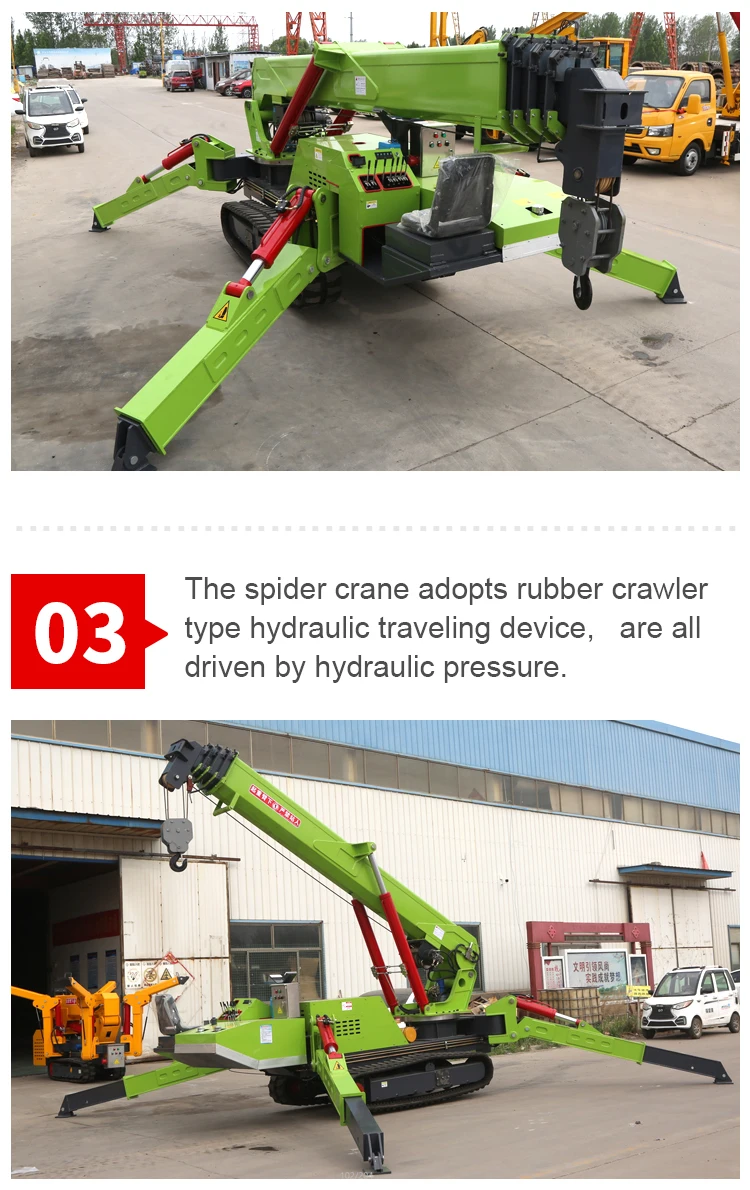

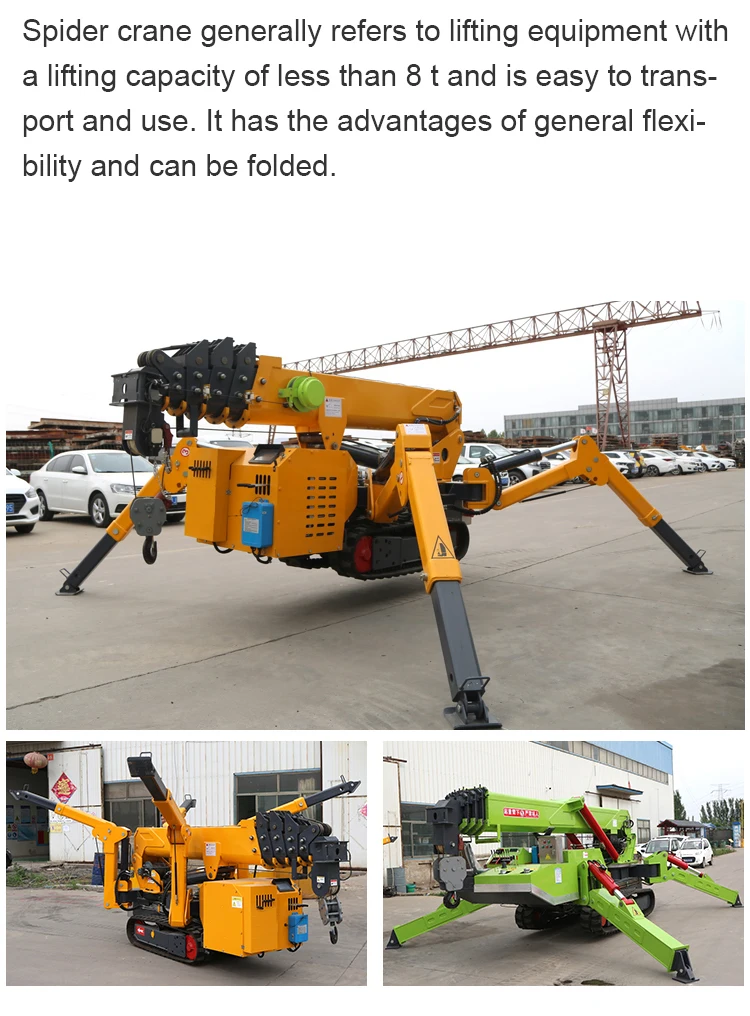

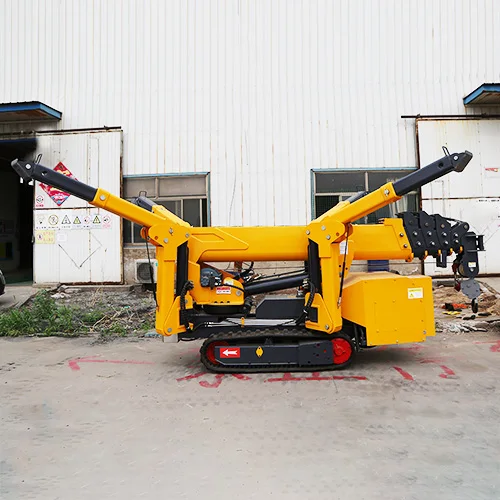

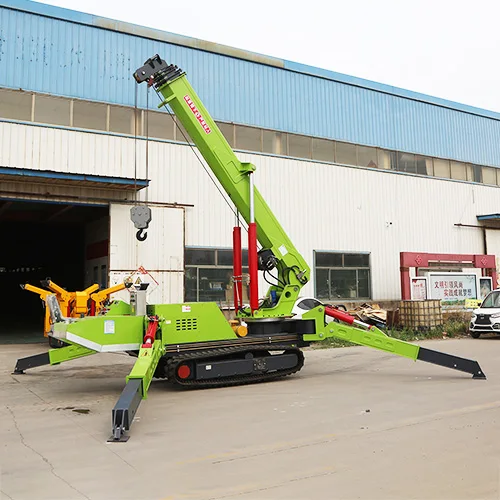

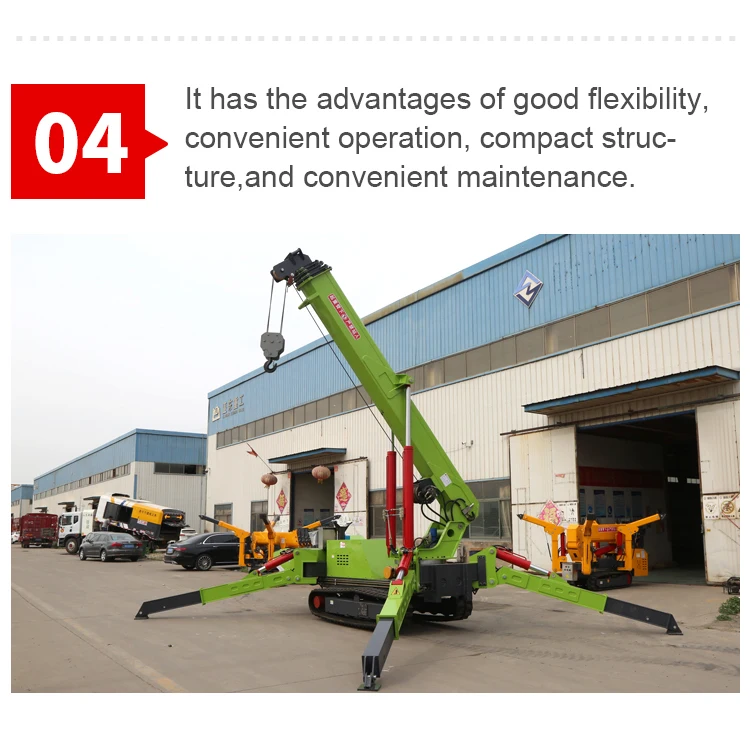

Product Show

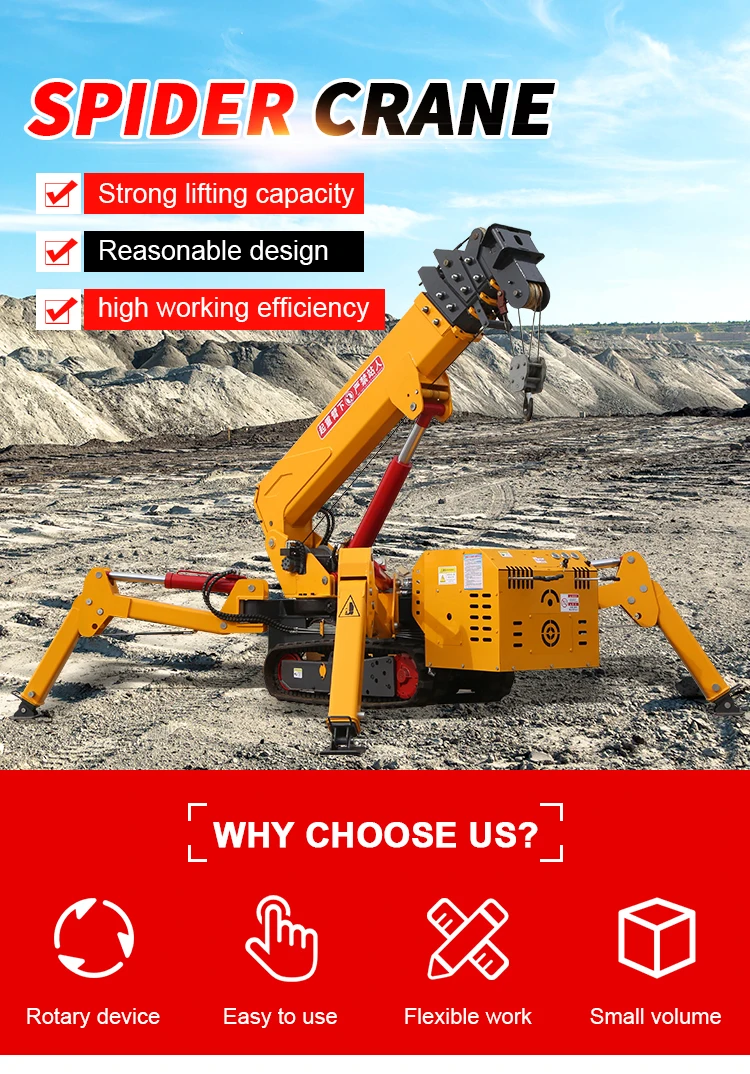

Why Choose Us
Our Advantages
Contact us
FAQ
Where is your factory?
Currently, we have two factories in China. One is located in Jining City, Shandong Province, and the other is located in Yantai City, Shandong Province, China. You are warmly welcome to visit at any time.
What are your main products?
Zhongyun Intelligent Machinery (Yantai) Co., Ltd. is an enterprise integrating e-commerce and manufacturing of engineering machinery and mining machinery. The main products include mining cars, hydraulic props, electric locomotives, winches, loaders, scraper conveyors, small excavators, spider cranes, road rollers, etc
How long is the production lead time?
Inventory generally takes 5-10 days. If there is a shortage or large order, it takes 15-20 days. Quantity orders will be considered.
What payment method do you accept?
Payment terms: TT in advance (30% deposit before production, 70% balance before shipment), bank transfer, Paypal, letter of credit, etc.
How does your quality control system work?
We have a professional e-commerce team and employ experienced engineers to strictly guarantee production. At the same time, our factory has ISO9001 and passed the CE certification.
Currently, we have two factories in China. One is located in Jining City, Shandong Province, and the other is located in Yantai City, Shandong Province, China. You are warmly welcome to visit at any time.
What are your main products?
Zhongyun Intelligent Machinery (Yantai) Co., Ltd. is an enterprise integrating e-commerce and manufacturing of engineering machinery and mining machinery. The main products include mining cars, hydraulic props, electric locomotives, winches, loaders, scraper conveyors, small excavators, spider cranes, road rollers, etc
How long is the production lead time?
Inventory generally takes 5-10 days. If there is a shortage or large order, it takes 15-20 days. Quantity orders will be considered.
What payment method do you accept?
Payment terms: TT in advance (30% deposit before production, 70% balance before shipment), bank transfer, Paypal, letter of credit, etc.
How does your quality control system work?
We have a professional e-commerce team and employ experienced engineers to strictly guarantee production. At the same time, our factory has ISO9001 and passed the CE certification.
