MT VIKI the newest product bi directional 60Hz 4K 2 in 1 out HDMI switch

Product Overview

Description





Product Specification:



Out 2 roads HDMI (DVD or PS3) signal into 1 road HDMI display or TV

Out 1 road HDMI (DVD or PS3) signal into 2 roads HDMI display or TV

No power needed. If there is insufficient power supply, splash screen or snowflake happened, please buy your own Android

Charger compatible HDMI 4K@60Hz

Port selected: press button on panel
2 LED indicator
3 HDMI interface
Easy installation

Support 3D, 1080P, 4K*2K

Dimension: 55*55*20mm (L*M*H)

Housing: plastic



Input DDC signal	5V P-P(TTL)
Max. Signal chain range	4K@60Hz
Output video	V1.0/1.1/1.2/1.3/2.0
Vertical frequency range	50/60 Hz
Video amplifier bandwidth	600MHz/ 18Gpbs
Staggered(50 &60 HZ)	480i, 576i, 1080i
Progressive	480p, 576p, 720p, 1080p, 2160p
Warranty	1 years
Operate Temp.	0℃- 70℃
Storage Temp.	-10℃- 85℃
Operate Humidity	10% to 85% RH(No condensation)
Storage Humidity	5% to 90% RH(No condensation)
Consumption	5W

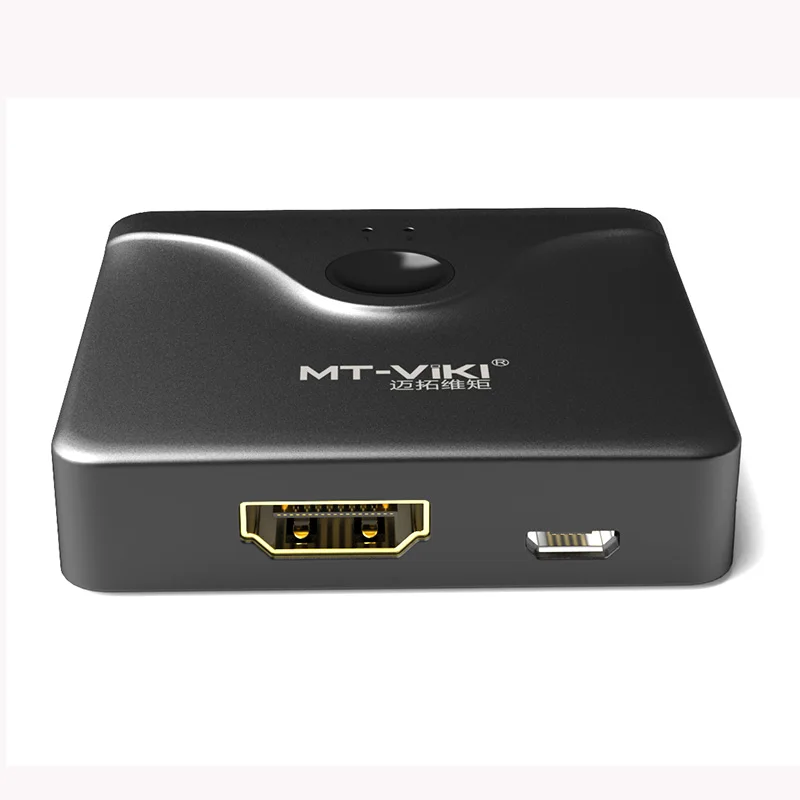

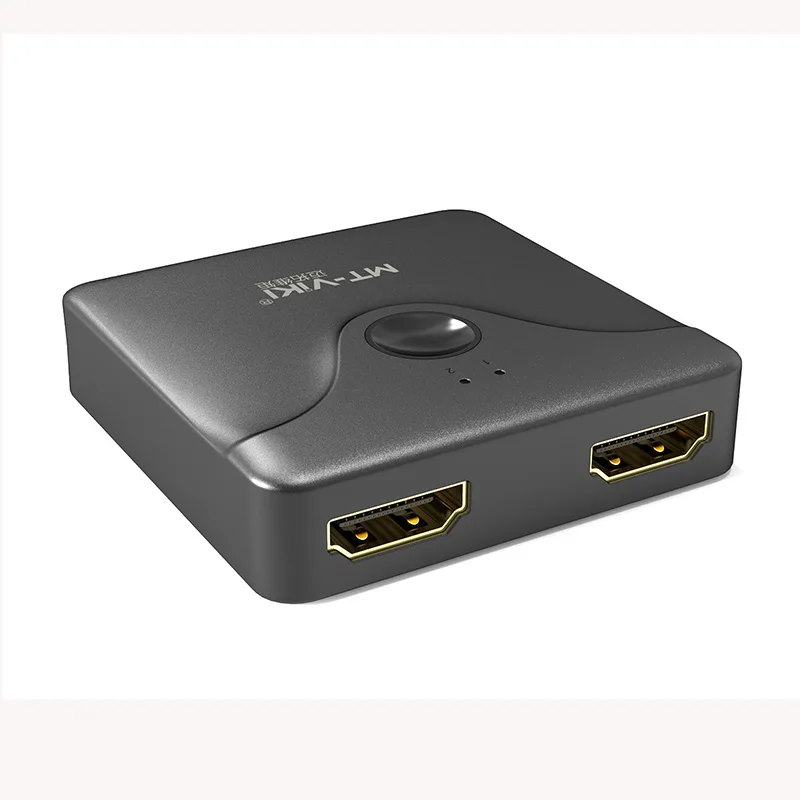

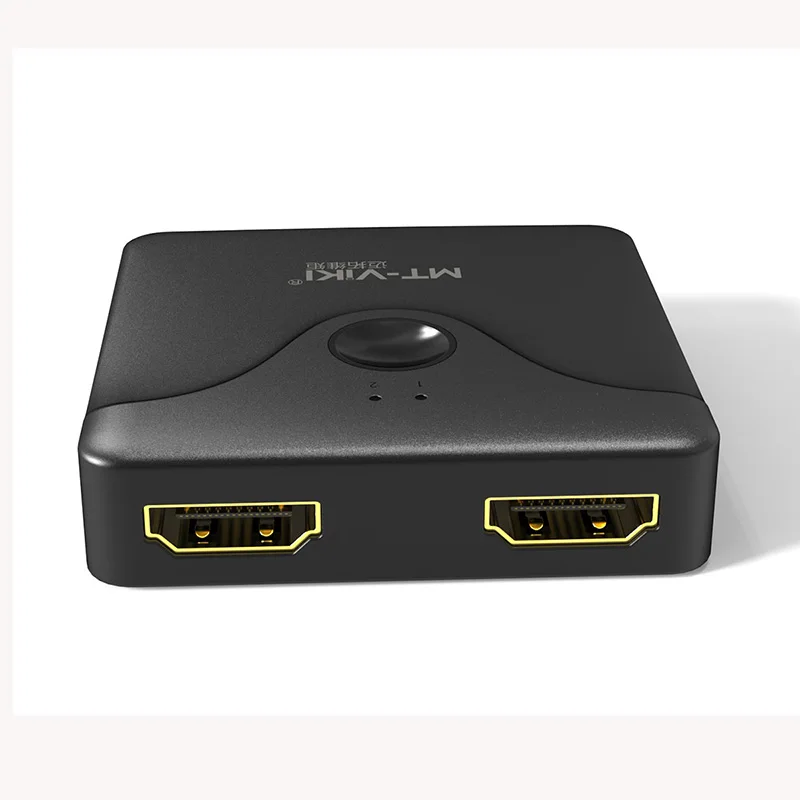

Product image
