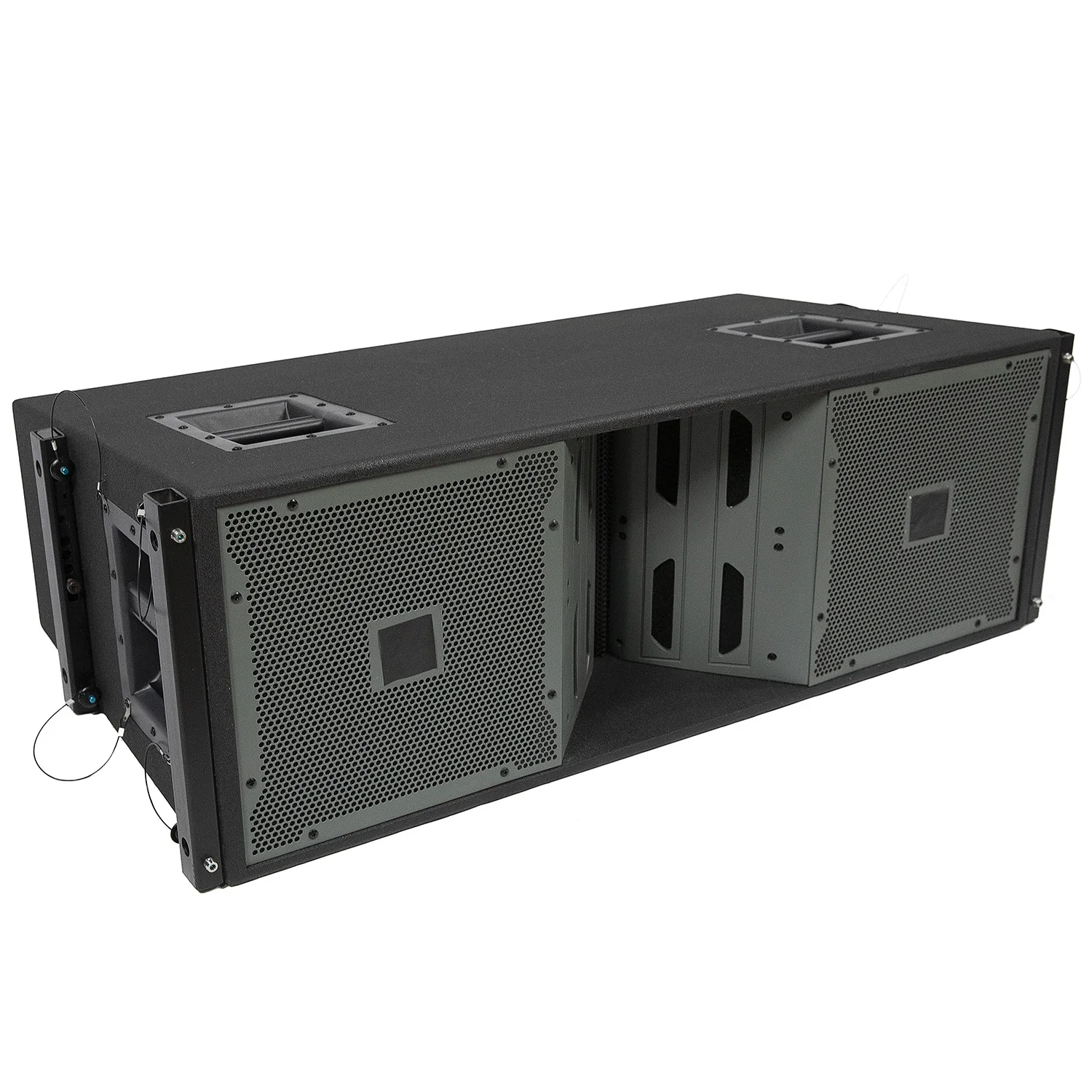

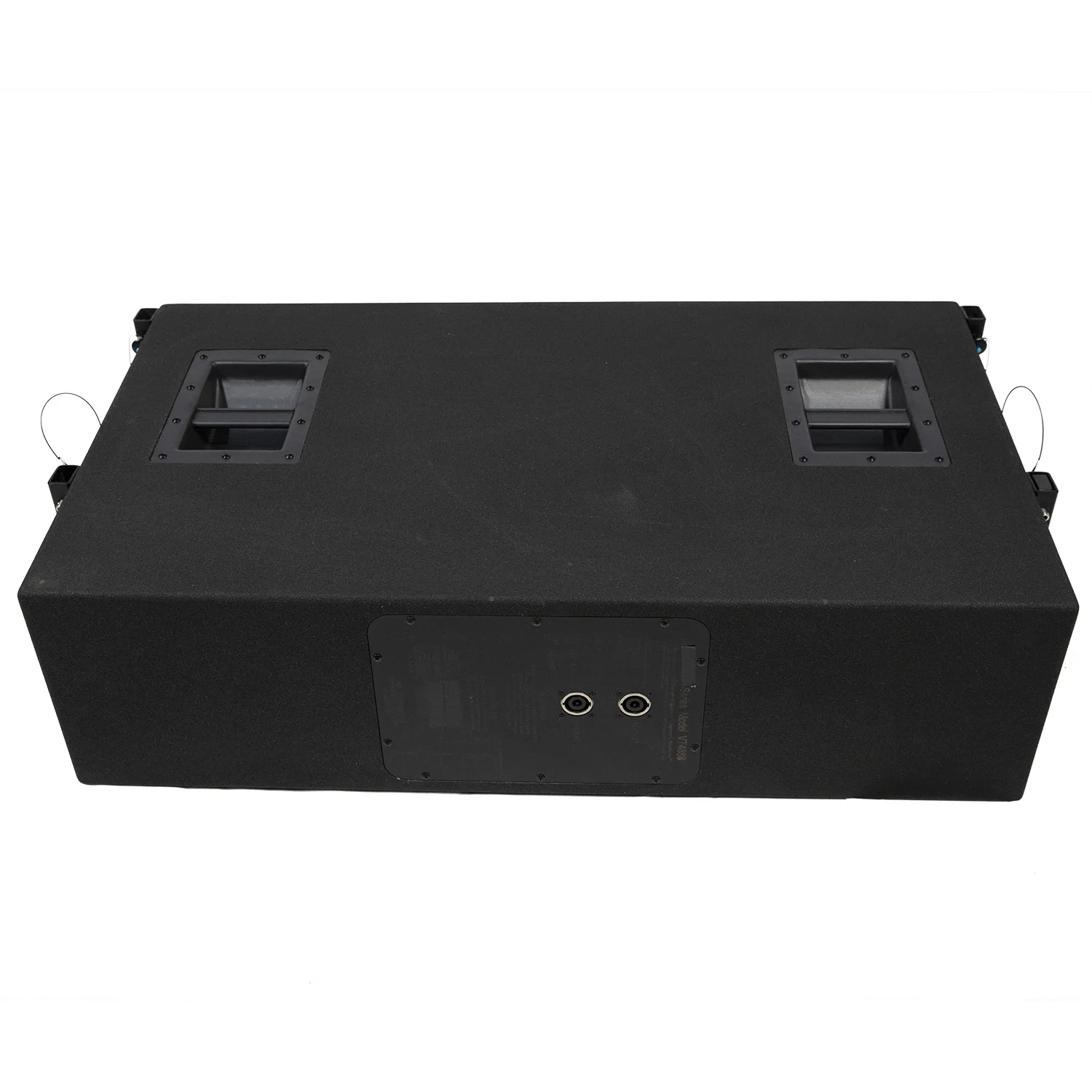

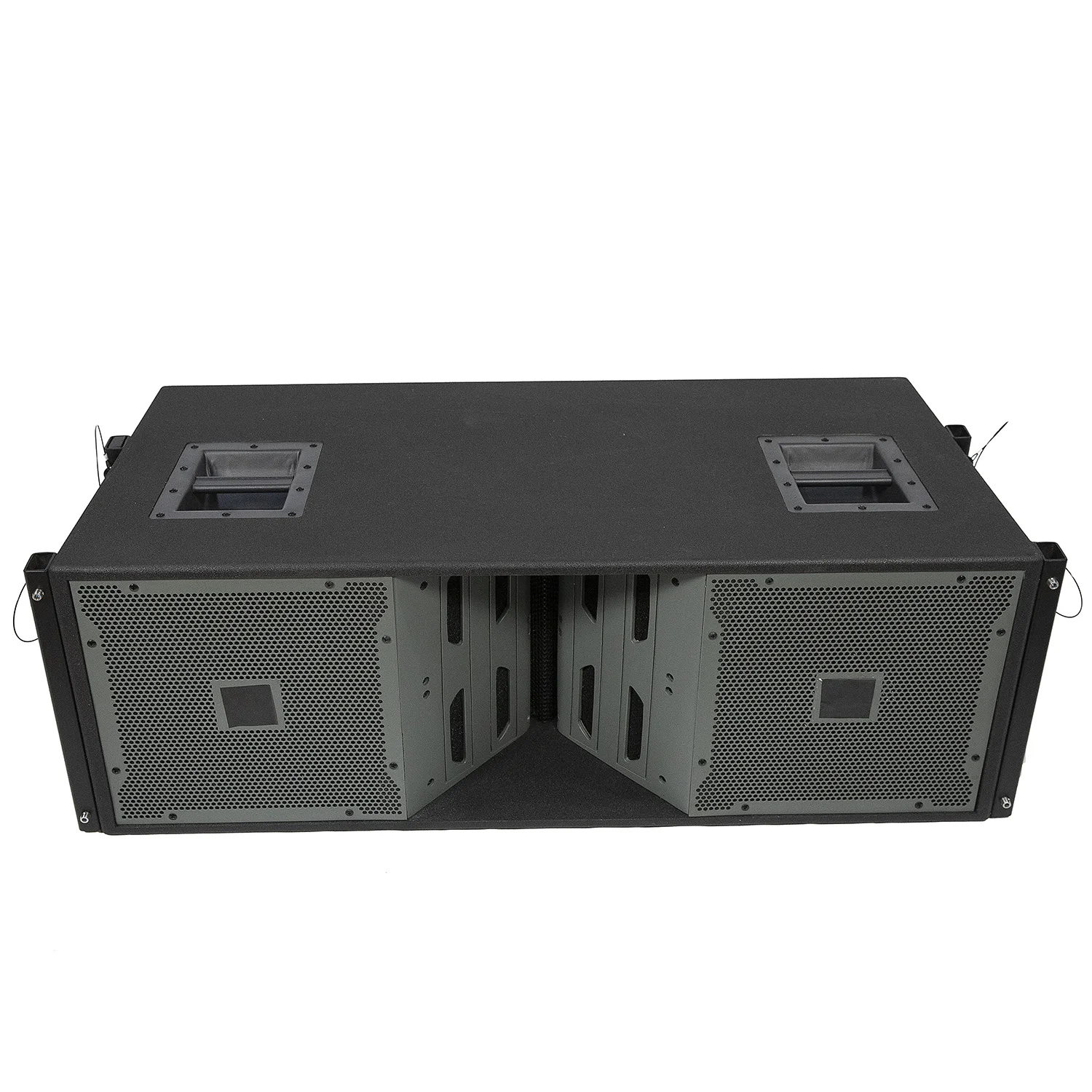

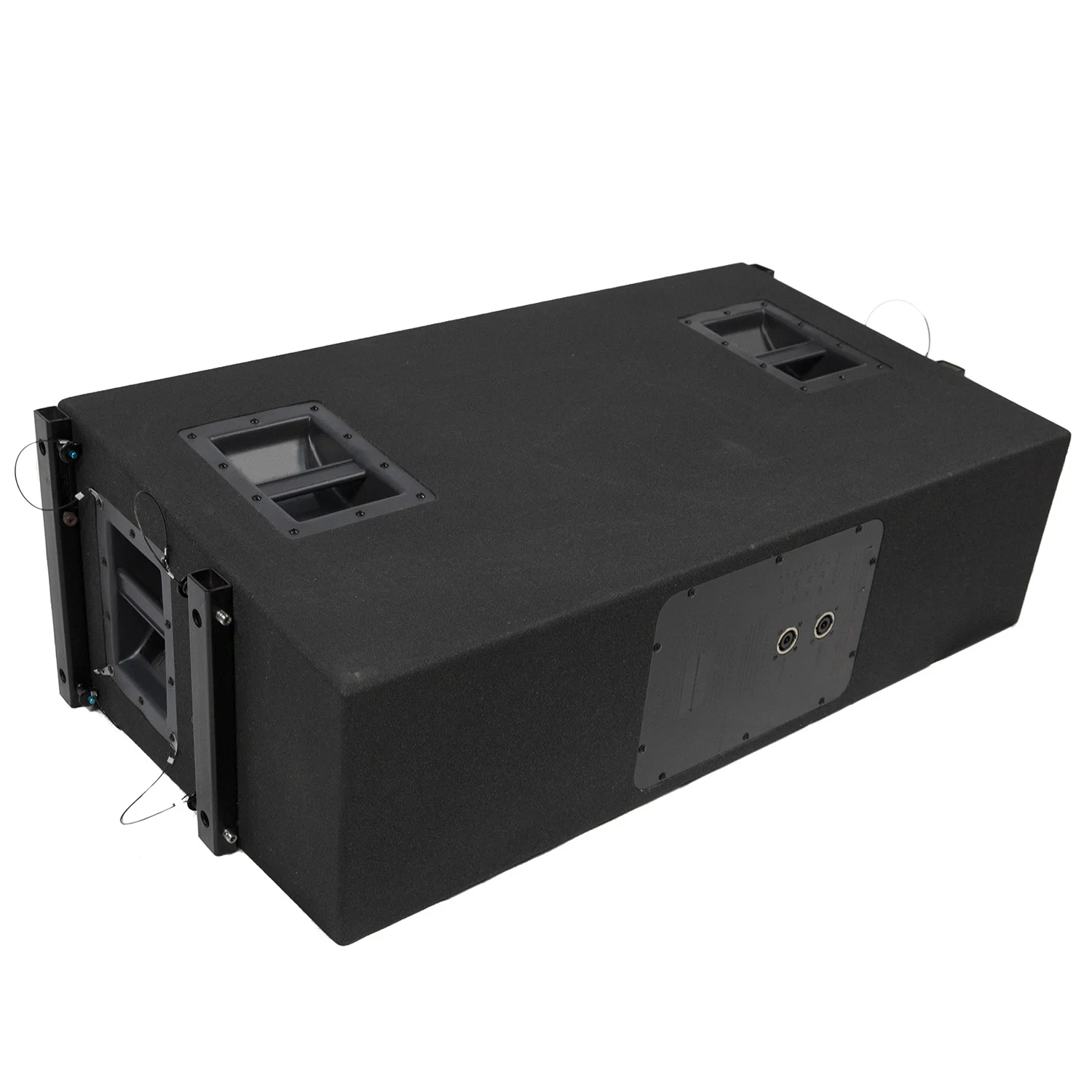

Aoyue v488 church speaker system 3 way line array double 12inch out speaker
- Category: >>>
- Supplier: Guangzhou Xinbaosheng Audio Equipment Factory
Share on (1600619967672):
Product Overview
Description
Three-Way High Directivity Line Array Element | ||||||||
Frequency Range (-10 dB) | 48 Hz – 18 kHz | |||||||
Frequency Response (±3 dB) | 60 Hz – 16 kHz | |||||||
LF: 2000 W Continuous, 8000 W Peak MF: 600 W Continuous, 2400 W Peak HF: 150 W Continuous, 600 W Peak | ||||||||
Maximum Peak Output | 136 dB to 146 dB | |||||||
LF: 2 x 1000-2000 W into 8 ohms MF: 600 - 1200 W into 8 ohms HF: 300 - 600 W into 16 ohms | ||||||||
Input Power Rating | 2 x 1000 W Continuous, 2 x 4000 W Peak 2 x 700 W Continuous, 2 x 2800 W Peak | |||||||
Bandpass Sensitivity | 98 dB | |||||||
Impedance | 8 ohm | |||||||
Grille | Separate LF and HF, black perforated steel, LF grilles foam backed | |||||||

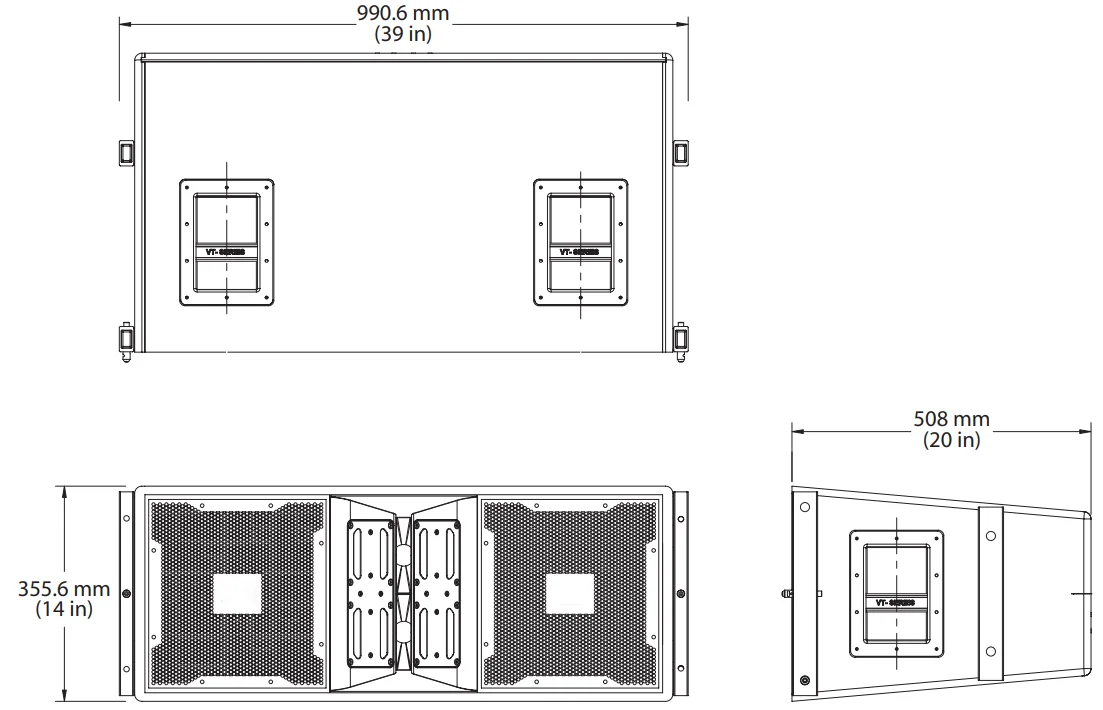

Dimensions (W x H x D) | 990.6 mm x 355.6 mm x 508 mm (39 in x 14 in x 20 in) | |||||||
Net Weight | 51 kg (113 lb) | |||||||
Cabinet | FIrst grade Russian birch plywood | |||||||
●Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output

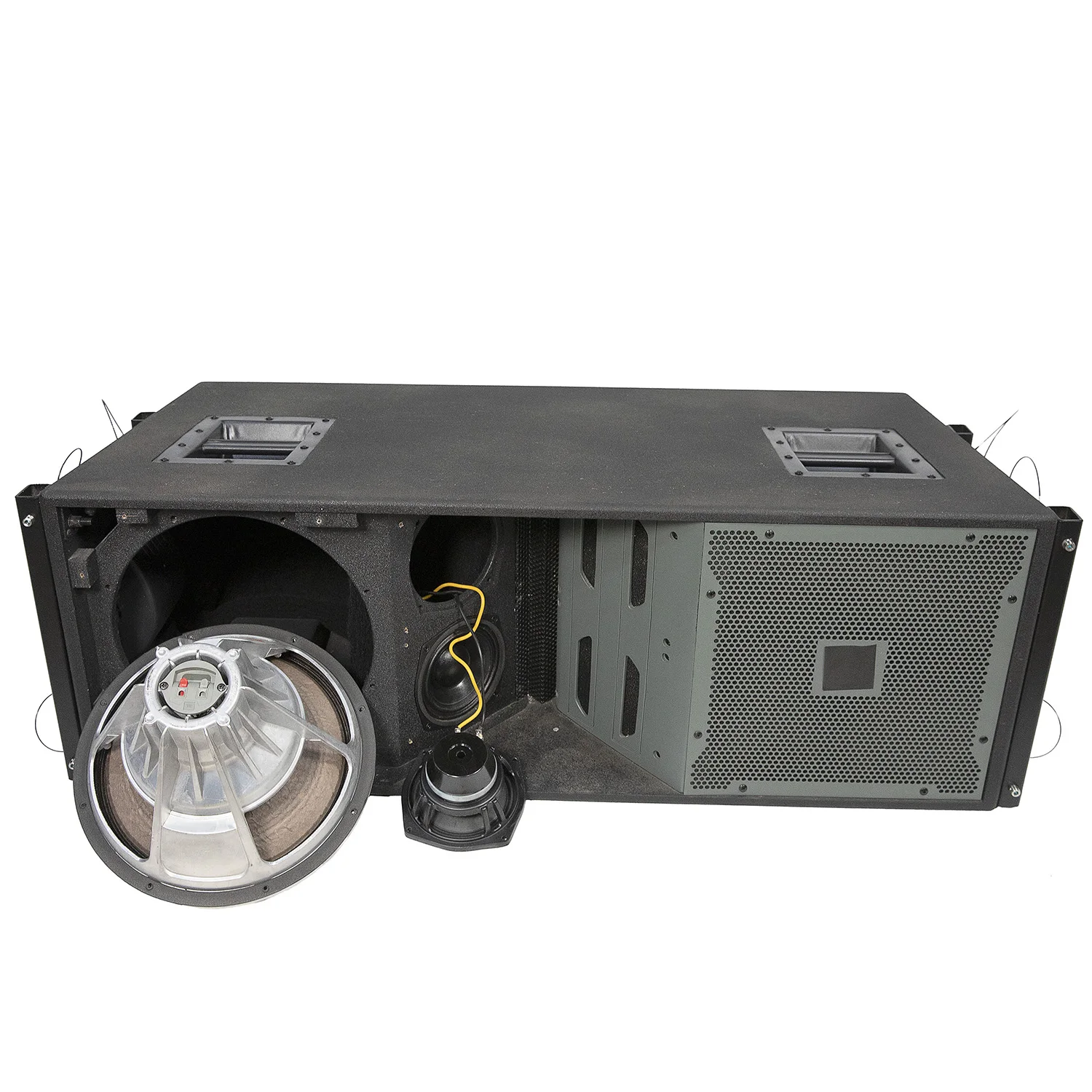

●lightweight enclosure housing two 12" woofers, four 5.5" midrange radiators and two high frequency compression drivers
●provide exceptionally rigid, lightweight enclosure construction
●For use in stand-alone arrays or in combination
●Hinge bars made from premium-grade chromoly alloy steel, with epoxy powder coating over plated surfaces. Hinge pins are plated and quick release pin restraining lanyards are stainless steel to resist corrosion and weather damage.
details 1
details 2
