APF active power filter 15A power harmonic filter

Category: Power Distribution Equipment >>>
Supplier: Jiangsu,Sfere,Electric,Co.,Ltd.

Price:$980.00 - $1,125.00

Price in USD:Details

Quantity:

Product Overview

Description

Products Description

Product Name: APF active power filter 15A power harmonic filter

The SFR-APF series Active Harmonic Filter is a new type of power quality improvement products for the harmonic distortion in the circuit. With the advantage of the Fast Fourier Transform(FFT) and 3-Level technology, the SFR-APF Active Harmonic Filter has the 97% efficiency for harmonic filtering and dynamic reative power compensation. The Rack-mounted module is widely used in power quality cabinets with variety outter sizes. The SFR-APF has complied with the IEEE-519 standard and CE certificates, adapt to the global market.

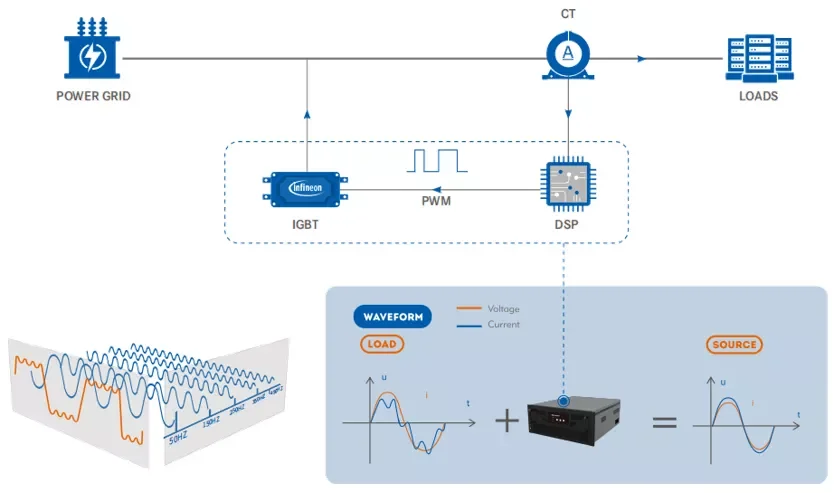

Working Principle

Application

SFR-AHF can be widely used in the following industrial fields (steel industry, metallurgy industry, mining industry, new energy industry, automotive industry), municipal field (water treatment industry, telecommunications industry, research institutes), commercial field (hospital, bank, shopping mall , schools, computer rooms, computer centers), rail transportation (electrified railways, subways).

Data Center

Hospital

Industry

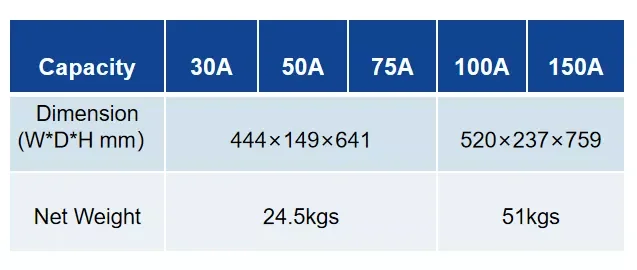

Product Paramenters

Input
System voltage	Line voltage 400V
System voltage range	±15%
Frequency	50Hz ±5%
Output and installation
Capacity specification	100A
Module type	Rack Mounted
Incoming way	Upper incoming/Back incoming
Performance
Harmonics filtering rate	≥90% (Within the range of the ordered capacity, and the load harmonic content is higher than 30% of the ordered capacity)
Harmonics filtering range	2nd ~51st harmonics（If you need to control the harmonic order of more than 25 times, you should write in the contract）
Full response time	≤5ms
Instantaneous response time	≤100us
Dynamic current	1.2 times the filter rated capacity output，1min
Protection
Overload protection	Automatic current limit at 100% rated output
Other protection	Over-voltage protection, under-voltage protection, over-temperature protection, over-current protection
Operation mode
Stand-alone operation	Support
Parallel operation	Conventionally support 8 sets, special requirements can be customized

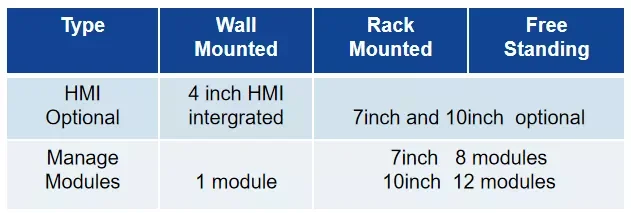

Display and operation
Status display	Power / Operation / Fault LED indication
Module operation	Start/Stop/Restart
HMI (Optional）	Optional 7” (Hole size 215×152mm) 10” (Hole size 261×180mm)
Communication (RS485 interface)	1 loop Modbus-RTU protocol external communication interface, Users can have access to the background system through this interface or HMI port
Environment condition
IP level	IP20（customized）
Operating environment temperature	-25℃~40℃
Storage/ transport temperature	-25℃~55℃
Work humidity	Relative humidity 5~95%，no condensation
Altitude	1000m and below(above 1000m, Every additional 100m / 1% derating)
Standard	IEEE519

Standard Compliance

IEEE519

-2014/30/EU 2014/35/EU

-EN 61000-6-2:2005+AC:2005

-EN 61000-6-4:2007+A1:2011

-EN 50178:1997

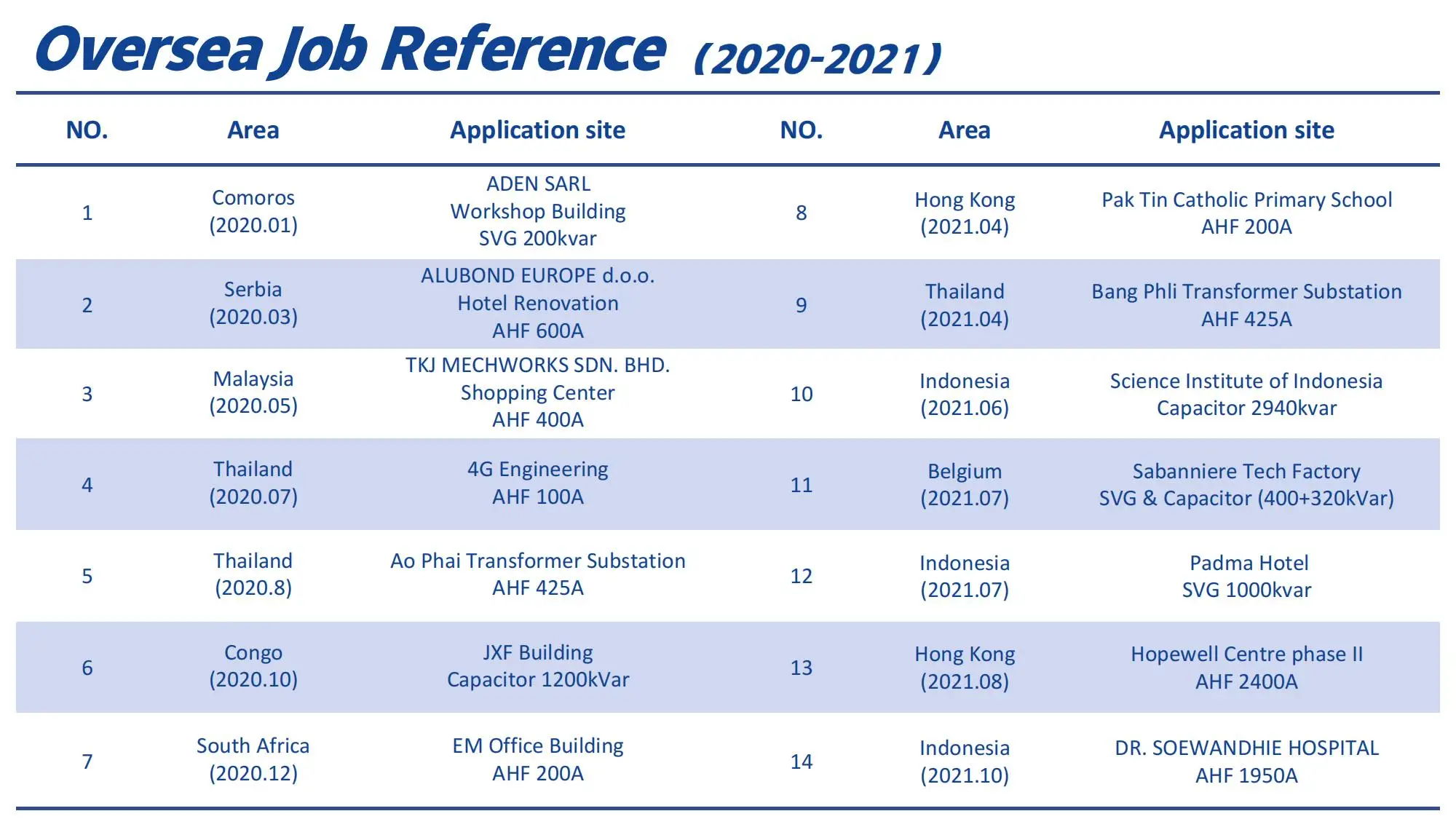

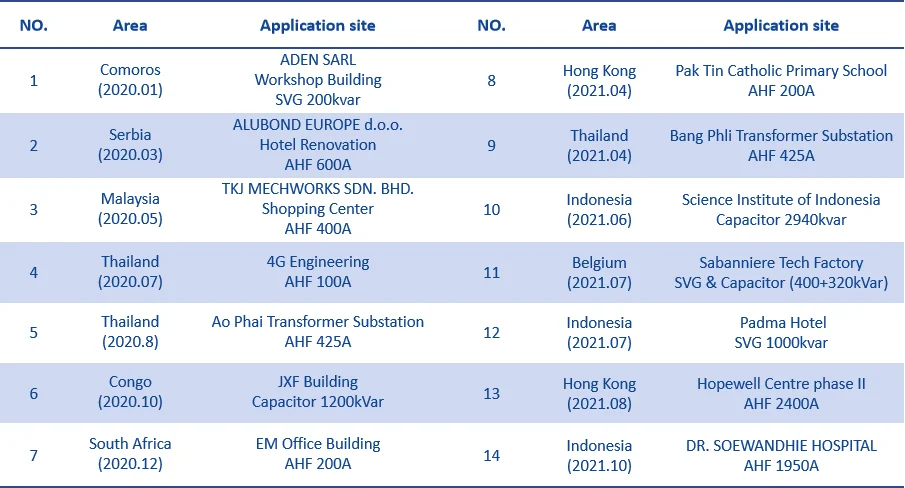

Project Reference

Company Profile

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: How long is your delivery time?
A: 2-4 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide free sample for 1pcs/item, but the customers should take over the freight.

Q: What is your terms of payment ?
A: Small online orders were 100% before delivery, order amount more than $3000, 30% in advance 70% before delivery.
