blast media steel shot for shot blast

Product Overview

Description

Steel Shots are made of tempered martensite, with moderate hardness, excellent elasticity, wear-resistant, give less dust, longer recycle life, low cost, extensively used for shot peening to give residual stress in the surface layer of components for fatigue life enhancement and suppression of stress corrosion cracking and descaling and cleaning up surfaces of castings, steel parts and mechanical work-pieces prior coating. They are also extremely ideal materials for cutting granite.



Chemical-Physical Characteristics
Item	Steel Shots
Hardness  ±3HRC	40-50
		Specify gravity	7.2g/cm3
Metallographic Struture	Even Tempered Martensite
Chemical composition,%	C: 0.85 – 1.20;   Mn: 0.60 - 1.20;  Si: 0.40 – 1.20;   S: 0.05;   P: 0.05.

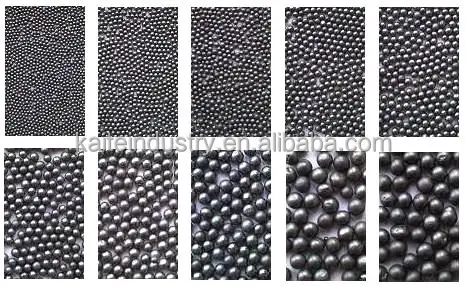

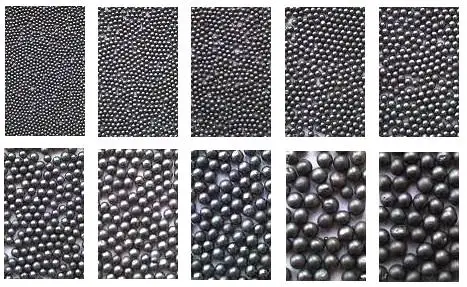

SS Steel Shots Size Distribution
SCREEN NUMBER	SIZE (mm)	SS-2.5	SS-2.0	SS-1.7	SS-1.4	SS-1.2	SS-1.0	SS-0.8	SS-0.6	SS-0.5	SS-0.3	SS-0.2
7	2.80	0
8	2.36		0
10	2.0	≥85%		0	0
12	1.70	≥97%	≥85%		≤5%	0
14	1.40		≥97%	≥85%		≤5%	0
16	1.18			≥97%	≥85%		≤5%	0
18	1.00				≥96%	≥85%		≤5%	0
20	0.850						≥85%		≤10%	0
25	0.710					≥96%	≥96%	≥85%		≤10%
30	0.600							≥96%	≥85%		0
35	0.500								≥96%		≤10%
40	0.425									≥85%		0
45	0.355									≥97%		≤10%
50	0.300										≥80%
80	0.180										≥90%	≥80%
120	0.125											≥90%
200	0.075
SAE		S780	S660	S550	S460	S390	S330	S280	S230	S170	S110	S070
