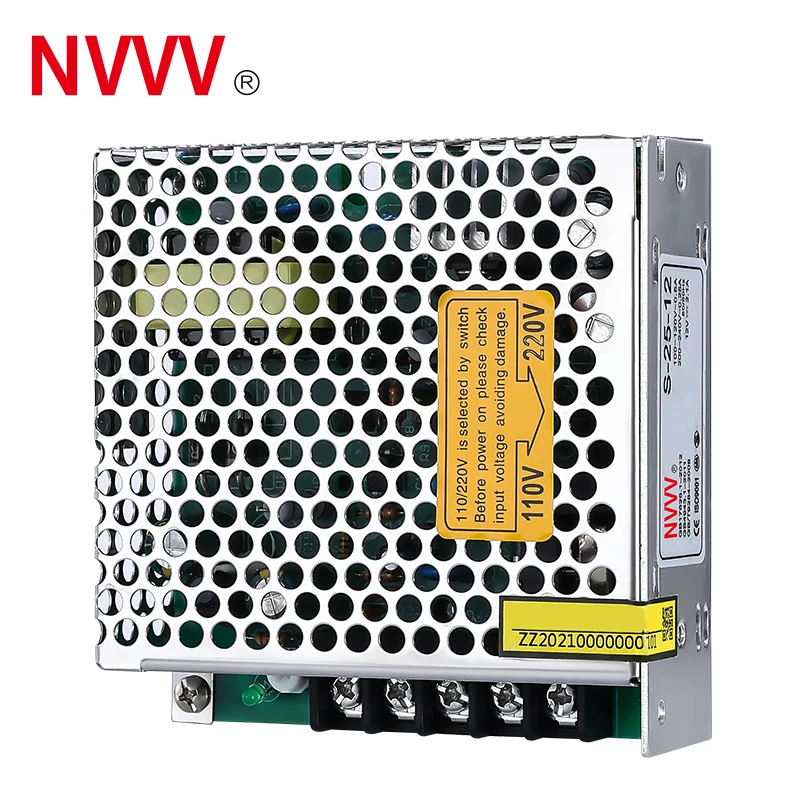

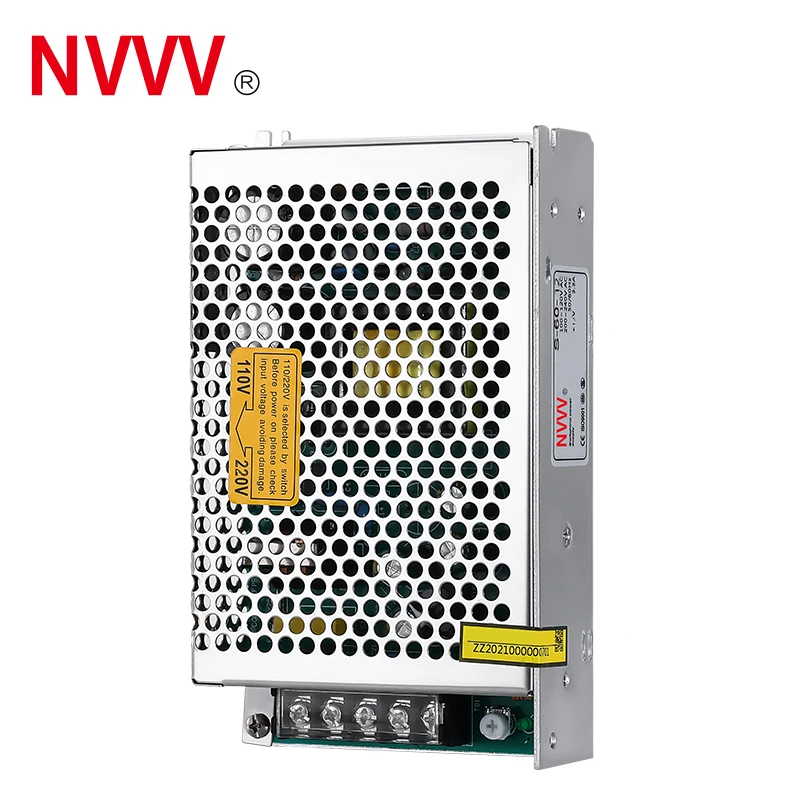

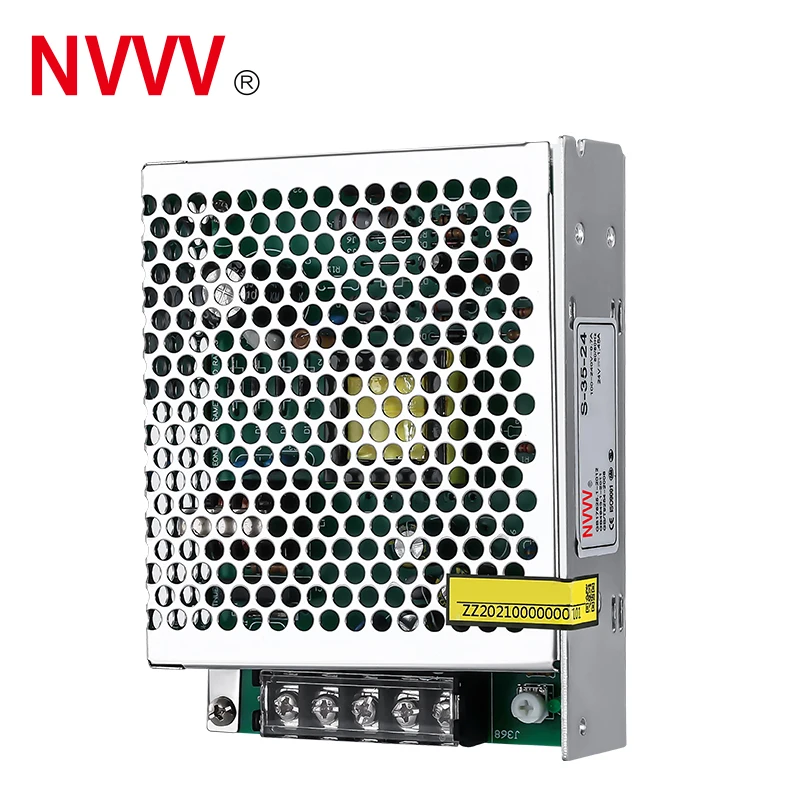

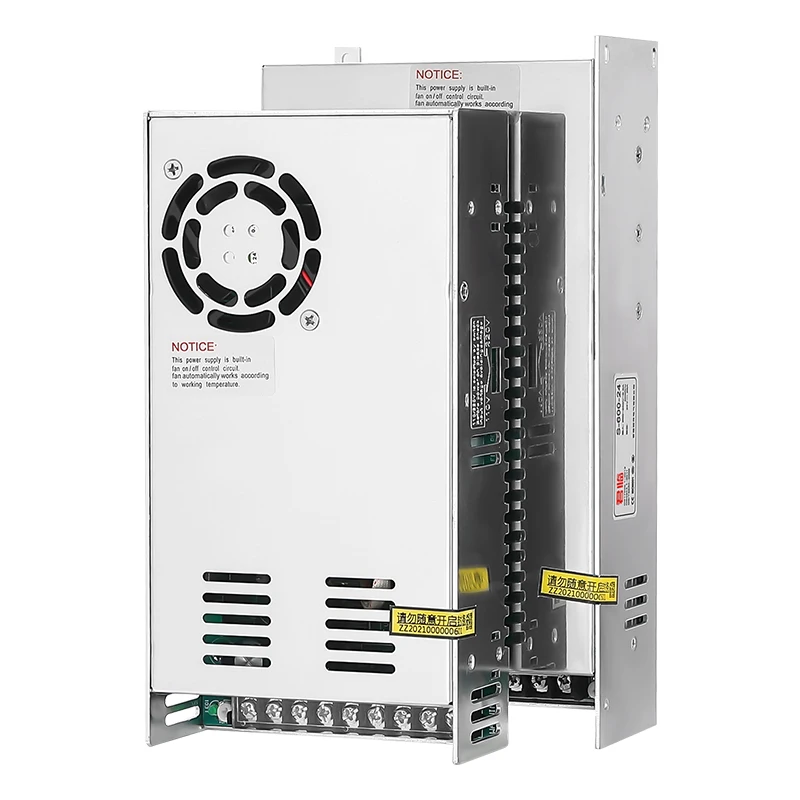

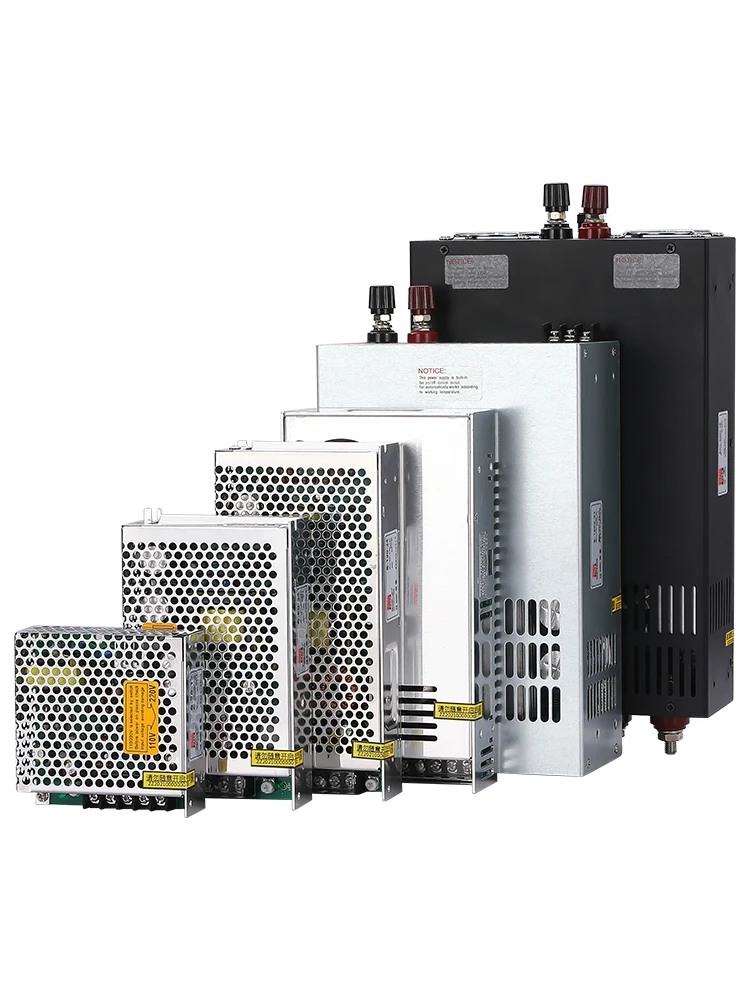

Power supply units 5V 12V 24V 36V 48V 15W 25W 35W 50W 100W 150W 200W 350W smps power supply for CCTV Camera and LED Light
- Category: Power Supplies >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (1600619988976):
Product Overview
Description

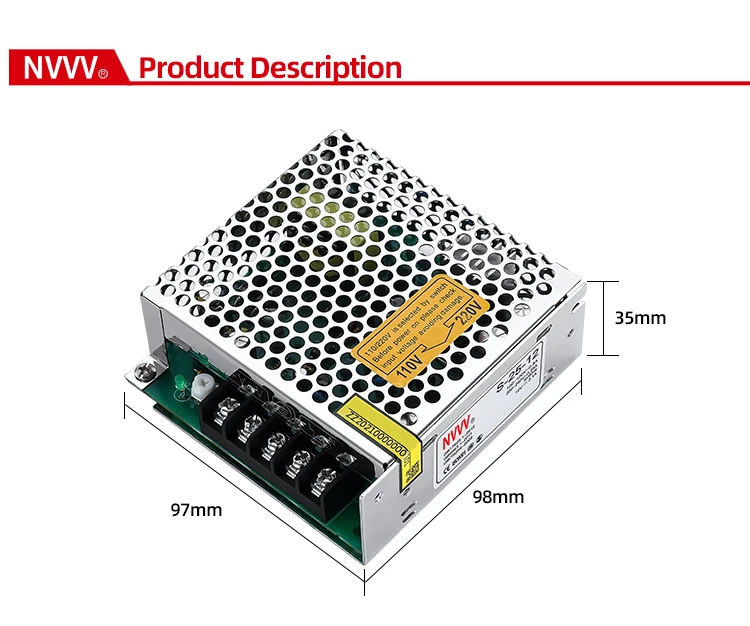

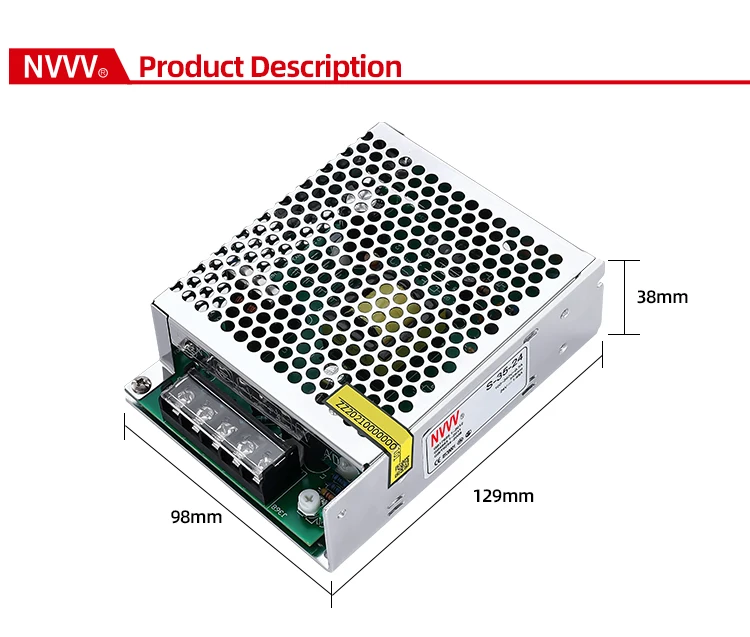

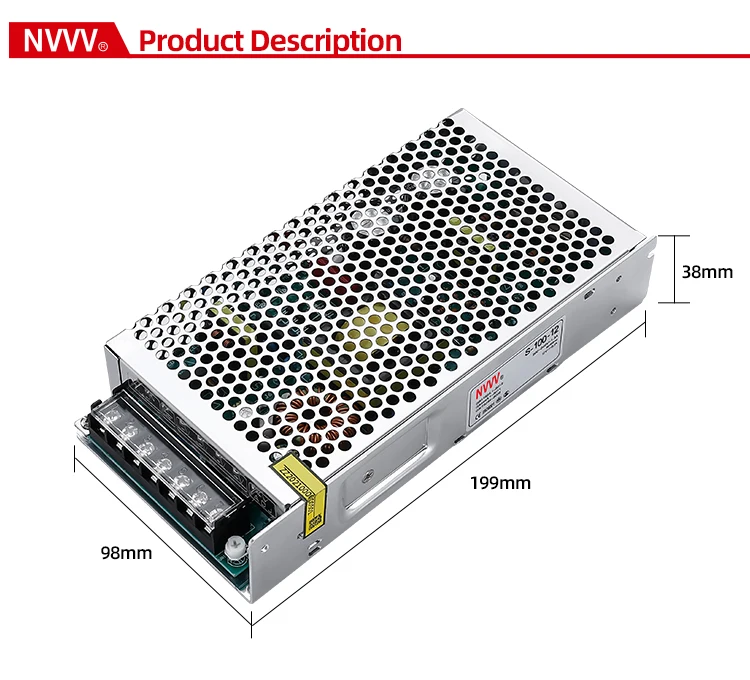

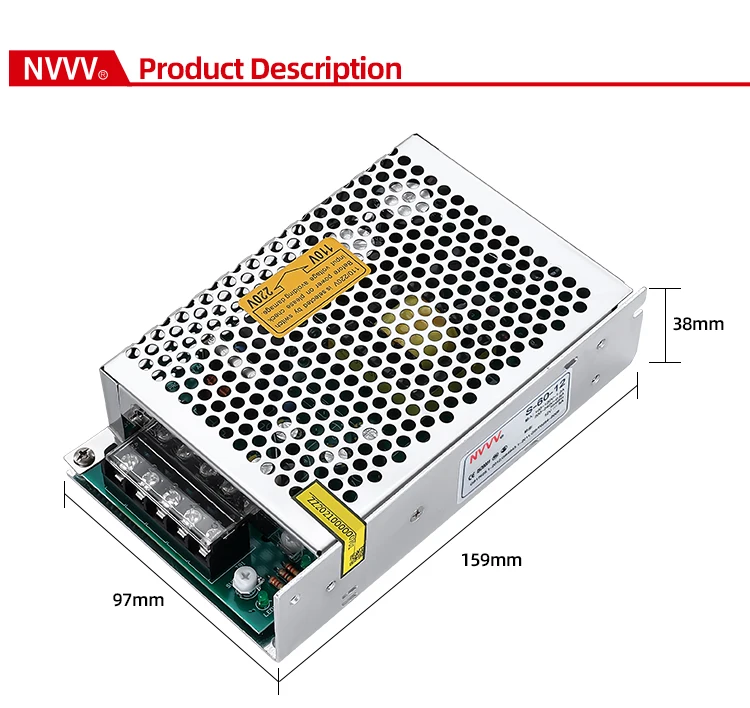

Product Description
Specification

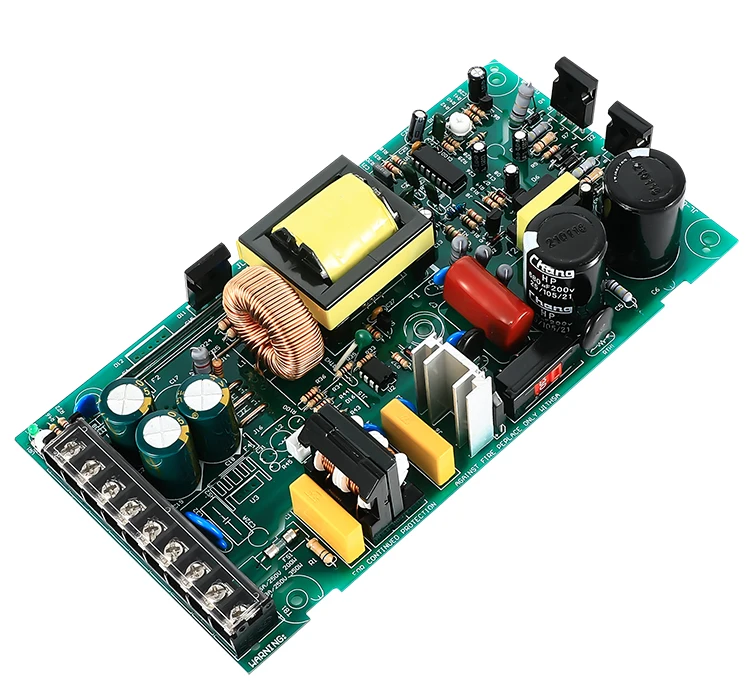

S-350 350W Switching Power Supply | ||||||||||||||
Project | Technical index | |||||||||||||
Output | DC voltage | 5V | 12V | 18V | 24V | 36V | 48V | |||||||
Rated current | 50A | 29A | 19.4A | 14.5A | 9.7A | 7.3A | ||||||||
Rated power | 250W | 350W | 350W | 350W | 350W | 350.4W | ||||||||
Ripple and noise ① | ＜150mV | ＜150mV | ＜150mV | ＜150mV | ＜240mV | ＜240mV | ||||||||
Voltage accuracy | ±2% | ±1% | ||||||||||||
Output voltage regulation range | ±10% | |||||||||||||
Load adjustment rate | ＜±1.5% | ＜±1.2% | ＜±1.2% | ＜±1% | ＜±0.5% | ＜±0.5% | ||||||||
Linear adjustment rate | ＜±1% | |||||||||||||
Input | Voltage range | 90-132VAC/180-264VAC 47Hz～63Hz；254VDC～370VDC | ||||||||||||
Efficiency (typical) ② | ＞74% | ＞82% | ＞82% | ＞84% | ＞86% | ＞86% | ||||||||
Working current | ＜5.2 A 115VAC ＜2.8A 230VAC | |||||||||||||
Impulse current | 110VAC 25A， 220VAC： 50A | |||||||||||||
Start, rise, hold time | 200ms、50ms、20ms ：230VAC | |||||||||||||
Protect | overload protection | 105% - 135% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||||||||||||
Overvoltage protection | Close output when ≥ 115% - 145% | |||||||||||||
Undervoltage protection | Close output when ≤ 10% - 45% | |||||||||||||
Short circuit protection | Close output | |||||||||||||
Over temperature protection | Rth3: ≥ 65 ℃ fan start, ≥ 55 ℃ fan close, ≥ 80 ℃ close output (5v-15v) rth3: ≥ 70 ℃ fan start, ≥ 60 ℃ fan close, ≥ 85 ℃ close output (18v-48v) | |||||||||||||
Environmental Science | Working temperature and humidity | -10℃～+50℃；20%～90RH | ||||||||||||
Storage temperature and humidity | -20℃～+85℃；10%～95RH | |||||||||||||
Safety regulations | Withstand voltage | Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute | ||||||||||||
Leakage current | Input output < 6mA at 1.5kVac | |||||||||||||
Leakage current | < 1.5mA at input-output 220VAC | |||||||||||||
Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||||||||||||
Other | size | 215*115*50mm | ||||||||||||
Net weight / gross weight | 874.1/936.3g | |||||||||||||
Remarks | ① Ripple and noise measurement method: use a 12 "twisted pair, and connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure at 20MHz bandwidth. ② The efficiency is tested at an input voltage of 230VAC, rated load, and an ambient temperature of 25 ℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear regulation test method: under rated load from low voltage to high voltage test load regulation test method: from 0% - 100% rated load. The start-up time is measured under the cold start state. The quick and frequent switch on and off may increase the start-up time. When the operating altitude is higher than 2000m, the operating environment temperature needs to be reduced by 5 ℃ / 1000m | |||||||||||||
Company Profile
Our Team
Shipping&Delivery
FAQ
Q1:How many Voltage you can supply?
A: 12v , 24v , 48v ,50v , 60v , 110v(Depend on items).
A: 12v , 24v , 48v ,50v , 60v , 110v(Depend on items).
Q2：Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3：Do you have any MOQ limited for the order?
A: Low MOQ, 1pc for sample checking is available.
A: Low MOQ, 1pc for sample checking is available.

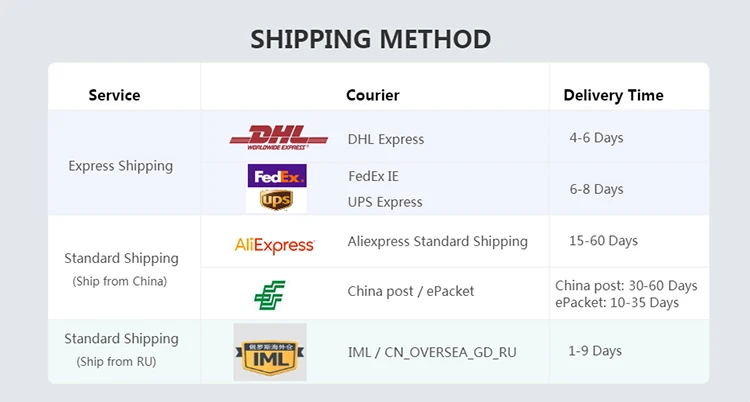

Q4：How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or EMS. It usually takes 3-5 days to
arrive. Airline and sea shipping also optional.
A: We usually ship by DHL, UPS, FedEx or EMS. It usually takes 3-5 days to
arrive. Airline and sea shipping also optional.
Q5：Do you offer guarantee for the products?
A: Yes, we offer warranty to our products.
A: Yes, we offer warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less. Secondly, during the guarantee period,we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Firstly, our products are produced in strict quality control system and the defective rate will be less. Secondly, during the guarantee period,we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
