Product Overview
Description
Product Overview

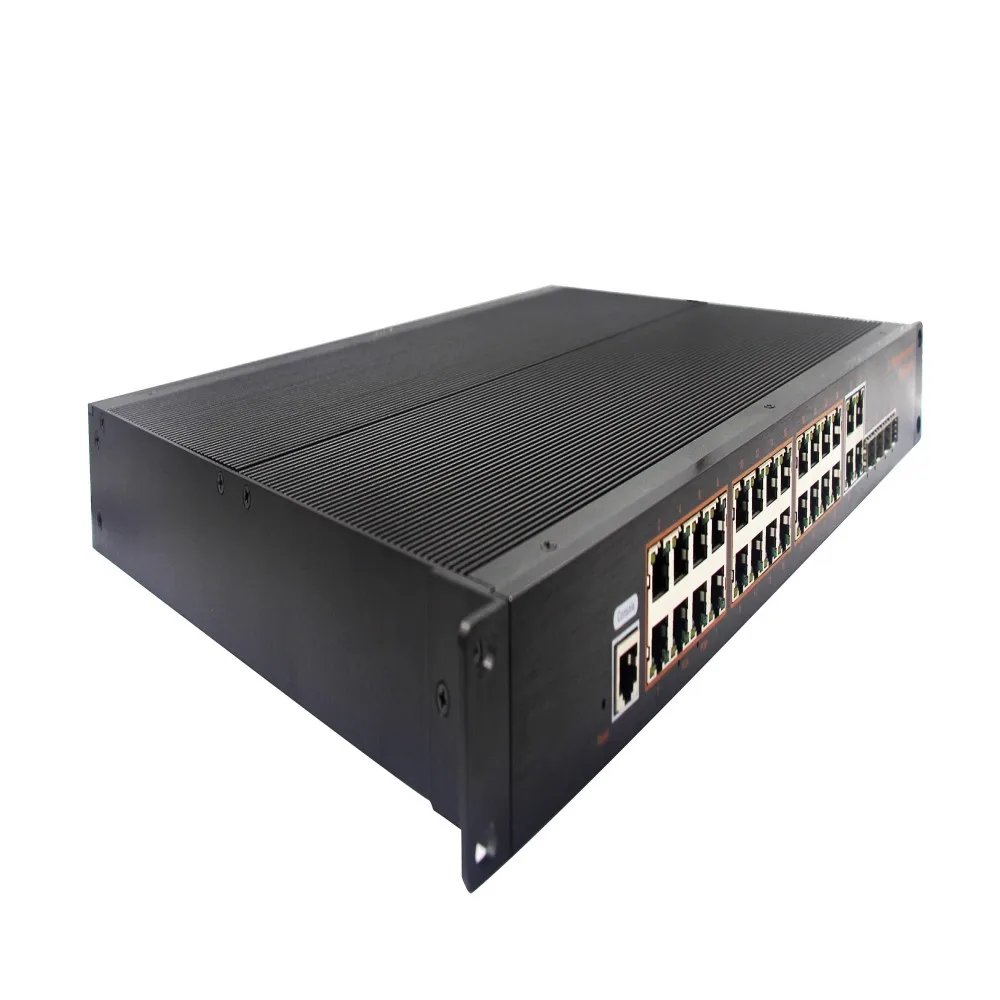

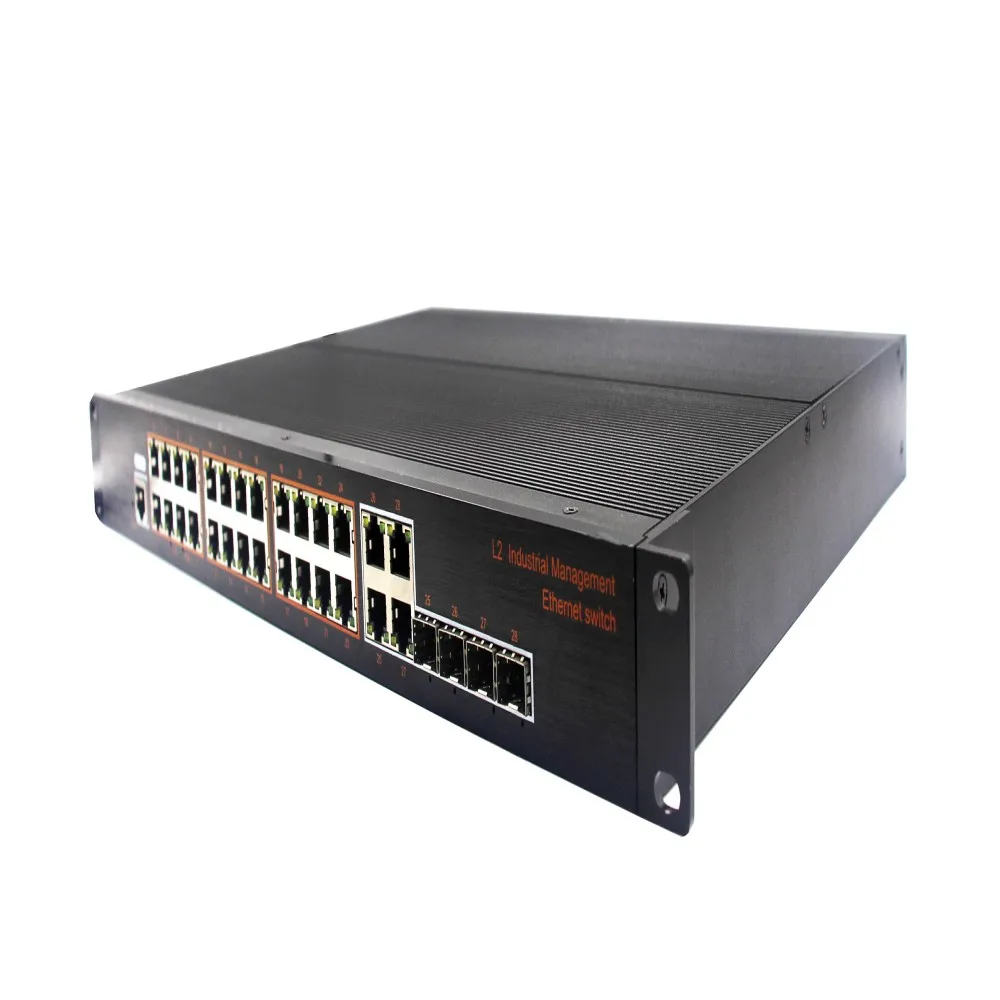

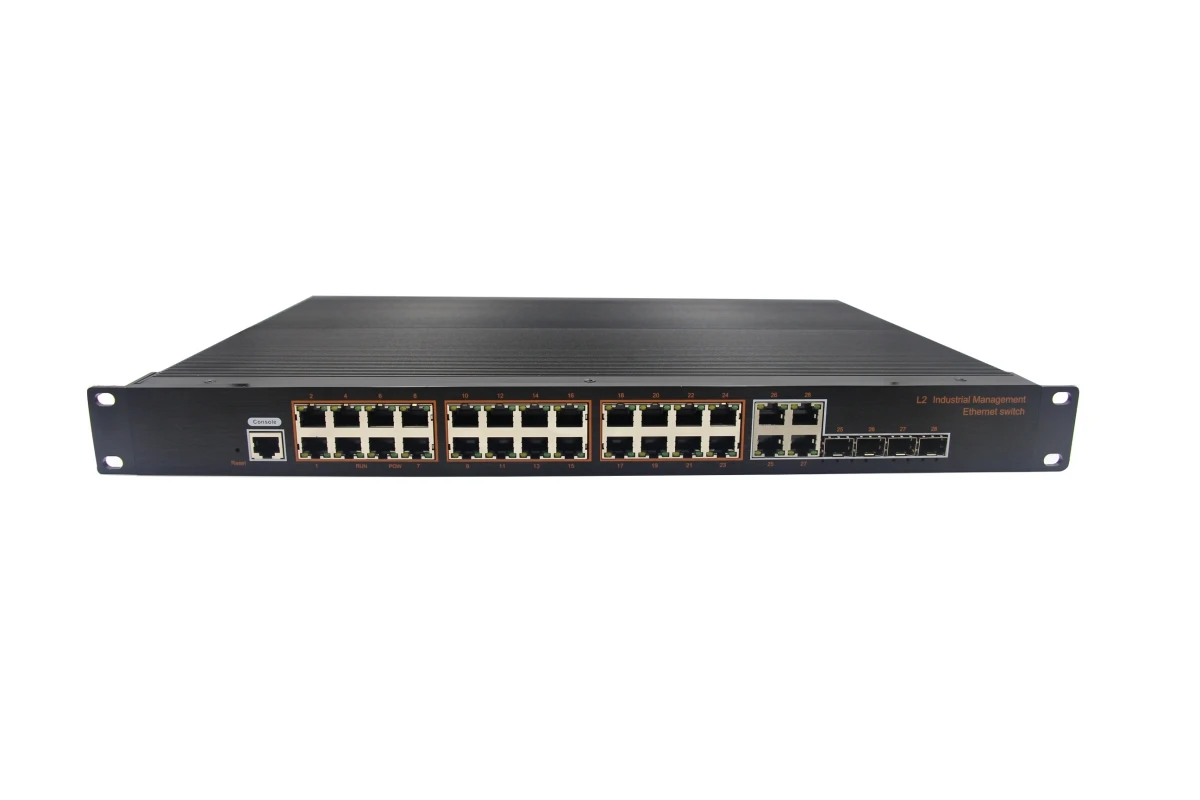

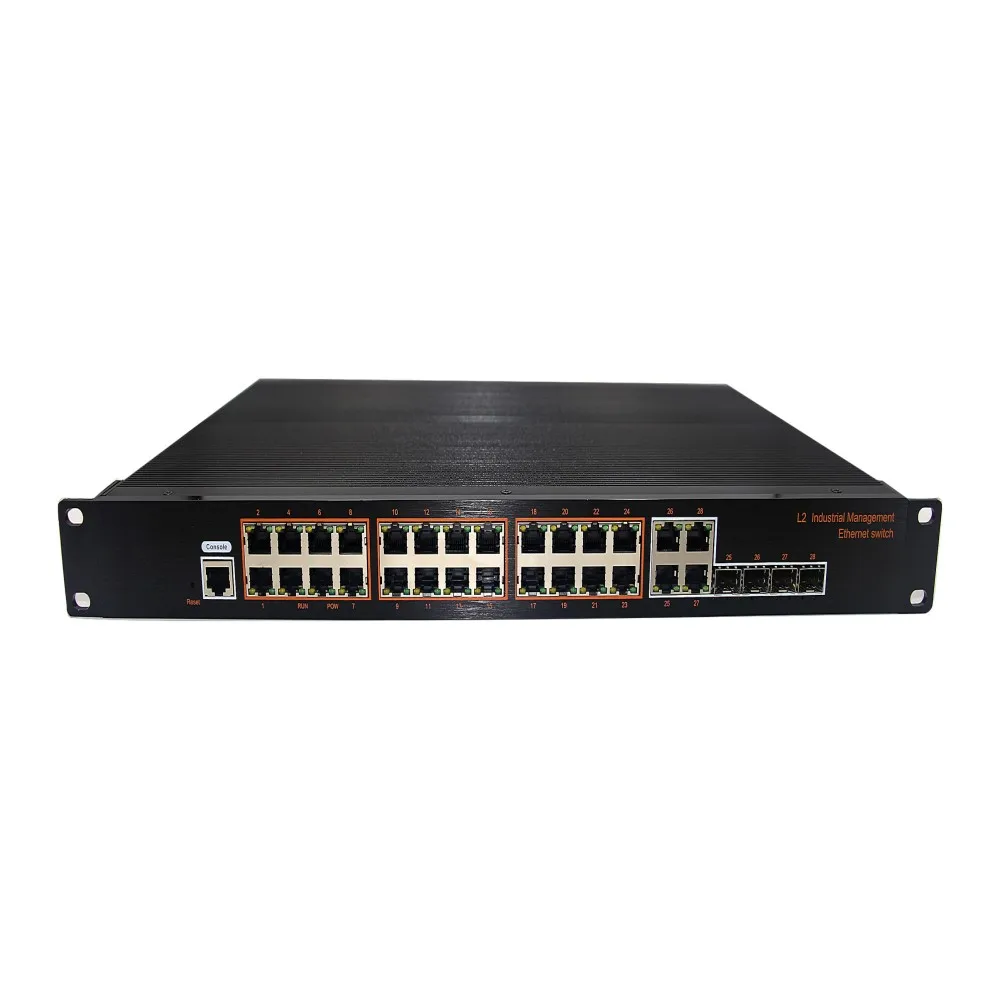

ZX428GS-M-SFP

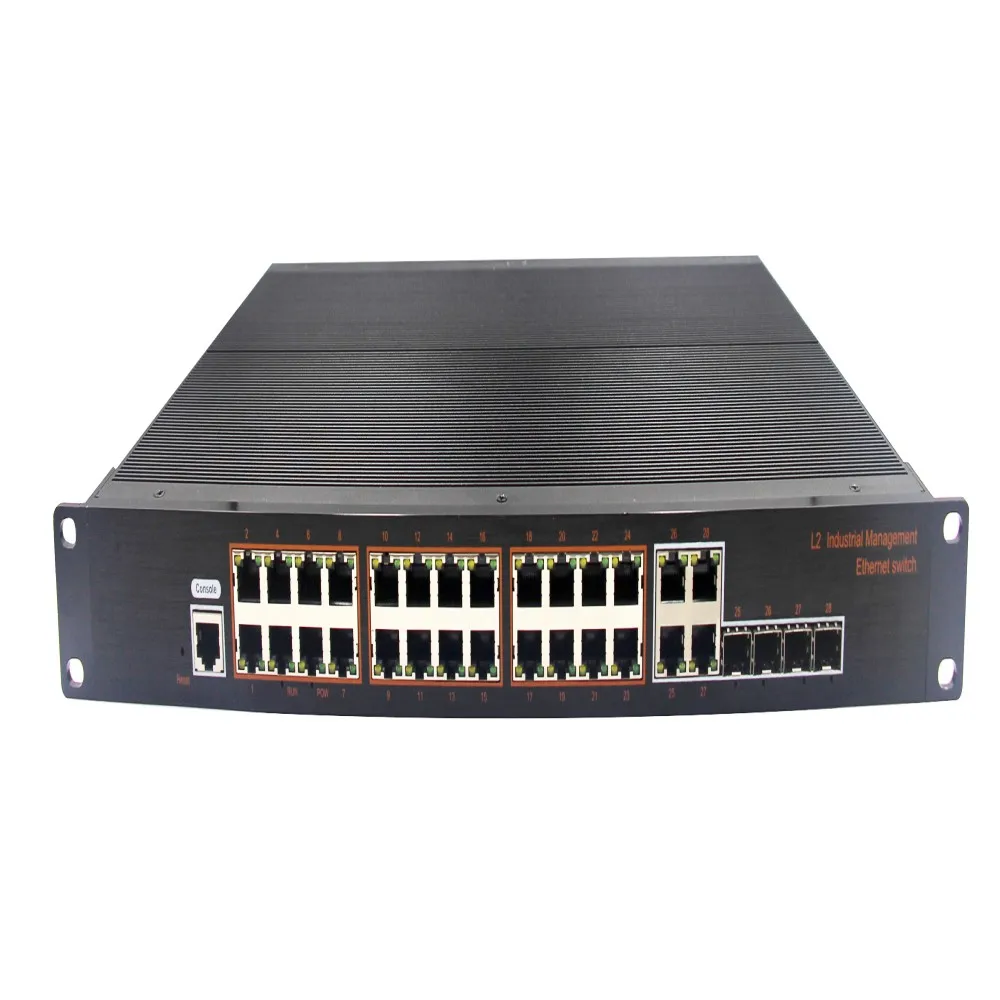

24-port 10//100/1000BASE-TX+4G combo Managed Industrial Switch
24-port 10//100/1000BASE-TX+4G combo Managed Industrial Switch
ZX428GS-M-SFP an hardened 32-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 24-port 10/100/1000BASE-TX RJ45 +4G combo delivered in an IP40 rugged, strong case with redundant power system. It’s suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
FEATURES AT A GLANCE
The ZX428GS-M-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable
fiber performance.
fiber performance.

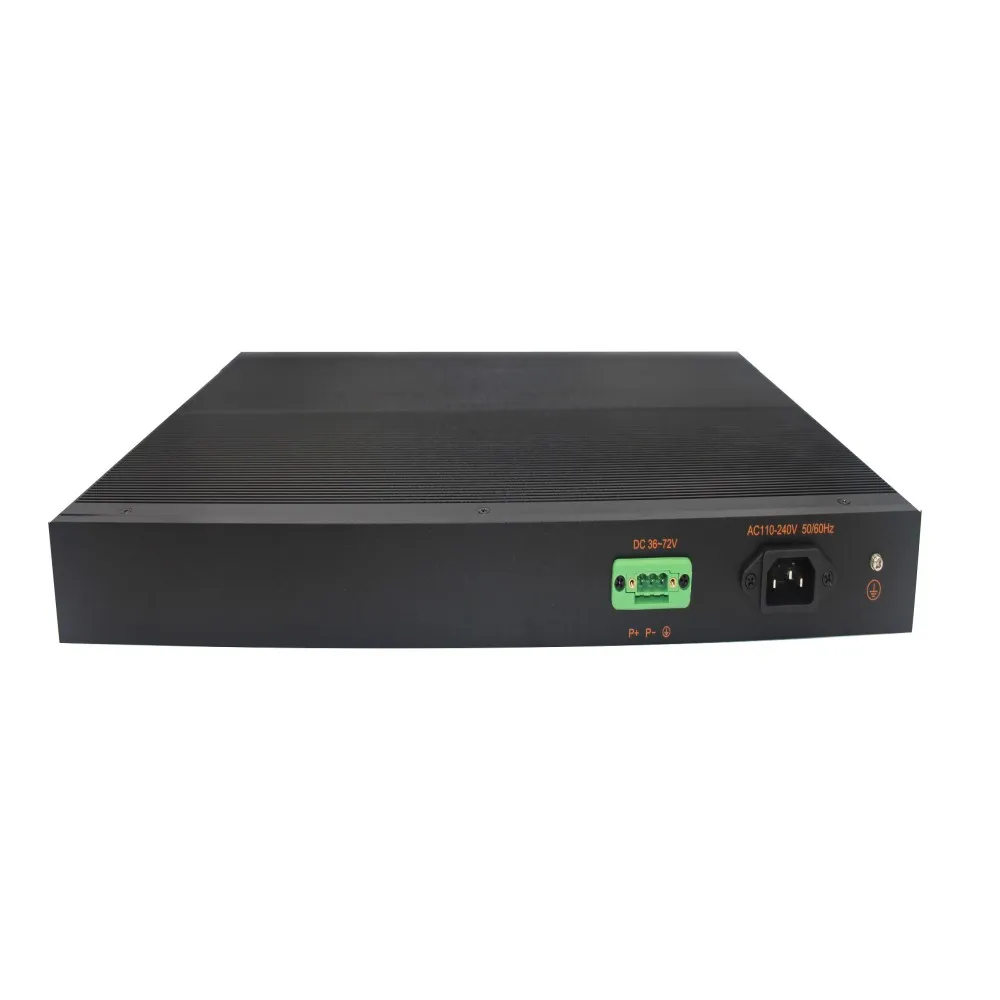

The ZX428GS-M-SFP is packaged in a compact IP40 case that allows bracket mounting to cabinet . It supplies dual power supply:
DC36~72V and AC110-240V
DC36~72V and AC110-240V
Interface
•24-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
•4G combo (4G RJ45 or 4G SFP)
•24-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
•4G combo (4G RJ45 or 4G SFP)
Industrial conformance
•36V to 72V DC, redundant power input
•-40℃ to 85℃ operating temperature
•IP40 aluminum housing
•Supports 6KV DC Ethernet ESD protection
•Supports 6KV DC EFT protection for power line
•Free Fall, Shock and Vibration Stability
•DIN-rail and wall-mountable hardware design
L2 management
•Support STP/RSTP/MSTP
•Web management, CLI
•IGMP snooping, QOS,VLAN,SNMP
•Support STP/RSTP/MSTP
•Web management, CLI
•IGMP snooping, QOS,VLAN,SNMP
Title goes here.

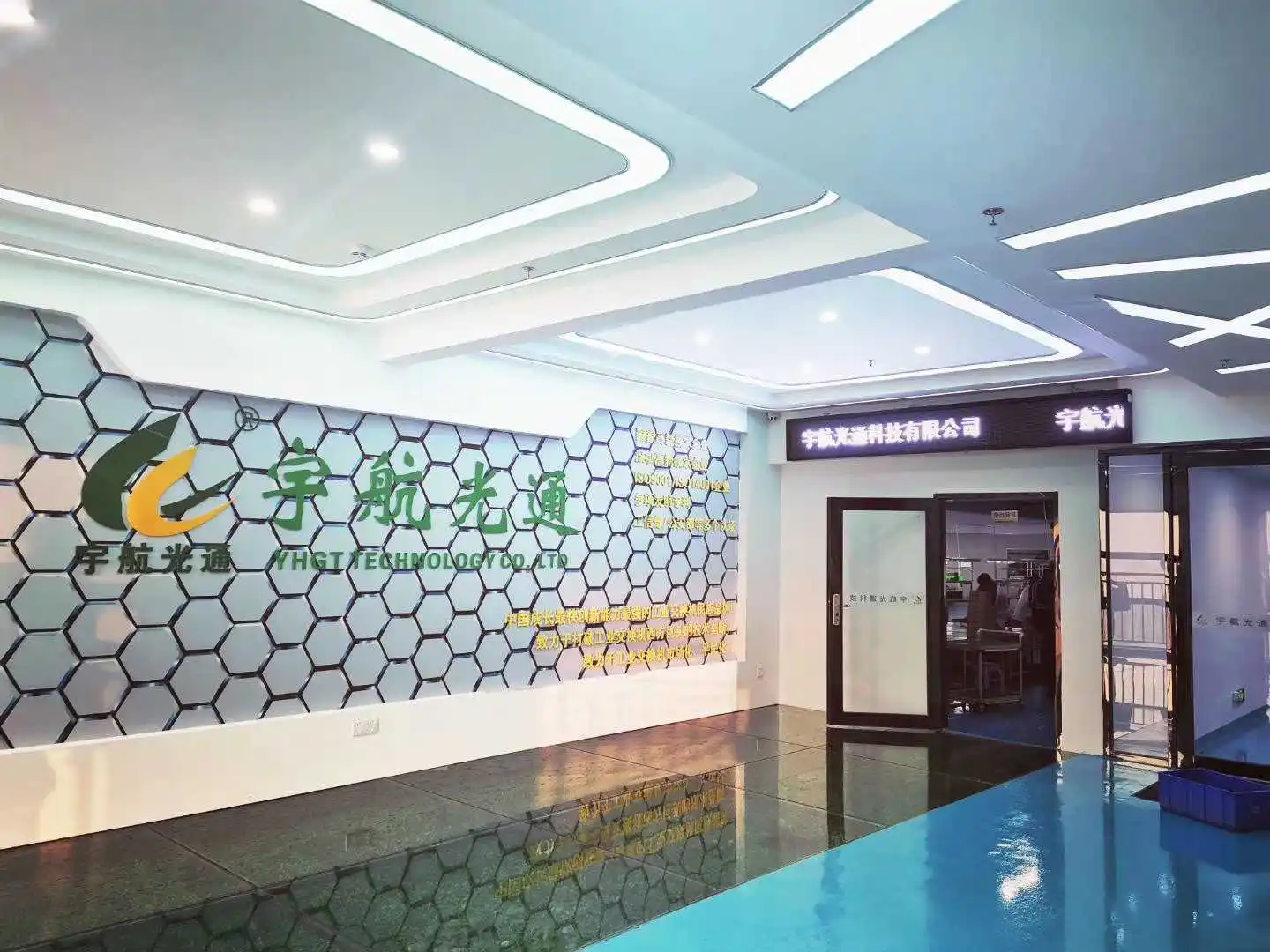

YHGT is one of the domestic national brands in China with the largest manufacturing workshop for industrial Ethernet switches (3000㎡) and automation production line (launched in June 2021), and 7S standard factory. Yuhang focus on the industrial switch product line, already launched more than 1000 models, the solution coving IC+\\ Marvell \\RTL\\VTS\\BCM and ourself-developed chips and other chip manufacturers of various industrial switch mainstream standard solutions, seven product lines, hexagonal product layout, well known as the industrial switch "Wal-Mart“.
PRODUCT SPECIFICATIONS
Model No. | ZX428GS-M-SFP | Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
1000Base-TX Port | |||
Uplink Port | 4G combo (either 4G RJ45 or 4G SFP) | Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Performance Specification | Bandwidth: 256Gbps Packet Buffer Memory: 16Mbit Packet Forwarding Rate: 131Mpps MAC Address Table: 16K | ||
Installation | Bracket mounted | ||
Maximum Frame Size | 10240bytes packet size | ||
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex | ||
Enclosure | IP40 Aluminum housing | Certification | CE FCC Rohs compliance |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow | MTBF | >300,000hours |

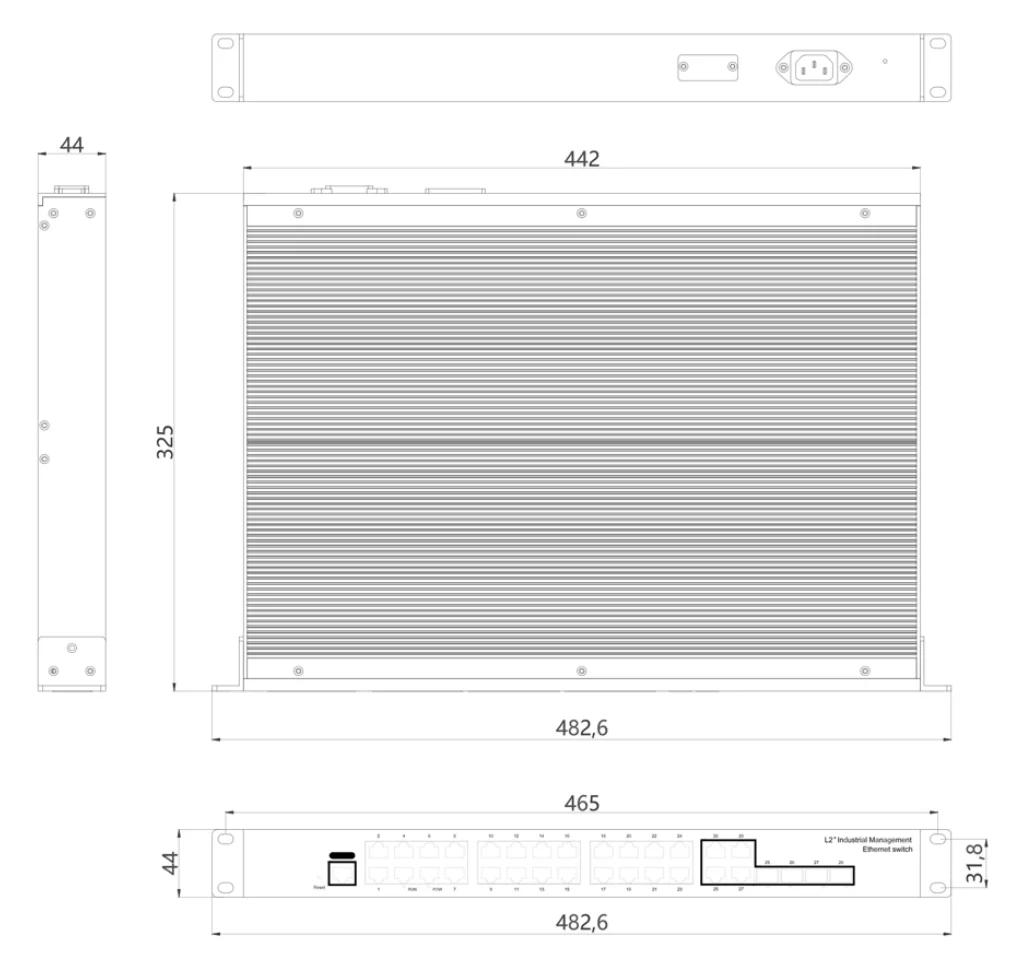

Dual Power Input | 36 to 72V DC and AC110-240V | Dimensions (W x D x H) | 442×325×44mm |
Power Consumption | < 10W | Weight | Product Weight: 3.26KG Packing Weight: 4KG |
Surge protection | ± 4KV | Working Environment | Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; | Warranty | 1-year replacement with new item; 3-years for main parts. |
SALES AND SERVICE NETWORK
Shenzhen Yuhang Communication Technology Co.,Ltd established in 2012 ,which headquartered in Shenzhen
it’s a high-tech enterprise specialized in Industrial Ethernet Switch (IES), providing customers with cost-effective products and solutions for industrial Ethernet. Yuhang focuses on the Industrial Ethernet Switches market of medium and large customers with OEM/ODM service.
