Industrial sand blasting machine for metal
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Hangzhou,Kafan,Machinery,&,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

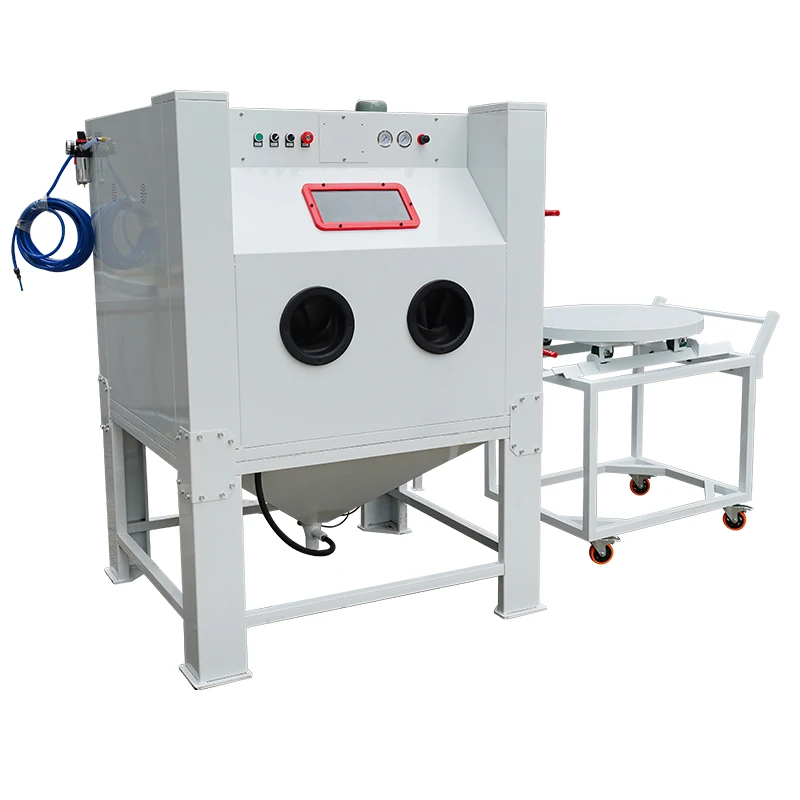

Industrial sand blasting machine for metal
1. This abrasive sand blaster suitable for heavy workpiece, such as various type of mold tree, statue, castings, motor,etc.
2. Specially designed manual carts( electric carts), comvenient and quick. Operation and maintenance easy to learn.
3. Maybe base on customer demand, select manual or automatic rotary tables.
2. Specially designed manual carts( electric carts), comvenient and quick. Operation and maintenance easy to learn.
3. Maybe base on customer demand, select manual or automatic rotary tables.
Details Images

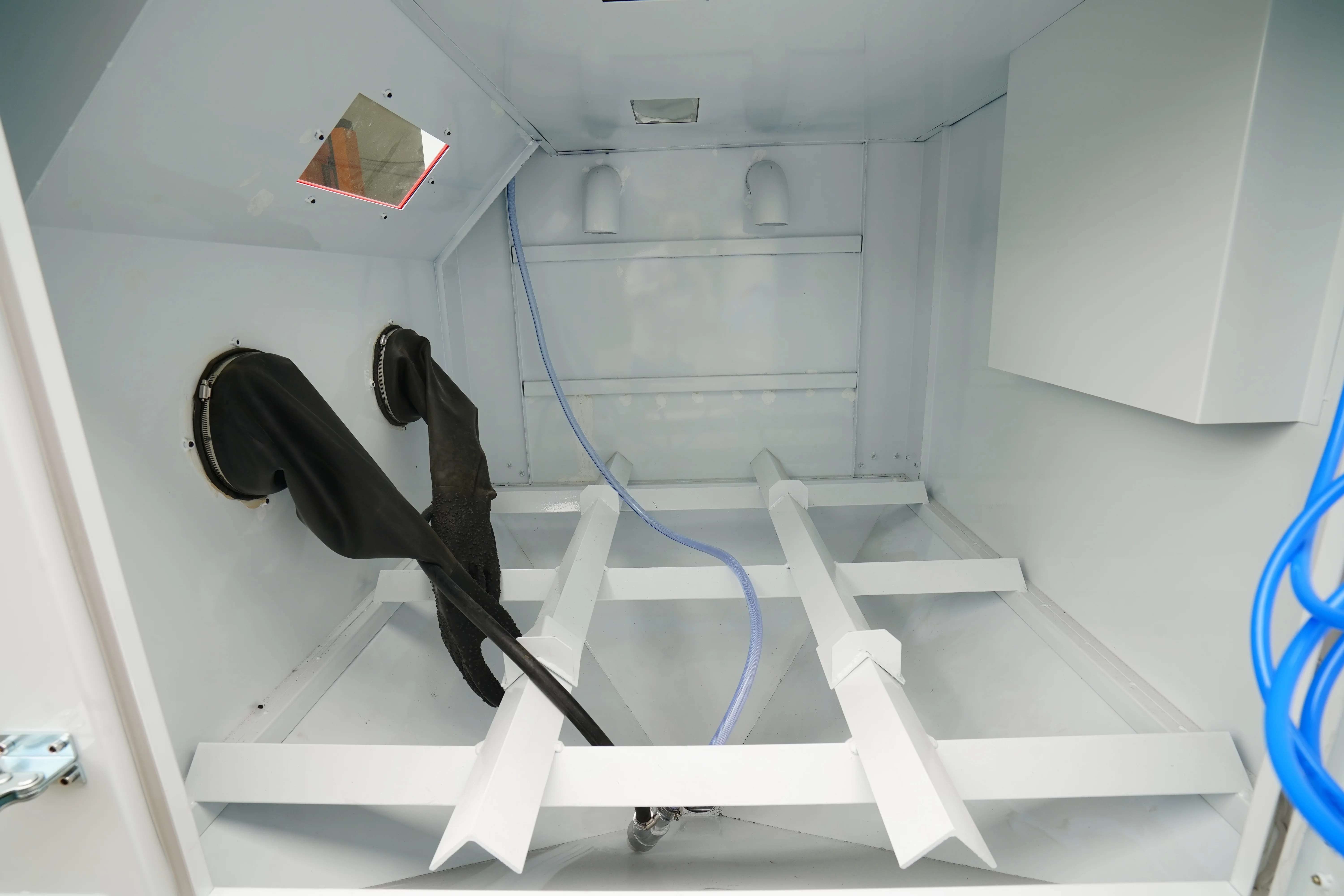

Blasting Chamber
Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.
Our blast cabinet are welded from 2mm durable steel plate, and powder-coated surfaces, anti-rust and extented life.
Our blast cabinet are welded from 2mm durable steel plate, and powder-coated surfaces, anti-rust and extented life.

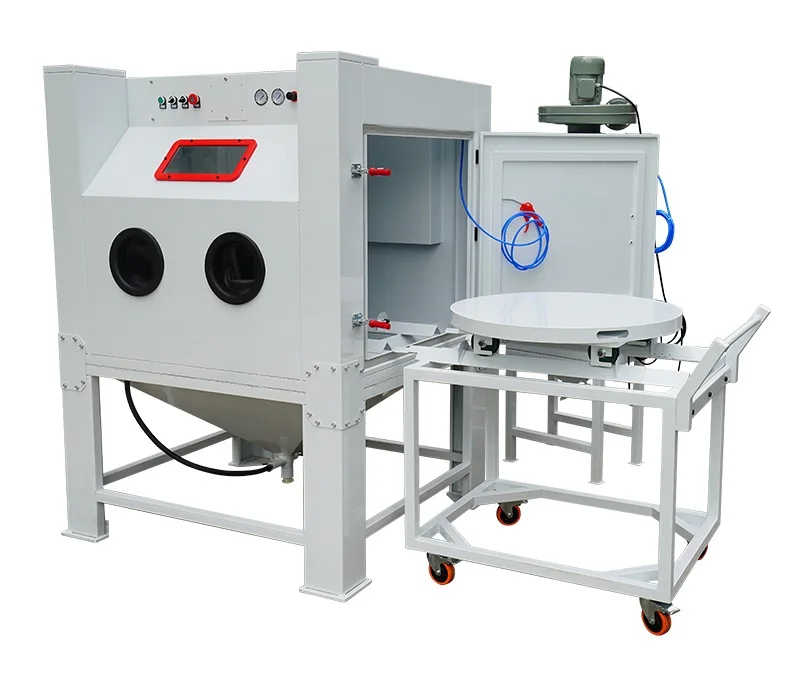

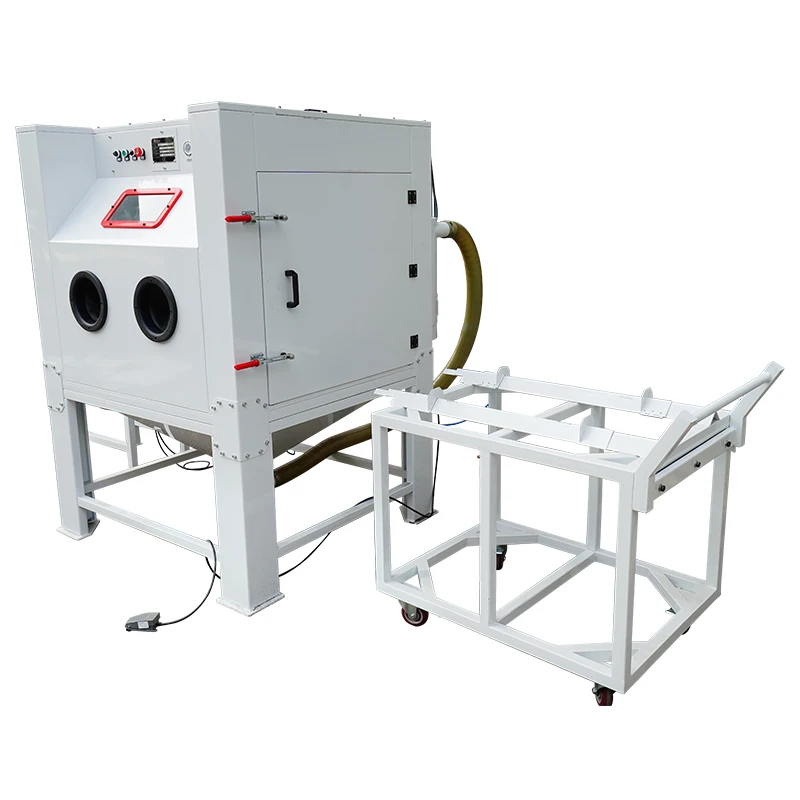

Turntable and cart
These blast cabinets often incorporate a turntable with cart on a track extension used to roll the tooling in and out with minimal force.
The size of turntable can be made as atual needs.
The size of turntable can be made as atual needs.
Dust collecting system
Each of our sandblaster cabinets are designed with effective dust collecting system which configured with cartridge filter, fan motor, remove dust away from the operator's window for increased visibility and accuracy when cleaning.
Pressure regulating valve
Fan motor
Model | KF-1212FTA |
Overall Dimension | Length1200*Width1680*Height1840mm |
Work Chamber | Length1200*Width1200*Height800mm |
Turntable | Diameter 800mm |
Loading | Max. 200kgs |
Door Size | W830xH770mm |
Power Supply | 110V/220V, 50-60Hz (customized) |
Motor Power | 0.75kw |
Lighting | 18w Fluorescent |
Blasting Gun | 1 piece with boron carbide nozzle |
Compressed Air | 5-8 bar(kg/cm2) |
Flow | 0.5-1.2m3/min |
Recommend Products
Model Loading weight (kg) | Turntable | Loading weight (kg) | Right door W*H(mm) | Outside size L*W*H(mm) | Cabin Size L*W*H(mm) |
KF-9080FA | Φ600mm | 100 | 500*560 | 1250*950*1580 | 900*800*800 |
KF-1010FTA | Φ700mm | 150 | 650*780 | 1420*1050*1900 | 1000*1000*800 |
KF-1010FA | Φ800mm | 150 | 650*780 | 1420*1050*1900 | 1000*1000*800 |
KF-1212FTA | Φ700mm | 200 | 750*780 | 1620*1250*2000 | 1200*1200*800 |
Certifications
CE certificate of abrasive sand blaster , if you need others , please let us know.
Packing
Factory&workshop
Customer visit
