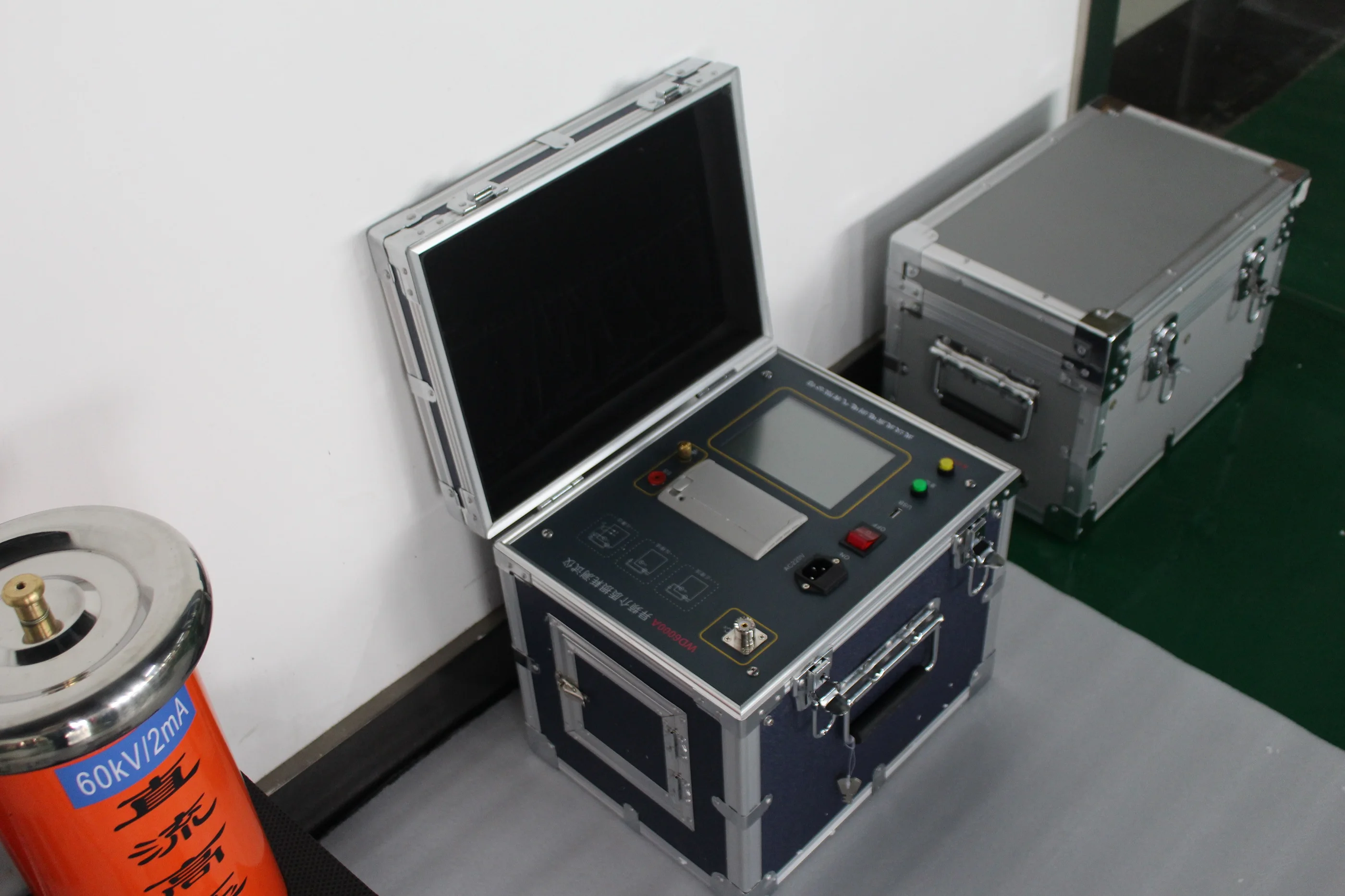

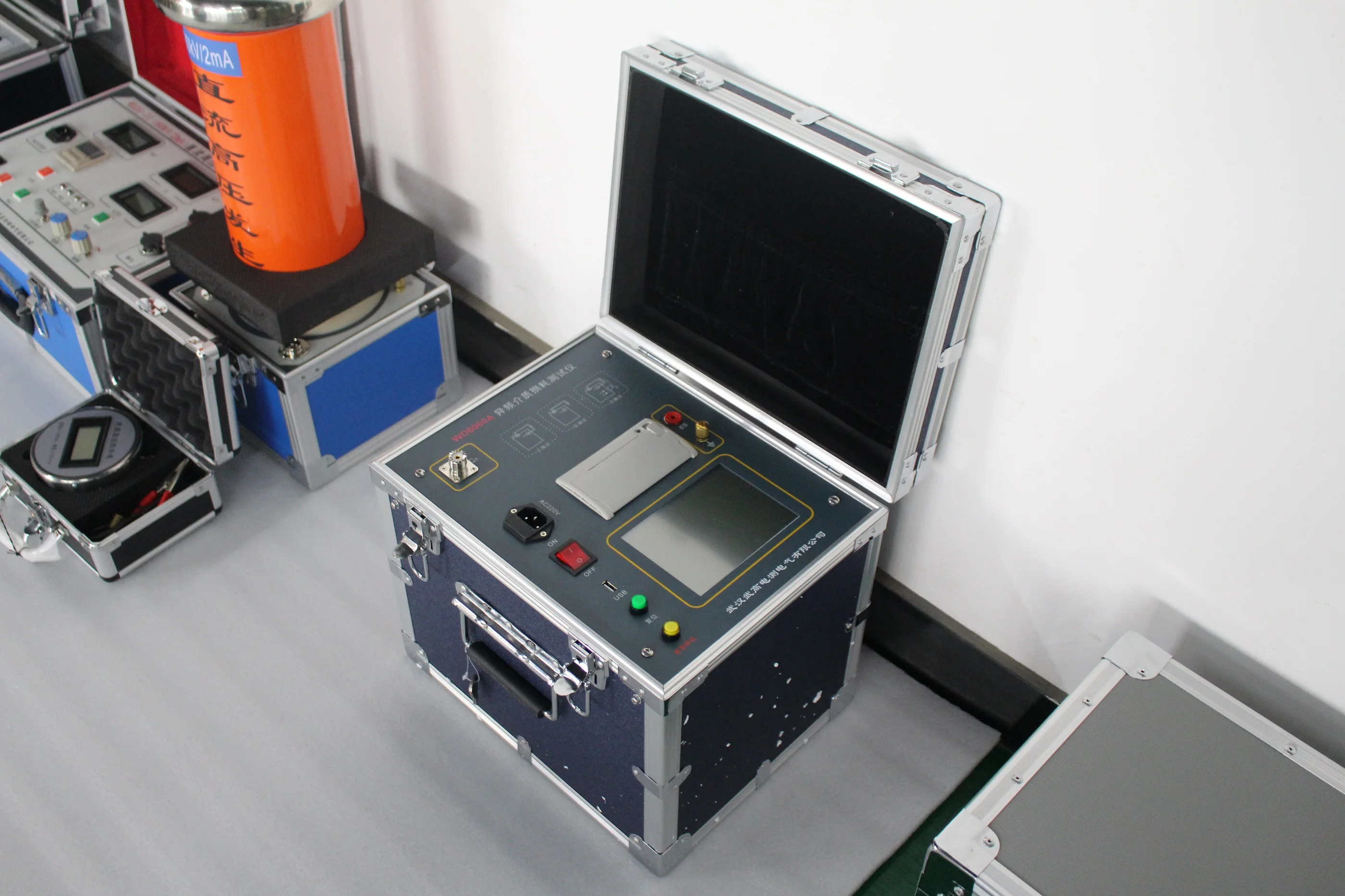

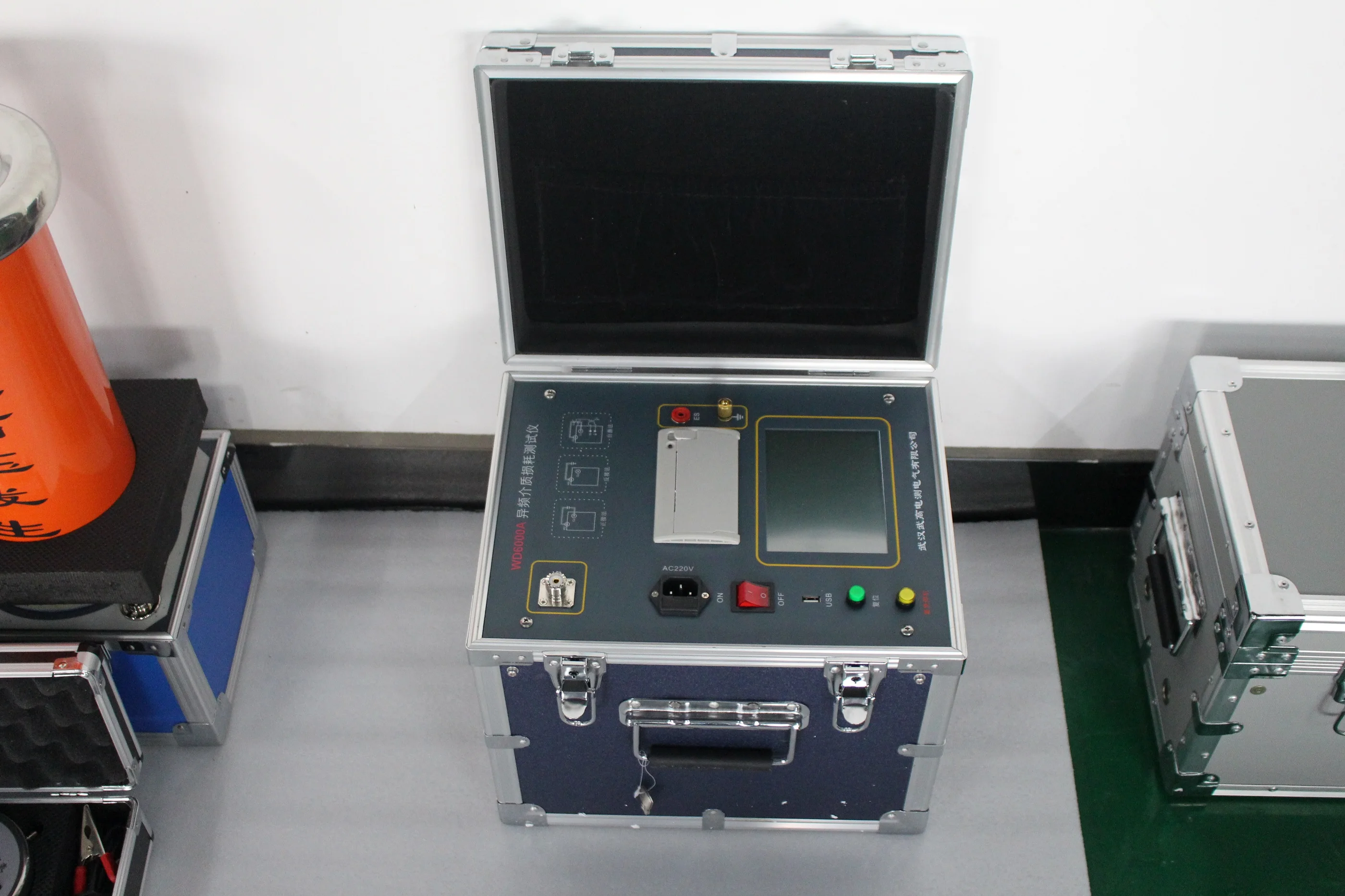

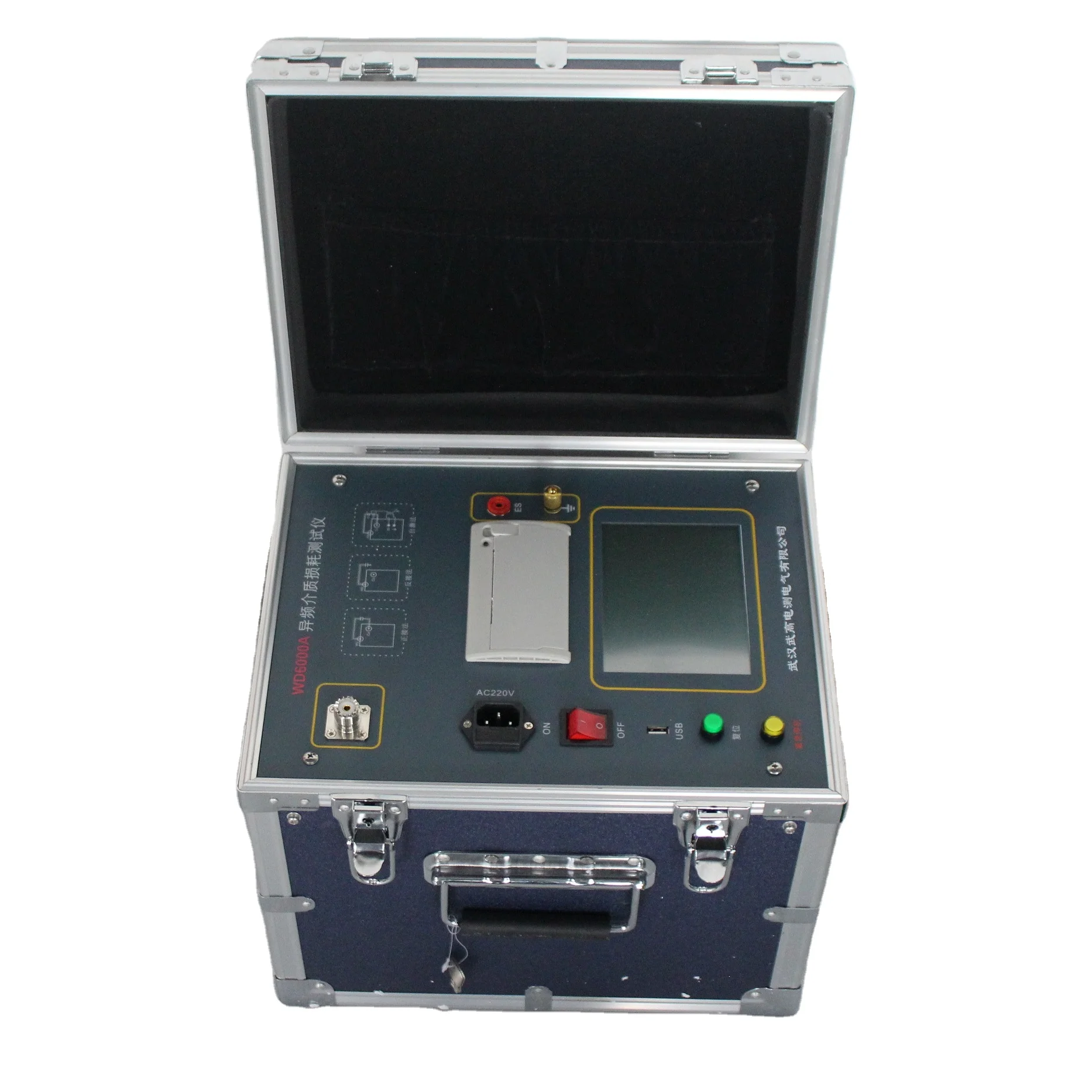

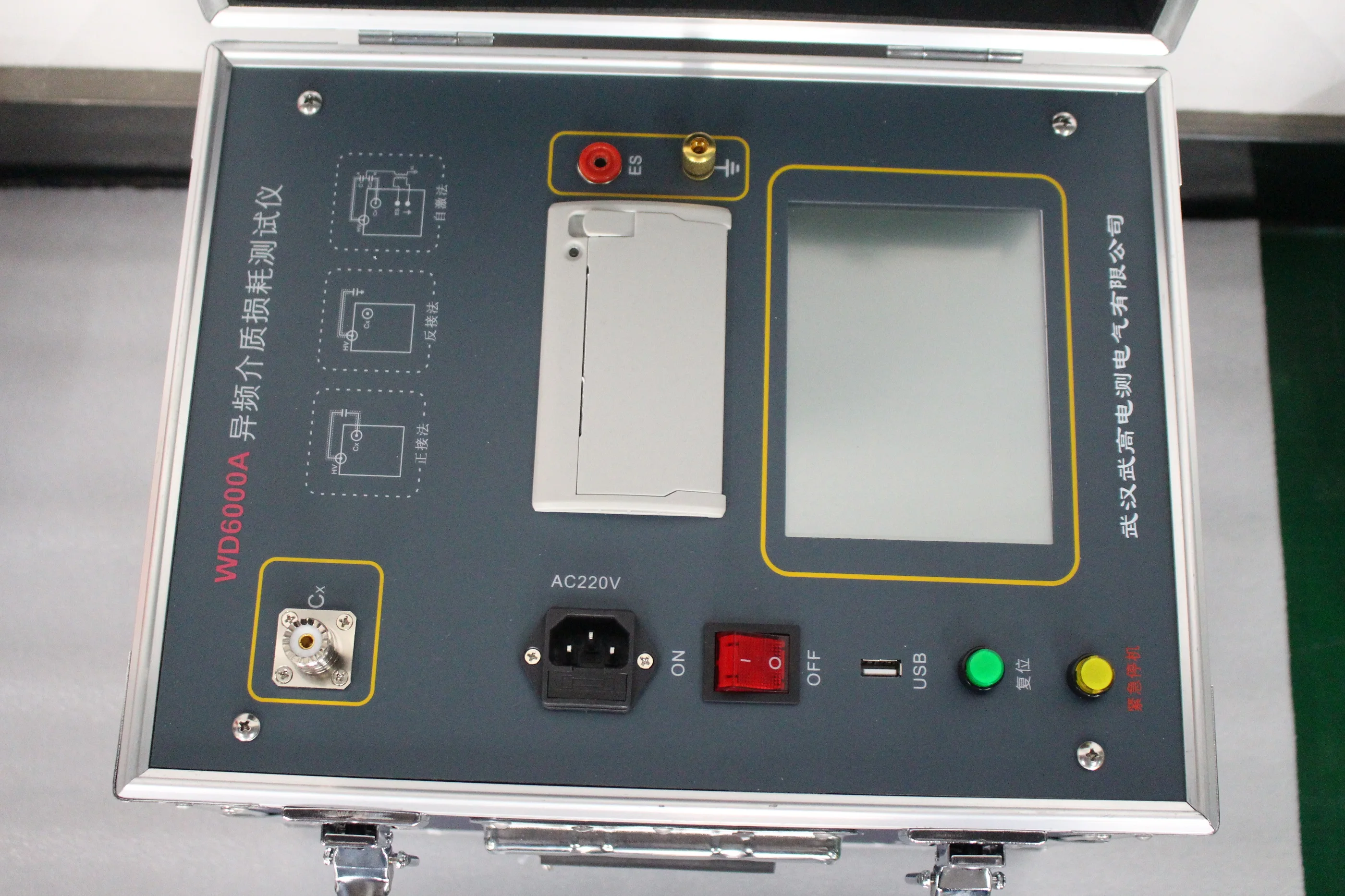

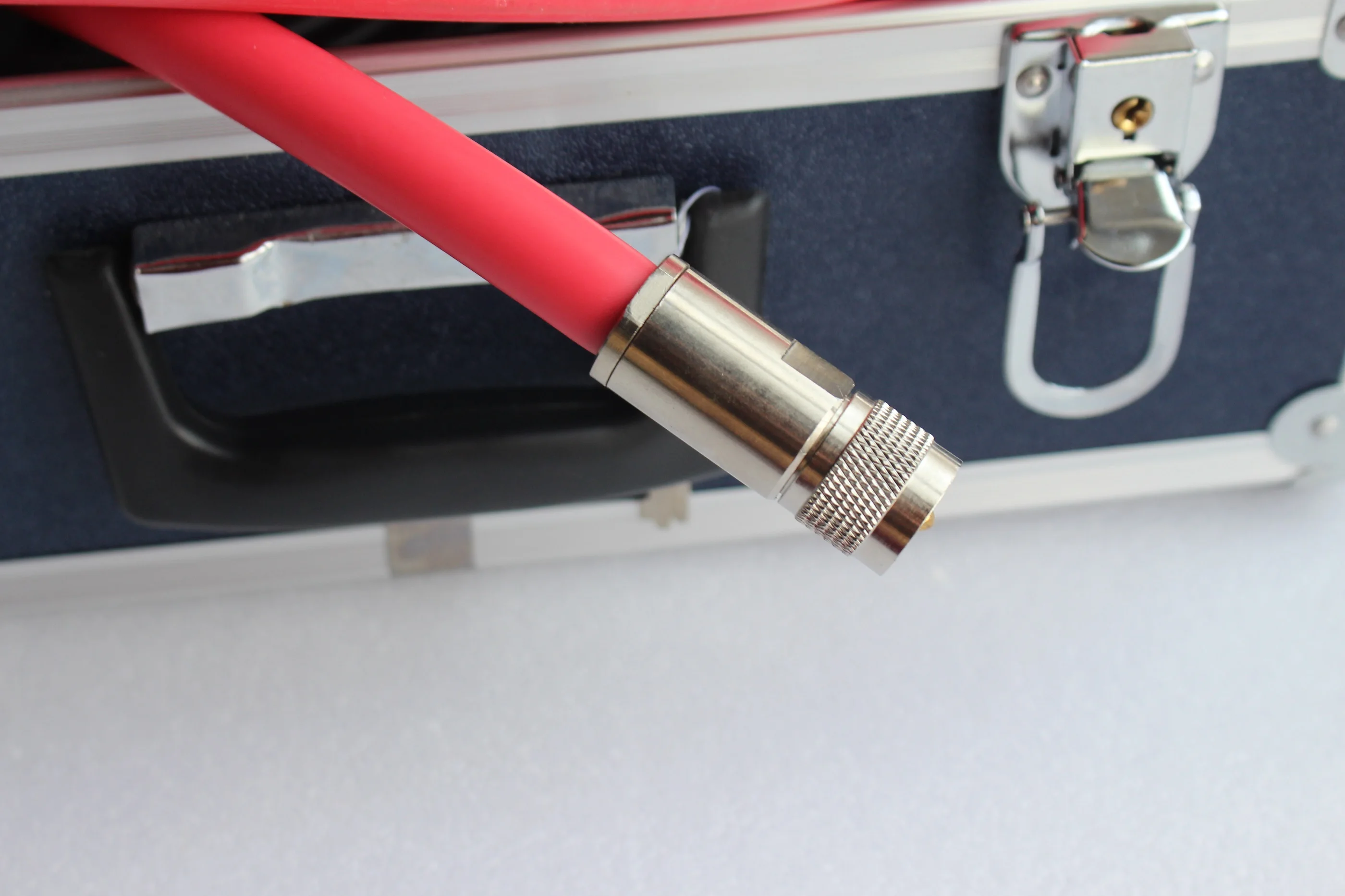

WD6000 12KV Power Factor Dielectric Loss Analyzer Transformer capacitance &tan delta tester for 110kv
WD6000 different frequency automatic dielectric loss tester is the power plant, substation and other field or laboratory test of
various high voltage power equipment dielectric loss tangent value and capacitance of high precision testing instrument. The
instrument is integrated structure, built-in dielectric loss test bridge, variable frequency voltage regulating power supply,
boost transformer and SF6 high stability standard capacitor. The test high voltage source is generated by the inverter inside the
instrument, which is used for the test after the transformer boosts the voltage. The frequency can be changed to 45Hz or 55Hz,
55Hz or 65Hz. Digital notch technology is adopted to avoid the interference of power frequency electric field to test, and
fundamentally solve the problem of accurate measurement under strong electric field interference. At the same time, it is suitable
for generator power supply detection after all power failure. The instrument is equipped with an insulating oil cup to measure the
dielectric loss of insulating oil.
various high voltage power equipment dielectric loss tangent value and capacitance of high precision testing instrument. The
instrument is integrated structure, built-in dielectric loss test bridge, variable frequency voltage regulating power supply,
boost transformer and SF6 high stability standard capacitor. The test high voltage source is generated by the inverter inside the
instrument, which is used for the test after the transformer boosts the voltage. The frequency can be changed to 45Hz or 55Hz,
55Hz or 65Hz. Digital notch technology is adopted to avoid the interference of power frequency electric field to test, and
fundamentally solve the problem of accurate measurement under strong electric field interference. At the same time, it is suitable
for generator power supply detection after all power failure. The instrument is equipped with an insulating oil cup to measure the
dielectric loss of insulating oil.
Products Description
WD6000 type different frequency dielectric loss automatic tester product features
1, LCD display
2. Massive storage of data
3. Scientific data management
4, a variety of test modes
5. CVT test in one step
6, do not remove the high pressure lead measurement CVT
7, CVT reverse connection shielding method to measure C08, high-speed sampling signal
Multiple protection is safe and reliable
1, LCD display
2. Massive storage of data
3. Scientific data management
4, a variety of test modes
5. CVT test in one step
6, do not remove the high pressure lead measurement CVT
7, CVT reverse connection shielding method to measure C08, high-speed sampling signal
Multiple protection is safe and reliable
Product Paramenters
1 | * Operating Conditions | -15℃∽40℃ | RH＜80% | |||
2 | Principle of anti-interference | * Frequency Changing Method | ||||
3 | Power supply | AC 220V±10% | ||||
4 | high voltage output | 0.5KV∽10KV | Every 0.1kV | |||
Accuracy | 2% | |||||
Max Current | 200mA | |||||
Capacity | 2000VA | |||||
5 | self-excited power supply | AC 0V∽50V/15A | 50HZ, 60HZ single frequency 45 HZ / 55 HZ 47.5 HZ / 52.5 HZ 55 HZ / 65 HZ 57.5 HZ / 62.5 HZ Automatic double frequency conversion | |||
6 | Resolution | tgδ: 0.001% | Cx: 0.001pF | |||
7 | Accuracy | △tgδ:±(reading*1.0%+0.040%) | ||||
△C x :±(reading*1.0%+1.00PF) | ||||||
8 | * Measuring range | tgδ | no limit | |||
C x | 15pF ＜ Cx ＜ 300nF | |||||
10KV | Cx ＜ 60 nF | |||||
5KV | Cx ＜ 150 nF | |||||
1KV | Cx ＜ 300 nF | |||||
CVT Test | Cx ＜ 300 nF | |||||
9 | CVT variable ratio range | 10∽10000 | ||||
CVT variable ratio accuracy | 0.1% | |||||
CVT Variable ratio resolution | 0.01 | |||||
10 | Dimension (main engine) | 350（L）×270（W）×270（H） | ||||
11 | Dimension (wires packcase) | 350（L）×270（W）×160（H） | ||||
12 | Memory size | 200 groups, supports USB flash drive data storage | ||||
13 | Weight | 25Kg | ||||
