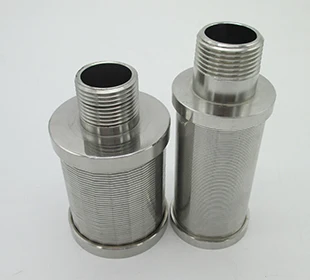

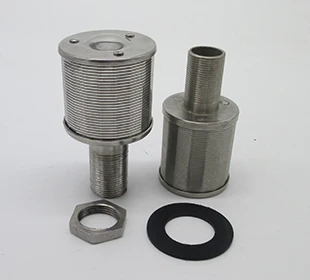

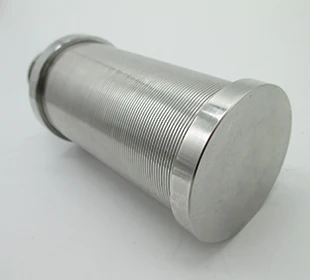

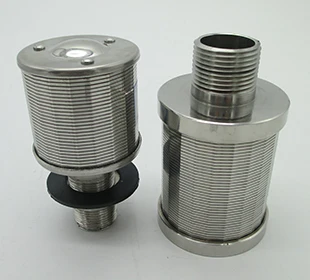

Johnson stainless steel water filter nozzle sand filtration

Share on (1600620042373):


Price:$4.50 - $10.00

Quantity:


Product Overview

Description



Product Description

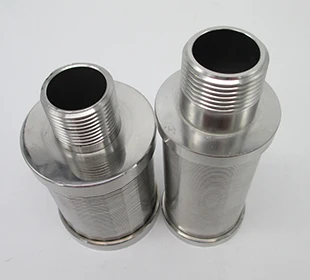

Johnson stainless steel water filter nozzle sand filtration





 Y UBO supply Johnson stainless steel water filter nozzle sand filtration, Cylinder Filter Nozzle, and tower packings/fillings for waste water treatment,

YUBO has a wide selection of Johnson type NPT thread high pressure water filter nozzles which are available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Water Treatment Plants (WTP) for producing drinking water; Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.

We supply high quality various specifications SS water filter nozzlee, Cylinder Filter Nozzle,filter nozzles and tower packings/fillings for waste water treatment.

Filter Nozzle, Cylinder filter nozzle,tower packing for waste water treatment, and Sand filter.





Specifications

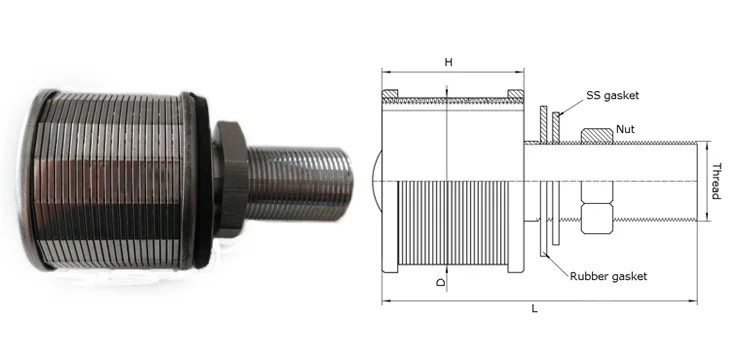

0810



Type



Slot


(mm)



Dimension



Flow Rating


(M3/H)



D(mm)



H(MM)



L(MM)



Thread



Fittings



UBO-0.5



0.25



45



45



90/request



M,NPT, G, PT(BSPT),Z,BSP, request



SS Gasket,


Rubber gasket,


Nut, request



0.5



UBO-1.0



0.25



53



45



90/request



1.0



UBO-1.5



0.25



57



45



90/request



1.5



UBO-2.0



0.25



57



55



100/request



2.0



UBO-2.5



0.25



70



55



100/request



2.5



UBO-3.0



0.25



70



70



120/request



3.0



Note



* All the above size are the normal size. Customized size is possible.


* UBO could help to design according to the application and requirement.


* The nozzles customized range as below:


1. Slot range: 0.05-2mm


2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application


3. Thread according to requirement

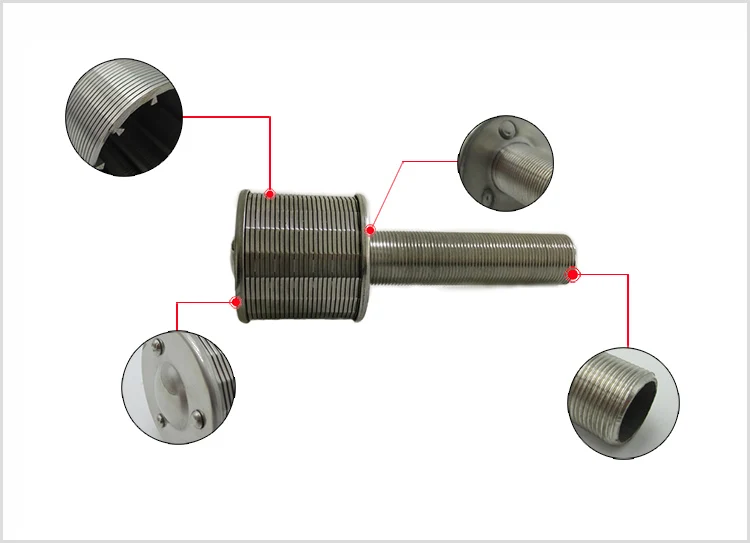

nozzle-29

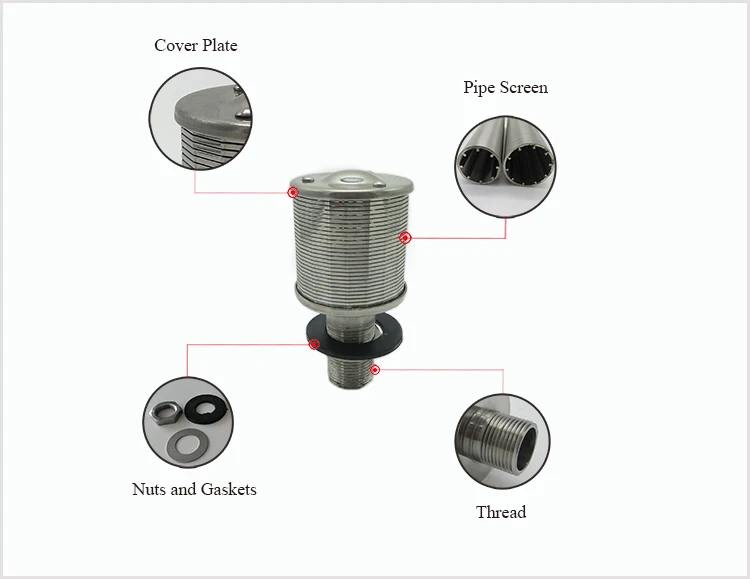

nozzle-01nozzle-03





Application


nozzle-28nozzle-27QQ20170830145111





Packaging & Shipping


nozzle-40pakage





Related Products


QQ20171208111303




































For more products,you could also visit www.ubowedgewire.com















FAQ


 • 1.IS YOUBIOU (UBO) Factory or Trading Company?





YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.





 • 2.HOW ABOUT THE MOQ?





MOQ according to different product, sometimes MOQ decided by customer.





 • 3.Cou You supply the sample?





We could offer the sample for free charge but the cost of freight is extra.





 • 4. What payment term do you accept?





T/T ,L/C at sight, Western Union, and other mainstream payment term.





 • 5. How about the delivery time?





Usually within 3-15days after receiving the deposit;





 • 6.Where is your Market?





We have been exporting to more than 120 different countries and regions all over the world.





 • 7.How About your sales service?





Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
