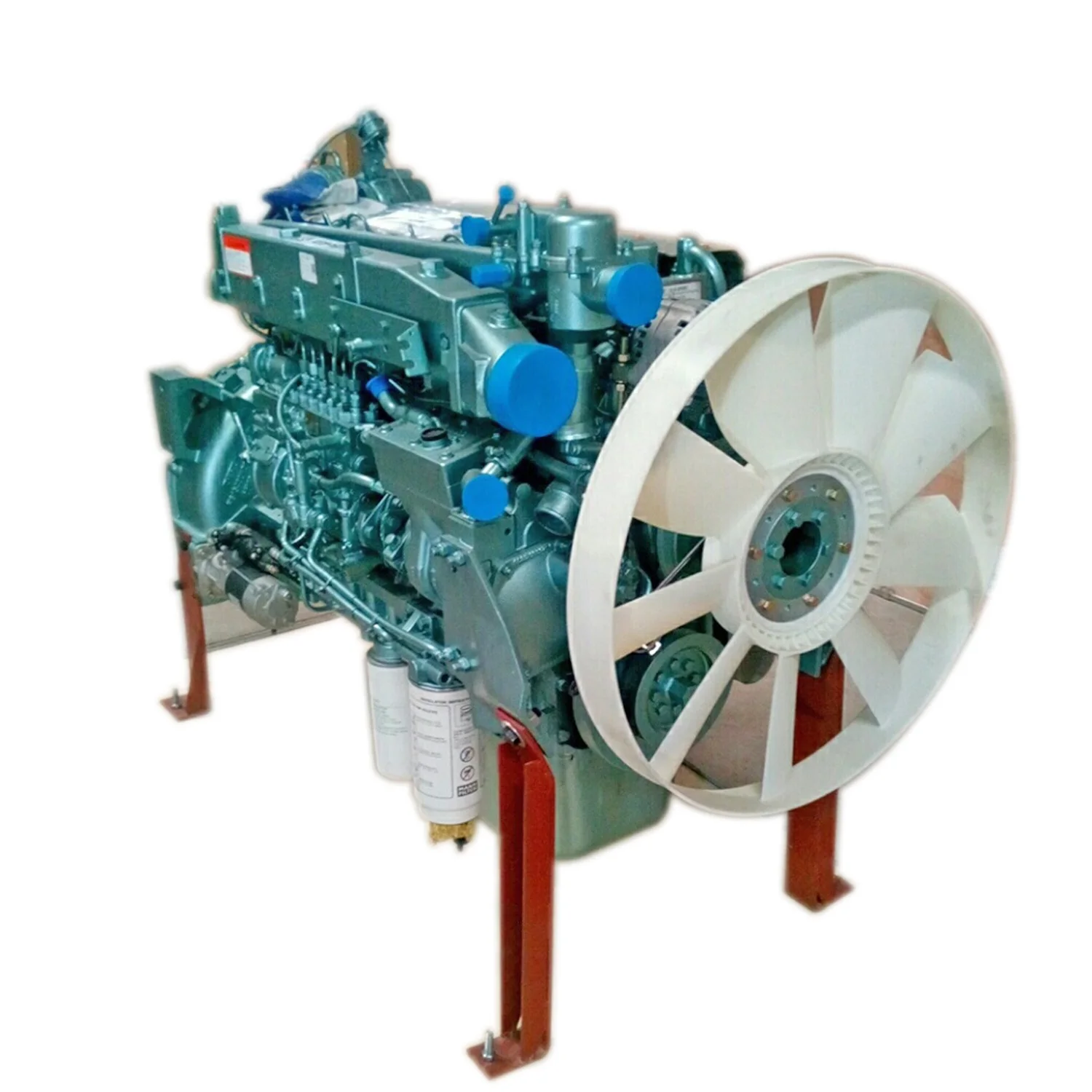

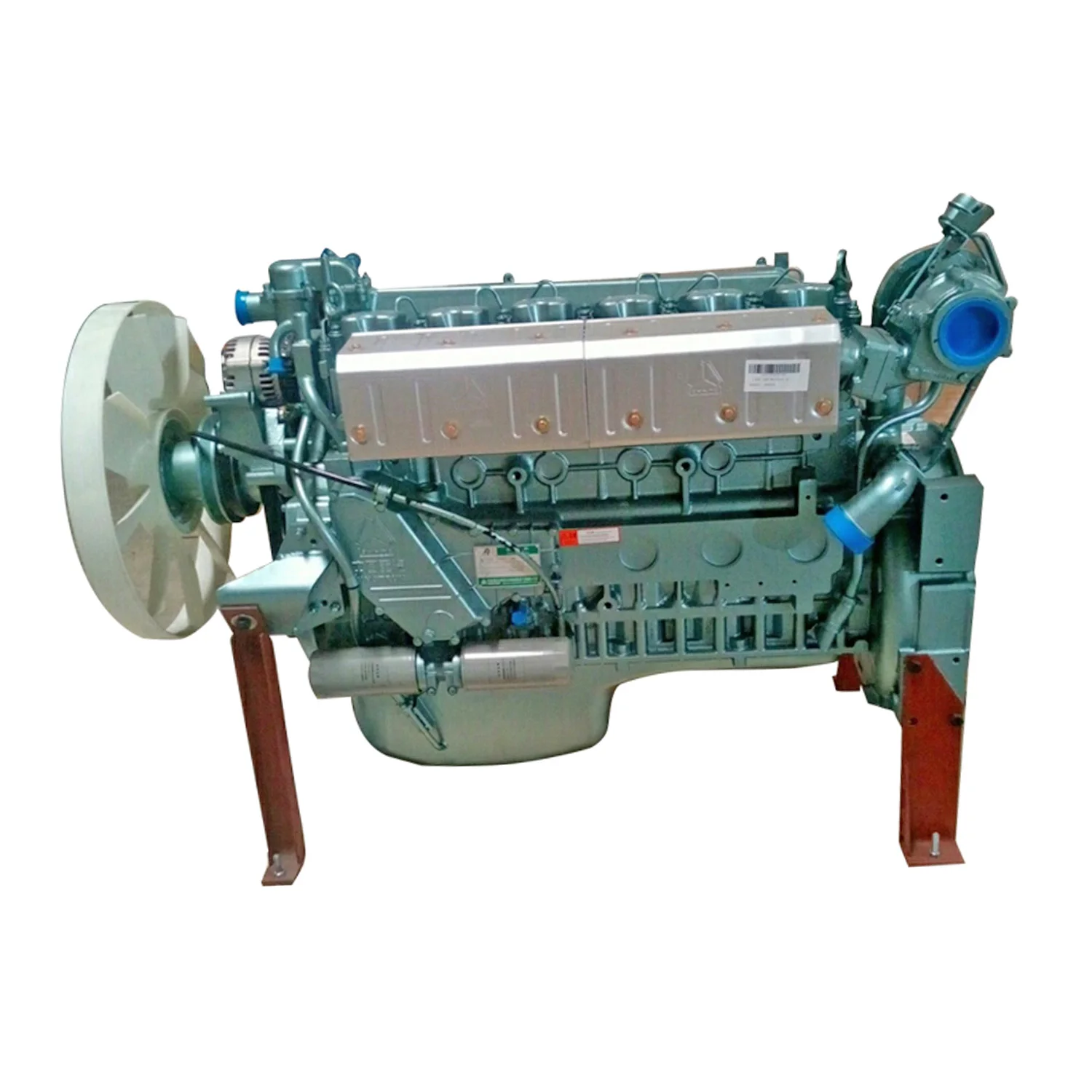

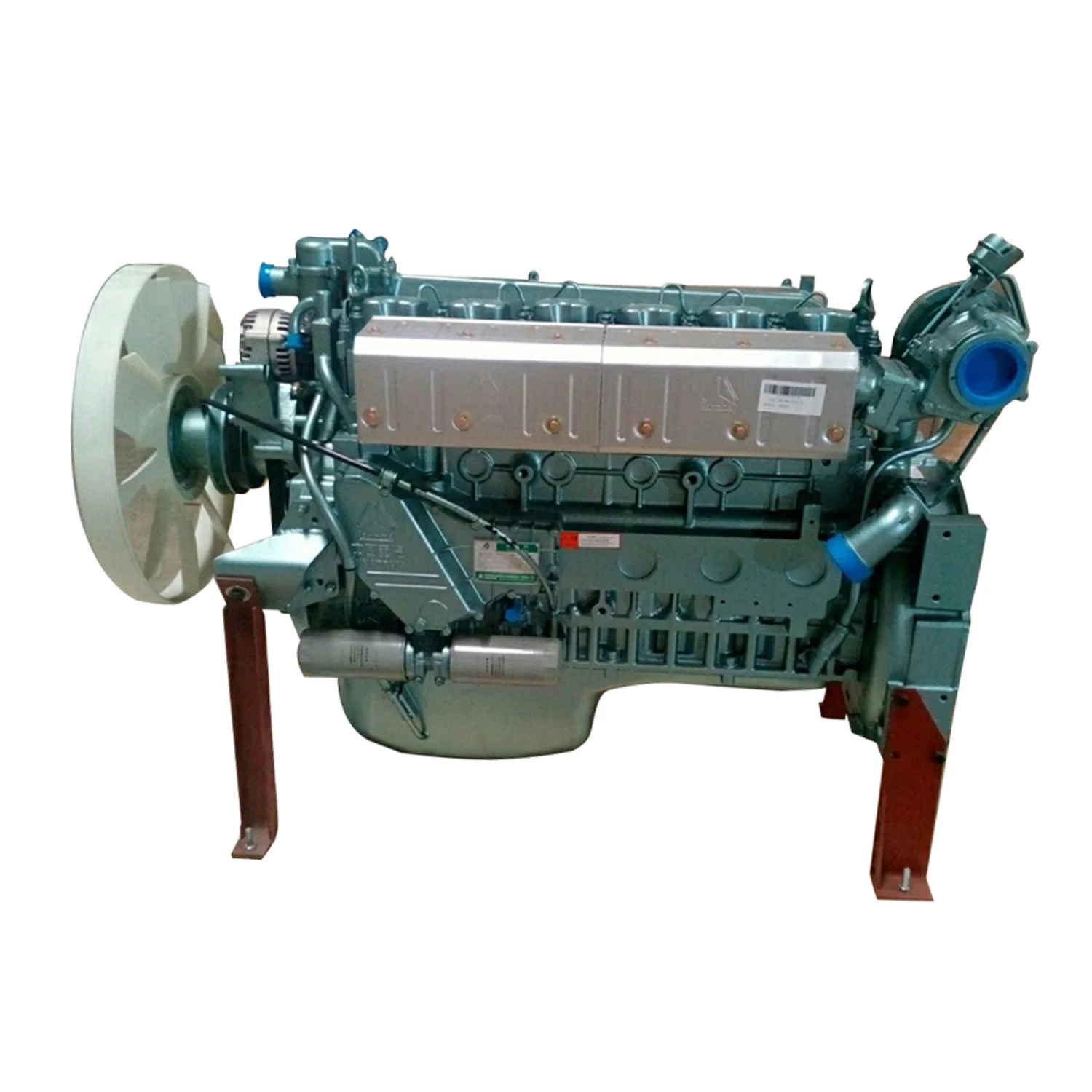

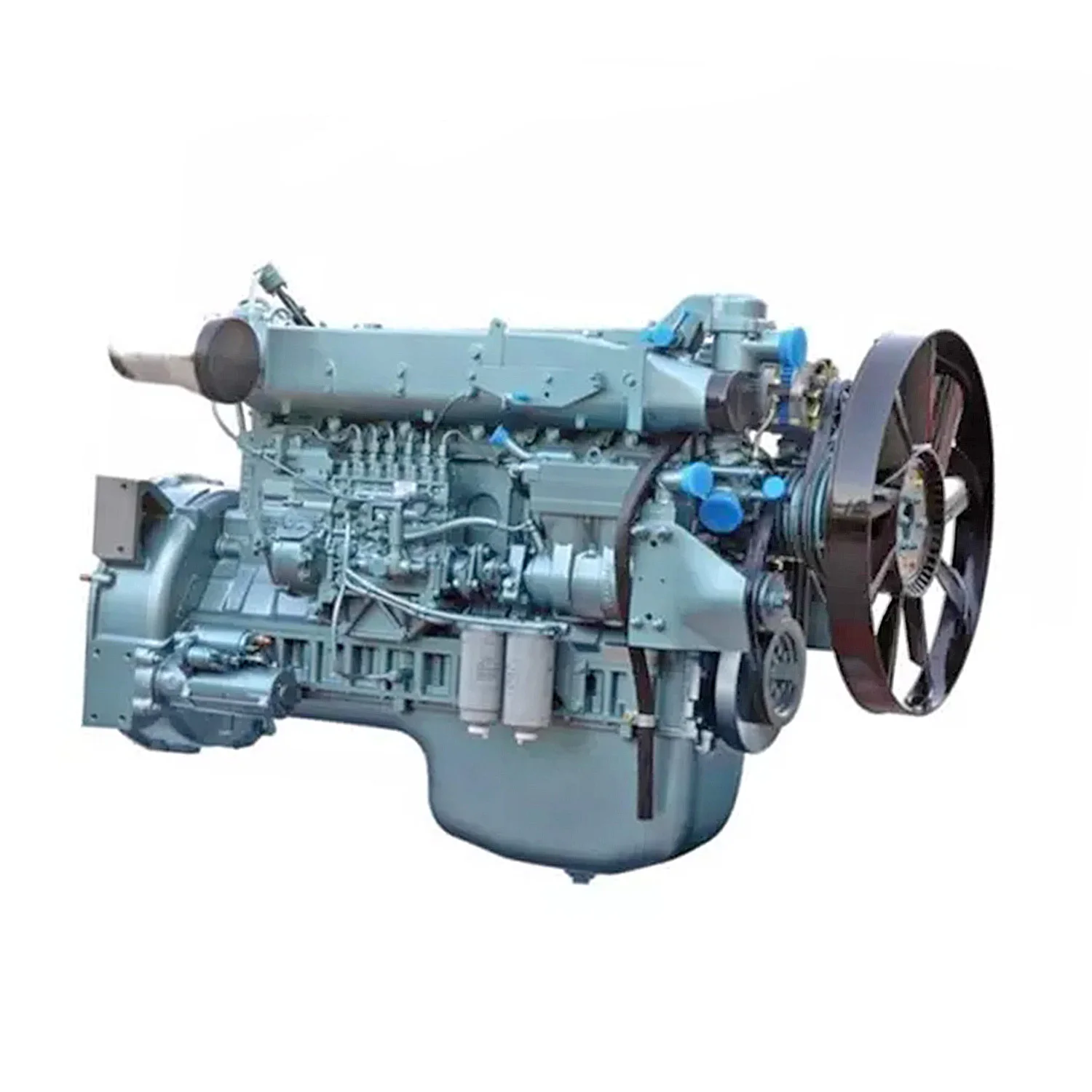

Diesel truck spare parts used sinotruck howo engine 371hp 375hp wd615.47 wd615.69
- Category: >>>
- Supplier: Jinan Qungang Trading Co. Ltd.
Share on (1600620043906):
Product Overview
Description
Products Description
Model | WD615.62 | WD615.87 | WD615.69 | WD615.47 | WD615.57 | ||||
Type | 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection | ||||||||
Ignition sequence | 1-5-3-6-2-4 | ||||||||
Valve | 2 | 4 | |||||||
Distance between cylinder core(mm) | 150 | ||||||||
Bore & Stroke(mm) | 126×130 | ||||||||
Displacement(L) | 9.726 | ||||||||
Compression ratio | 17:1 | 17.5:1 | |||||||
Rated power KW(HP) | 196(266) | 213(290) | 247(336) | 273(371) | 302(410) | ||||
Rated speed(r/min) | 2200 | 2100 | |||||||
Max. Torque(N.m) | 1100 | 1160 | 1350 | 1500 | 1650 | ||||
Speed at Max. torque(r/min) | 1100~1600 | ||||||||
Idling speed(r/min) | 600±50 | ||||||||
Specific Fuel consumption(g/kW.h) | ≤193 | ≤191 | |||||||
1m Noise dB(A) | ≤98 | ||||||||
Bare mass(kg) | 850 | ||||||||
Emission | Euro2 | ||||||||
What can we supply?
1.Sinotruk/Weichai engine parts
Crankshaft, connecting rod, cylinder block, cylinder head, piston,flywheel, cylinder liner,piston ,piston rings, piston
pin,connecting rod,bearing, crankshaft bearing ,intake&exhaust valve, valvesprings,camshaft, tappets, camshafts bearing, fuel
tank, fuel pump, fuel filter,air filter, oil filter, battery,alternator, starter, starter motor, ignition coil,water pump,
radiator, fan couplings, fan, thermostat, oil pump,pressure limiting valve ..
1.Sinotruk/Weichai engine parts
Crankshaft, connecting rod, cylinder block, cylinder head, piston,flywheel, cylinder liner,piston ,piston rings, piston
pin,connecting rod,bearing, crankshaft bearing ,intake&exhaust valve, valvesprings,camshaft, tappets, camshafts bearing, fuel
tank, fuel pump, fuel filter,air filter, oil filter, battery,alternator, starter, starter motor, ignition coil,water pump,
radiator, fan couplings, fan, thermostat, oil pump,pressure limiting valve ..
2.Sinotruk/FAST Gearbox Parts
Primary shaft, 2nd shaft, intermediate shaft, 2 / 3 associated gear,2nd speed gear(1/2/3/4/5) , reverse gear ,intermediate
shaft(1/2/3/4/5),synchronize assembly, synchronizer slider,gearbox ,gearbox shell, gearbox cover, gearbox middle cover, shift fork
assembly, PTO...
3.Chassis parts
Clutch cover, clutch disk , wheel hub, brake drum, brake pads ,Brake shoes, lock, wiring harness, drive shaft, front axle,
steering knuckle,steering arm, universal joints, rear axle , main reducer,differential,axle, planetary gears, sun gear, pinion and
bevel gear, spring, shock absorbers, stabilizer bars,steering pole, straight rod, rod joint, wheel reducer, through axle, rear
shell ... ..
Primary shaft, 2nd shaft, intermediate shaft, 2 / 3 associated gear,2nd speed gear(1/2/3/4/5) , reverse gear ,intermediate
shaft(1/2/3/4/5),synchronize assembly, synchronizer slider,gearbox ,gearbox shell, gearbox cover, gearbox middle cover, shift fork
assembly, PTO...
3.Chassis parts
Clutch cover, clutch disk , wheel hub, brake drum, brake pads ,Brake shoes, lock, wiring harness, drive shaft, front axle,
steering knuckle,steering arm, universal joints, rear axle , main reducer,differential,axle, planetary gears, sun gear, pinion and
bevel gear, spring, shock absorbers, stabilizer bars,steering pole, straight rod, rod joint, wheel reducer, through axle, rear
shell ... ..
