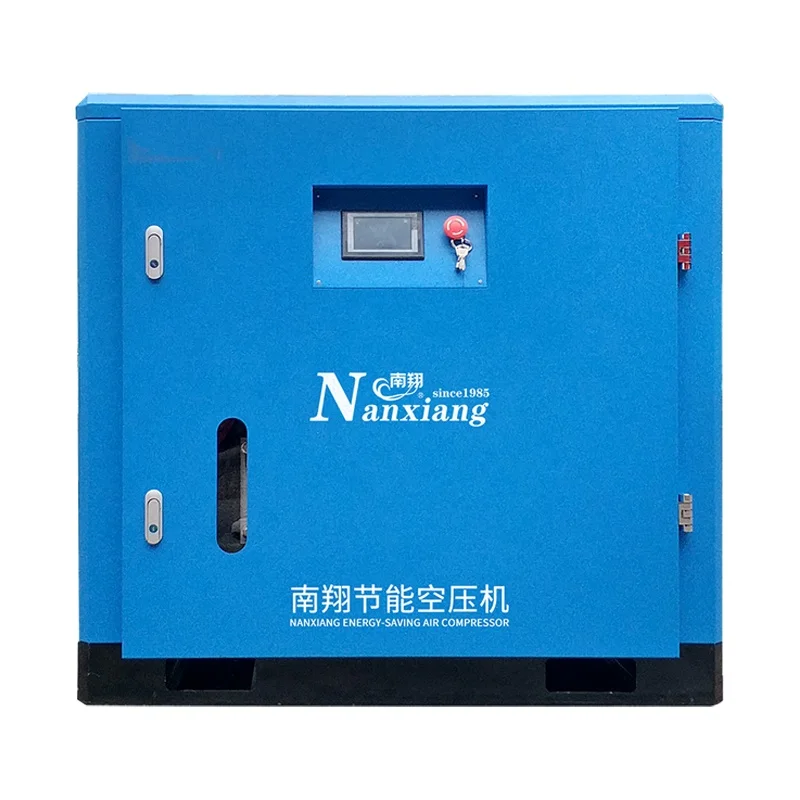

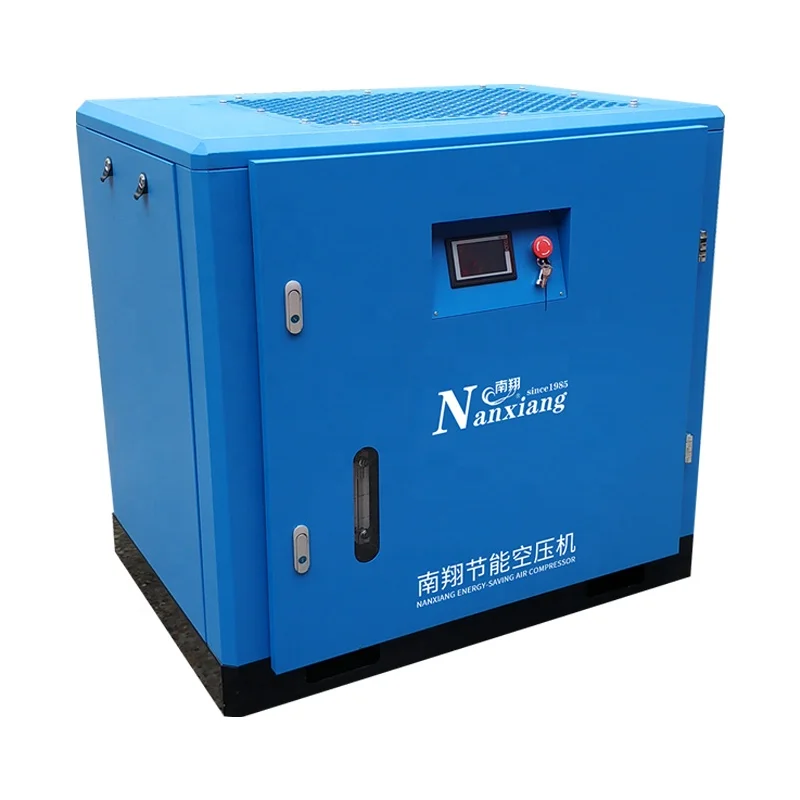

8 13bar high pressure screw air compressor 7.5kw 11kw 15kw screw air compressor
- Category: >>>
- Supplier: Jiangxi Nanxiang Air Compressor Co. Ltd.
Share on (1600620048465):
Product Overview
Description
Mode | NXGV-11HB |
Free Air Delivery(m³/min) | 0.4-1.6 |
Noise(dB) | 66±2 |
Motor Power(kw/hp) | 11/15 |
Starting Mode | Variable frequency |
Working pressure(bar) | 8-13 |
Type of Cooling | Air cooling |
Dimension(mm) | 1080*800*1210 |
Weight(kg) | 370 |
Air Outlet Pipe Diameter(inch) | DN20 |
PRODUCT FEATURES
2. The main engine of Hanzhong is adopted, with split coupling structure, compact and stable, high energy efficiency.
3. Intelligent frequency conversion technology, 30% energy saving compared with ordinary power frequency air compressor.
4. Industrial butler function.5.Adopt protection grade IP55 high efficiency and energy saving permanent magnet motor, adopt Sweden SKF heavy duty bearing, the efficiency is 5-10% higher than similar products.
6.Insulation grade F, using high performance NdFeB permanent magnet, 200℃ without losing magnetism, lifespan up to 15 years,
efficiency up to 95.9%-96.3%.
Model | KW | HP | Capacity | Pressure | Dimension (mm) | Weight | Size |
NXGV-7.5HB | 7.5 | 10 | 1.1 | 0.8 | 940*650*830 | 165 | DN15 |
1.0 | 1.0 | ||||||
0.8 | 1.3 | ||||||
NXGV-11HB | 11 | 15 | 1.6 | 0.8 | 1180*800*1210 | 370 | DN20 |
1.4 | 1.0 | ||||||
1.2 | 1.3 | ||||||
NXGV-15HB | 15 | 20 | 2.4 | 0.8 | 1180*800*1210 | 382 | DN20 |
2.1 | 1.0 | ||||||
1.7 | 1.3 | ||||||
NXGV-22HB | 22 | 30 | 3.7 | 0.8 | 1300*910*1290 | 520 | DN25 |
3.4 | 1.0 | ||||||
2.8 | 1.3 | ||||||
NXGV-37HB | 37 | 50 | 6.8 | 0.8 | 1450*960*1470 | 720 | DN40 |
6.2 | 1.0 | ||||||
5.0 | 1.3 | ||||||
NXGV-45HB | 45 | 60 | 8.0 | 0.8 | 1450*960*1470 | 760 | DN40 |
7.0 | 1.0 | ||||||
5.8 | 1.3 | ||||||
NXGV-55HB | 55 | 75 | 9.8 | 0.8 | 1800*1250*1670 | 1480 | DN50 |
9.0 | 1.0 | ||||||
7.8 | 1.3 | ||||||
NXGV-75HB | 75 | 100 | 13.1 | 0.8 | 1800*1250*1670 | 1680 | DN50 |
11.8 | 1.0 | ||||||
9.8 | 1.3 | ||||||
NXGV-90HB | 90 | 120 | 16.8 | 0.8 | 1800*1250*1670 | 1880 | DN50 |
14.6 | 1.0 | ||||||
11.6 | 1.3 | ||||||
NXGV-110HB | 110 | 150 | 20.0 | 0.8 | 2560*1650*1900 | 2400 | DN80 |
17.8 | 1.0 | ||||||
14.5 | 1.3 |
Note:
Standard voltage is 380V/50HZ/3P, other voltage is available.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs.So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delighted to serve you. Welcome to consult.
Standard voltage is 380V/50HZ/3P, other voltage is available.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs.So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delighted to serve you. Welcome to consult.
FAQ
Q1: Who is Nanxiang Air Compressor?A: Jiangxi Nanxiang Air Compressor Co., Ltd, founded in 1985, is a professional energy-saving air compressor manufacturer integrating R&D, manufacturing, marketing and service. Our products are famed for high efficiency, energy saving, high reliability, high cost-effectiveness, low noise and high duration. The company introduces advanced technology, design concept, and rigorous manufacturing process of Germany.
Q2: Why Choose us?
A: Our products are all qualified by CE & ISO 9001. Our company introduces the advanced technology of German screw machine, adhering to the German industrial design concept and rigorous manufacturing process, specializing in screw compressor design, production and sales enterprises. We have 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q3: Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
Q4: Can you do OEM and ODM?
A: Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
Q5: Which shipping way can you provide?
A: We can provide shipping by sea, by air , by express and etc according to customer requirements.
Q6: How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
Q7: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2.Prepare and Well-trained engineers available to overseas service within one year.
3. Worldwide agents and after service available.
