Factory professional customization seal simplex duct plugs

Product Overview

Description

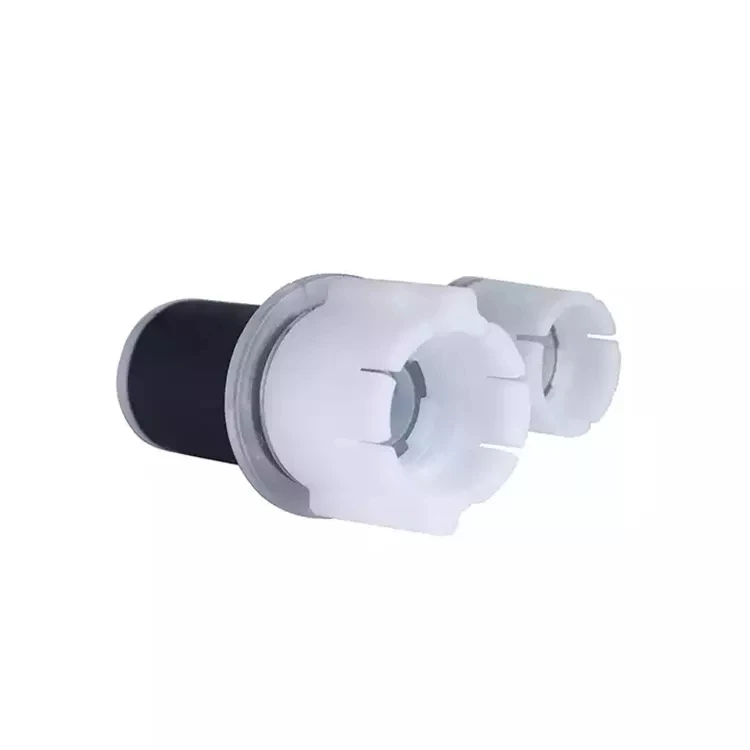

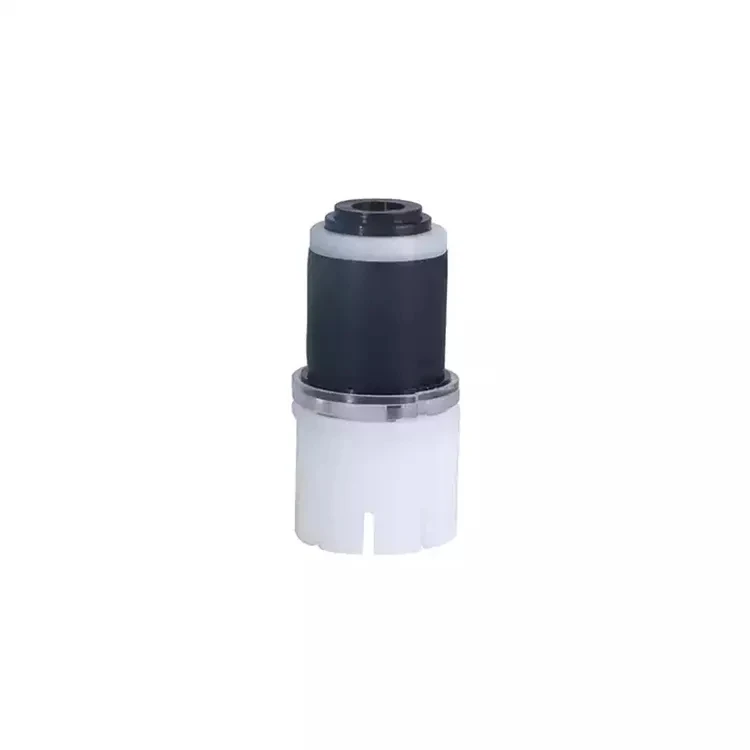

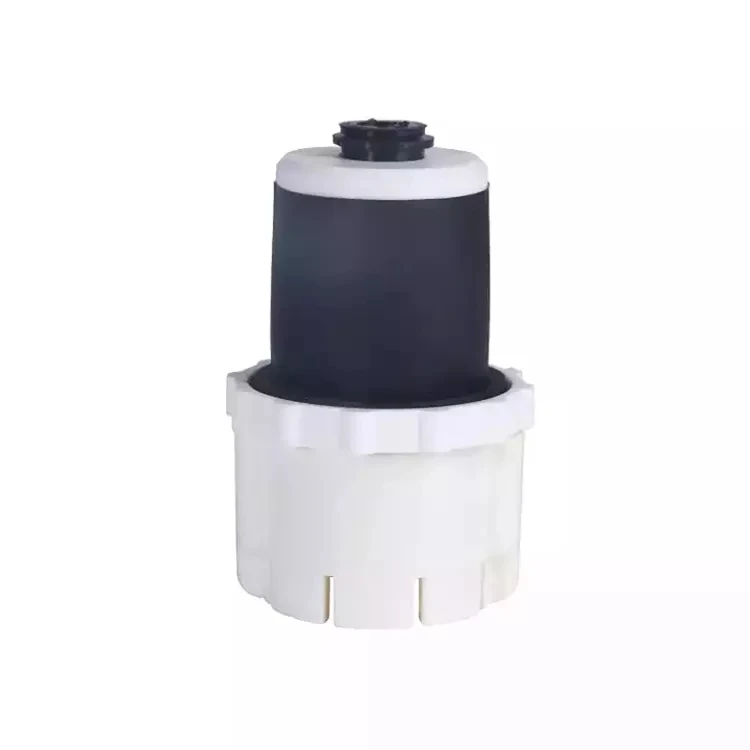

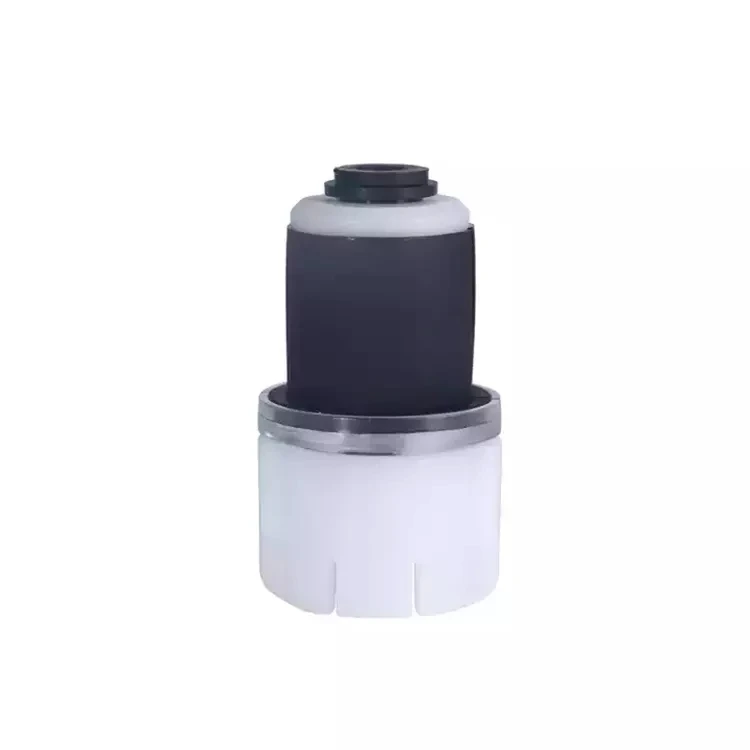

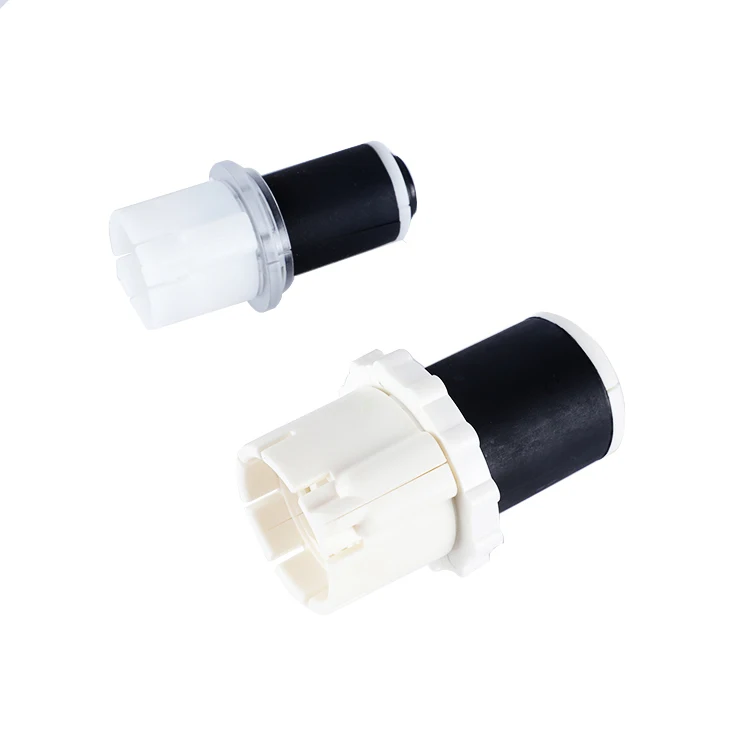

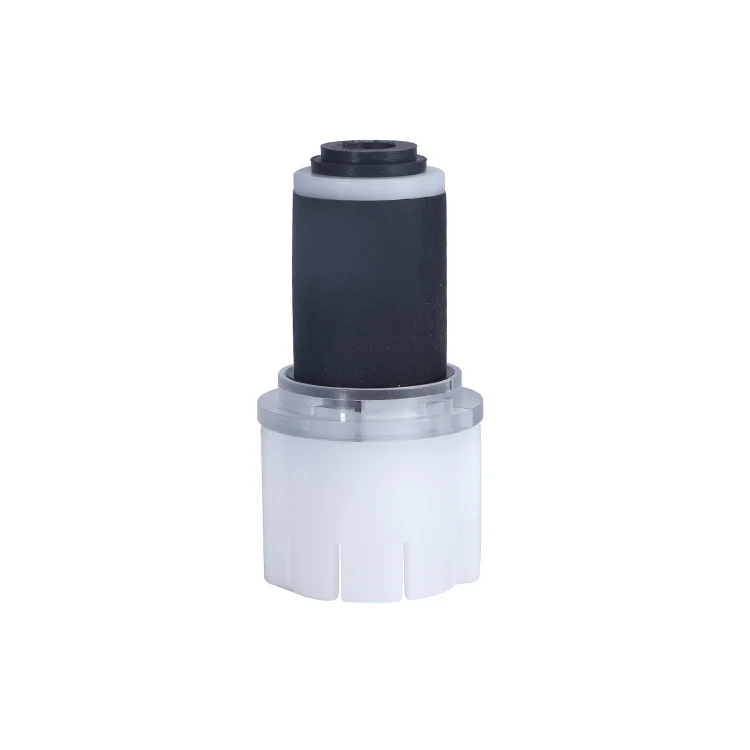

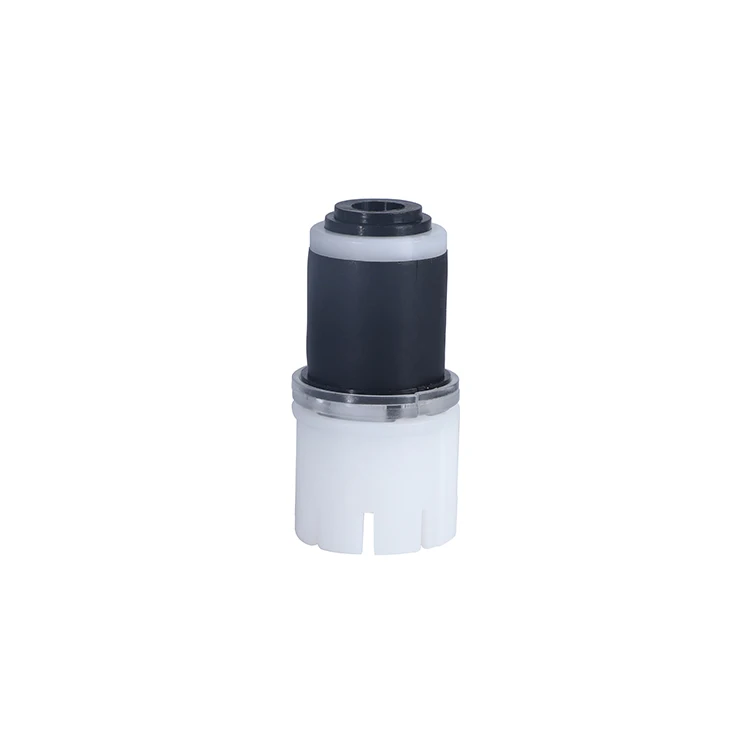

A Simplex Duct Plug is used to seal the space between the duct and the cable in a duct.

A plug has a dummy rod so it can also be used to close a duct without a cable inside.

The plug is divisible so it can be installed after blowing a cable in the duct.



Simplex Duct Plug Features:

Watertight and airtight

Simple installation around existing cables

Seals all types of inner ducts

Easy to retrofit

Wide cable sealing range

Install and remove by hand



Simplex Duct Plug Specification:

Reepure code	Description	Duct OD (mm)	Cable Range (mm)
SDP-32-0914	32mm simplex duct plug, 9-14.5mm	32	9-14.5
SDP-40-0914	40mm simplex duct plug, 9-14.5mm	40	9-14.5
SDP-40-1418	40mm simplex duct plug, 14-18mm	40	14-18
SDP-50-8.9-14.5	50mm simplex duct plug, 8.9-14.5mm	50	8.9-14.5
SDP-50-13-18	40mm simplex duct plug, 13-18mm	50	13-18

 Note: other sizes available when request.
