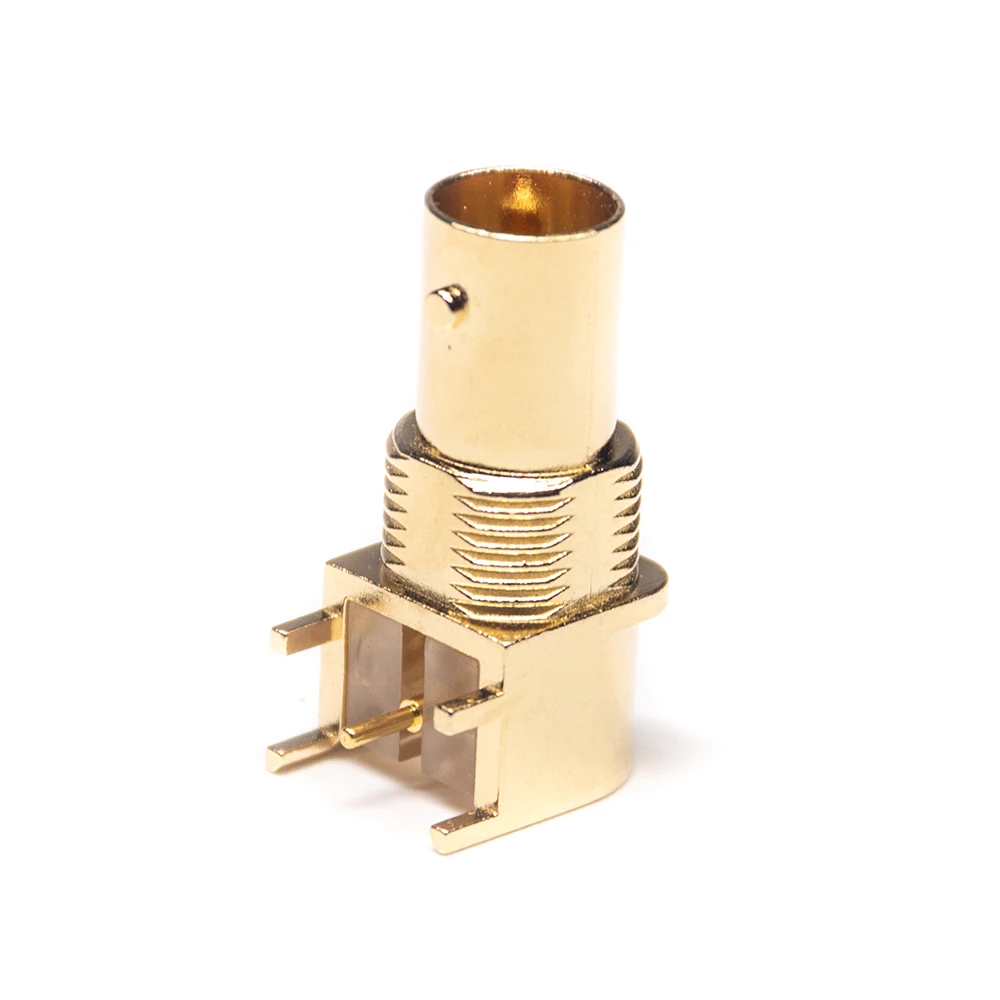

90 Degree Gold Plated Bulkhead BNC Jack Connector Through Hole for PCB
- Category: >>>
- Supplier: Dongguan,Dosin,Hardware,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
90 Degree Gold Plated Bulkhead BNC Jack Connector Through Hole for PCB
Want a Reliable RF Connectors Manufacturer to Support Your Project?
You’ll Never Regret to Contact Us.
Product Description
Full Series BNC Connectors
All types of BNC connectors from OEM Manufacturer in China
| |||
| BNC PCB / Panel Type | BNC Cable Type | BNC Cable Assembly | BNC Adapter |
Product Tag:
Product Description
-DOSIN RF offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to grade, BNC connectors are miniature, lightweight and reliable.
-With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry-standard cables, in a variety of termination styles. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.
Products Feature
Compact Design for less installation space required;
Easy quick connect and disconnect coupling;
Material
Body: ZINC /Brass Nickel Plated/Gold Plated
Center Contact Pin: Brass Gold Plated
Insulator : Teflon White
| BNC Connector | |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Polarity | Standard / Reverse Pole |
| Impedance | 50Ω / 75Ω |
| Mounting Type | PCB Mount / Panel Mount / Cable |
| Mounting Feature | Flange / Bulkhead / Through Hole / SMT / Offset Type / Plate Edge Mount / None |
| Number of Ports | Single Port / Dual Port |
| Contact Termination Style | Solder Cup / Solder / Crimp / Screw-joint / Through Hole / SMT |
| Shield Termination | Crimp / Compression / Clamp / Twist On / Solder / Locking Wire / Without |
| Cable Type | RG58 / RG59 / RG174 |
| Function | Waterproof / Dustproof / With Switch / Other |
| Body Material | Copper / Zinc Alloy / Aluminum Alloy / Stainless Steel |
| Body Plating | Gold Plating / Nickel Plating |
If You Still Not Found a Suitable Product, Please Contact Us>>
Electrical Performance | Impedance:50 ohm/75 ohm Frequency Range: 0~4 GHz for 50 ohm/ 0~1 GHz for 75 ohm VSWR: Straight type ≤ 1.22/3GHz / R/A type ≤ 1.30/3GHz Dielectric Withstanding Voltage: 1500 V rms Working Voltage: 500 V rms Center Contact Resistance ≤ 1.5 mΩ (Milliohms max.) Outer Contact Resistance ≤ 2.0 mΩ (Milliohms max.) Insultation Resistance ≥ 5 × 103 mΩ (Milliohms min.) | ||
Mechanical Performance | Coupling: bayonet Contact Retention: 6 lbs min. Mating Durability: ≥ 500 cycles | ||
| Environmental Performance | Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC Coupling Nut Retention: 100 lbs. min. Vibration: MIL-STD-202 Meth. 204 Corrosion Resistance: MIL-STD-202 Meth. 101 | ||
How we work for you?
Over 10 years R&D Experience
Talented Engineering Team with a Number of Independent Patents, Provide Professional Antenna Solutions
Your RF Connector Supplier From China
Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005, and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, Antenna series and other custom made connectors.
We offer an extensive range of interconnect solutions for applications in telecom, security surveillance, automotive, healthcare, and aerospace industries.
Get Test Reports from Us with a Quality Guarantee!!!
Do You Accept OEM / ODM Orders?
Yes, we accept OEM / ODM orders and make many successful projects before.
Our engineer will also offer you technical support and solution suggestion if required.
Application Scenario
Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
