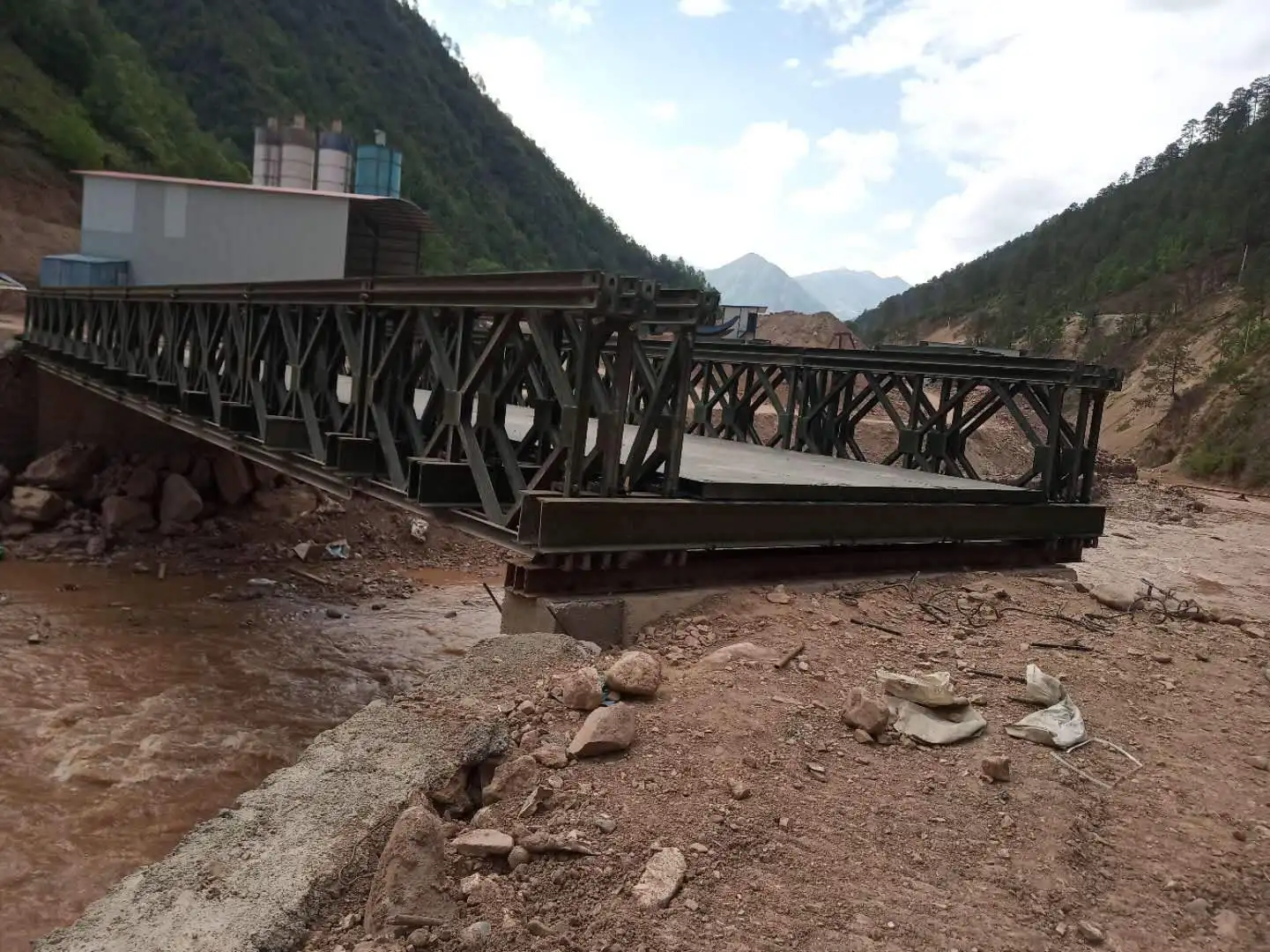

Bailey Bridge Portable Steel Bridge for Sale

Surface treatment

Painting, Galvanized

Color

Green, , Customize

Material

Q235B, Q345B, Q355B

Orginal

Jiangsu, China

Certificate

ISO9001

Product name:

Compact-200 Bailey Bridge

Model alias:

200-type prefabricated highway steel bridge (Bailey Bridge)

Derivative models:

CB200-type, HD200-type Bailey Bridge.

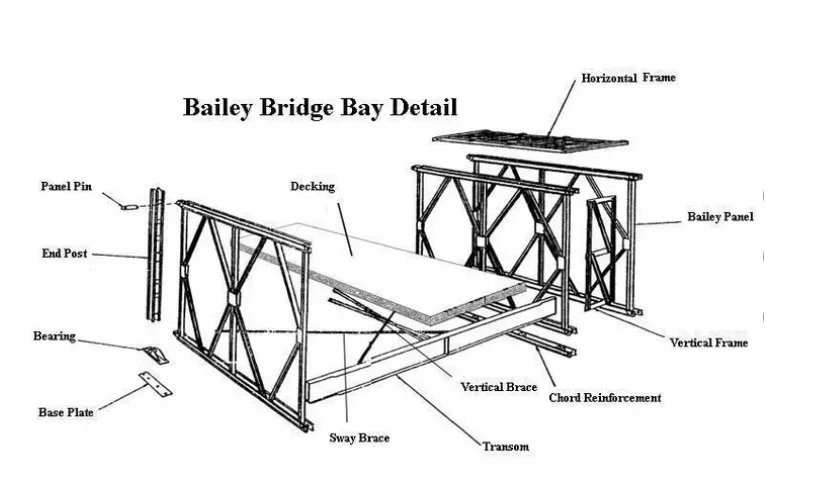

Truss piece model:

Type 200 Bailey Panel

Conventional size of truss piece:

3048mm*2134mm(hole centre distance)

Maximum span of steel bridge design:

Single Lane Maximum Allowable Span 60.96m

Standard lane width of steel bridge:

Net width of bridge deck:

Load class:

Class 10 for automobiles; Class 15 for automobiles; Class 20 for automobiles; Class 50 for crawlers; Class 80 for trailers; 40
tons for bicycles;
AASHTO HS20, HS25-44, HL93, BS5400 HA + HB; City-A; City-B; Highway-I; Highway-II; Indian standard Class-40; Australian standard
T44; Korean standard D24, etc.

Design:

321 type SS, SSR, DS, DSR, TS, TSR, DD, DDR
According to the difference of span and load, select the appropriate row. Contact us for free design.

Main material of steel bridge:

GB Q355B

Connecting bolt grade:

8.8 high-strength bolts

Surface corrosion:

Hot-dip galvanizing; paint; heavy-duty anti corrosive paint for steel structure; anti-skid aggregate treatment of bridge deck, etc.

Bridge erection method:

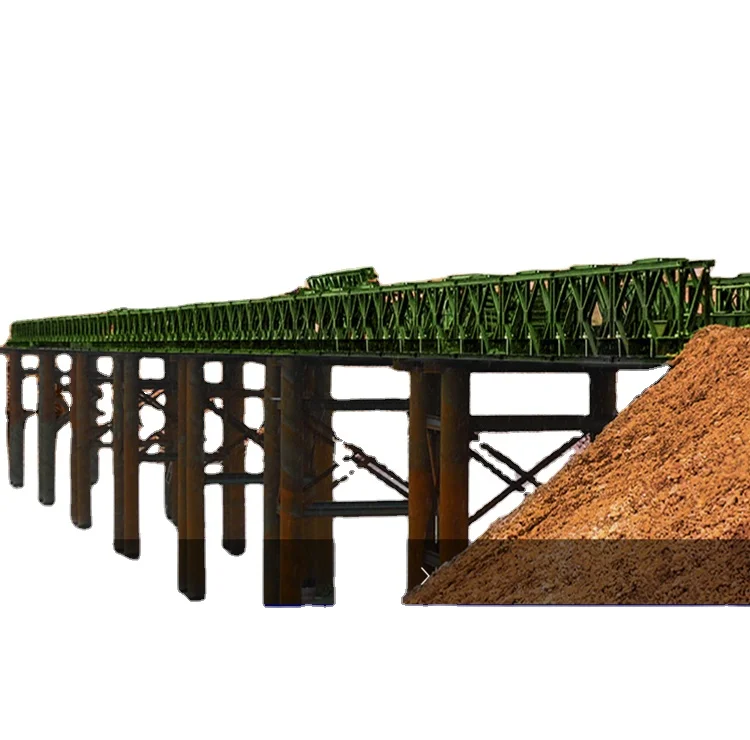

Cantilever push-out method; hoisting method; floating method; in-situ assembly method; soil pile construction method, etc.

Installation takes time:

7-14 sunny days after the abutment and other conditions are met (determined according to the length of the bridge and site
conditions)

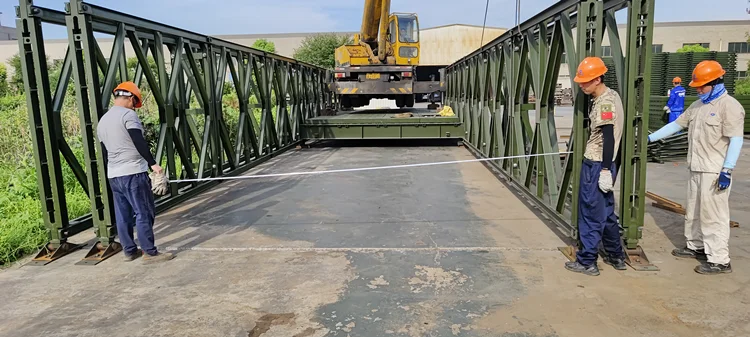

Installation requires workers:

6-8 (determined according to site conditions)

Equipment required for installation:

Cranes, hoists, jacks, chain hoists, etc. (Can be adjusted according to site conditions)

Steel bridge features:

lightweight components,easy disassembly and assembly,wide range of applications

Pass the certification:

ISO,etc.

Annual output:

12000 tons
