Product Overview
Description
Product Description

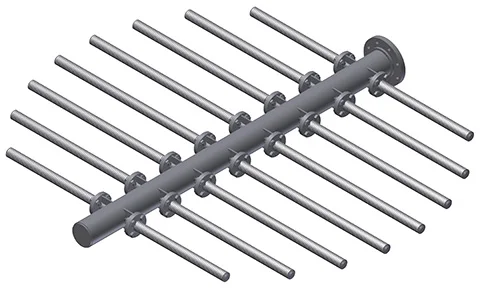

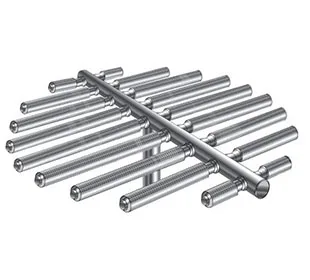

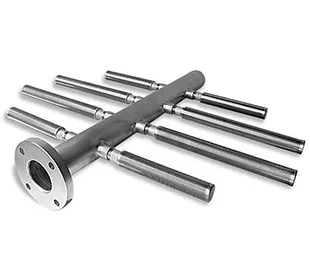

Stainless Steel Distributor Collector Lateral Header Filter for water industry filtration

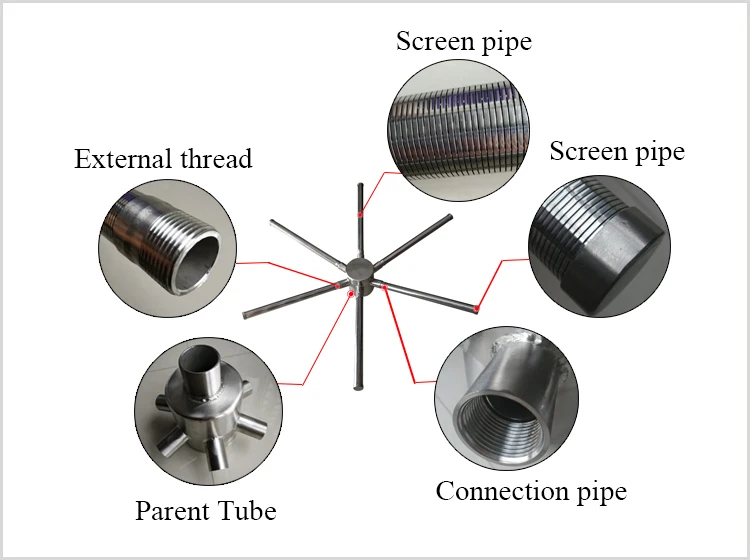

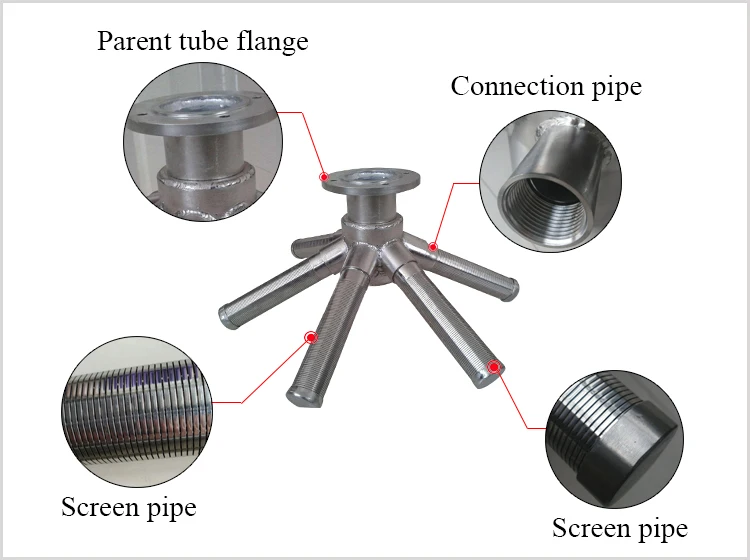

Stainless Steel Distributor Collector Lateral Header Filter for water industry filtration, also called header lateral assemblies, areHeader Lateral Distributor hub radial laters for water treatment assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

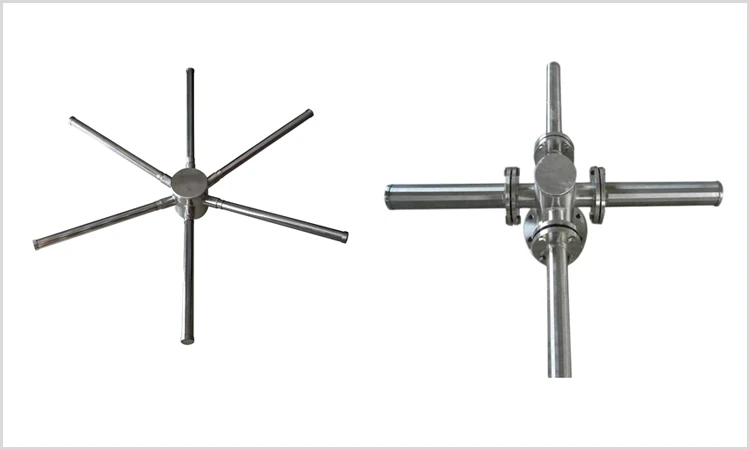

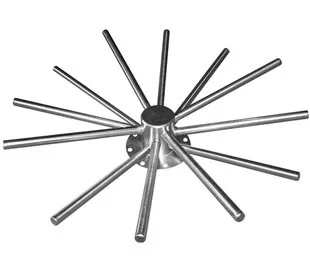

Stainless Steel Distributor and Collector Lateral made by YUBO Screens promote even distribution while also avoiding flow/pressure concentrations. The non-plugging spider hub style design is ideal for accommodating disc head vessels. Made to your specification for size, open area and material, you can expect easy maintenance and exceptional long-term durability.
No matter the final design, you can count on the performance of our hub or Hub Distributor from YUBO Screens.
Advantage of Stainless Steel Distributor Collector Lateral Header Filter for water industry filtration
1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life
Specification
| |||
Material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207,Duplex, Hastelloy, etc | ||
Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. | ||
Lateral OD Range (mm) | 25 to 80mm, customized | ||
Normal Hub (mm) | 108, 133, 219, Customized | ||
Hub and lateral connector types | Thread, Flange | ||
Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) | ||
Slot Range(mm) | Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm. Slot according to request. | ||
Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
Support Rod (mm) | 1.5x2.5 2x3 | 1.8x2.5 2x3 | 2x3 2x4
|
Note | Customized According To Requirement | ||
Related Products
FAQ
FAQ
• 1.IS YOUBIOU (UBO) Factory or Trading Company?
YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.
• 2.HOW ABOUT THE MOQ?
MOQ according to different product, sometimes MOQ decided by customer.
• 3.Cou You supply the sample?
We could offer the sample for free charge but the cost of freight is extra.
• 4. What payment term do you accept?
T/T ,L/C at sight, Western Union, and other mainstream payment term.
• 5. How about the delivery time?
Usually within 3-15days after receiving the deposit;
• 6.Where is your Market?
We have been exporting to more than 120 different countries and regions all over the world.
• 7.How About your sales service?
Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
