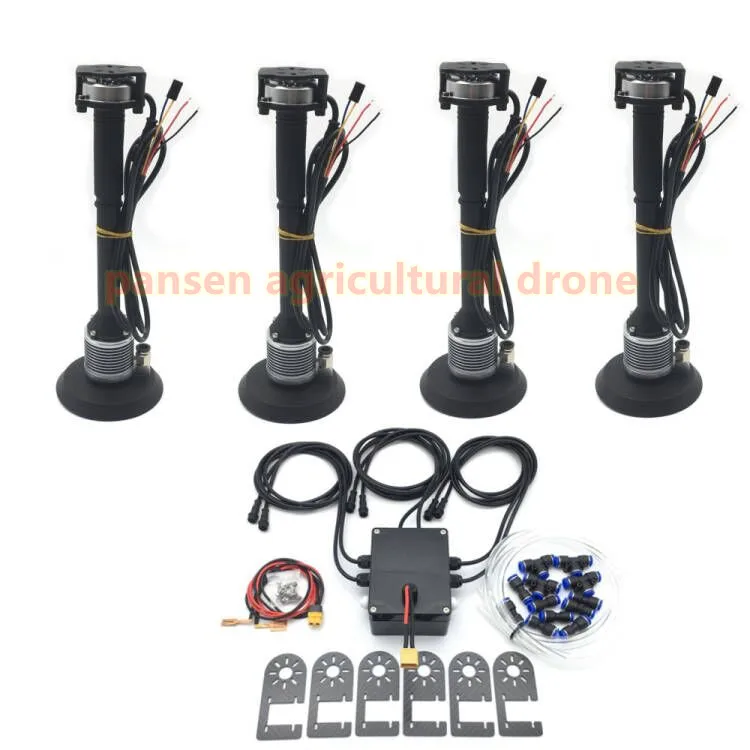

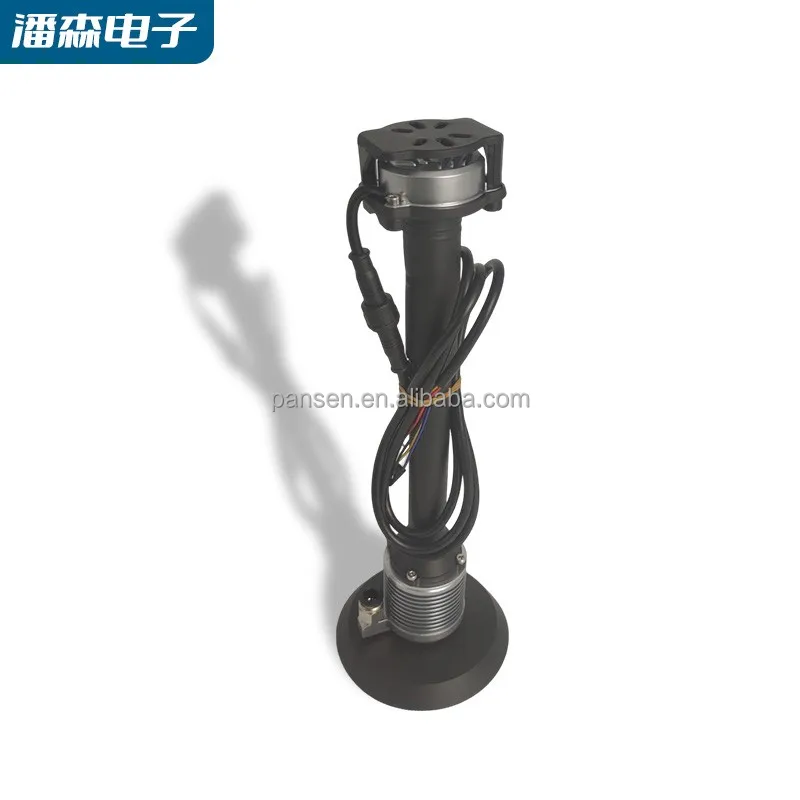

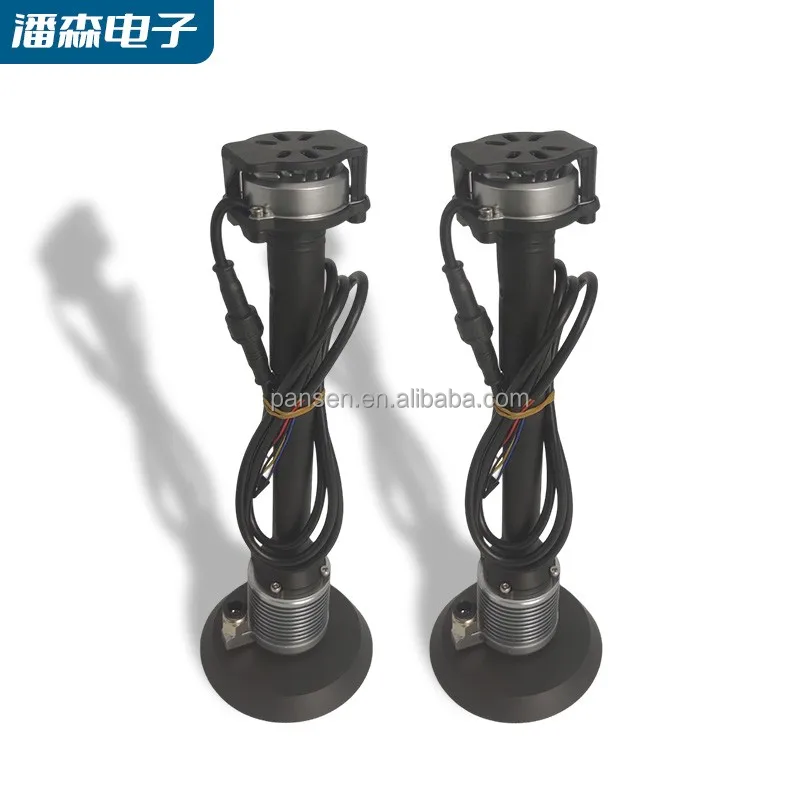

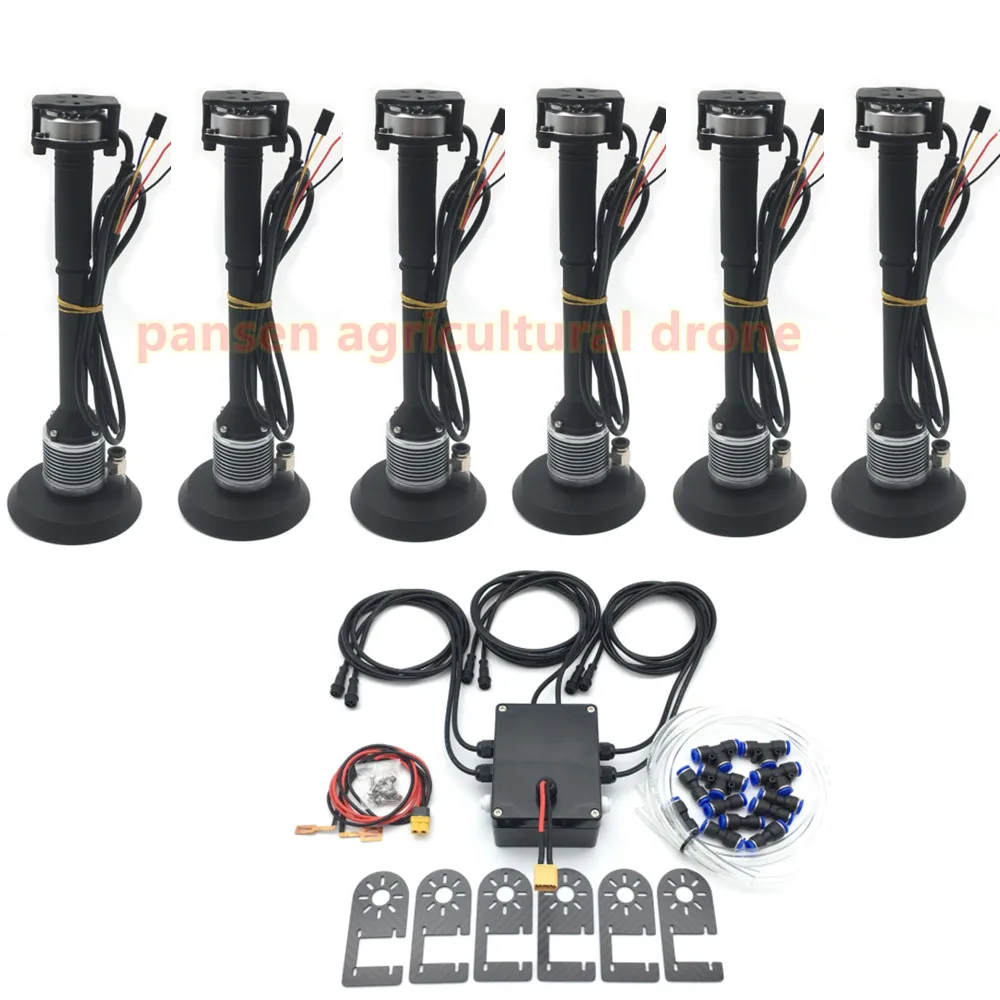

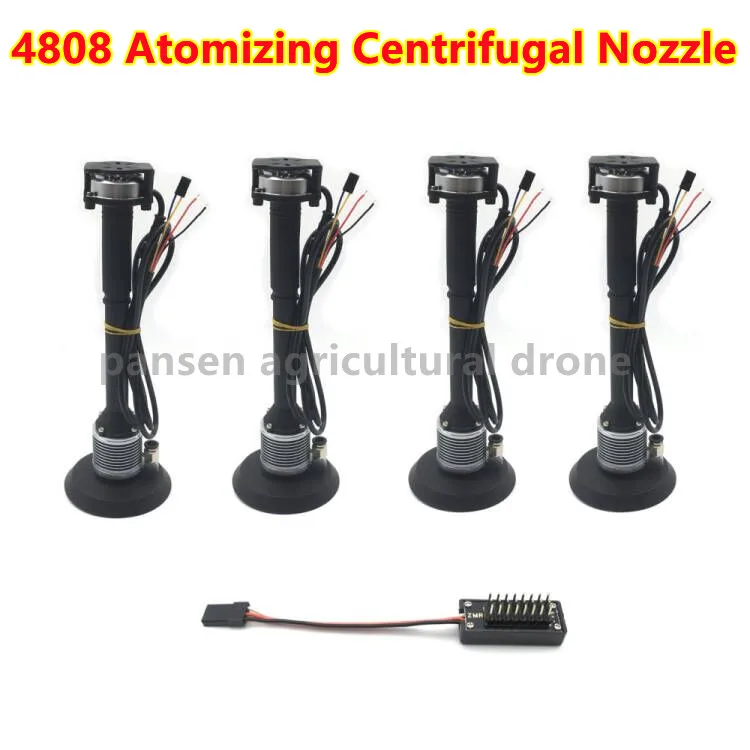

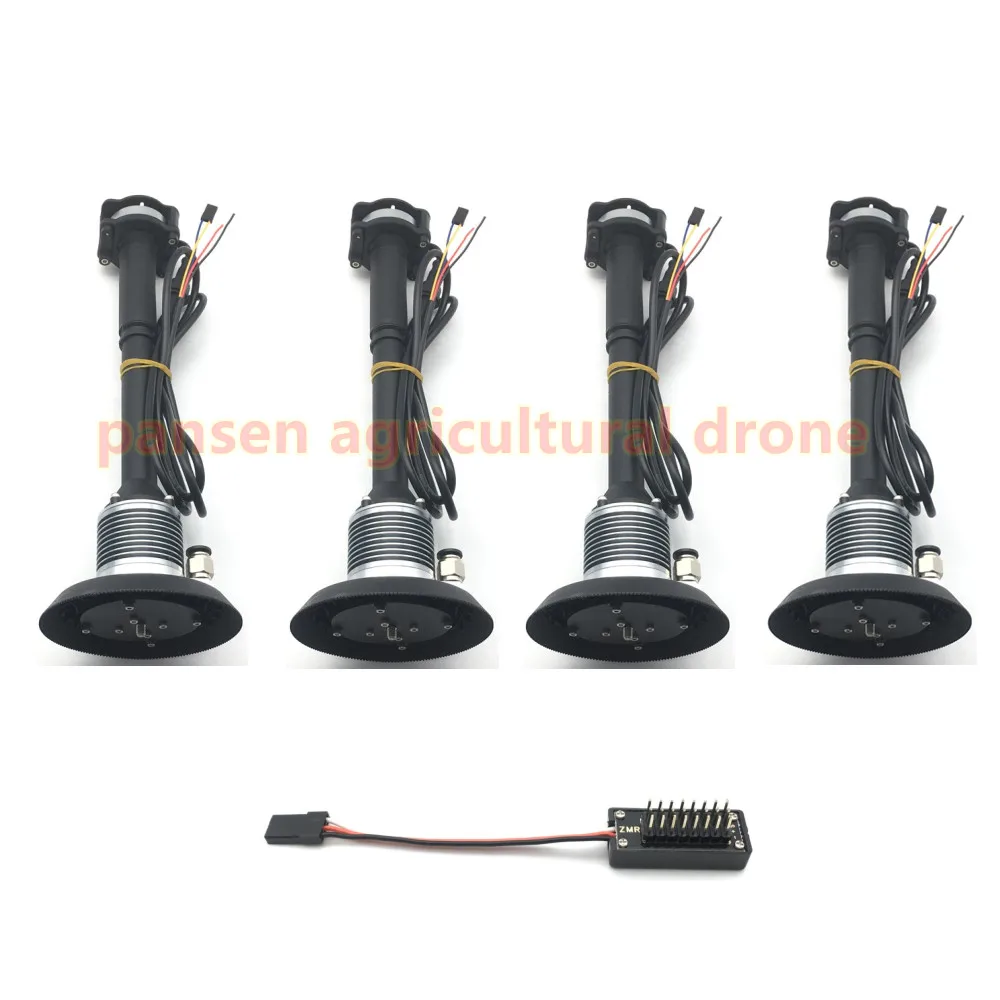

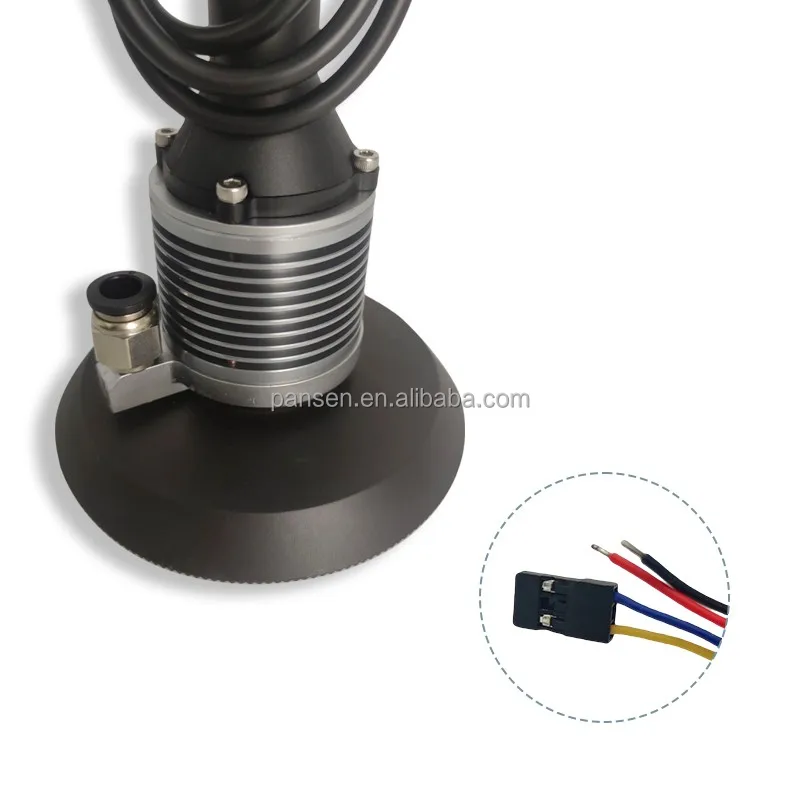

DJI T series T16 T20 T30 4808pro Centrifugal Nozzle 12S 48V Brushless Centrifugal Nozzle spray nozzle for Agricultural drone
- Category: >>>
- Supplier: Shenzhen Pansen Electronics Co. Ltd.
Share on (1600620115149):
Product Overview
Description

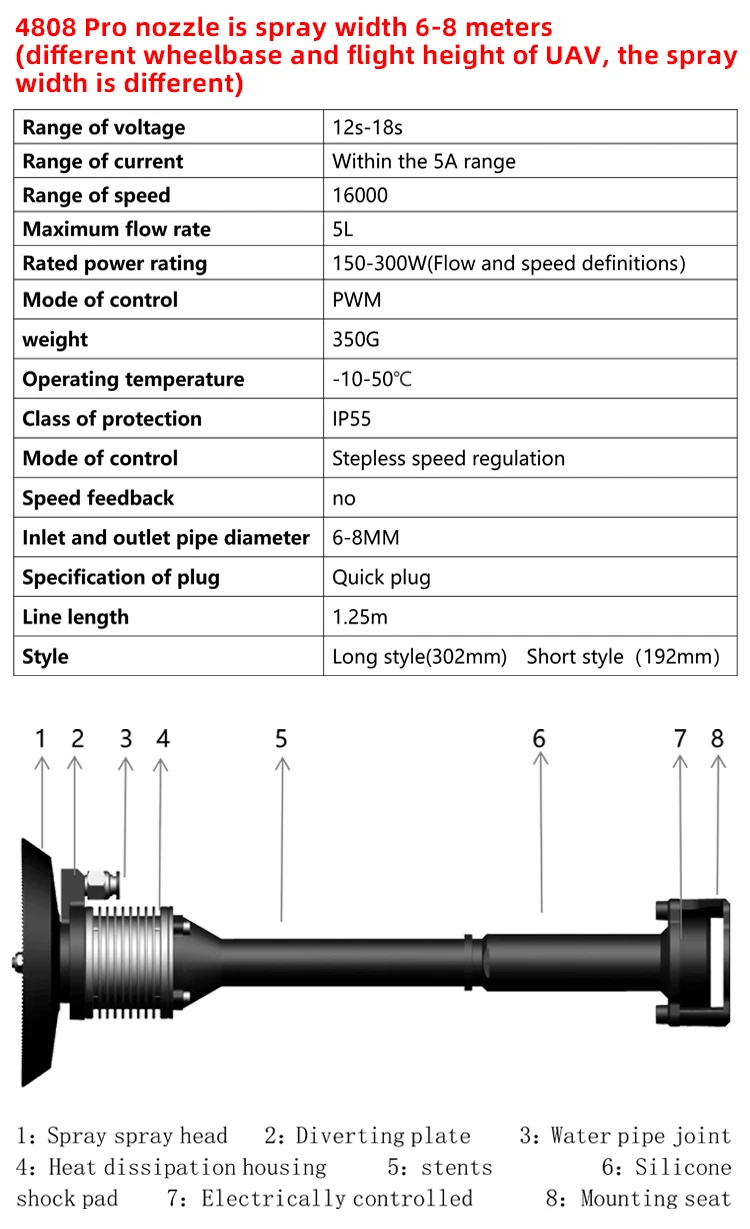

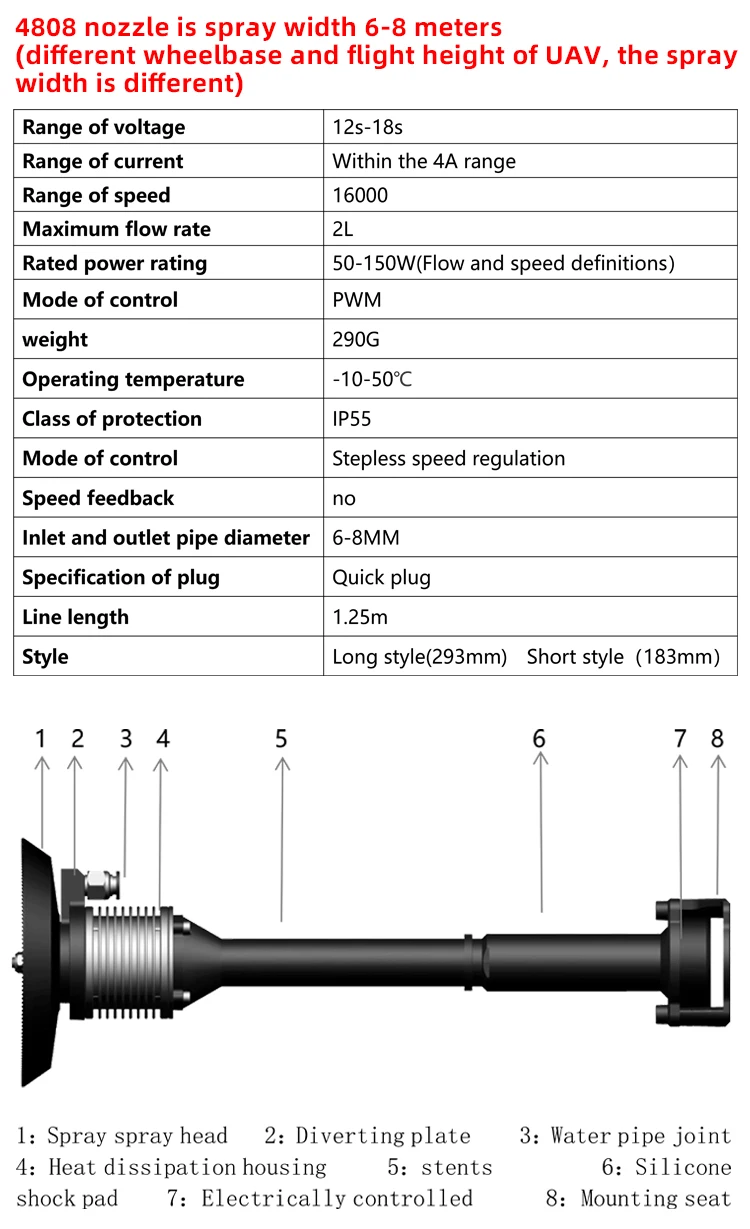

Specifications:
Shell material: aluminum alloy
Nozzle height: 30cm
Mist particle diameter: 50-200 microns
Working range: water supply 200-2000mL / min
Atomized spray width: 1.5-2.0 meters
Voltage: 12-14S power supply
Speed: 20,000 rpm
Signal: PWM (1000-2000)
Power: 60W
Weight: 260 grams
Length: total length 300MM
Outgoing cable length: 1.1 meters
Red wire positive, black wire negative
White wire signal Yellow wire ground wire
Note:
When 12S power supply, the sprinkler rotation speed is 85% (analog 1000-1850), the life will be prolonged.
Try not to run at full speed. The speed of the nozzle is 75% when the 14S is powered (analog 1000-1750)
Try not to run at full speed. The speed of the nozzle is 75% when the 14S is powered (analog 1000-1750)
