Product Overview
Description
Features:
1.Adapt raw material,such as elongated wood and round stock embryo,to change the disadvantage of raw material limited.
2.Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed
of the machine .
3.The highest speed of the machine can reach 25 pcs/min,and can be customed the machine which can process more sticks for one time
2.Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed
of the machine .
3.The highest speed of the machine can reach 25 pcs/min,and can be customed the machine which can process more sticks for one time
Round Wood Bar Machine Broomstick Machine Round Stick Polish Round Rod Wood Machine
wood round stick making machine is mainly used for making long bamboo and wood materials, round wooden strips into round bars and
smooth square bars. The machine can be customized according to diameter of the wooden handle. wood round stick making machine is
widely used for processing industrial and agricultural milling shovel, hoe, hoe, daily mop and tools, and can also process wooden
uneven bars, martial arts sticks, rolling sticks, pillars, balustrades, etc. wooden product. As well as the processing of cylindrical, ancient buildings, round beams for building, furniture decoration, and round wood decoration..
smooth square bars. The machine can be customized according to diameter of the wooden handle. wood round stick making machine is
widely used for processing industrial and agricultural milling shovel, hoe, hoe, daily mop and tools, and can also process wooden
uneven bars, martial arts sticks, rolling sticks, pillars, balustrades, etc. wooden product. As well as the processing of cylindrical, ancient buildings, round beams for building, furniture decoration, and round wood decoration..

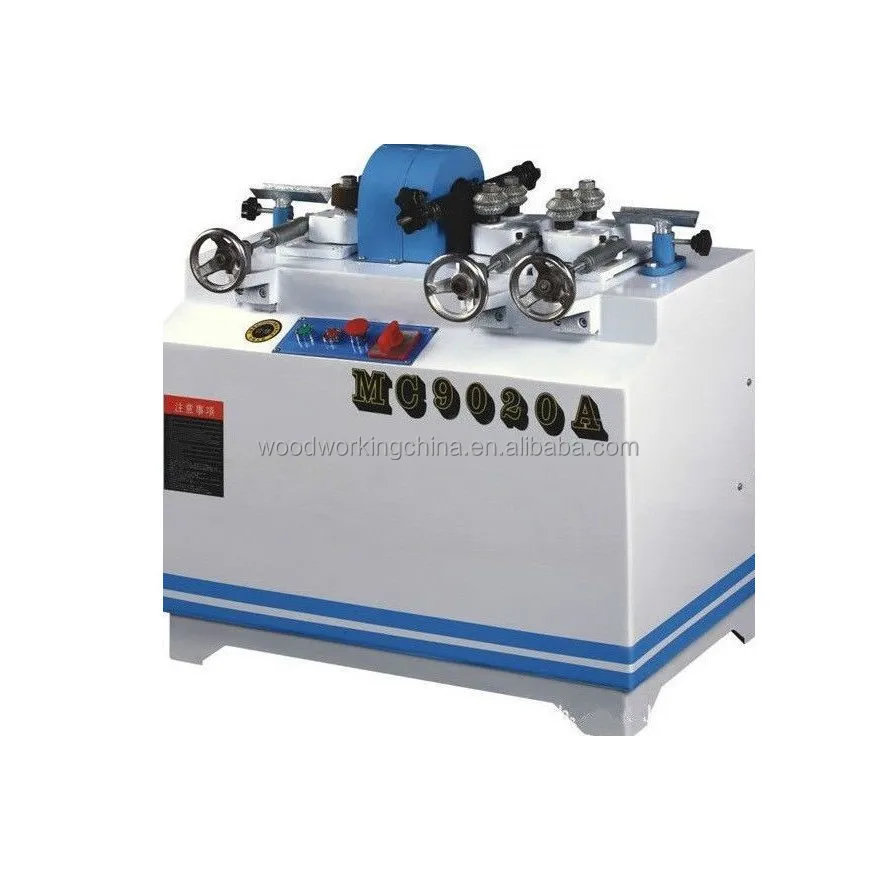

MC9020A
Feeding Wheel Double Feeding
& Single Discharging
& Single Discharging
Main motor power： 2.2kw（Level 2）
Feeding motor power： 0.55kw（Level 4）
Feeding speed： 3/5m/min
Machining diameter: 6-16mm
Processing length: 350mm
Machine dimensions: 870*560*820mm
Machine weight: 190kg

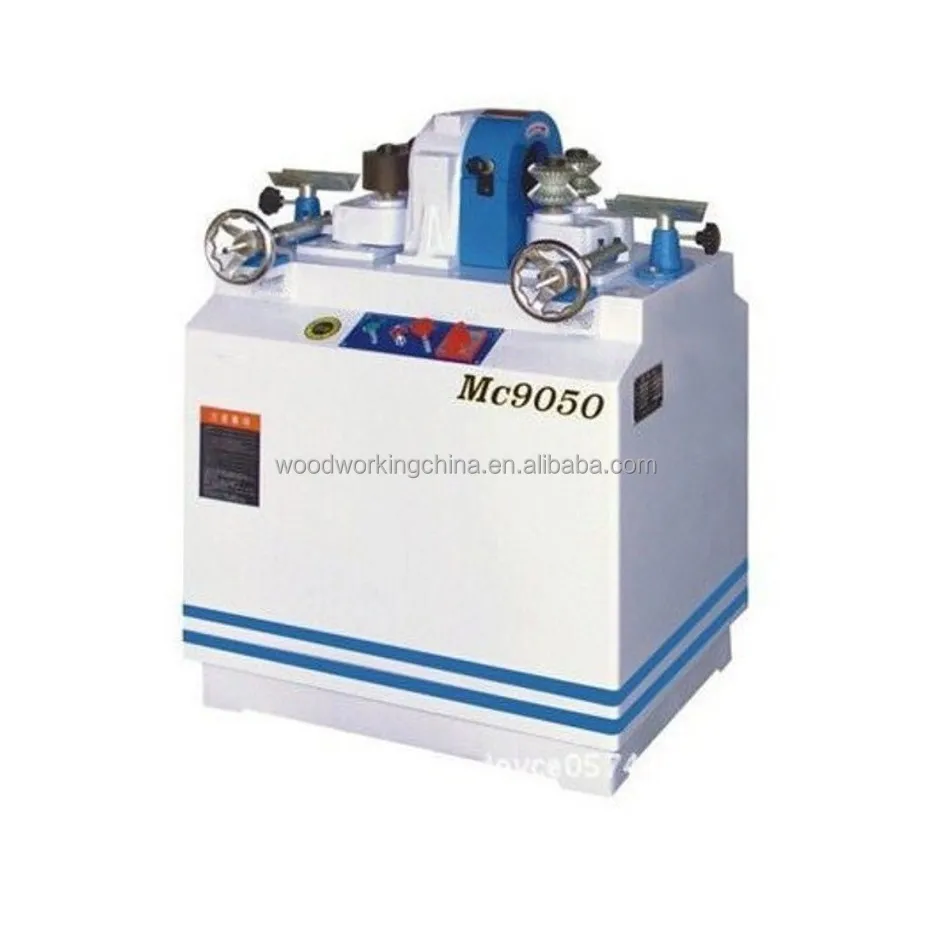

MC9050
Feeding Weel Single Feeding
&Single Discharging
&Single Discharging
Main motor power： 3kw（Level 2）
Feeding motor power： 0.55kw（Level 4）
Feeding speed： 3/5m/min
Machining diameter: 15-50mm
Processing length: 400mm
Machine dimensions: 860*650*980mm
Machine weight: 240kg

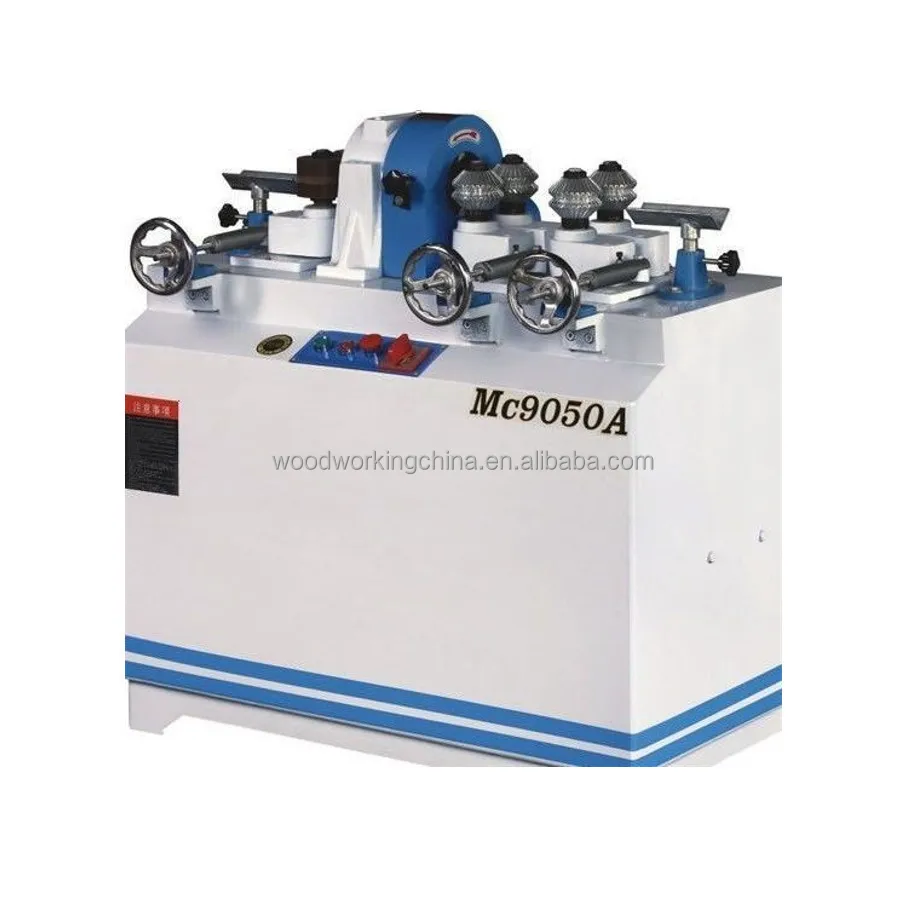

MC9050A
Feeding Wheel Double Feeding
& Single Discharging
& Single Discharging
Main motor power： 3kw（Level 2）
Feeding motor power： 0.75kw（Level 4）
Feeding speed： 3/5m/min
Machining diameter: 15-50mm
Processing length: 400mm
Machine dimensions: 970*650*980mm
Machine weight: 300kg

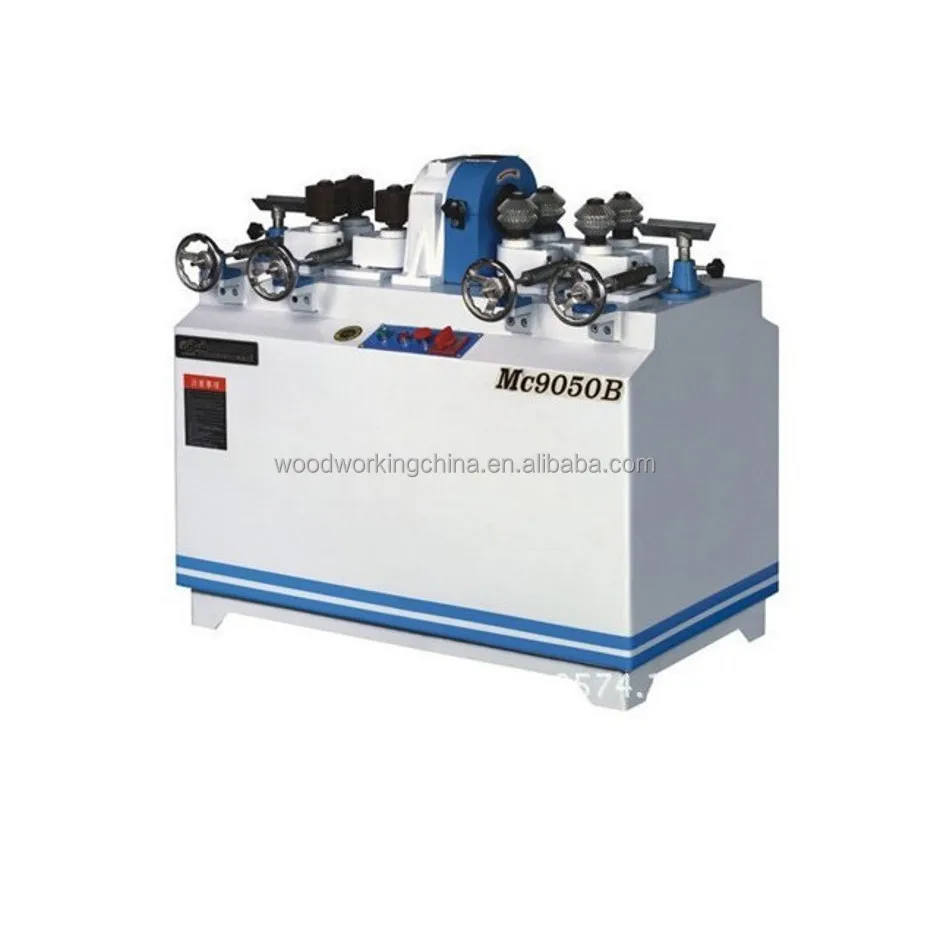

MC9050B
Feeding Wheel Double Feeding
&Double Discharging
&Double Discharging
Main motor power： 3kw（Level 2）
Feeding motor power： 0.75kw（Level 4）
Feeding speed： 3/5m/min
Machining diameter: 15-50mm
Processing length: 400mm
Machine dimensions: 1000*650*980mm
Machine weight: 340kg

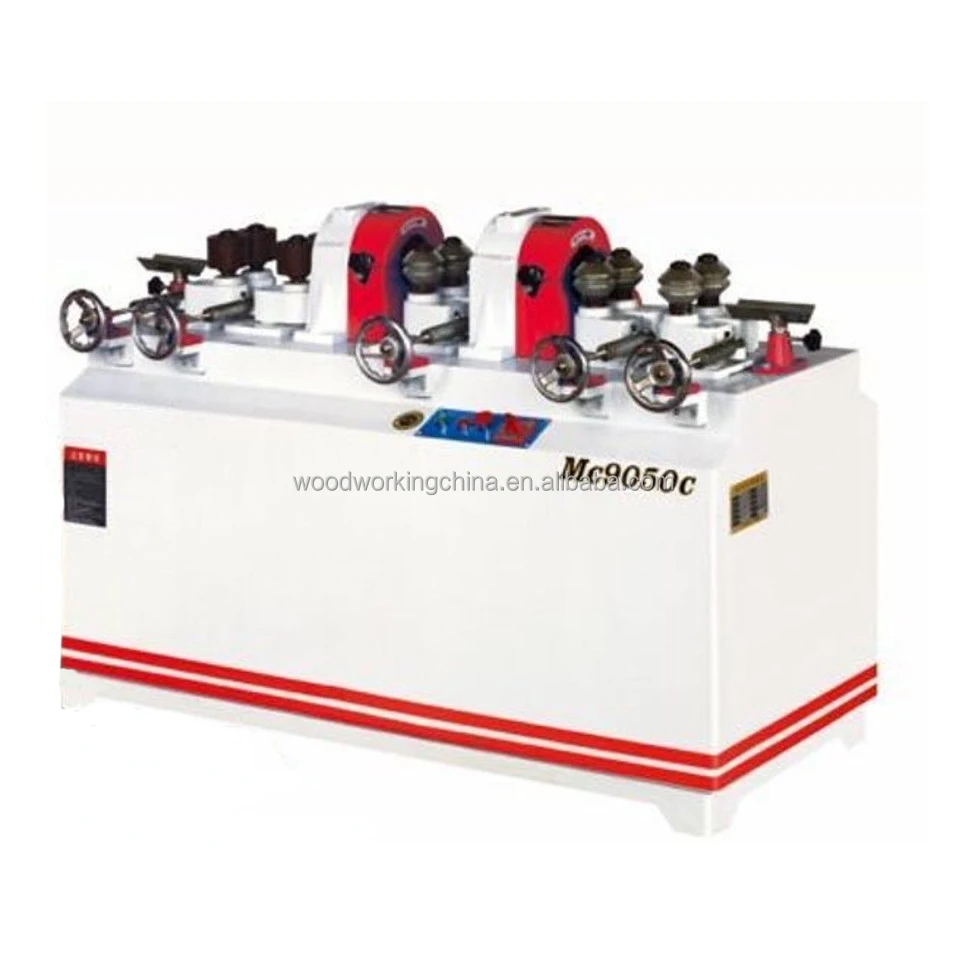

MC9050C
Round Wood Cutter
Main motor power: Front 4, Back 3kw (Level 2)
Feeding motor power： 0.75kw（Level 4）
Turbo Reducer: 50:1 Model 80
Spindle speed: 4000r/min
Feeding speed： 3/5m/min (Double pit wheel variable speed)
Machining diameter: 20-50mm(Square profile)
Processing length: 1000mm
Machine dimensions: 1470*590*1000mm
Machine weight: 520kg

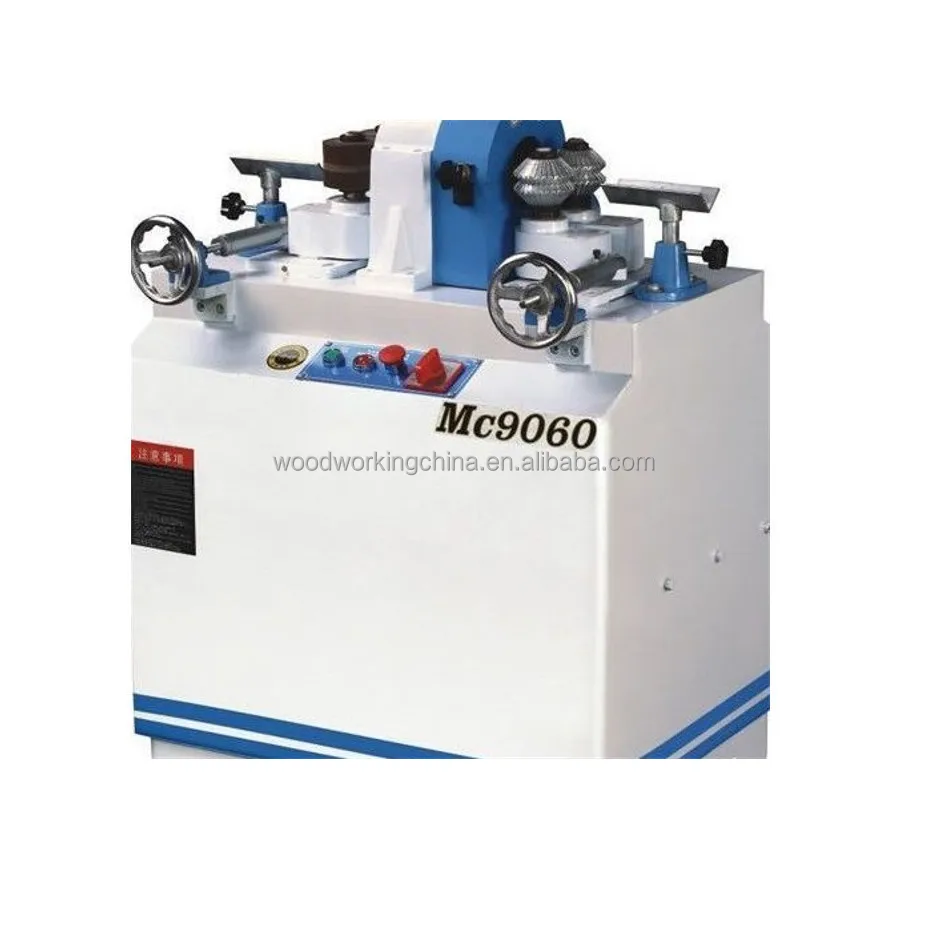

MC9060
Round Wood Cutter
& Single Dischar
Main motor power： 3kw（Level 2）
Feeding motor power： 0.55kw（Level 4）
Feeding speed： 3/5m/min
Machining diameter: 15-60mm
Processing length: 400mm
Machine dimensions: 860*650*980mm
Machine weight: 250kg

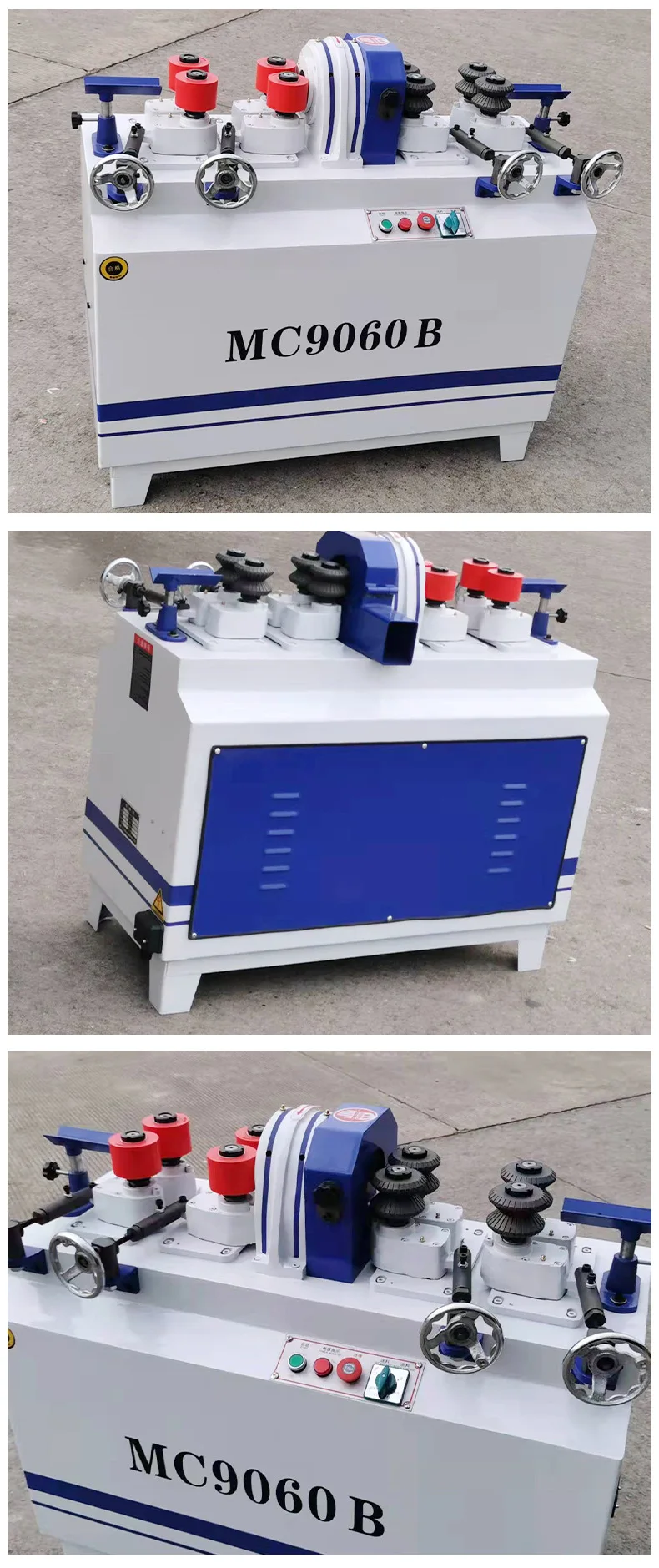

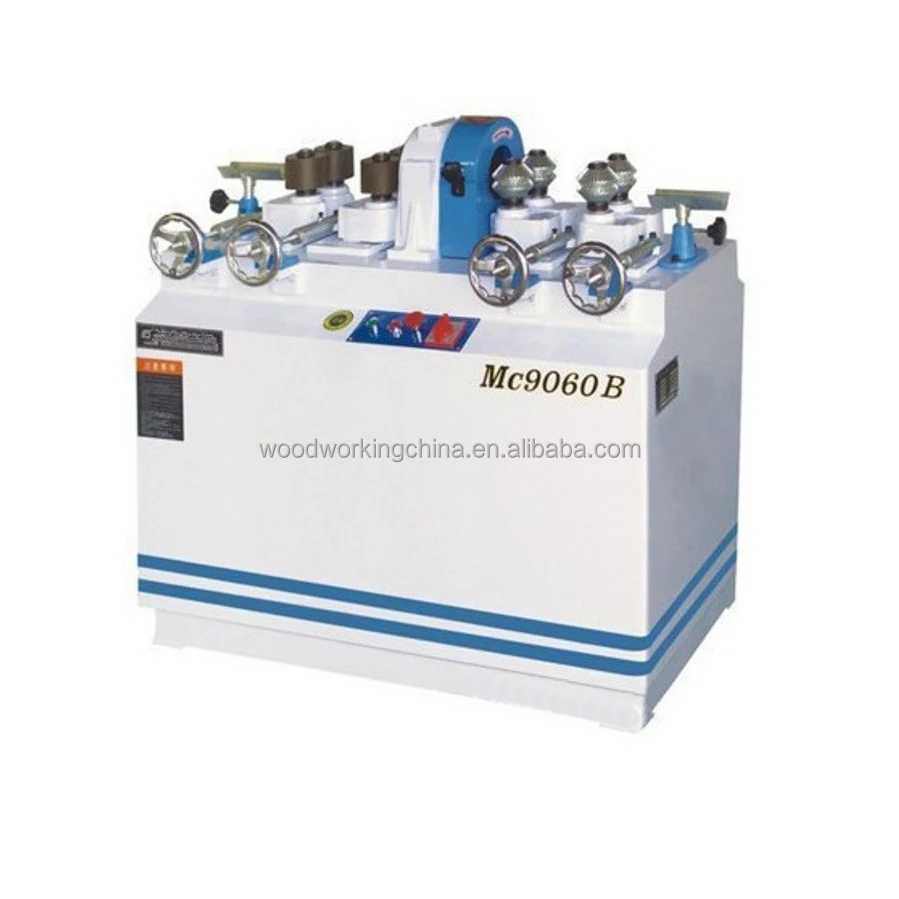

MC9060B
Feeding Wheel Double Feeding
&Double Discharging
&Double Discharging
Main motor power： 3kw（Level 2）
Feeding motor power： 0.75kw（Level 4）
Feeding speed： 3/5m/min
Machining diameter: 15-60mm
Processing length: 400mm
Machine dimensions: 1000*650*980mm
Machine weight: 350kg

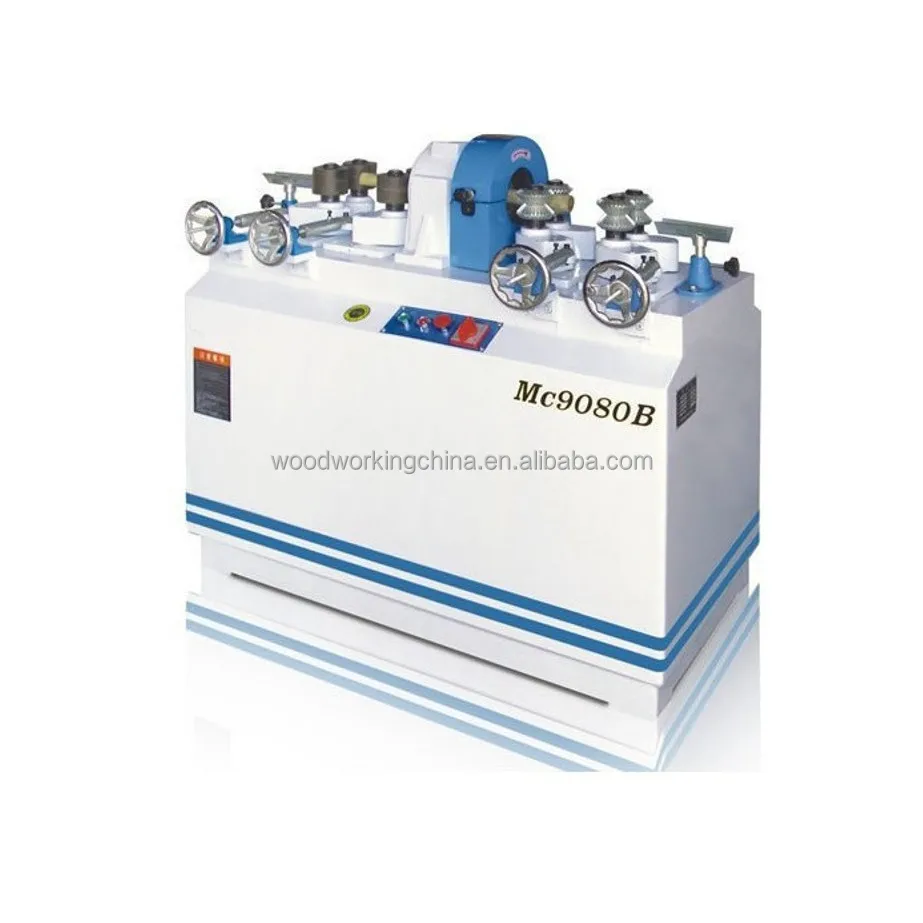

MC9080B
Feeding Wheel Double Feeding
&Double Discharging
&Double Discharging
Main motor power： 4kw（Level 2）
Feeding motor power： 0.75kw（Level 4）
Feeding speed： 3/5m/min
Machining diameter: 25-80mm
Processing length: 400mm
Machine dimensions: 1200*610*1100mm
Machine weight: 420kg

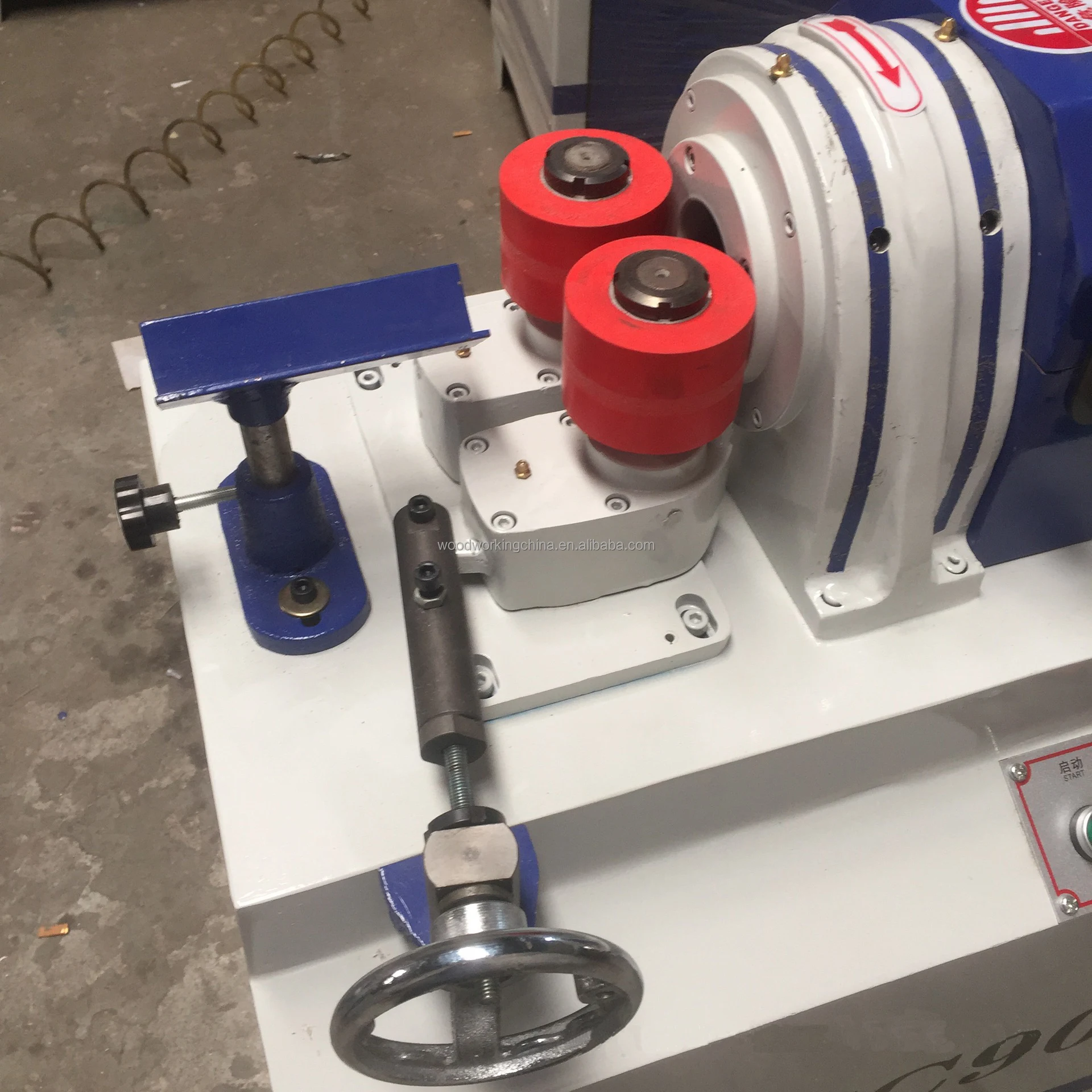

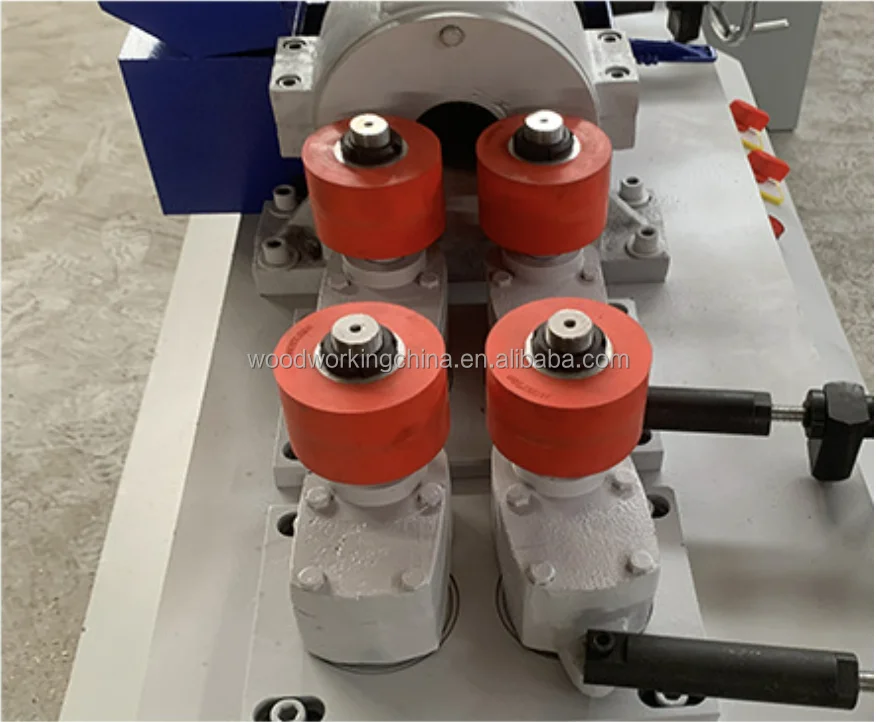

The rubber roller is made of rigid and wear-resistant material, which can tighten the wood without loss, and the transmission force is large and the output is stable, so that the finished wood stick is exquisite and smooth.

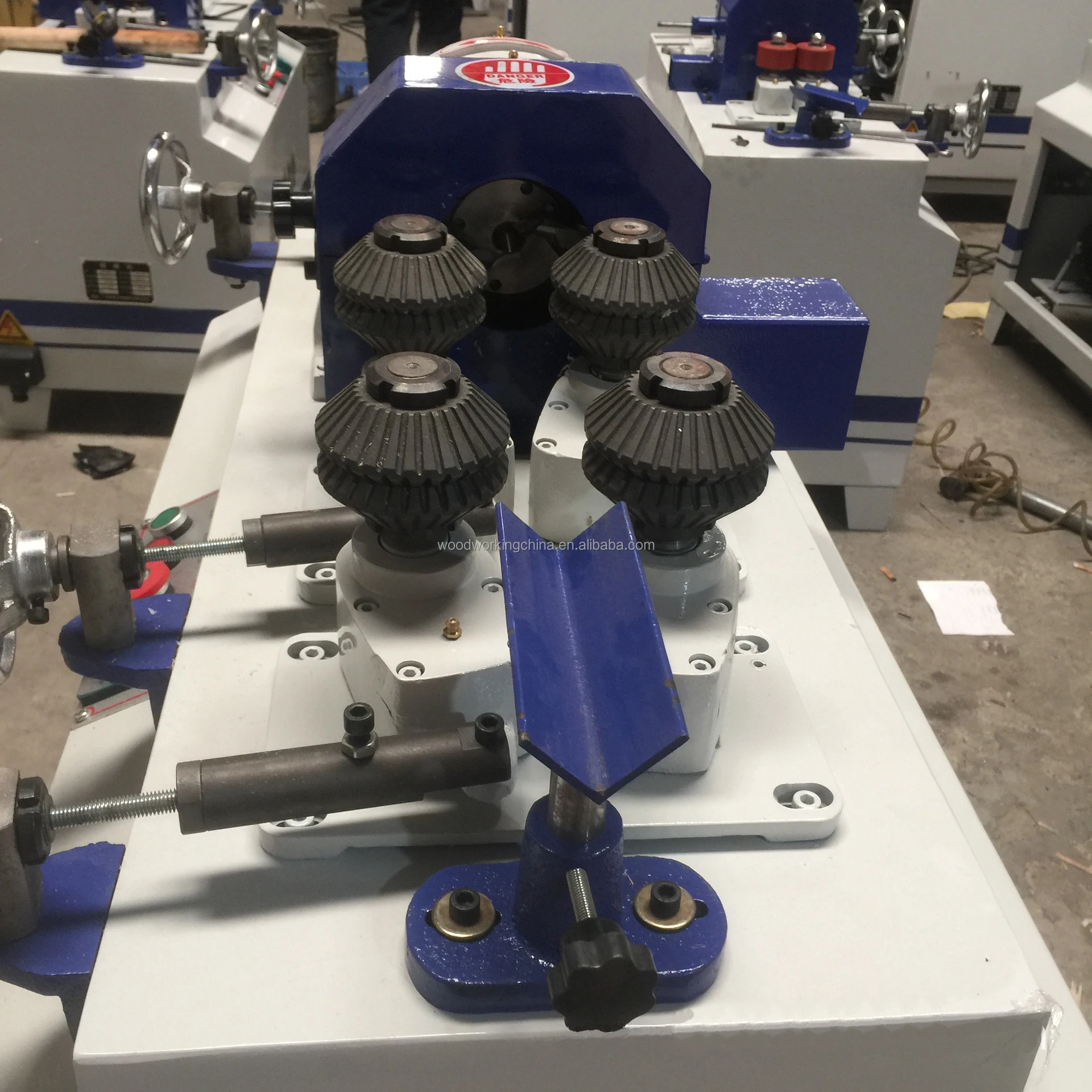

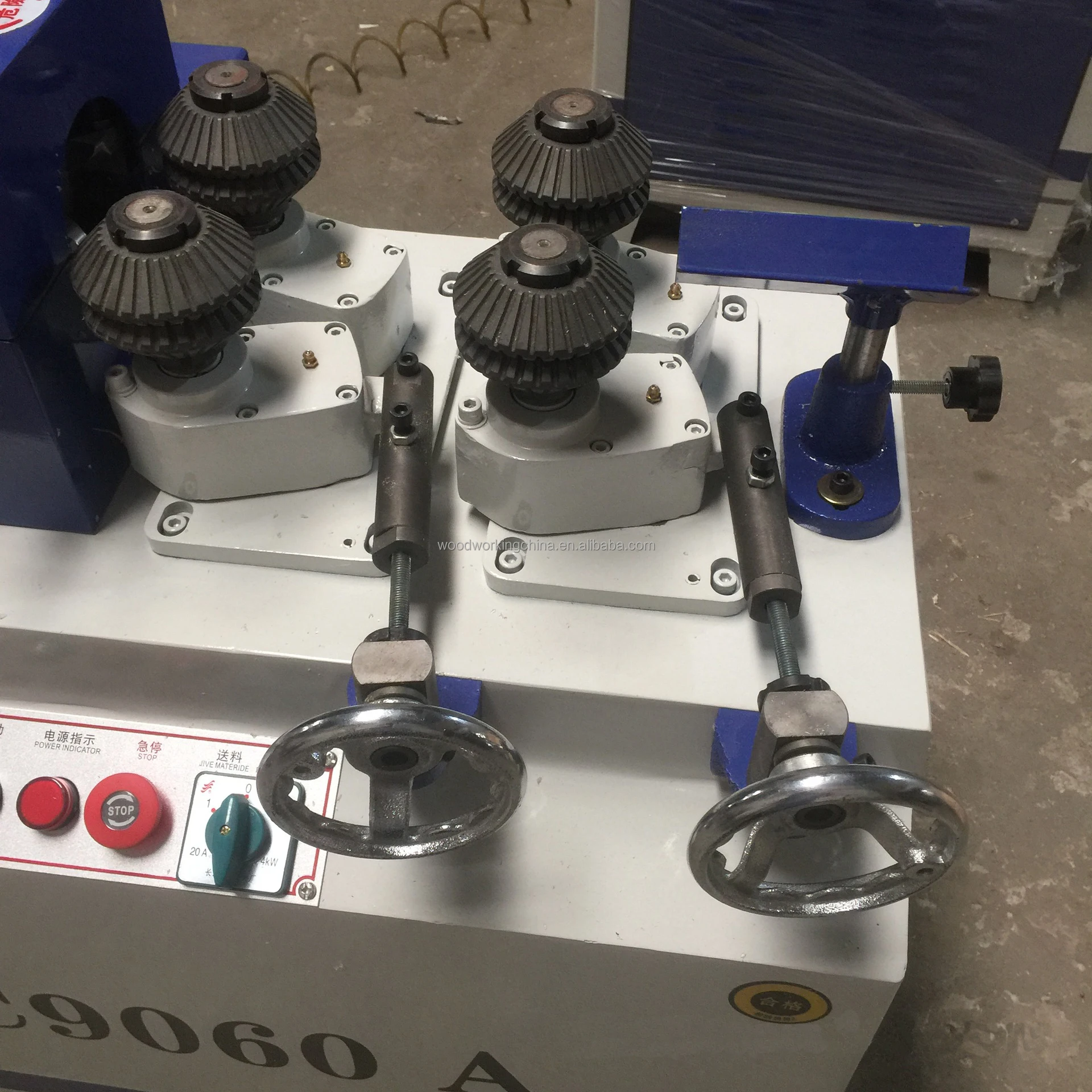

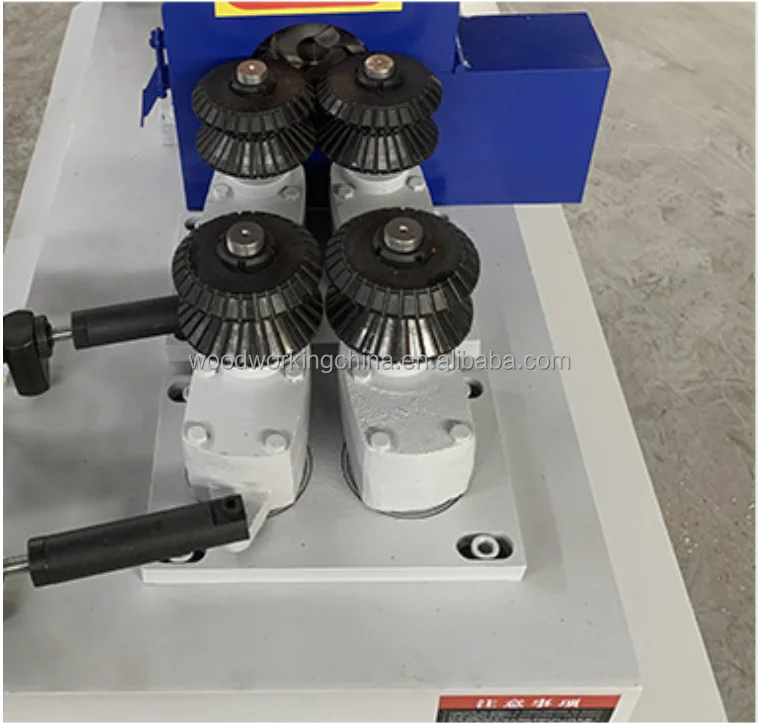

Umbrella tooth feed wheel
Precise design principle, flexible disassembly and installation, easy and fast diameter adjustment
Qingdao Hezhi Machinery Group
We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating casting machinery, surface shot blasting machine, sand treatment, automation equipment research,Saw machine, Press Machine, Edge banding machine, Sanding Machine, Drilling Machine, Polishing Machine, Woodworking Planer, Vacuum Laminating Machine, Spray paint machine and CNC Router Machine, development, production, operation, export and service.
We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for extension. ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products. 3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Woodworking Machinery!
1. What is your company positioning?
HEZHI MACHINERY, dedicated to precision equipment manufacturing. Intelligent manufacturing, innovation sharing.
2. How do you do quality control?
HEZHI MACHINERY develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process. 45 inspection and testing items, 632 quality control points, 48-hour high-speed full-stroke load processing test. Germany's ZEISS three-coordinate-measuring instrument, Britain's RENISHAW laser interferometer and other world-quality precision testing equipment are used to ensure the precise control of machine tool details.
3. What is your market advantage?
We provide not only machine tools, but one-stop solutions for machine tools.
4. Do you have after-sales service, and how to do it?
The whole machine is guaranteed for 1 years, and the service is responded immediately. we will actively and promptly solve problems for users as appropriate, and provide technical service support through telephone and video. If necessary, they will go to the customer site for on-site service.
5.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products(as you stated in the purchase order).If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee. Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us. it can guarantee your interests.
6.Do your products support trade assurance?
Yes, our products are all supported.
