Single Phase Front Board Installed Mechanical Energy Meter
US $8.30-$8.79

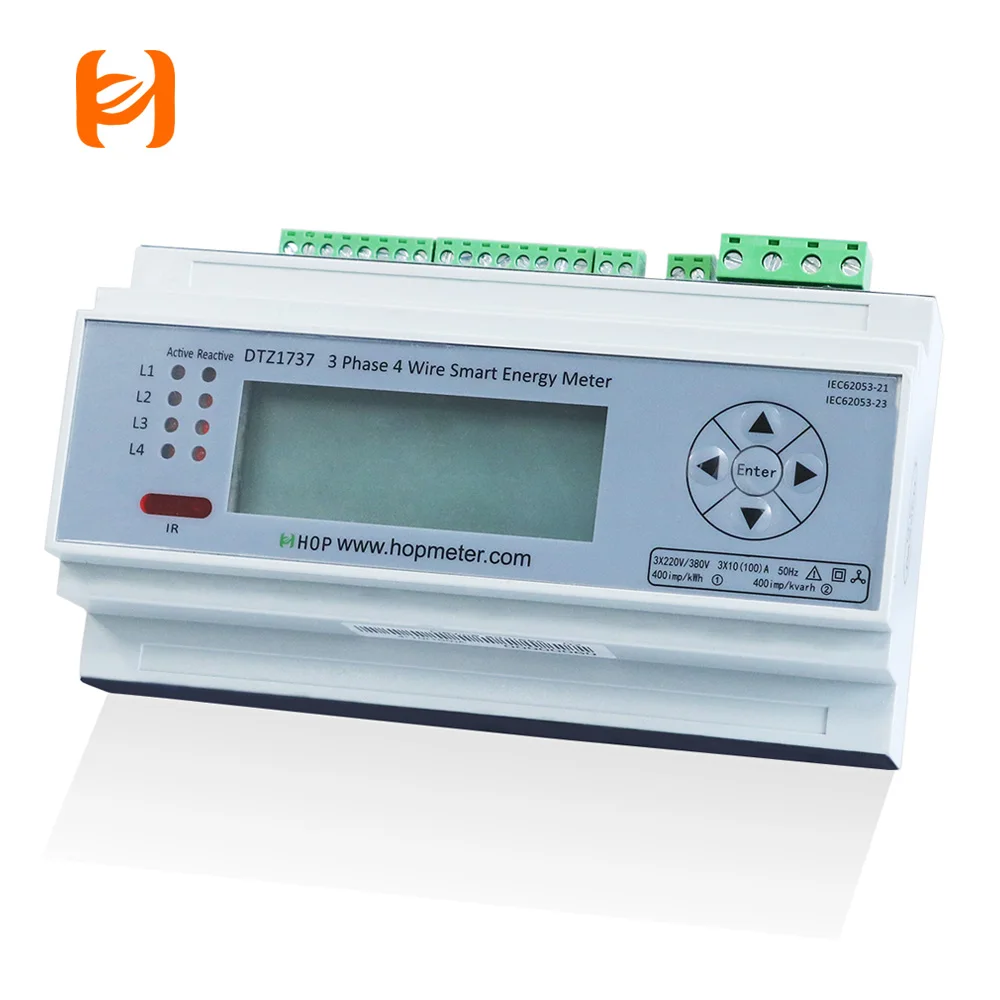

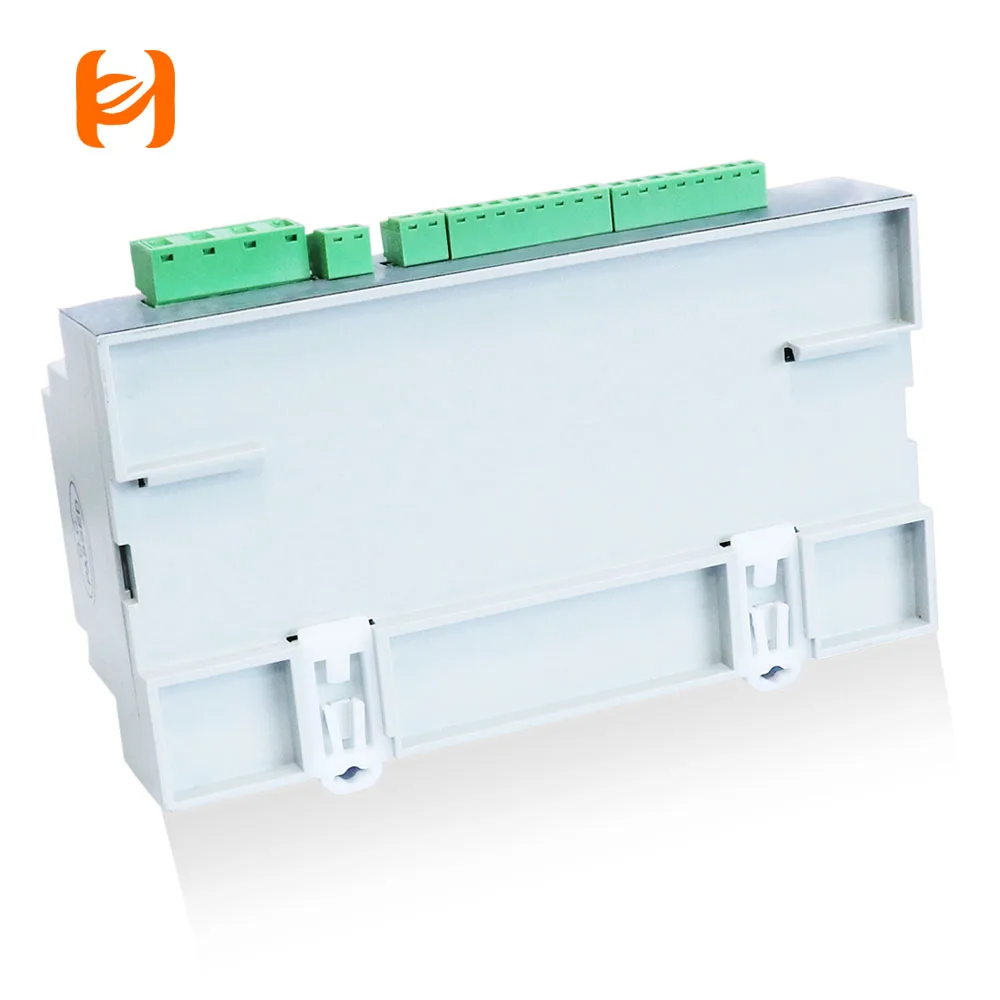

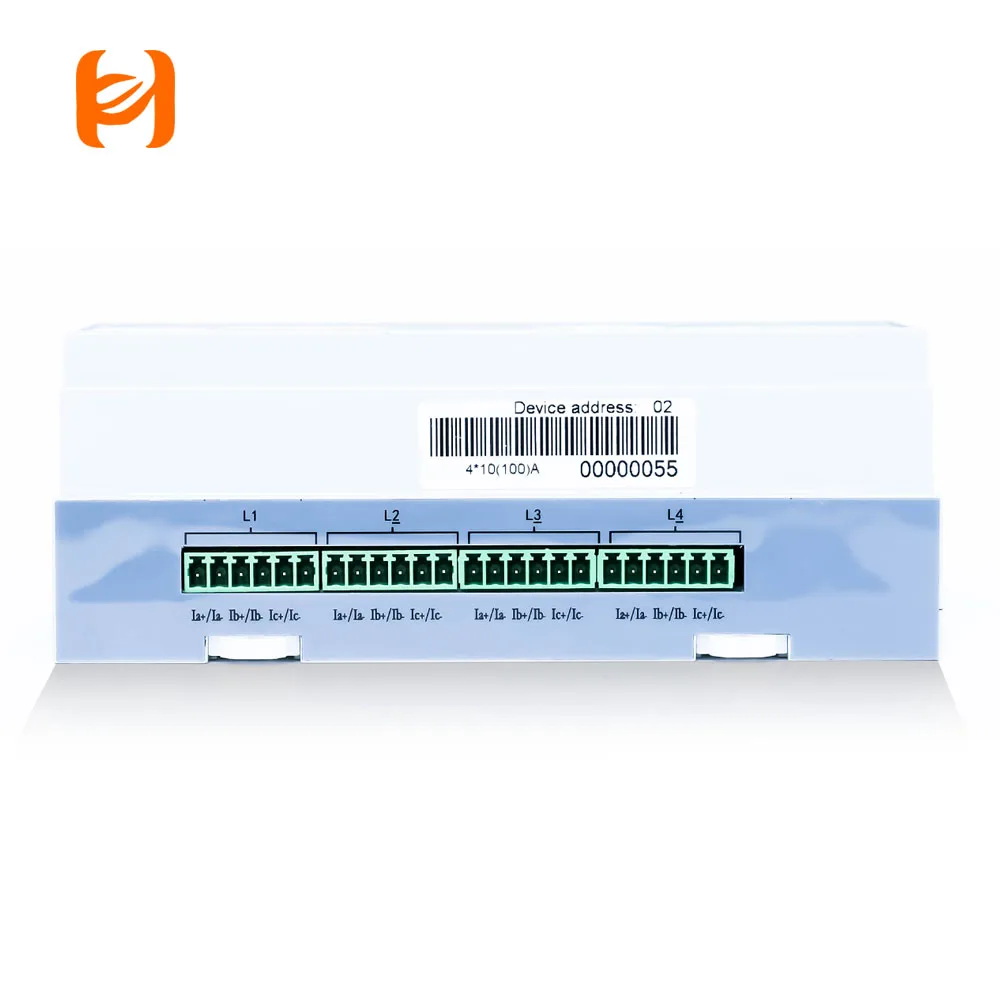

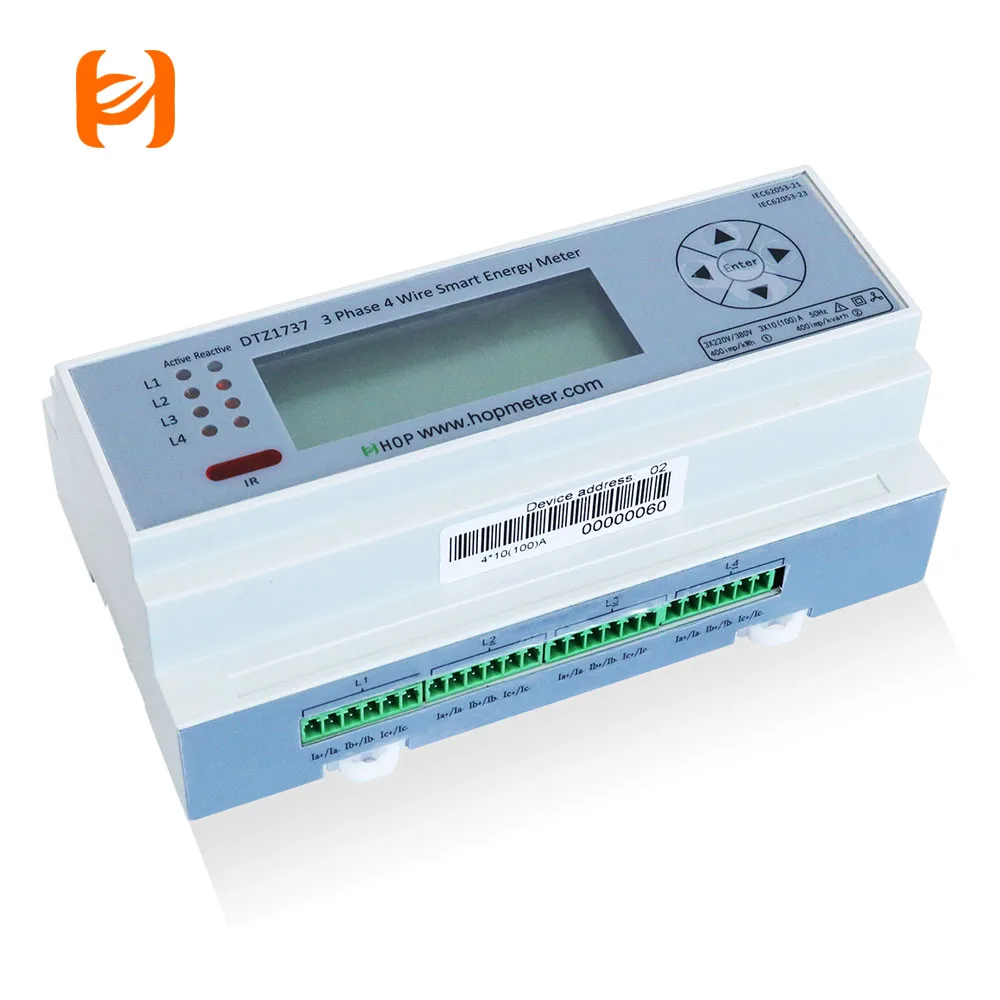

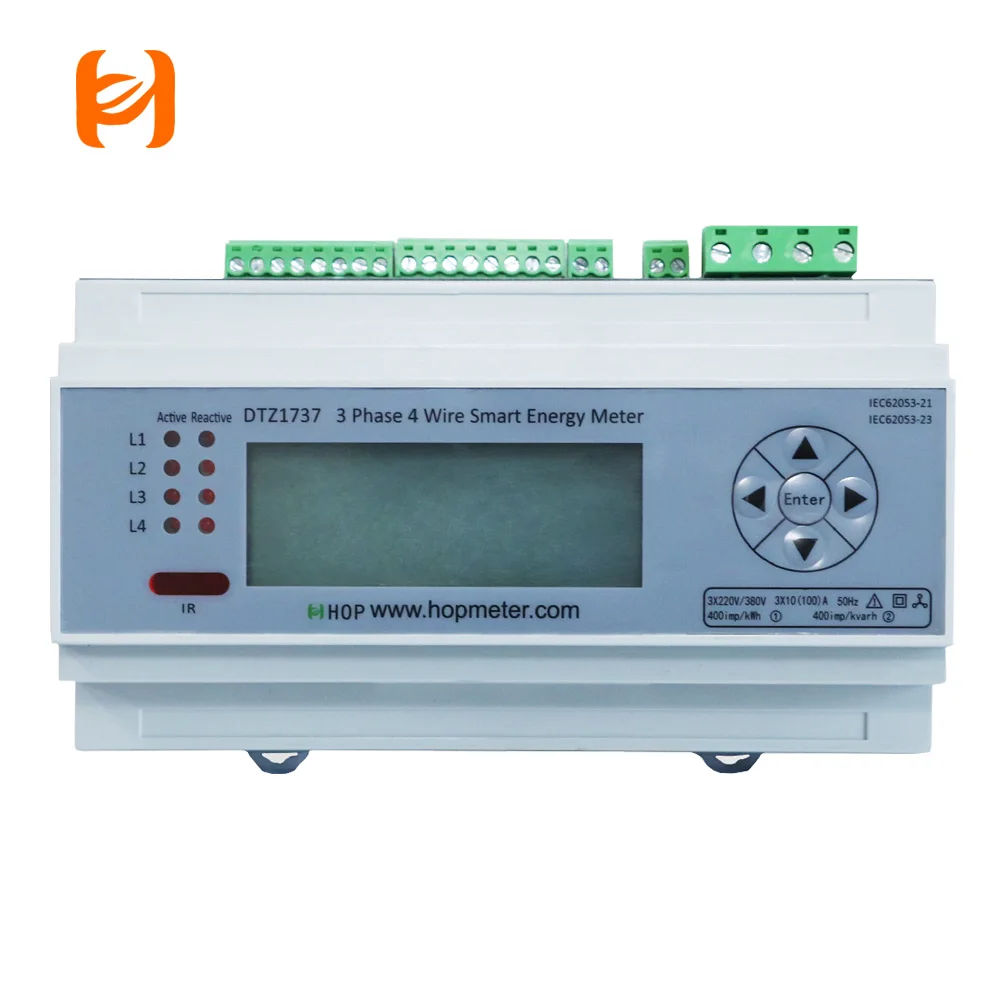

Интеллектуальный Электрический измеритель RS485, многоканальный счетчик энергии
- Category: Electrical Instruments >>>
- Supplier: Chengdu Hop Telecom Co. Ltd.
Share on (1600620126685):
Product Overview
Description
Products Description
Accuracy | active: 1.0, reactive: 2.0 |
Reference Voltage | 3X220/380V |
Normal Working Voltage | 0.8Un~1.2Un |
Extreme Working Voltage | 0.7Un~1.3Un |
Current | 3 X 1.5(6)A, 3X5(60)A, 3X10(100)A |
Frequency | 50Hz±2.5Hz |
Normal Working Temperature | -25℃~60℃ |
Limit Working Temperature | -40℃~70℃ |
Clock Accuracy | ≤0.5s/d(23℃±2℃) |
Clock Battery Volume | ≥ 1200mAh |
Clock Battery Working Time | ≥ 10 years |
2.7Weight | 2.7Kg |
Dimension | 290 X170 X85(mm) |
It is a smart energy manage meter with software platform for a total solution in smart buildings, factories, schools, hospital etc... Built-in wireless communication modem (GPRS/3G/4G/NB-IoT/LoRa) can collect the energy data from the meter and transmit remotely directly to the server platform for energy data analysis.
Functions&Application

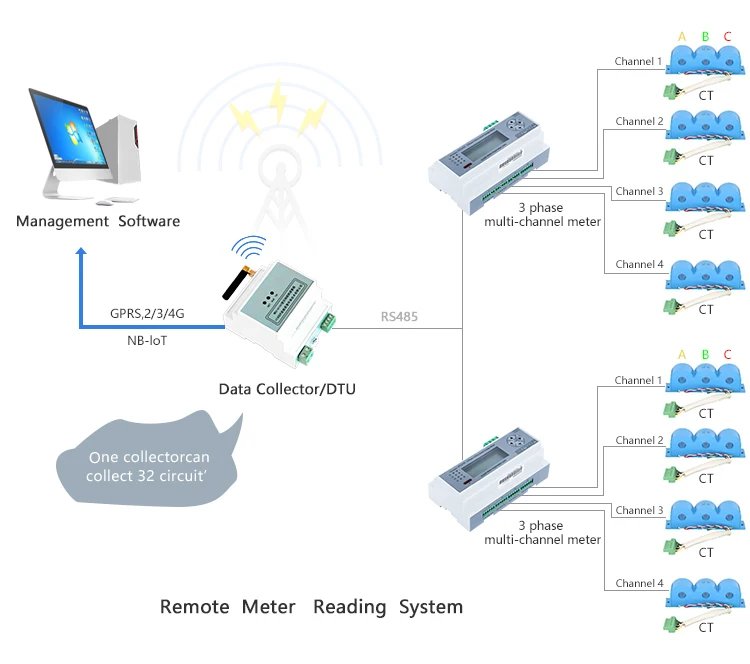

System Diagram
With built-in wireless communication modem, gprs modem, the meter can transmit the energy data directly to the server platform.The communication modem is flexible and changeable according to the local network situation. Metering and transmission two-in-one design is an excellent combination with advantages of cost saving, simple construction, quick deployment.
Functions
1.Simple Construction:
Robust design with communication modem built in the meter.
2.Save cost:
Electricity meter + gateway two-in-one, no need external DTU device, no need RS485 wiring, saving equipment, materials and labor costs.
3.Data Storage Retrievable:
With great capacity, the GPRS modem can store energy data at least 2 months to avoid data loss in case of network gone.
4.Remotely upgradable:
The internal program of communication modem can be remotely upgraded, which is convenient for aftersales system maintenance.
5.Automatic reading without manual:
Remote reading of meter data through communication modem to reduce on-site labor costs.
6.Flexible Communication Selection:
The communication module can be selected according to the local network mode, for example, GPRS, 3G, 4G, and NB-IoT can be selected to achieve a matching network connection.
7.Two payment solutions available: pre-payment and post-payment.
Company Profile
Certifications
E-EMC \\ CE-LVD \\ ROHS \\ ISO14001 \\ ISO9001 \\ OHSAS180001
Packaging&Shipping
FAQ
Q: Do you have APP for the energy meter?
A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developing instructions clients give.
Q: Can the smart energy meter support wireless communication?
A: Yes, our wall mounted energy meter is with built-in communication modem; and din rail energy meter need to be connected to an external data collector/DTU with communication modem.
Q: Can you put our logo on the smart energy meter, DTU and software?
A: Yes, we can put your logo on the meter, data collector(concentrator) and system software.
Q: Can I confirm whether the communication is successful through the indicators light on the meter?
A: Yes. From the two status indicators of the meter, you can identify the communication status of the meter network; When the green light flashes, the communication module works normally.
Q: If the load of 100A needs to be switched off, can you achieve it with your electricity meter?
A: 100A load can be pulled, but the circuit breaker (outer pull) needs to be configured, and the 60A meter can be pulled by the
internal relay breaker.
A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developing instructions clients give.
Q: Can the smart energy meter support wireless communication?
A: Yes, our wall mounted energy meter is with built-in communication modem; and din rail energy meter need to be connected to an external data collector/DTU with communication modem.
Q: Can you put our logo on the smart energy meter, DTU and software?
A: Yes, we can put your logo on the meter, data collector(concentrator) and system software.
Q: Can I confirm whether the communication is successful through the indicators light on the meter?
A: Yes. From the two status indicators of the meter, you can identify the communication status of the meter network; When the green light flashes, the communication module works normally.
Q: If the load of 100A needs to be switched off, can you achieve it with your electricity meter?
A: 100A load can be pulled, but the circuit breaker (outer pull) needs to be configured, and the 60A meter can be pulled by the
internal relay breaker.
