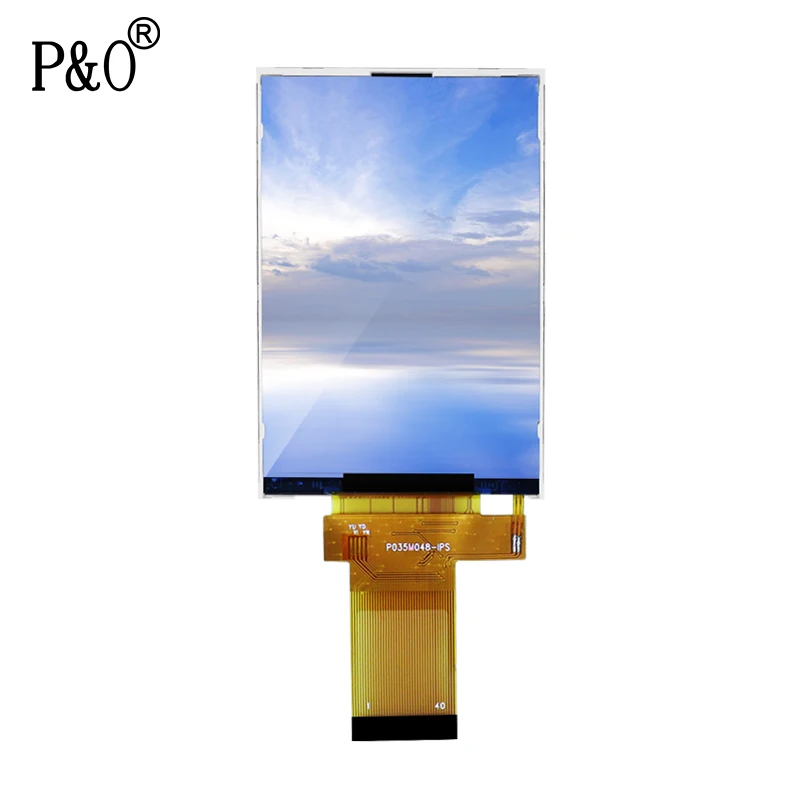

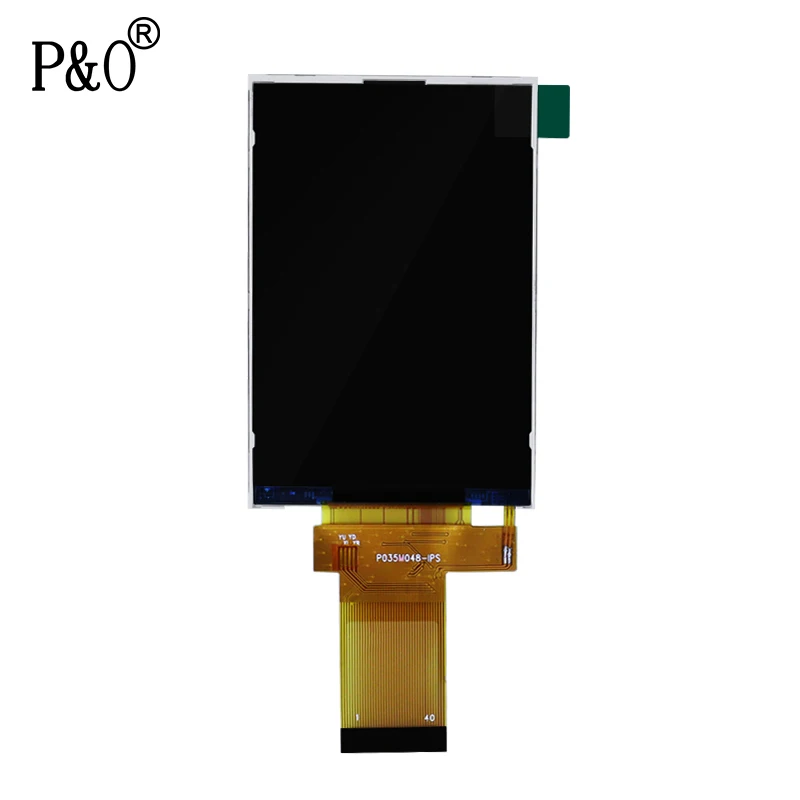

Polcd Manufacturer Wholesale 320*480 Resolution St7796s Tft Lcd Module
- Category: >>>
- Supplier: Shenzhen P& O Technology Co. Limited
Share on (1600620133347):
Product Overview
Description
Product Description
Product Parameters
ltem | Specification | Unit |
Brand | P&O | - |
Model | P035M048-IPS | - |
screen Size | 3.5 inch | Diagonal |
Number of Pixel | 320RGB(H)x480(V) | Pixels |
Display area | 48.96(H)x73.44(V) | mm |
Pixel pitch | 0.153(H)x0.153(V) | mm |

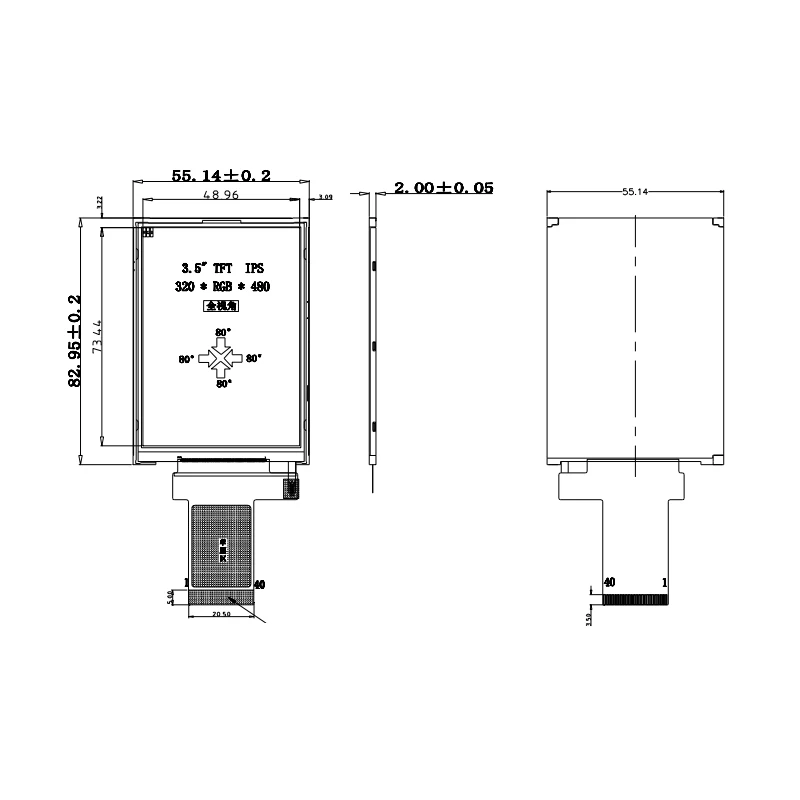

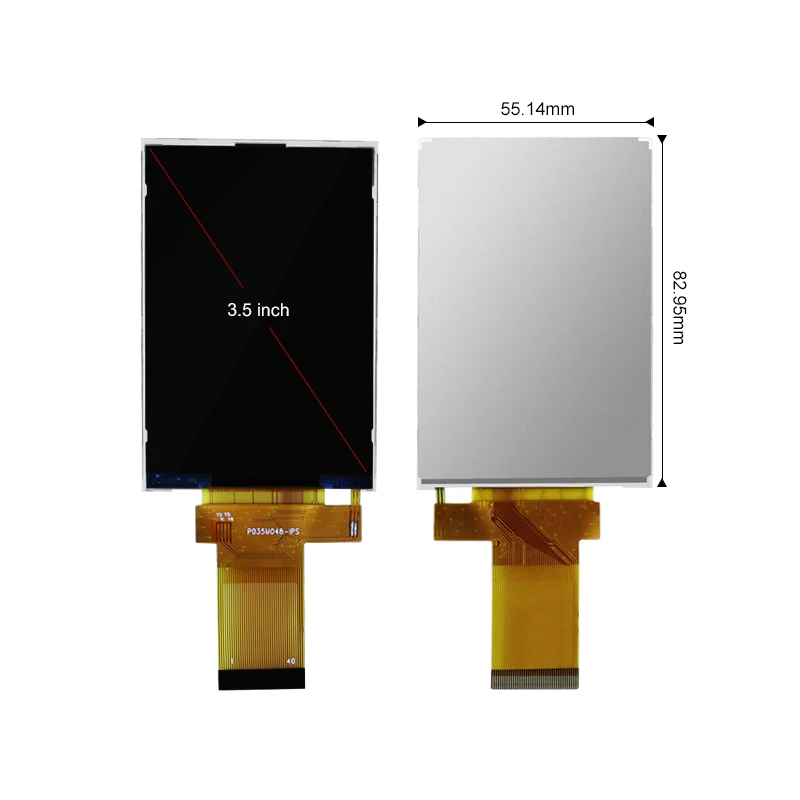

Outline Dimension | 55.14x82.95x2.0 | mm |
Pixel arrangement | RGB Vertical Stripe | - |
Display mode | Normally Black/Transmissive | - |
Viewing Direction(eye) | ALL | - |
Display Color | 262K | - |
Luminance(cd/m2) | 350 | nit |
Contrast Ratio | 600:1 | - |
Interface | 18BIT RGB | - |
Back-light | LED Side-light type | - |
Drive lC | ST7796S | - |
Operation Temperature | -20~70 | ℃ |
Storage Temperature | -30~80 | ℃ |
