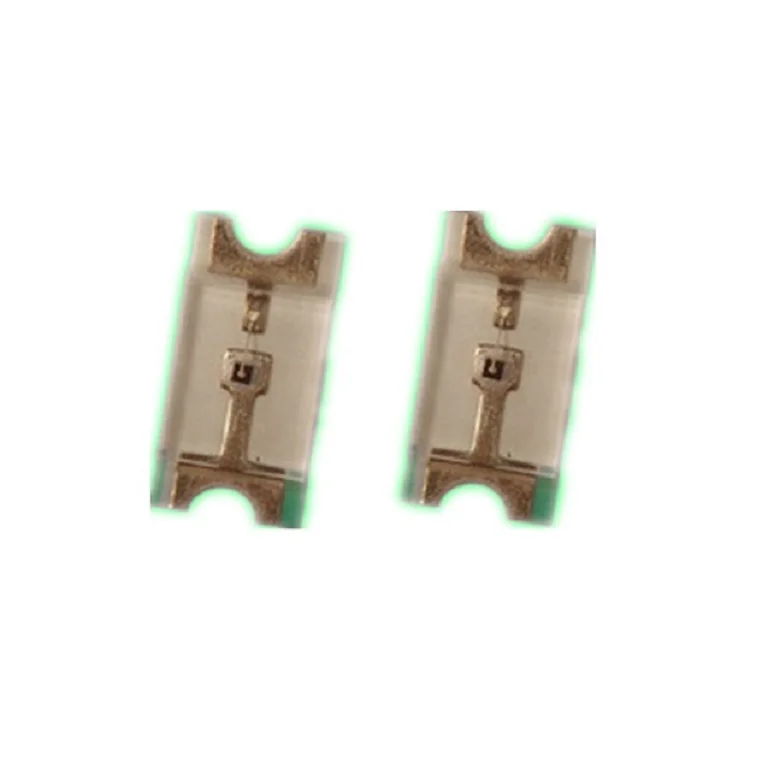

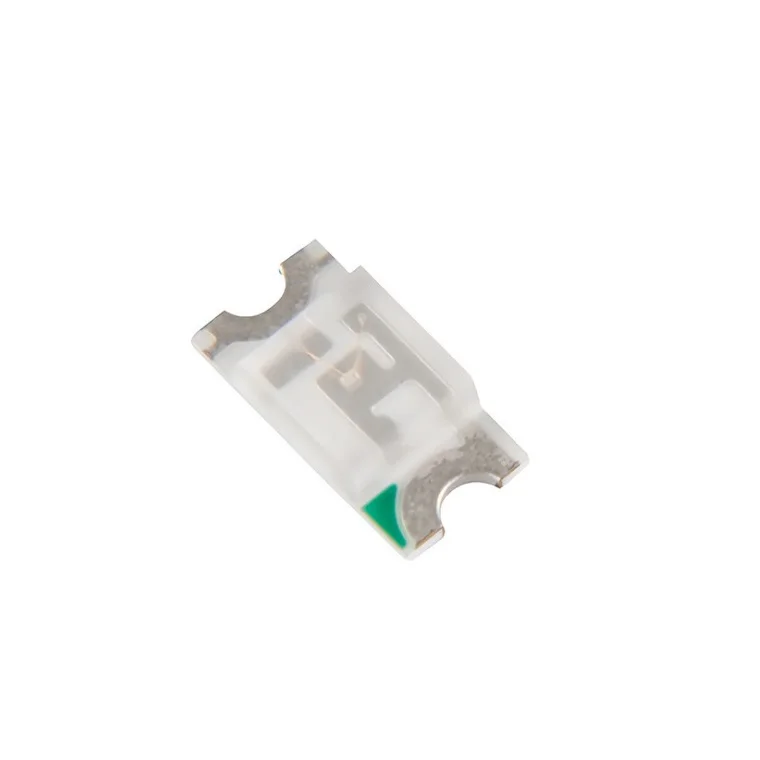

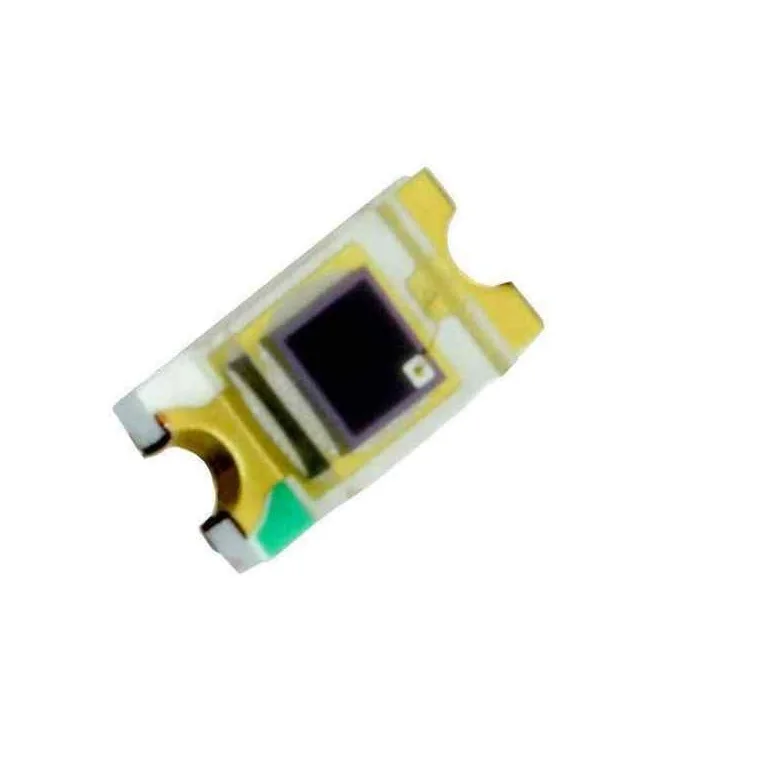

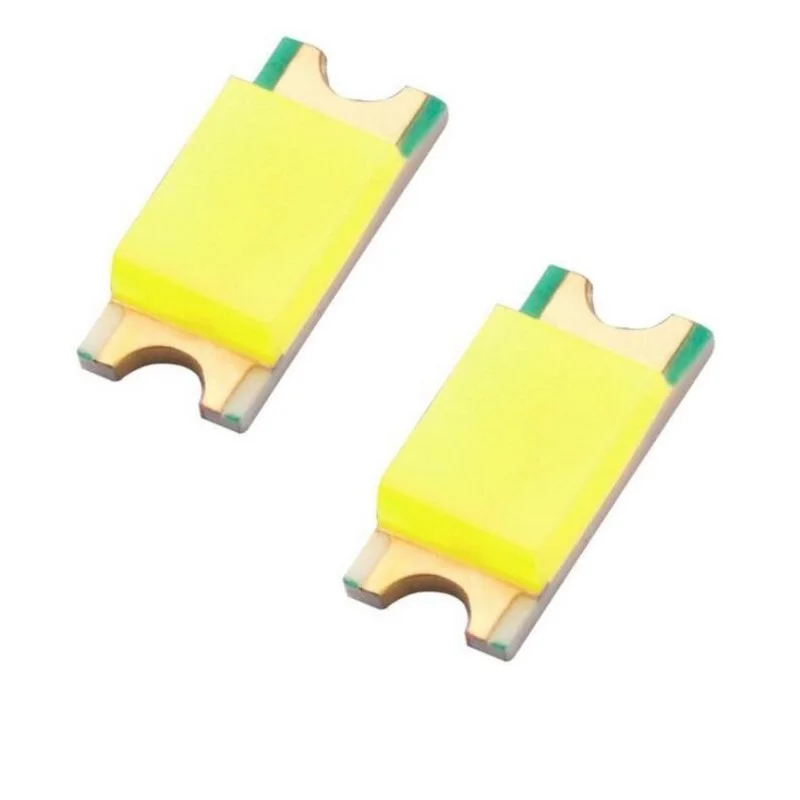

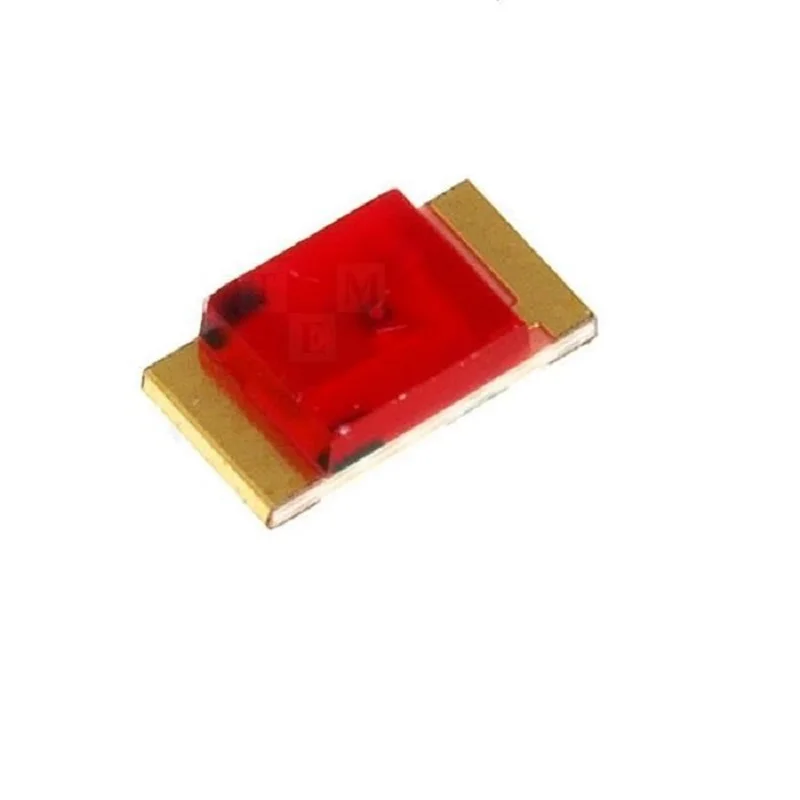

1206 550nm SMD LED for medical equipment

Product Overview

Description





 Chinese special wavelength LED manufacturer offer 1206  550nm  SMD LED





Starsealand  offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels.  Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available.  Please contact us for pricing.

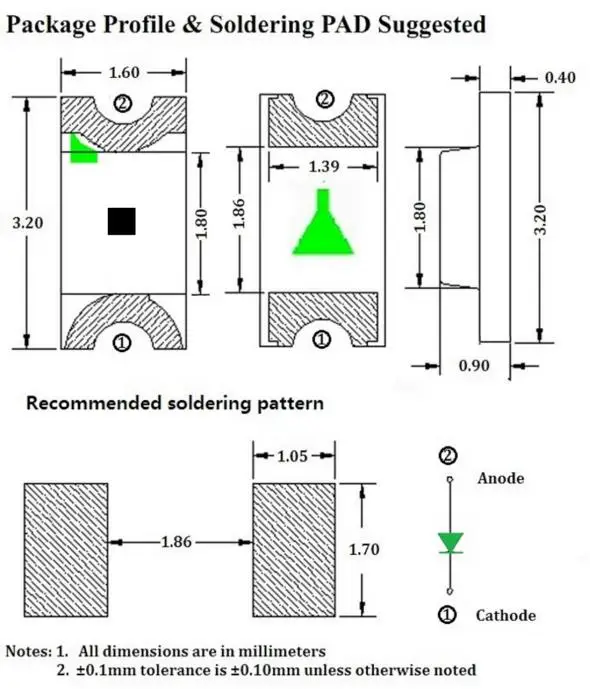

Package size:







Applications:



 Biodiversity detection

indicator and backlighting in telephone  and fax

Flat backlight for LCD ,switch  and symbol

Light sources of photoreception

Medical  equipment



 n Initial Electrical/Optical Characteristics                                (Ta=25℃)



Item	Symbol	Value	Unit
DC forward current	IF	20	mA
Pulse forward current*	IFP	50	mA
Power dissipation	PD	120	mW
Operating temperature	Topr	-40~+85	℃
Storage temperature	Ystg	-40~+80	℃
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260℃/3Sec	---
