Grain Melon Coriander Seeds Premade Pouch Packaging Automatic Vegetable Seed Packing Machine
- Category: >>>
- Supplier: Qingdao Eastbest Packing Equipment Co. Ltd.
Share on (1600620143164):
Product Overview
Description
Applicable scope:
The machine is suit to pack anomalous solid and the granule material such as: puff snack food, potato chips, crispy rice, jelly,candy, apple chips,dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food. Etc
The machine is suit to pack anomalous solid and the granule material such as: puff snack food, potato chips, crispy rice, jelly,candy, apple chips,dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food. Etc
Application
Specification
Name | Granule bag packing machine | ||||
Model | D200 | D250 | D320 | ||
Suitable bag Size | Width: 100-350mm Length: 90-200mm | Width: 120-400mm Length: 100-380mm | Width: 150-500mm Length: 150-380mm | ||
Packing Efficiency | about 40-80 bags per minute (depending on the actual material and weight to pack） | ||||
Packaging Weight | 10-2000 g | ||||
Air Compressed | ≤0.4m³/min | ≤0.5m³/min | ≤0.6m³/min | ||
Voltage | 380V / 220V | 380V / 220V | 380V / 220V | ||
Power | 2.3 KW | 3.5KW | 4.5KW | ||
Gross Weight | 2600 kg | 3000 kg | 3500kg | ||

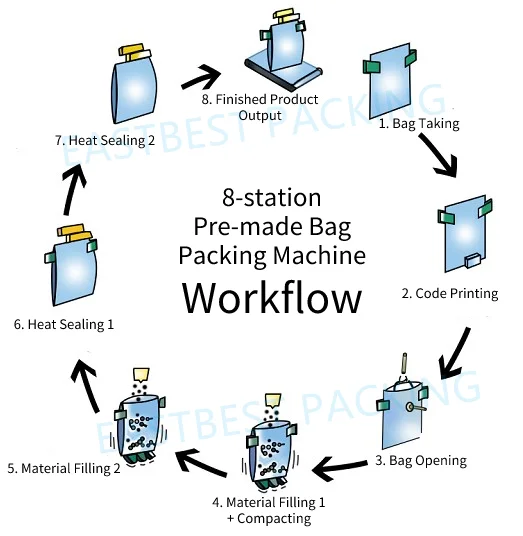

Work flow
1. Bag taking
2. Code Printing
3. Bag Opening
4. Material Filling 1+Compacting
5. Material Filling 2
6. Thermal Sealing 1
7. Thermal Sealing 2

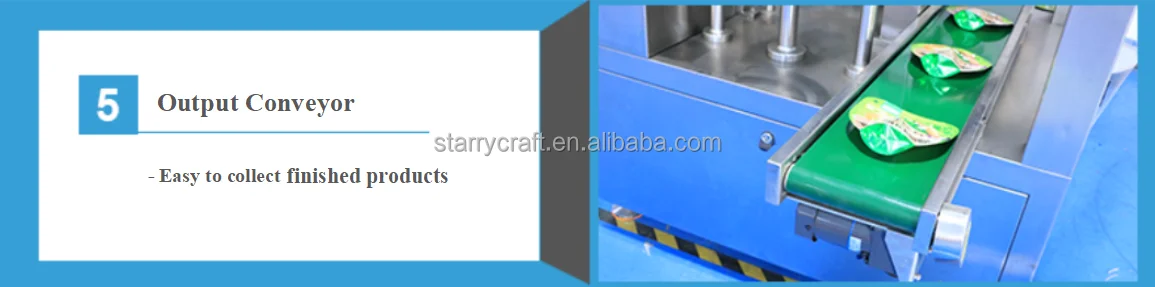

8. Finished Product Output
Features

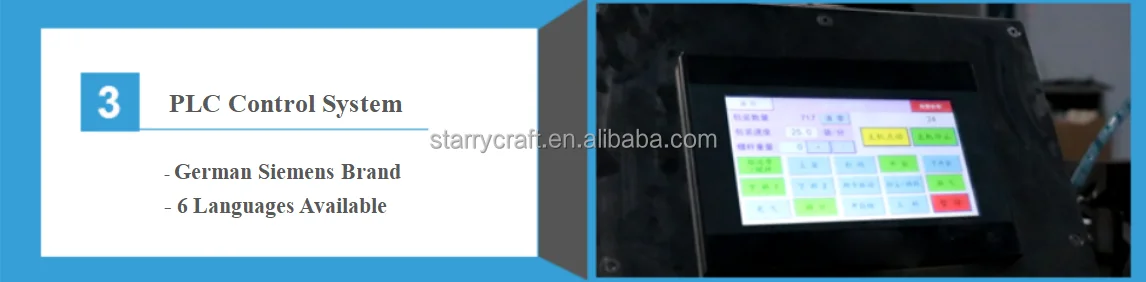

* With German Siemens PLC
* All setting in 1 computer

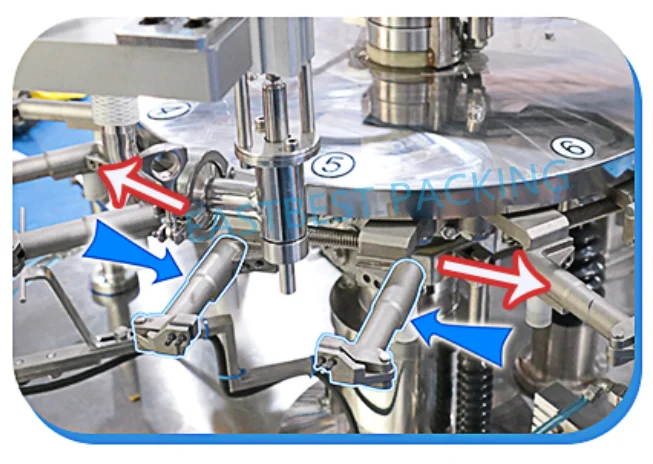

* All clamps with width auto adjustment, suitable for different types of pre-made bags
* All setting in 1 computer
* All clamps with width auto adjustment, suitable for different types of pre-made bags

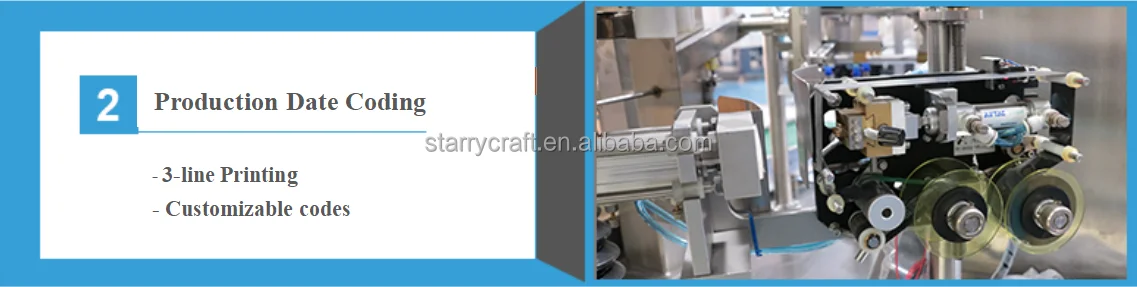

Production Date Printer
* Maximum 3-row Codes
* Custom Codesavailable for numbers
* Custom Codesavailable for numbers
/letters /specific symbols(dot
/hyphen /slash, etc.)

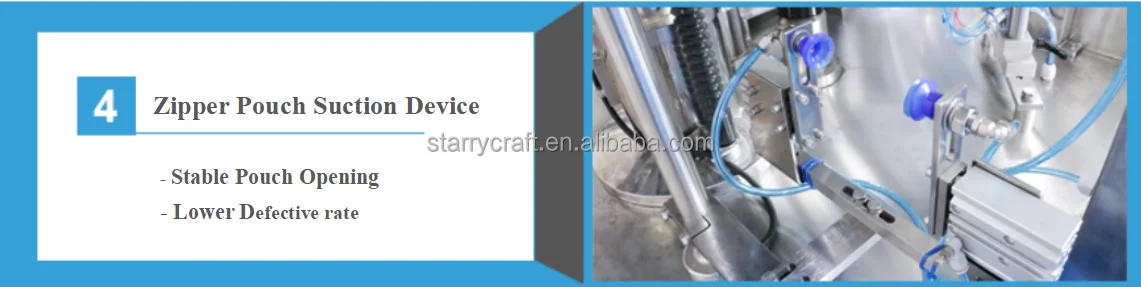

Bag Opening Detector
* Bag opening detecting in operation
* If a bag cannot be opened properly,
* If a bag cannot be opened properly,
the filling device will skip that single
bag and continue to fill in the next
opening bag.
* Material will not be discharged
without control and waste
unnecessarily.
Filling Detector
* Filling detecting
* If the coming bag is detected without
* The empty bag will go to the next
* If the coming bag is detected without
proper filling, the sealing device will
not seal that single bag.
* The empty bag will go to the next
station and can be reused without
unnecessary

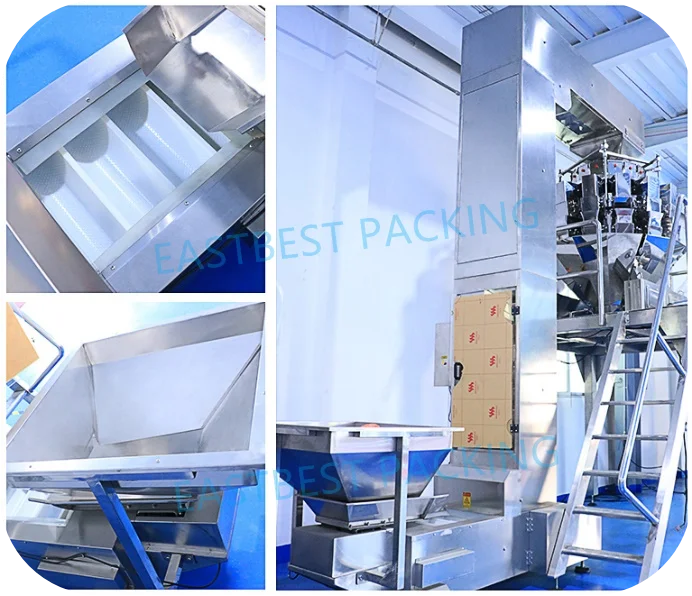

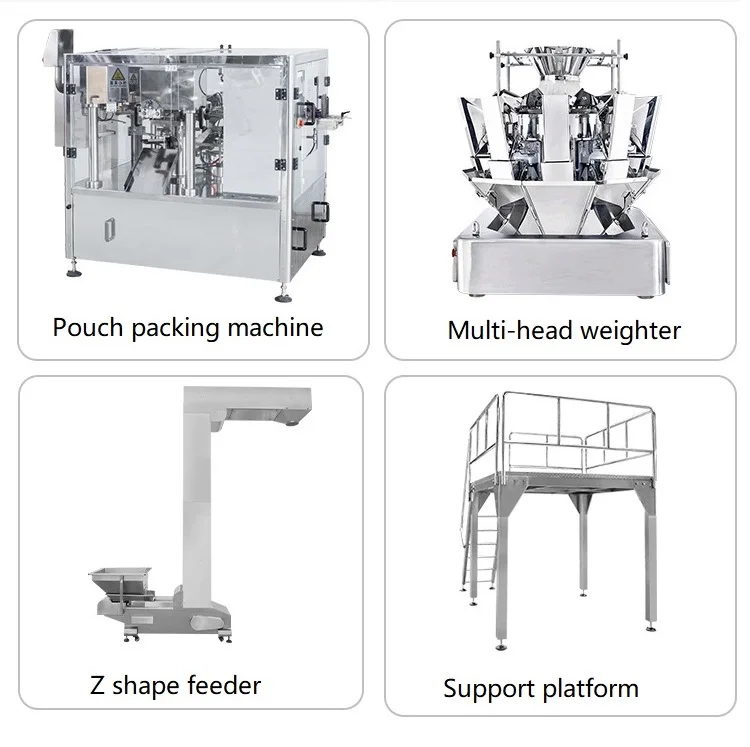

Z-shaped Conveyor
* To lift the materials up into the Multi-head scale.
* Stainless steel shell keeps the material from exposing to
* The entire conveyor takes up small room due to the Z-
* Stainless steel shell keeps the material from exposing to
the dust in the air.
* The entire conveyor takes up small room due to the Z-
shaped design.

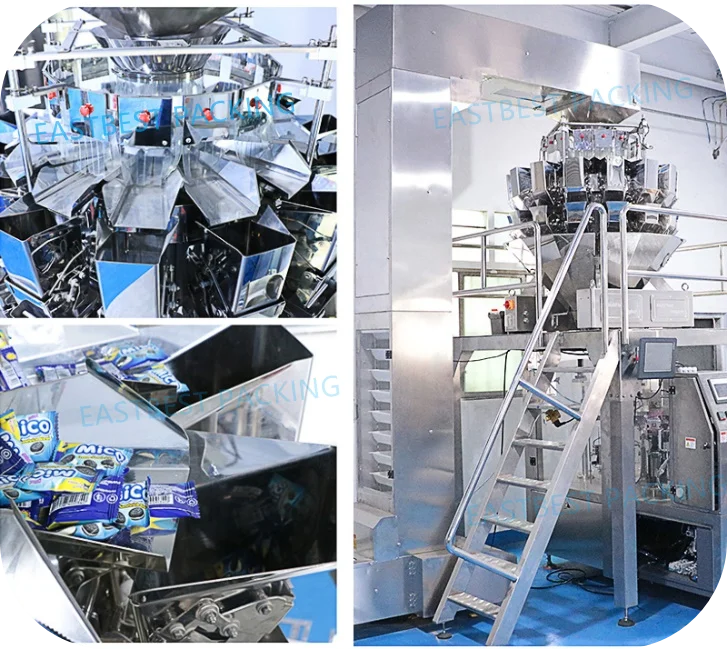

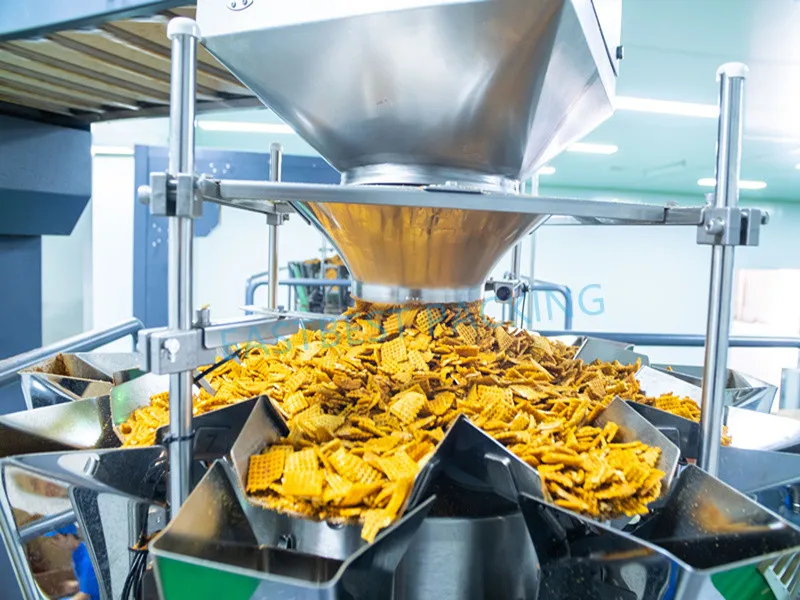

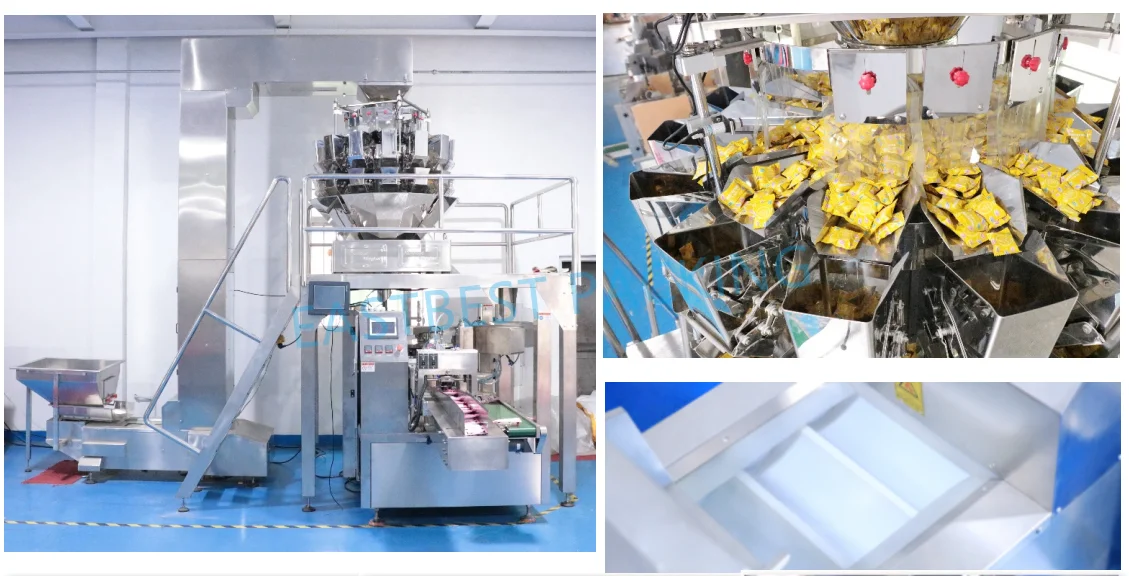

Electronic Weighter
* 4/10/14-head types available
* More precise in packaging results by Programmed
* More precise in packaging results by Programmed
weighing control
