Product Overview
Description
ST-FRM-VI
Suntech ST-FRM-VI Adjustable-speed Measuring length Economical Woven and knitted Fabric Relaxing Machine
Product Description

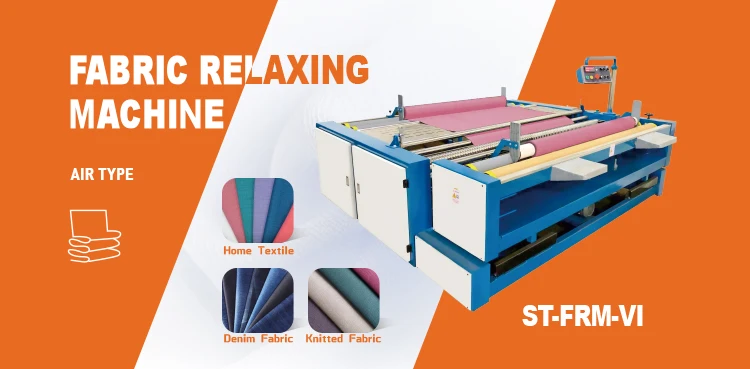

Suntech Fabric Relaxing Machine (Air Type)
ST-FRM-VI is mainly used to eleminate the tension of knit fabrics, specially for garment factories. This machine is with lazy loop and air flotation for fabric relaxation.
Technical Specifications
Speed: | 10-15m/min |
Fabric Width: | 1.8-3.0 meters |
Standard Roll Diameter: | 500mm |
Standard Roll Weight: | 100kgs |
Electric Specs: | 3Phase - 380V; 50HZ(can be adjusted to suit for different countries) |
Remark: | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Main Technical Features
●Auto Tensionless Relaxing-With electrical device for making fabric input, and re-winding synchronous.
●Ideal Relaxing Effect-With sensor controlled Lazy Loop and air flotation(adjustable air strength).●Accurate Length Counting(Y/M)-Counting Error≤ 0.1m/km.
●Accurate Fabric Edge Controlling- Edge alignment error ≤6mm.

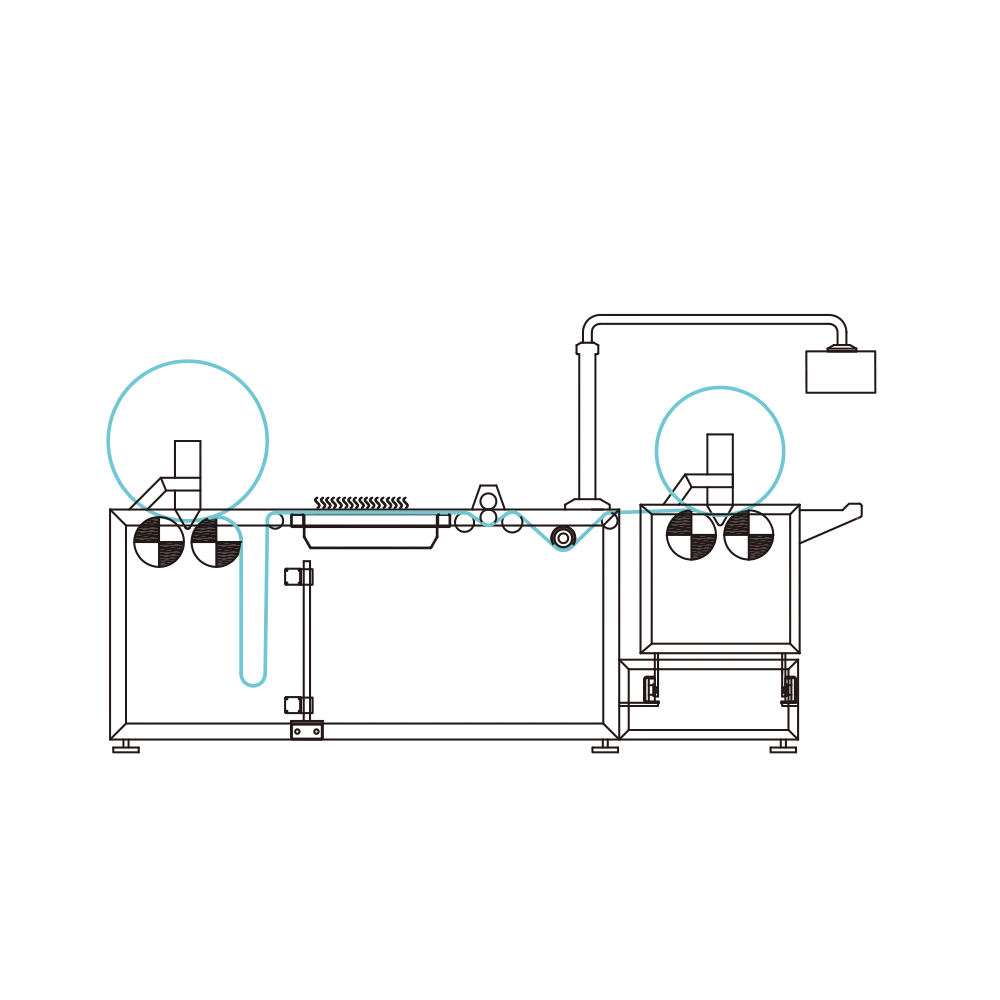

Machine Drawing
Product packaging

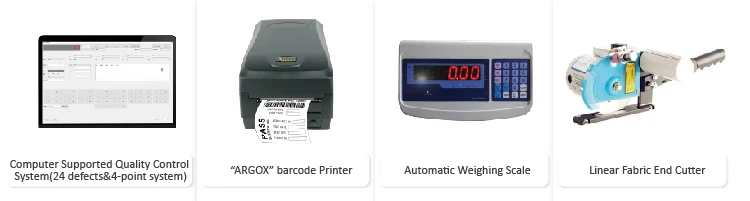

Options
