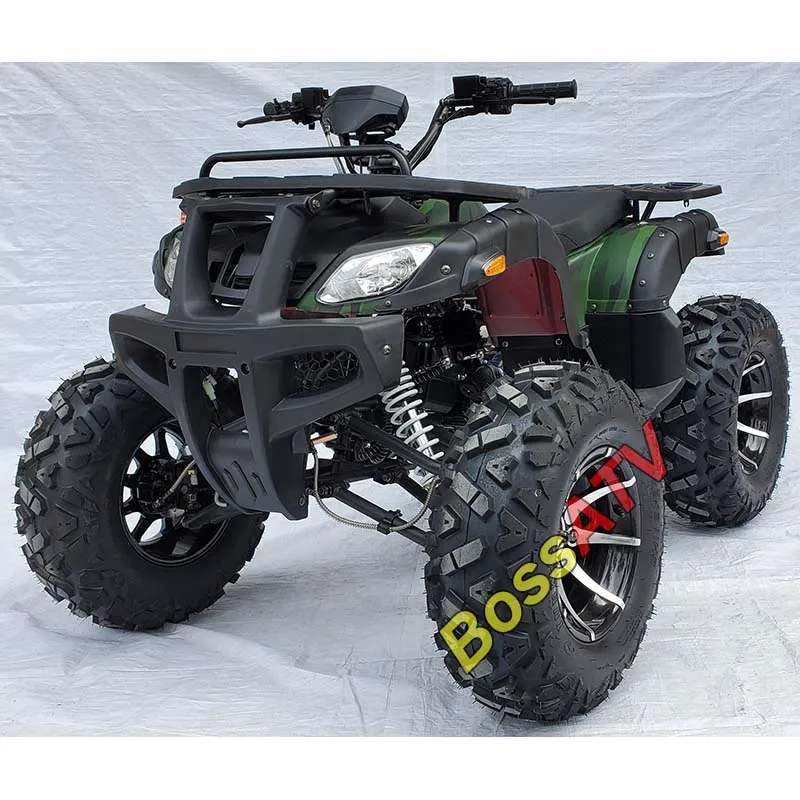

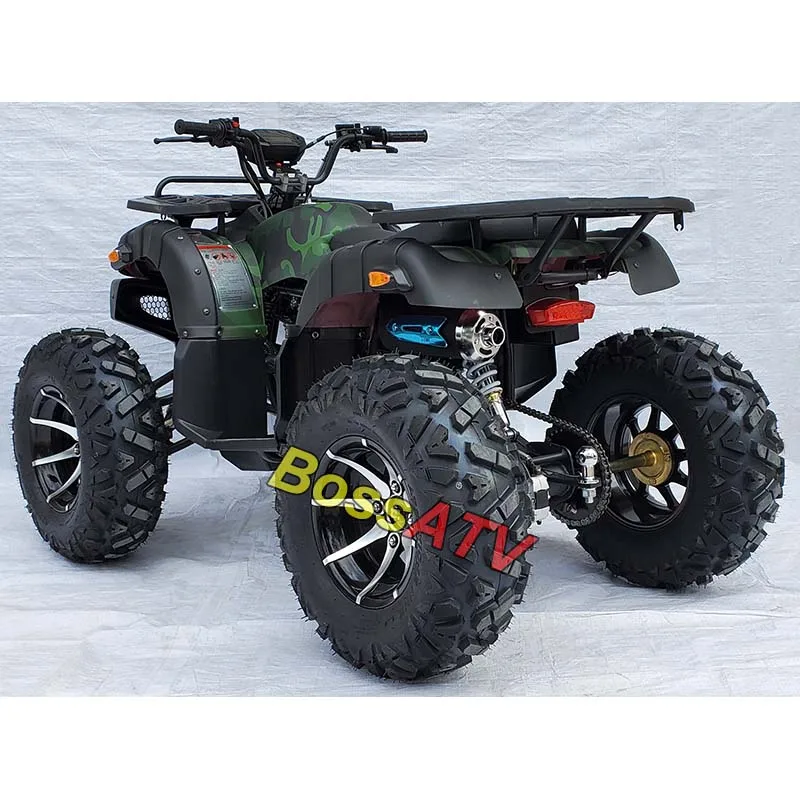

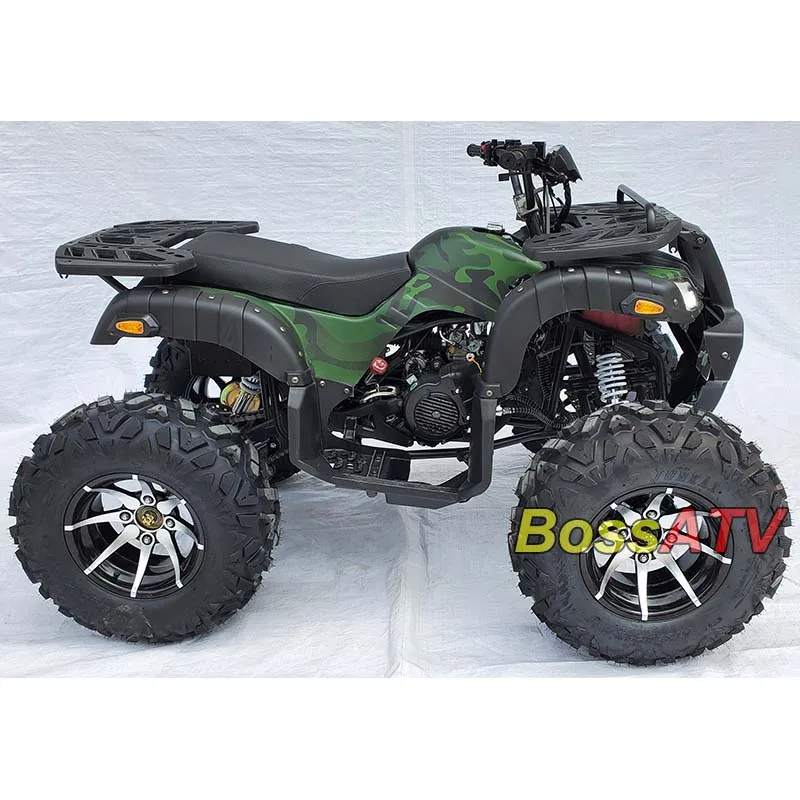

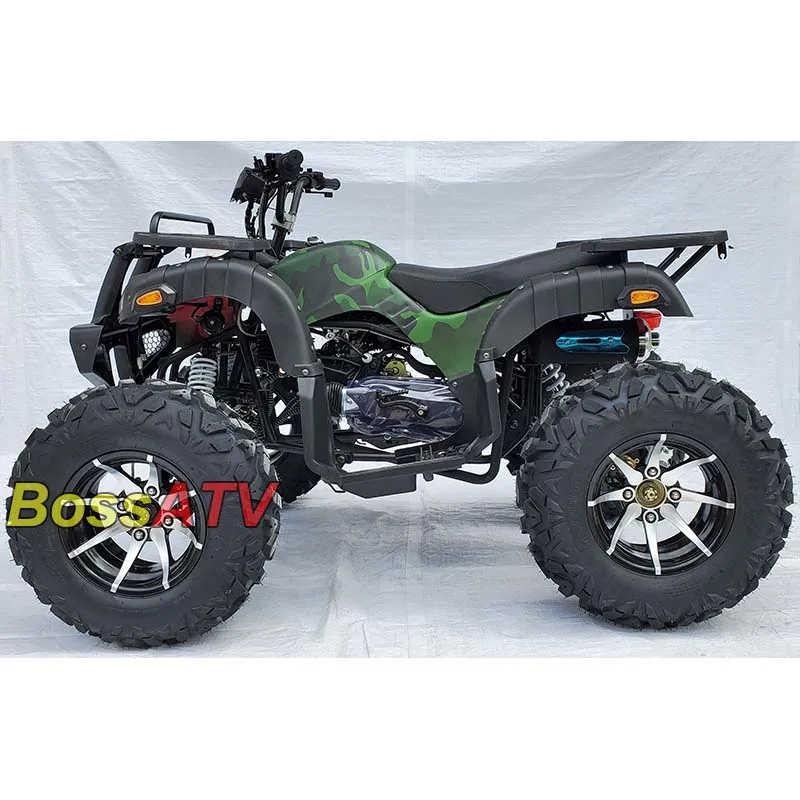

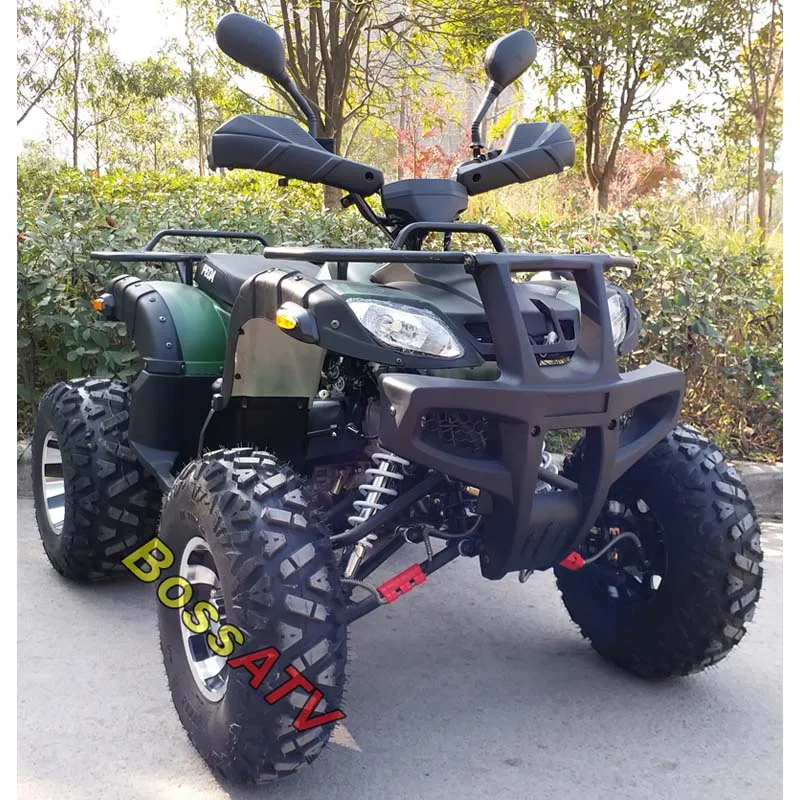

150cc GY6 ATV with 12 inch wheel 200cc GY6 ATV with 12 inch wheel ATV with big wheel

Engine

Engine Type

Single cylinder, air-cooled, 4-stroke, fully automatic with reverse

Engine Displacement

150cc or 200cc oil-cooled

Bore & Stroke

57.40x57.80mm[200cc: 62.5x57.8mm]

Compression Ratio

9.2:1[200cc: 10:1]

Carburetor

Carburetor

Max. Power Output

6.2kW/(7000r/min) [200cc: 8.5kW/(7500r/min)]

Max. Torque

8.8N.m/(5500r/min)[200cc: 12.5N.m/(5500r/min)]

Ignition

CDI

Starter

Electric start + kick start

Drive Train

Clutch

Fully automatic

Gearbox

1 forward, neutral and 1 reverse gear

Final Drive

Chain, 530

Dimensions and Weight

Length x Width x Height

1,760 x 1,070 x 1,120mm

Wheelbase

1,200mm

Front Tread

930mm

Rear Tread

760mm

Seat Height

830mm

Foot Step to Seat

480mm

Fuel Capacity

4.5L, metal tank

Dry Weight

165kg

Wheels, Suspension and Brakes

Wheels Front

10 inch iron rim

Wheels Rear

10 inch iron rim

Tyres Front

23x7-10

Tyres Rear

22x10-10

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes Front

Dual hydraulic disc brakes

Brakes Rear

Hydraulic disc brake

Packing

Carton Size

160x100x85cm

G.W./N.W.

190/165kg

Container Load

12pcs/28pcs/42pcs
