High Sensitivity Handheld Refrigerant Infrared Leak Detector
- Category: >>>
- Supplier: Jinan Retek Industries Inc
Share on (1600620150045):
Product Overview
Description
High Sensitivity Handheld Refrigerant Infrared Leak Detector
ILD-200 is a handheld refrigerant leak detector that utilizes a long-life infrared sensor in a low-cost package to effectively
pinpoint leaks of CFC, HFC, HCFC and HFO refrigerants. Ready for use in 30 seconds and with 8 hours of battery life in a single charge, ILD-200 is a tryly preferred tool.
TECHINICAL PARAMETERS
* Sensitivity levels:Per SAE J2791
* High:0.1 oz/yr(4g/yr)
* Medium:0.25 oz/yr(7g/yr)
* High:0.5 oz/yr(14g/yr)
* Response time:less than1s
* warm-up time: 30 seconds; automatic calibration
* Automatic indicate of 1 hour run time in low battery
* operating temperature: 0°C-50 °C at 75%RH
* Operates continuously 8 hours; auto OFF after 10 minutes of inactivity
* Approvals:SAE J1627,SAE J2791,SAE J2913, CE(pending);EN 14624
ILD-200 is a handheld refrigerant leak detector that utilizes a long-life infrared sensor in a low-cost package to effectively
pinpoint leaks of CFC, HFC, HCFC and HFO refrigerants. Ready for use in 30 seconds and with 8 hours of battery life in a single charge, ILD-200 is a tryly preferred tool.
TECHINICAL PARAMETERS
* Sensitivity levels:Per SAE J2791
* High:0.1 oz/yr(4g/yr)
* Medium:0.25 oz/yr(7g/yr)
* High:0.5 oz/yr(14g/yr)
* Response time:less than1s
* warm-up time: 30 seconds; automatic calibration
* Automatic indicate of 1 hour run time in low battery
* operating temperature: 0°C-50 °C at 75%RH
* Operates continuously 8 hours; auto OFF after 10 minutes of inactivity
* Approvals:SAE J1627,SAE J2791,SAE J2913, CE(pending);EN 14624

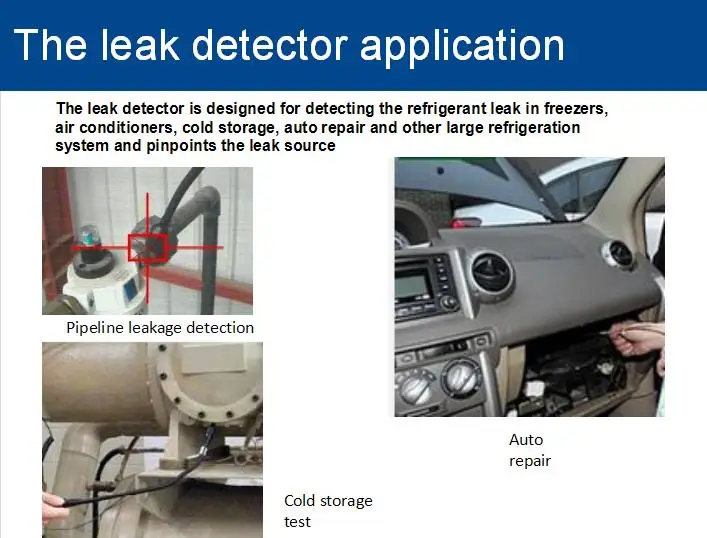

Applications
It will respond to all halogenated (contains Chlorine of Fluorine) refrigerants. This includes, but is not limited to:
CFCs e.g.R12, R11,R500,R503 etc. HCFCs e.g. R22,R123, R124,R502 etc. HFCs e.g. R134a, R404s, R125 etc.
Blends such asAZ-50. HP62. MP39 etc.
Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the halogenated carrier gas).
Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain chlorine, fluorine and bromine (halogen gases). Detect cleaning agents used in dry cleaning applications such as per chloroethylene. Detect halogen gases in fire-extinguishing system.
It will respond to all halogenated (contains Chlorine of Fluorine) refrigerants. This includes, but is not limited to:
CFCs e.g.R12, R11,R500,R503 etc. HCFCs e.g. R22,R123, R124,R502 etc. HFCs e.g. R134a, R404s, R125 etc.
Blends such asAZ-50. HP62. MP39 etc.
Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the halogenated carrier gas).
Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain chlorine, fluorine and bromine (halogen gases). Detect cleaning agents used in dry cleaning applications such as per chloroethylene. Detect halogen gases in fire-extinguishing system.
