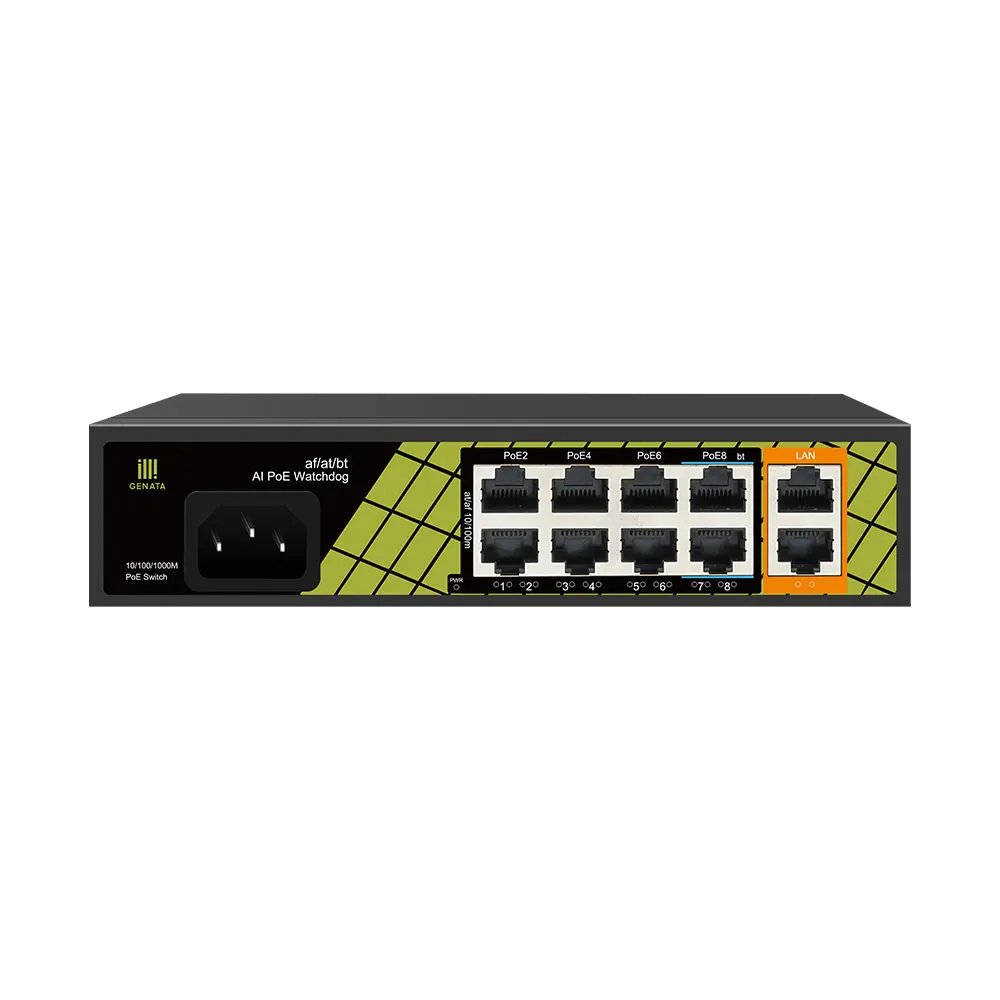

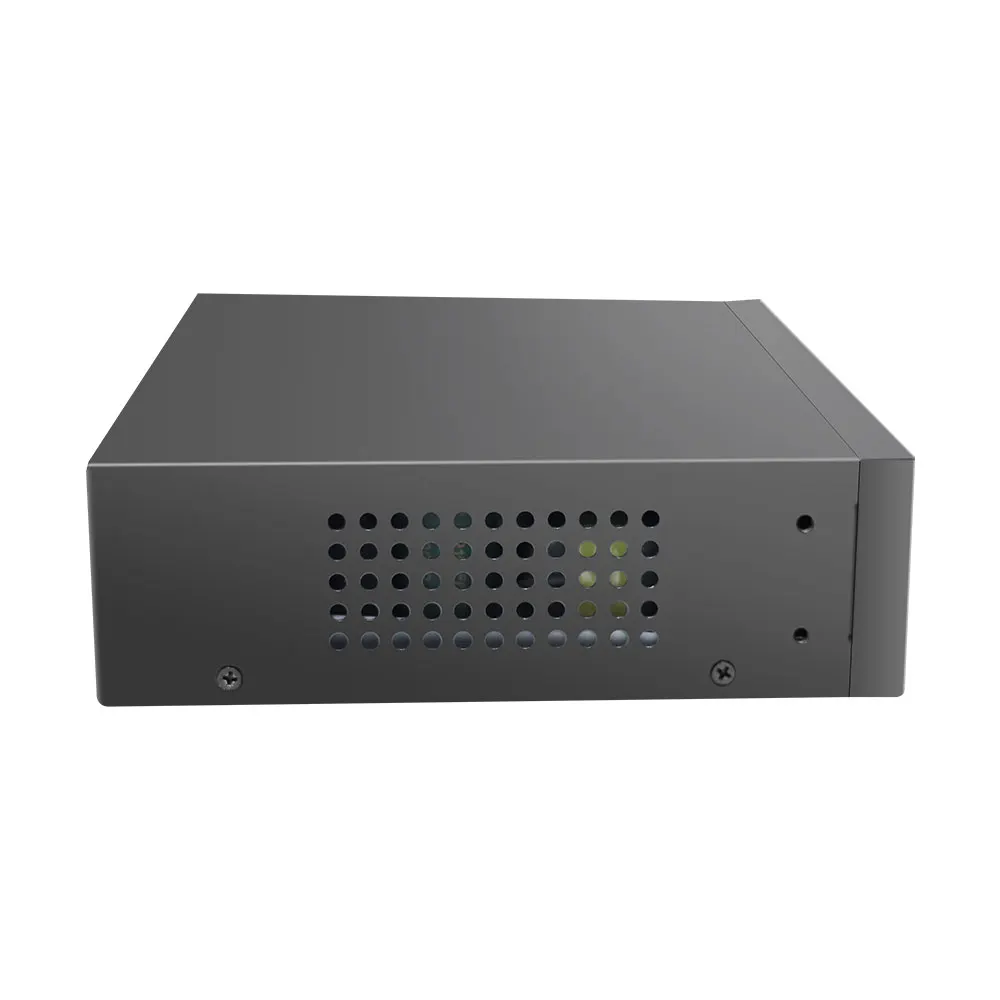

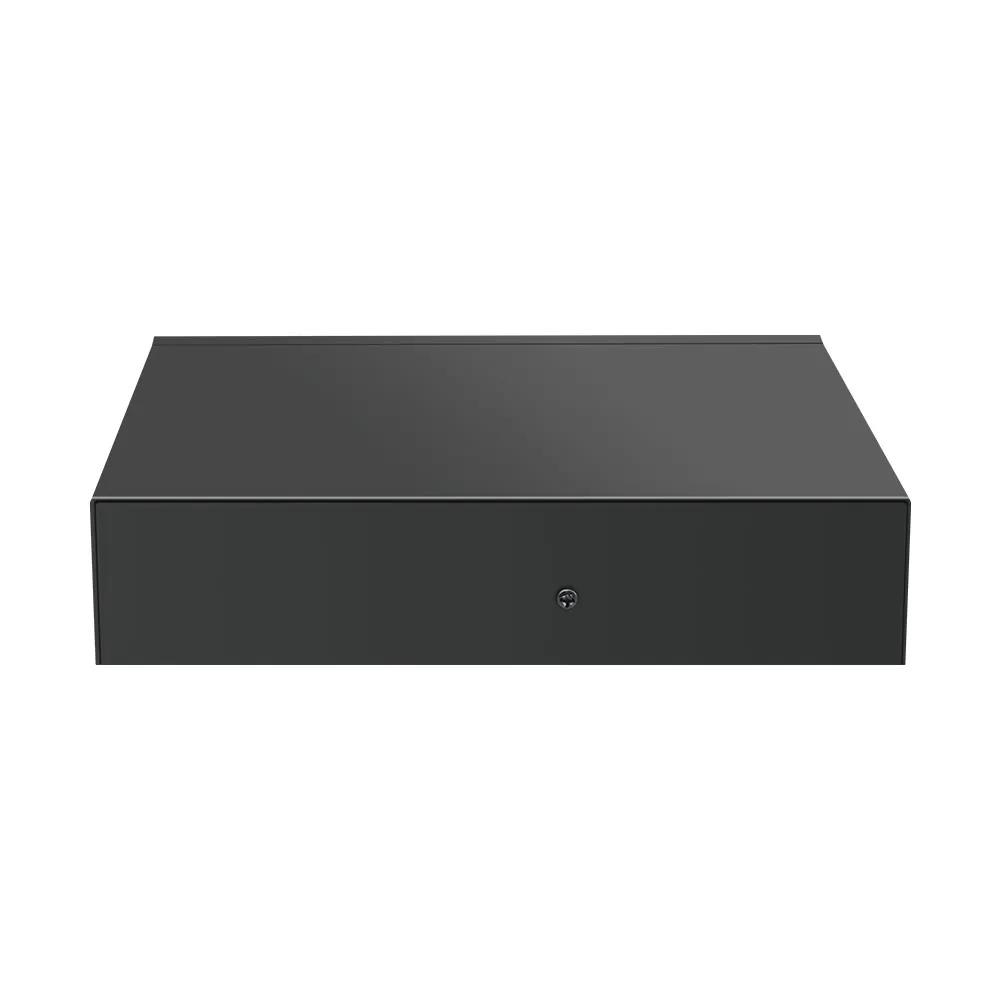

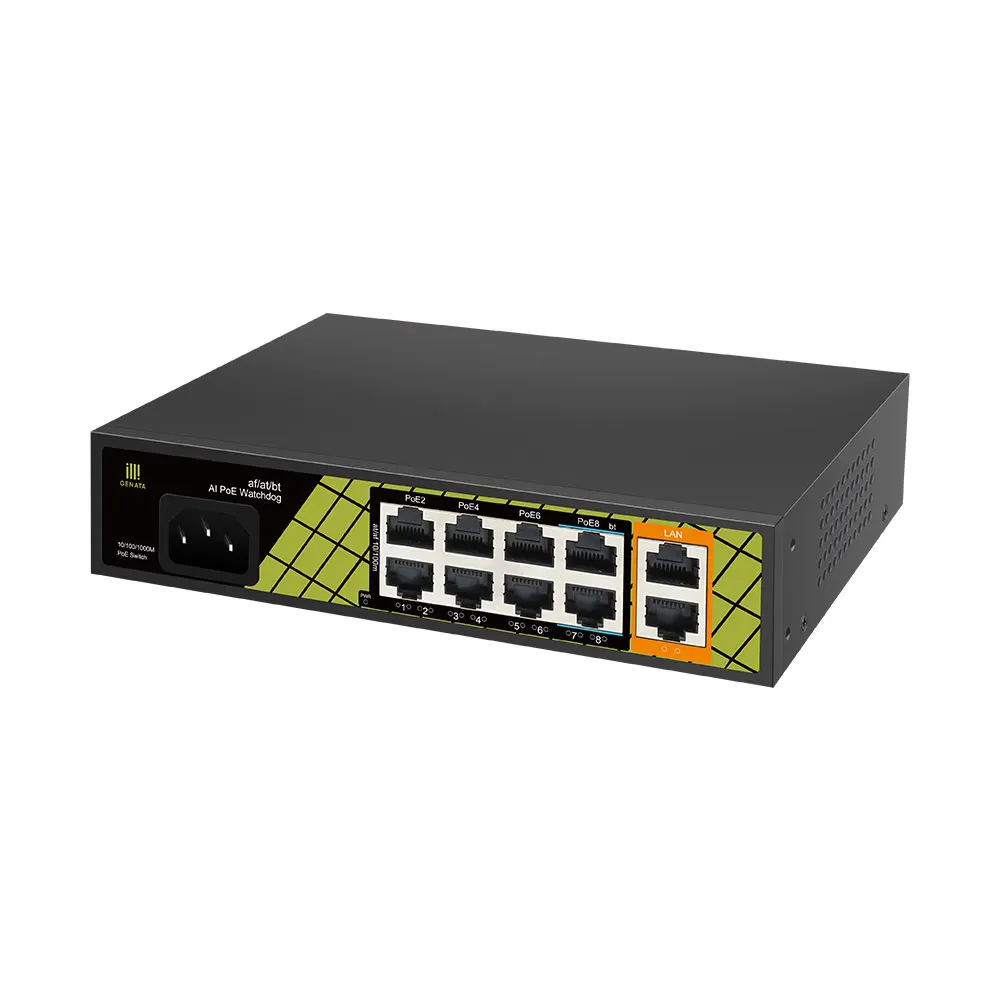

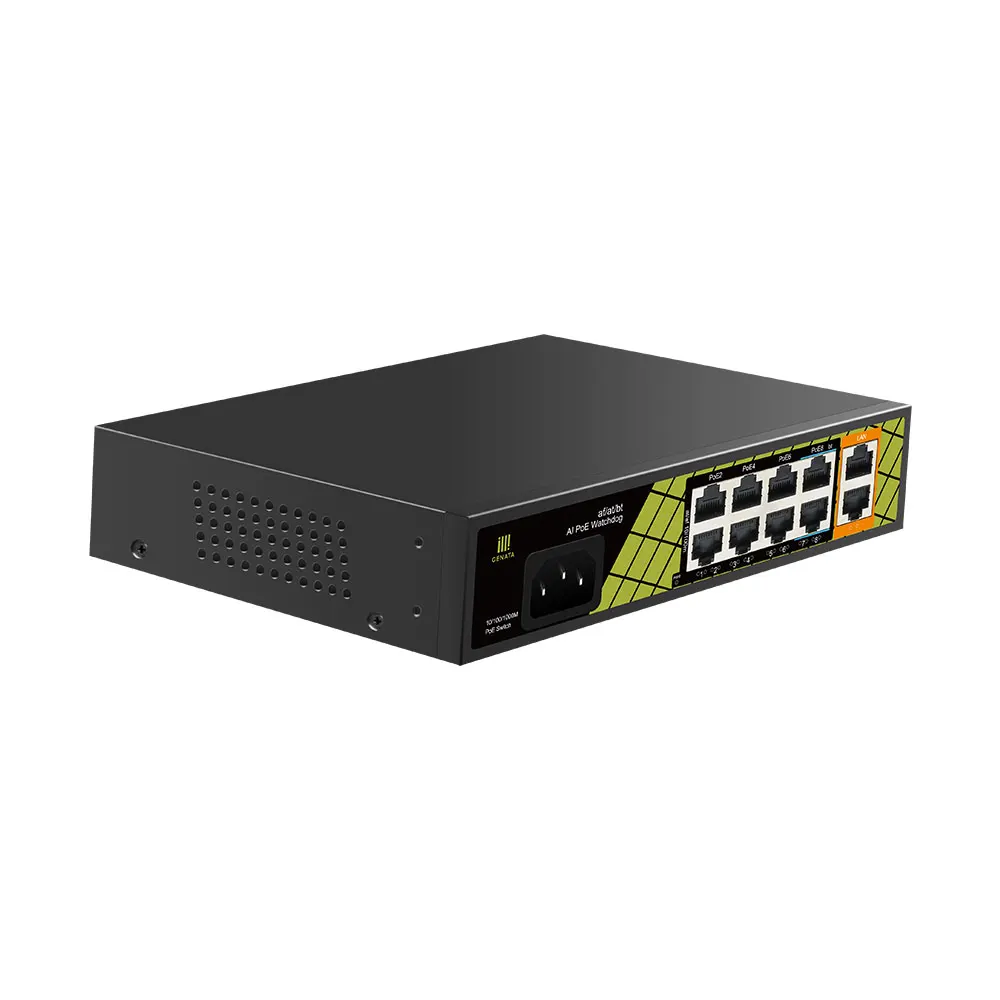

8 Port Power over Ethernet Switch with BT Port and AI Watchdog

8*10/100Mbps POE ports(RJ45)

2*10/100Mbps uplink ports(RJ45)

 Bandwidth:1.6Gbps

Network Latency(10 or100Mbps):16(use the 64byte package size)

MAC adress table:2k

The Frame Filter&Transmission Rate:14800pps the most for 10m port

148800pps the most for 100m port,148800pps the most for 100m port

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX/IEEE 802.3AB 1000BASE-T

IEEE 802.3xFlowControl

IEEE 802.3af/at/bt Power over Ethernet

Power input: AC110-220V

Power output:POE1-3Port:1/2(+52V),3/(GND)

POE Port;1245(+53v),3678(GND)compatible1/2(+52v).3/6(GND)

Operating Temperature:-10℃~55℃(104℉~131℉)

Storage Temperature:-40℃~70℃(-104℉~158℉)

Operate Humidity:10%~90% non-condensing

Storage Humidity:5%~90% non-condensing

CEmark

FCCPart15.ClassB

VCCI ClassBEN55022(CISPR22)

C-TIck
