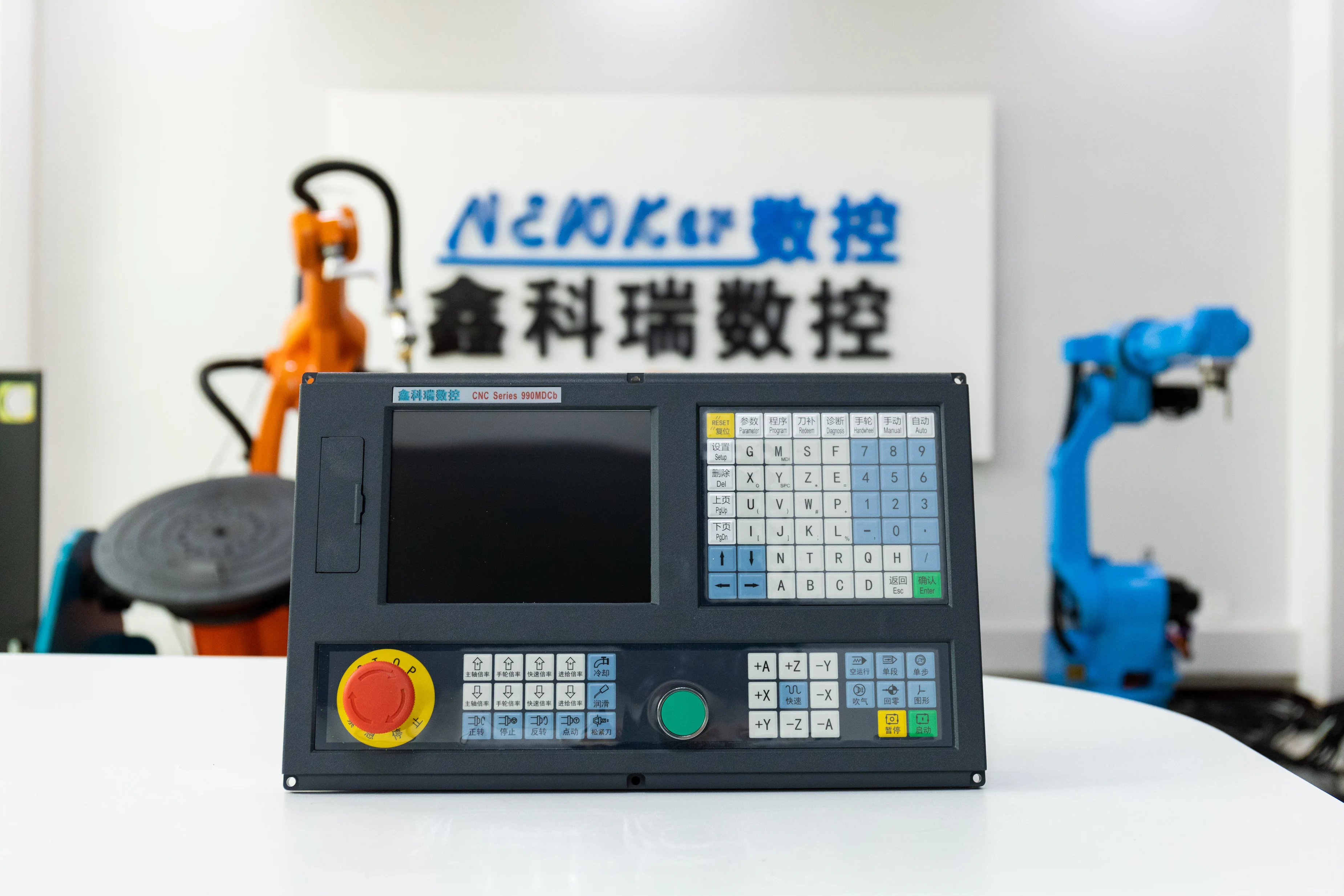

4 Axis Cnc Milling Controller PLC and CNC Router Controller Similar With Fanuc CNC Controller 3 Axis
- Category: >>>
- Supplier: Chengdu Newker CNC-Technology Co. Ltd.
Share on (1600620154154):
Product Overview
Description
System Function | G code shows | ||
number of control axis | 3~4 (X,Y,Z,A) | Locate rapidly: | G00 |
The smallest programming: | 0.001mm | Straight line interpolation | G01 |
The most programming: | Thread cut:±99999.999mm | Thread cut: | G02/03 |
Feed speed: | 0.001~15m/min | high speed deep drilling loop | G73 |
Continuous manual: | one axis or two axis at the same time | point drilling loop | G81, G82 |
Line interpolation: | Straight line, arc, screw thread interpolation | Line cutting drilling loop | G73 |
Cutter compensation: | Length of the compansation、nose of tool compensation | Boring loop | G85, G86, G89 |
Spindle function: | gear、Double analog control、Rigid tapping | Tapping loop | G74, G84 |
Handwheel function: | panel、handheld | program loop | G22, G800 |
handwheel processing: | The handwheel processing function | local coordinate system: | G52 |
Screen protection: | The screen protection function | check skip | G31, G311 |
Communication function: | RS232、USB interface | polar programming | G15/16 |
Compensation function: | cutter, clearance, screw, radius compensation | metric and inch programming | G20/21 |
Edit program: | relative/absolute programming, hybird programming | program mode | G90/91 |
Preread function: | Preread 10,000 short straight lines | processing plane | G17, G18, G19 |
limit position function | hard limit, soft limit | workpiece coordinate system: | G54~G59 |
Password protection: | Multilevel password protection | tool length compensation | G43, G44, G49 |
Input/output: | I/O 24*24 | tool radius compensation | G45~G48 |
PLC programme: | All open PLC design | C tool radius compensation | G40, G41, G42 |
Acceleration and deceleration control: | Straight line、Index | Accurate positioning/continuous path processing | G60/G64 |
Number of encoder: | any setting | returns the starting point | G26, G261~G264 |
User macro program: | Have | returns the fixed point | G25, G61, G60 |
Electrical gear function: | Have | returns the reference point | G28, G281~G284 |
delay function | G04 | ||
auxiliary function: | S、M、T |
