YCCFAN 4020 4CM DC Brushless Fan 12volt 40*40*20mm Axial Flow Cooling Fan
- Category: Ventilation Fans >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (1600620159323):
Product Overview
Description
YCCFAN 4020 4CM DC Brushless Fan 12volt 40*40*20mm Axial Flow Cooling Fan
Product Description

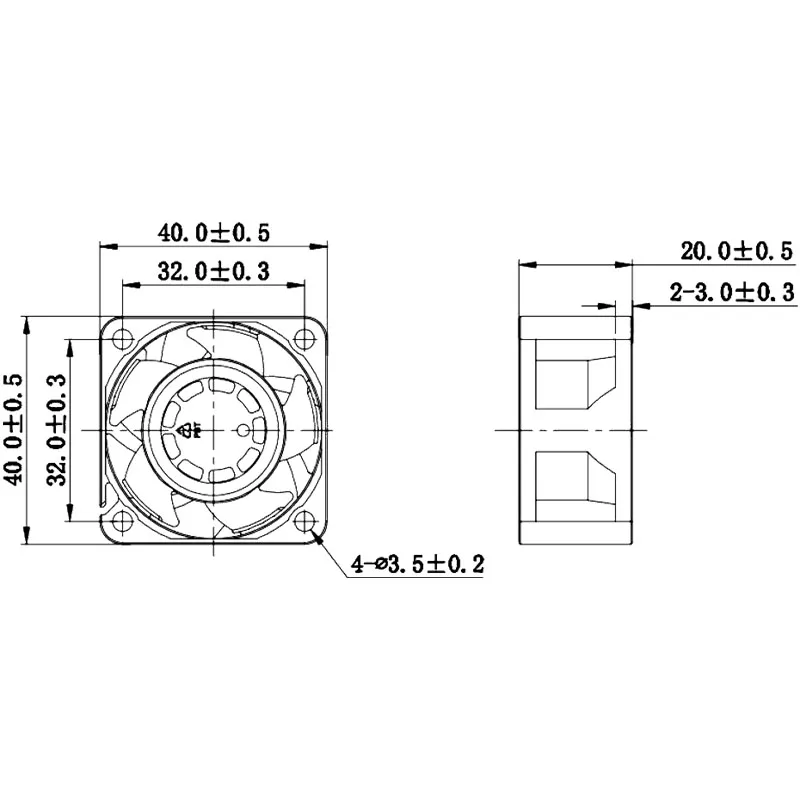

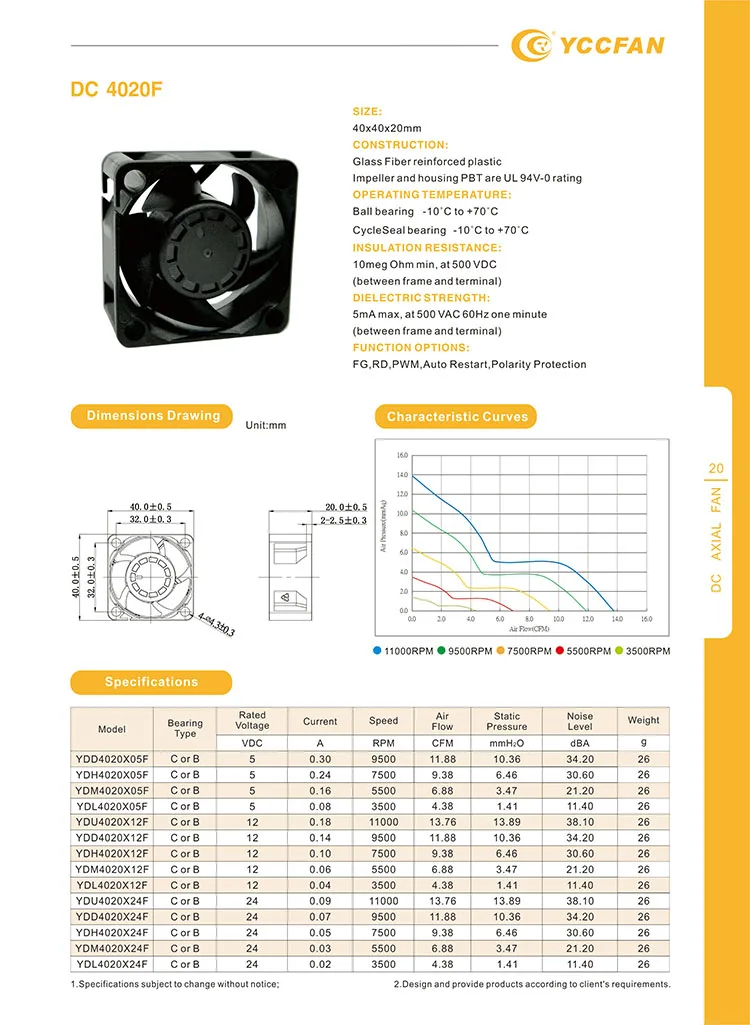

40x40x20mm dc fan specifications
| Size | 40*40*20mm Cooling Fan (Length* Width *Thickness) |
| Rated Voltage | 5V DC FAN (12V 24V Optional) |
| Main Parameter | Rated Speed: 9500RPM(At rated Voltage,Measured after 3Mins.) |
Operating Temperature
& Life expantacy | Ball bearing: -30°C to +75°C @ 50000hours at 40°C Cycle Seal Bearing: -10°C to +70°C @ 40000hours at 40°C Sleeve bearing: -10°C to +70°C @ 30000hours at 25°C |
| Optional Function | PWM Control / FG Tacho / RD Alarm / Auto-restart / Polarity Protection |
| Wire & Connector & Tube | Wire length & Connector model ( as required ) |
YCCFAN 4020 4CM DC Brushless Fan 12volt 40*40*20mm Axial Flow Cooling Fan
Company Information
Shenzhen YCCFAN Technology Co.,Ltd
www.yccfan.com
DC Axial Fan (20mm - 172mm) : 3v / 3.3v / 5v / 12v / 18v / 24v / 36v / 48v all voltage aviliable
AC Axial Fan ( 60mm - 200mm) : 110v / 125v / 220v / 240v AC Voltage
DC Blower Fan( 20mm - 120mm) : As required
EC FAN ( 60mm - 120mm) : 110v - 220v both voltage

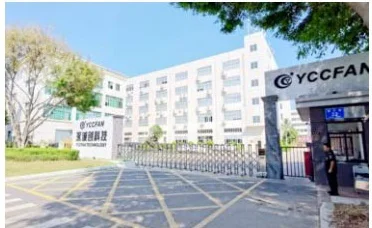

Founded in 2011,YCCFAN located in Shenzhen of China . 23000M2 plant , 800+ staff , 210000pcs daily capacity.
R&D equipment

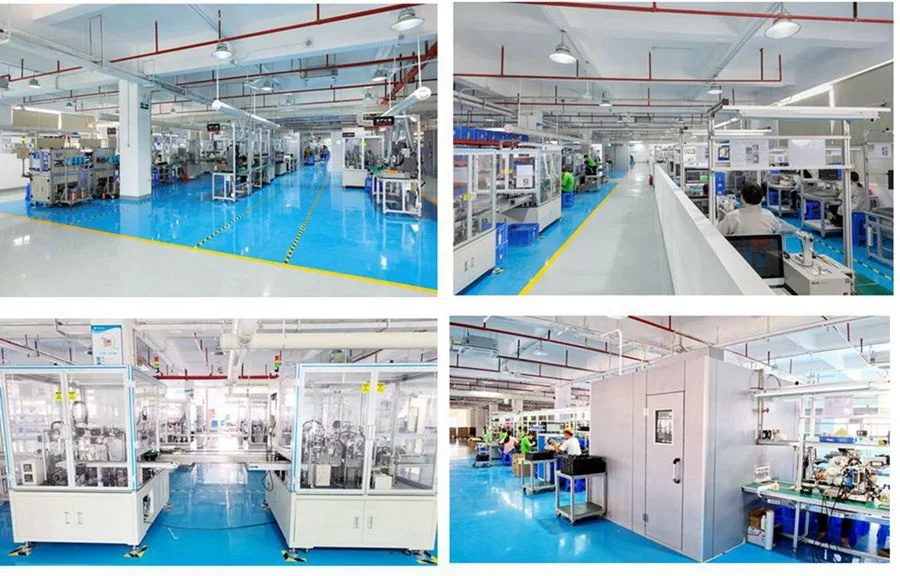

Work shop
Prodution equipment
Since 2017,YCCFAN investes own injection factory.
Certificate:
Corporate certificates: ISO9001:2008 , ISO14001:2004 , IATF16949:2016
Product certificated: UL/CUL,CE,RoHS, SGS
YCCFAN 4020 4CM DC Brushless Fan 12volt 40*40*20mm Axial Flow Cooling Fan
Our Services
1 : Customized Fan
YCCFAN provide cooling solution for cusomter's special product and requirement.
Application industry :
Thanks for all customers support,we will do better.
Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.
2 : Quality Assurance
a : 100 % testing before the fan leave our factory
b. Good after services to every customer
c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.
d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan
3 : Good Reputation & After-sales Service
Focus on customer , Grow together, YCCFAN always do the best.
If any requirement, pls mail Teresa directly via oversea02 at yccfan.com
Wechat/Tel 86-15118090075
Trade Show
YCCFAN attend exhibition on HK,SZ,USA,TAIWAN,GERMANY ,SHANGHAI EACH YEAR.
YCCFAN 4020 4CM DC Brushless Fan 12volt 40*40*20mm Axial Flow Cooling Fan
Packaging & Shipping
Packing: carton box or as customer's requirements
Shipping:
1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.
2. Large Measure are shipped by ship or by air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
YCCFAN 4020 4CM DC Brushless Fan 12volt 40*40*20mm Axial Flow Cooling Fan
FAQ
Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.
Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Alice Lian to get more information.
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.
Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Alice Lian to get more information.
