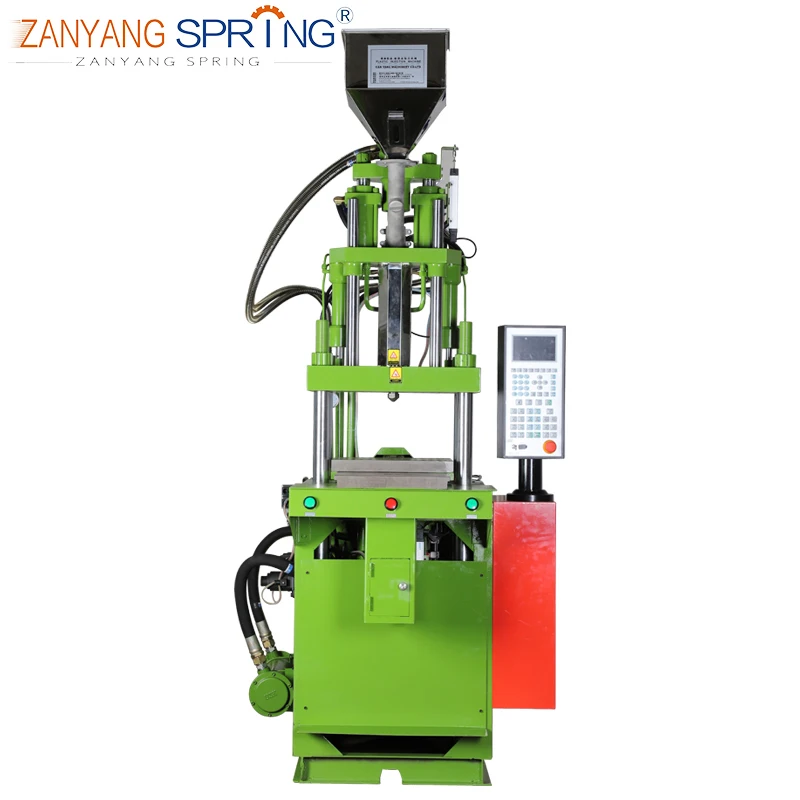

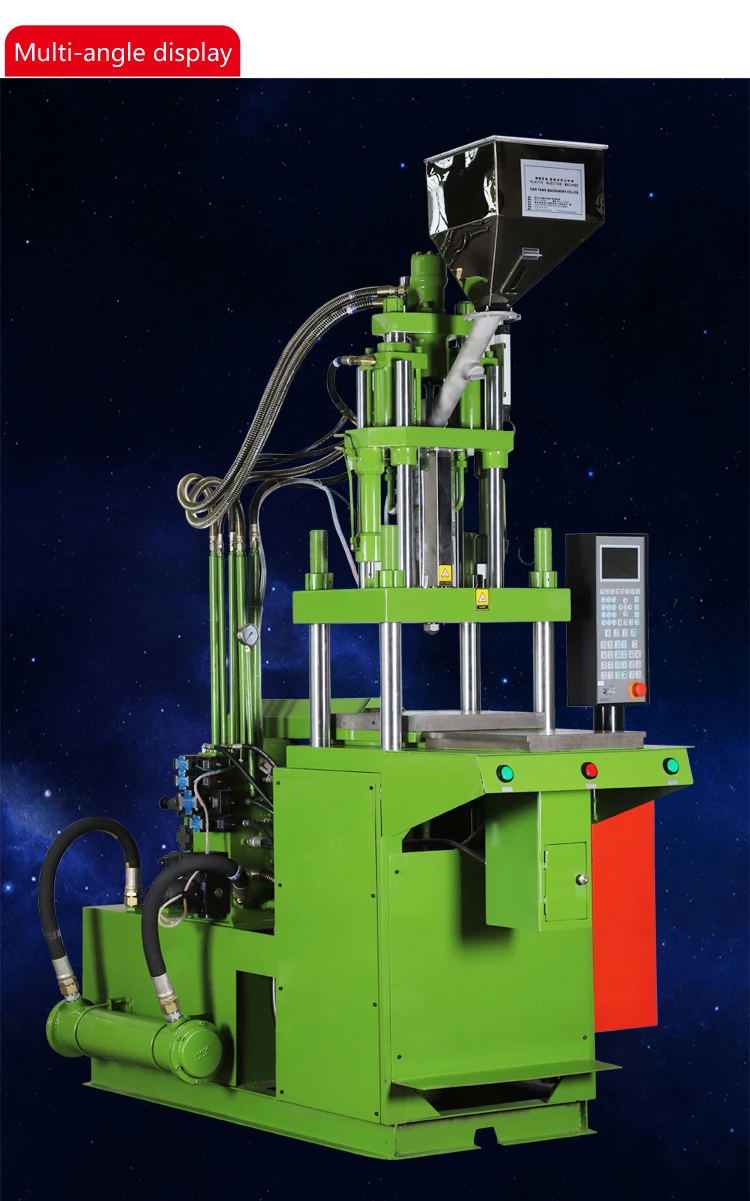

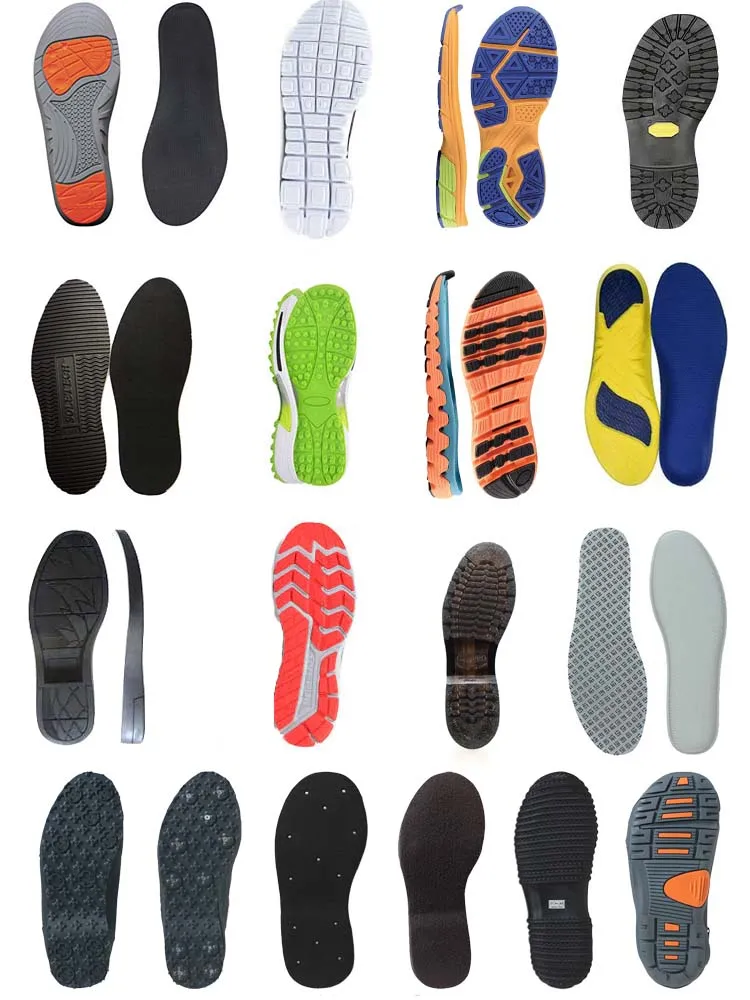

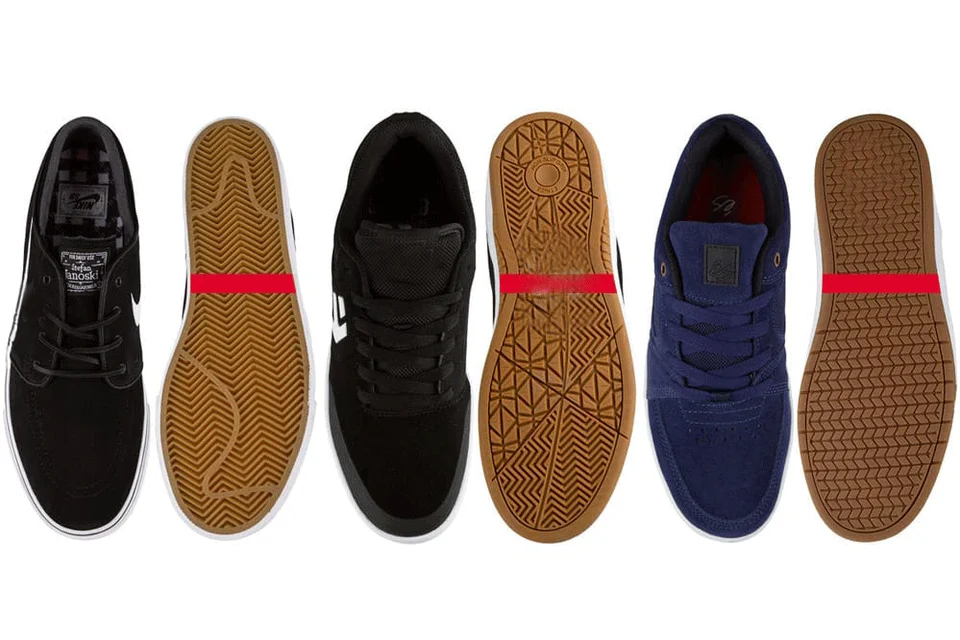

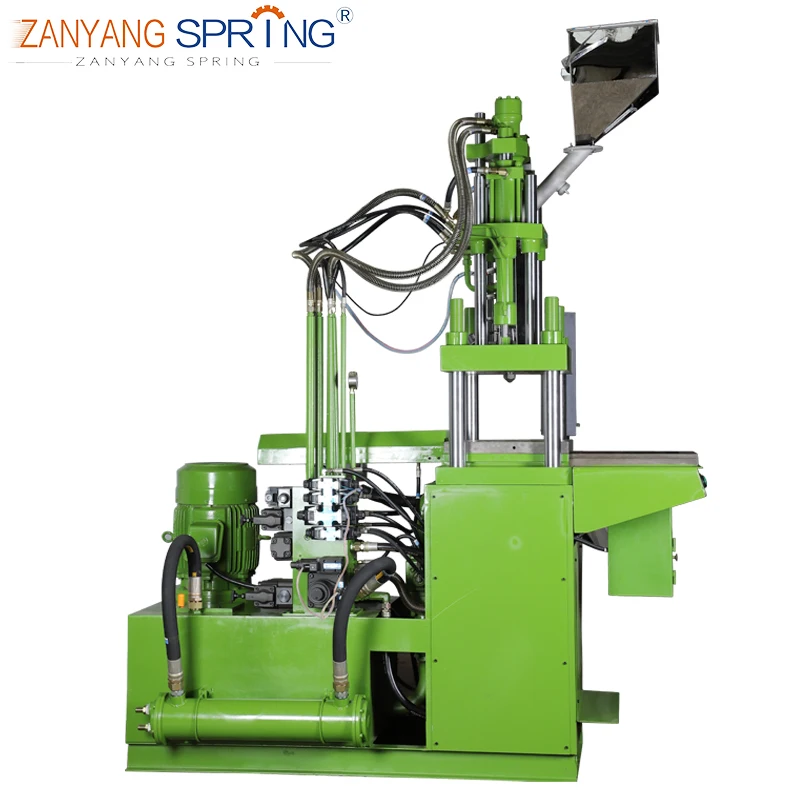

Shoe soles rubber sports soles leisure soles manufacturing machine vertical injection molding machine

Product Overview

Description

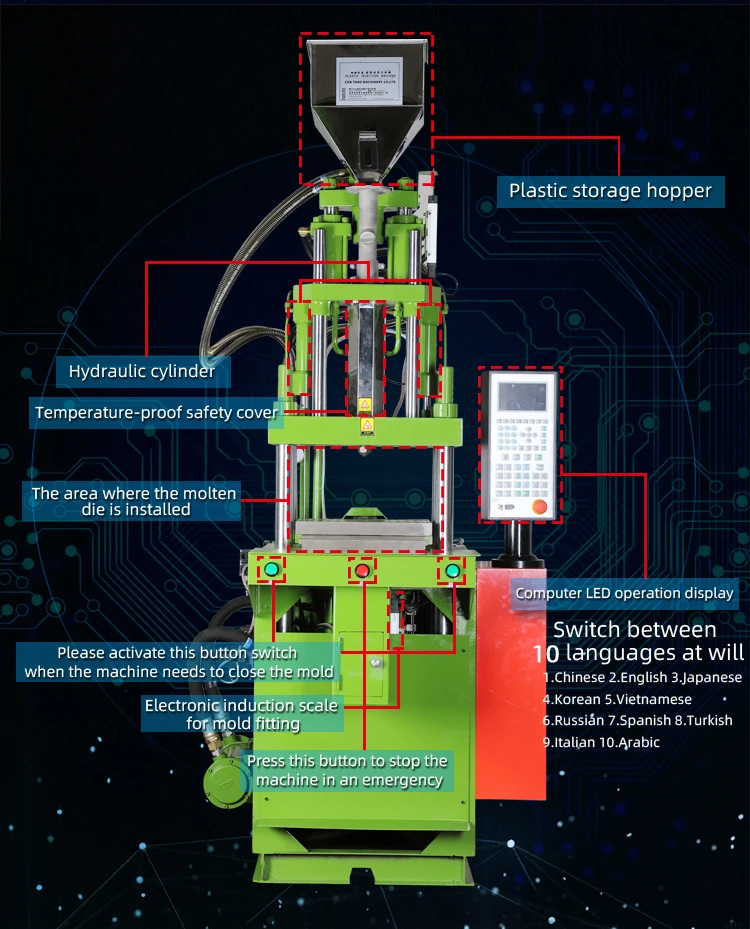

1.Vertical opening and closing mold and in-line screw injection for easyinlay and injection molding.

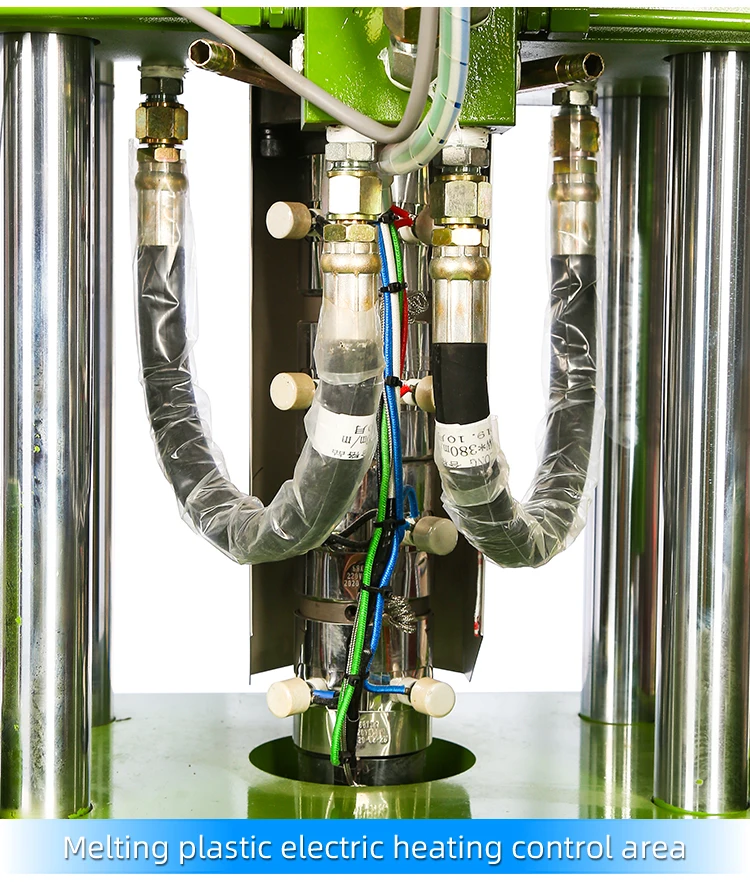

2.Multi section PID temperature control of material pipe, stepless speed regulation of feeding, stable forming.

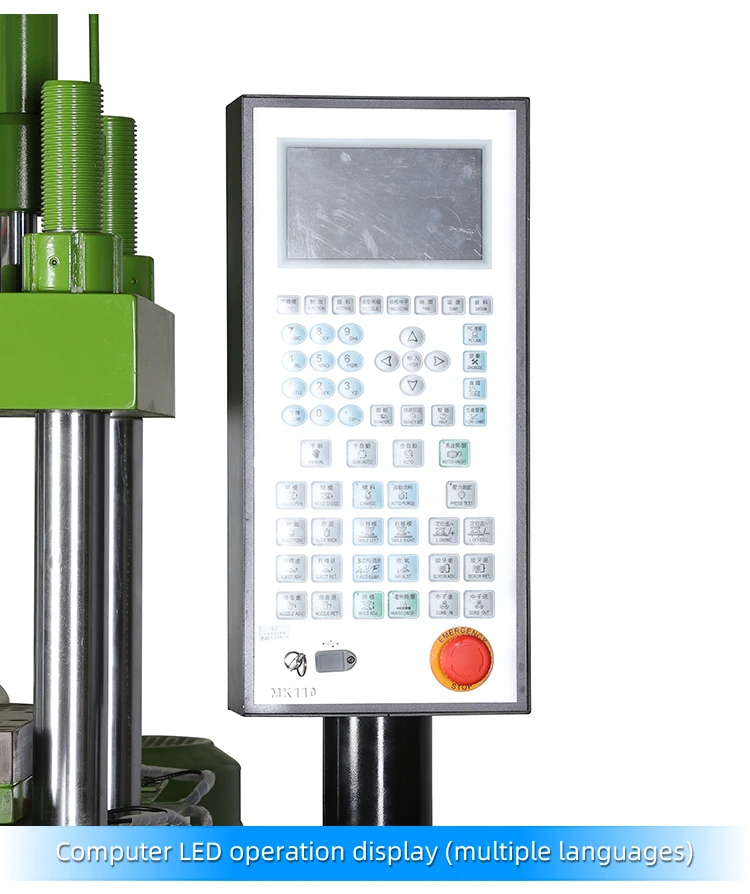

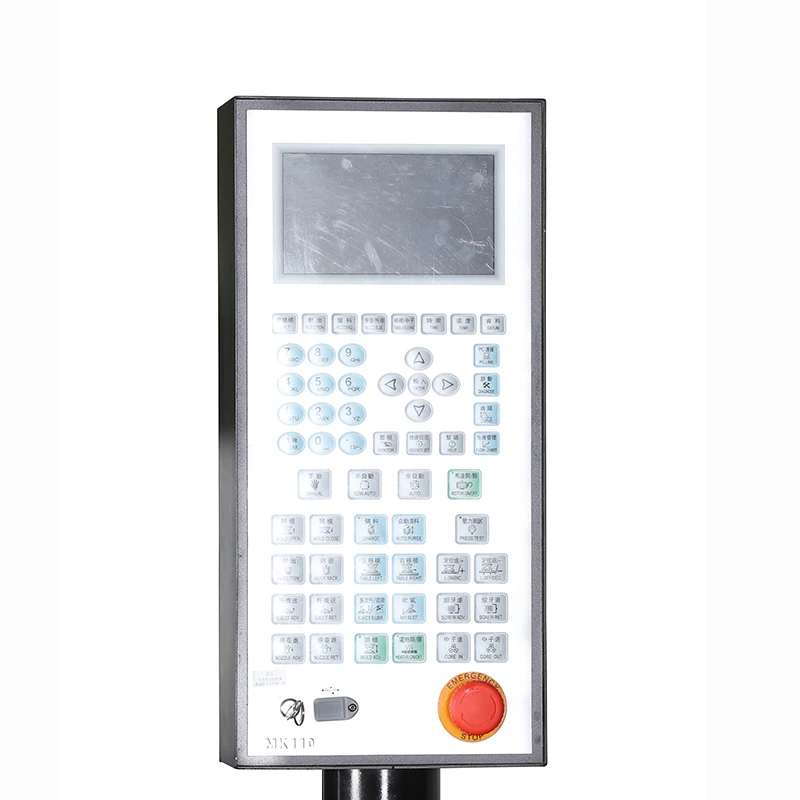

3.Screen industrial control computer, simple operation, precise control and low failure.

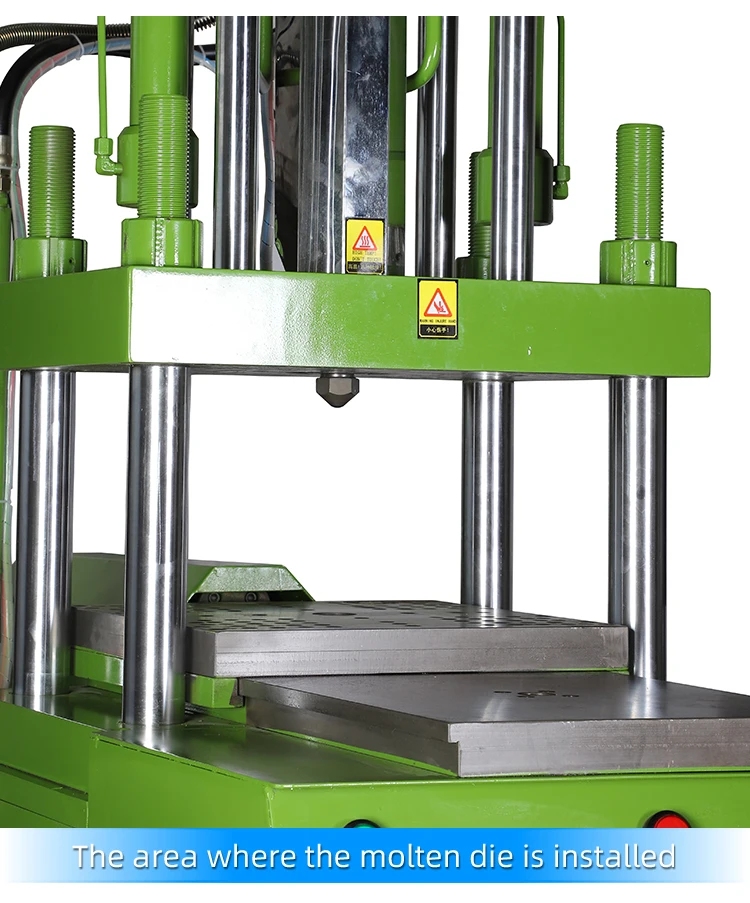

4. Four column type with pedestal lifting, more stable large mold, more stable product quality.

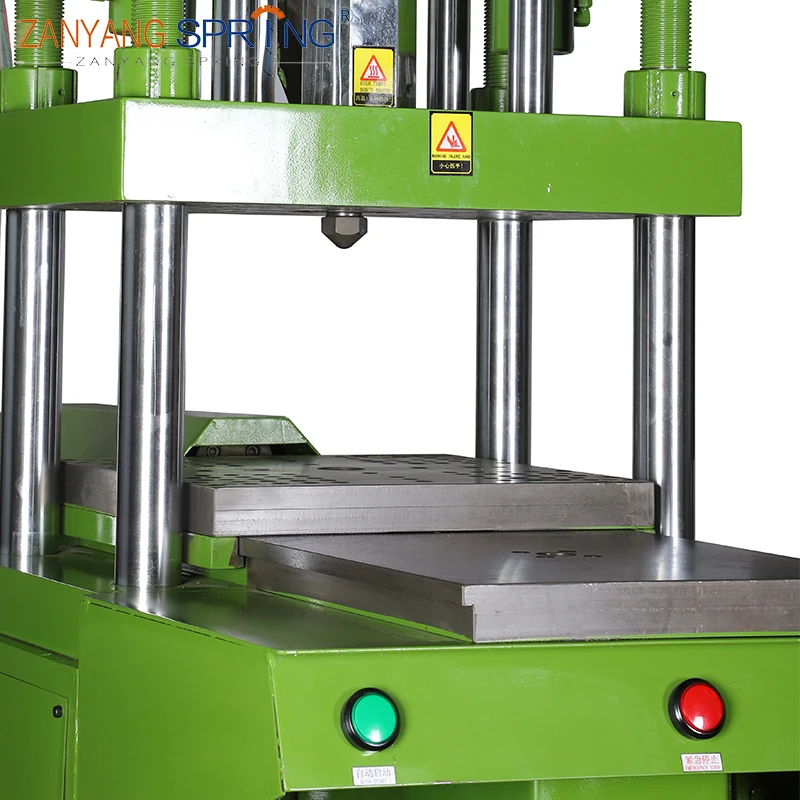

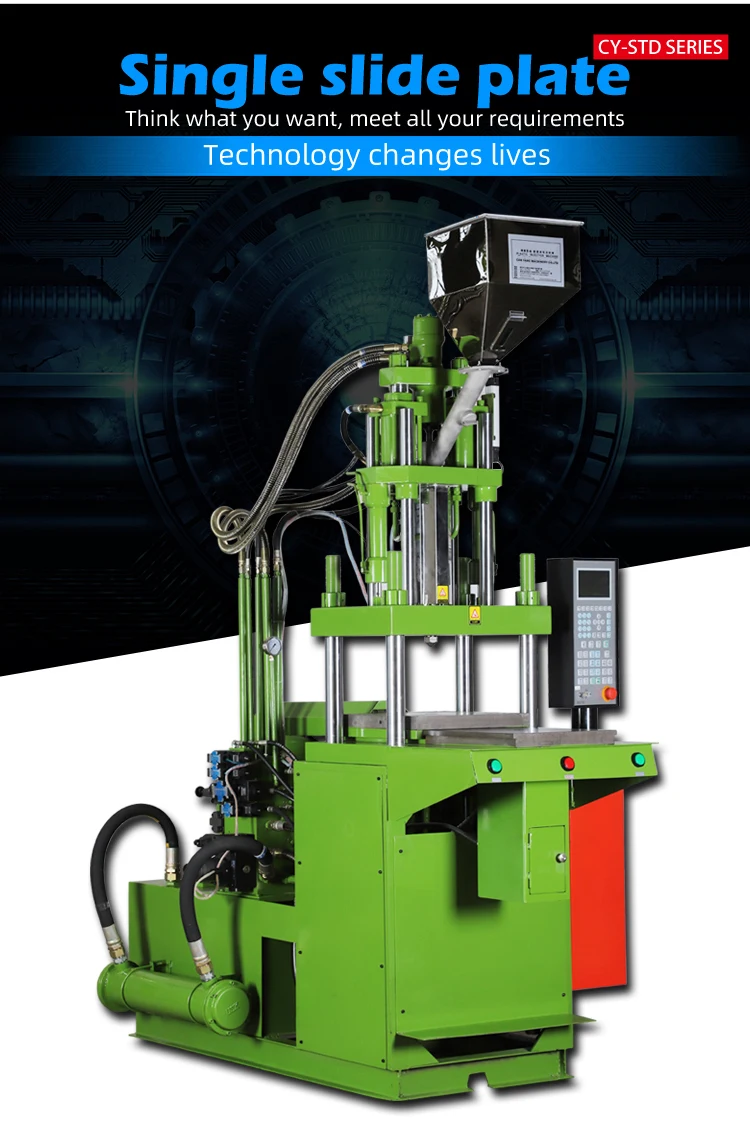

5. The single slide plate can slide out of the mold for operation, and it is safer and more convenient to swing the parts to take the products.

	MODEL	UNIT	CY-350STD-PP
INJECTION UNIT	Screw Diameter	mm	26	28	30
	lnjection Pressure	kg/cm2	1410	1220	1060
	Theoretical Shot Volume	cm3	61	70.8	81
	Max.Shot Weight(Ps)	g	56	65	74
	Safe Shot Weight(Ps)	OZ	2.0	2.3	2.6
	Injection Rate	cm3/sec	55	63	73
	Screw Stroke	mm	115
	Screw Speed Max.	rpm	0-205
	Nozzle Comtact Force	tons	4.45
	Nozzle Retraction Stroke	mm	170
	Number of Temperature Control		3
CLAMPING UNIT	Clamping Force	tons KN	35 350
	Platen Size	mm	350×350
	Tiebar distance	mm	375×205
	Min.Mold Height	mm	150/100
	Opening Stroke	mm	180
	Max.Open Daylight	mm	330/280
	Ejetor Force	tons	1.5
	Ejetor Stoke	mm	55
POWER/HEADING UNIT	Max.Hydaulic Pressure	kg/cm2	140
	Pump Output	l/min	34.5
	Oil Resservoir Capacity	l	100
	Cooling Waer Consumption	l/hr	400~600
	Pump Motor Power	kW/HP	3.7/5HP
	BerrelHeating Power	kW	2.4
	Total Electircity Usage	kW	6.3
OTHER	Machine Weight	tons	1.2
	Machine Dimensions(LxWxH)	m	1.5 x 1.1 x2.28
	Shipping weight	tons	1.35
	Shipping Measurements(LxWxH)	m	1.65 × 1.2 × 2.38

Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
