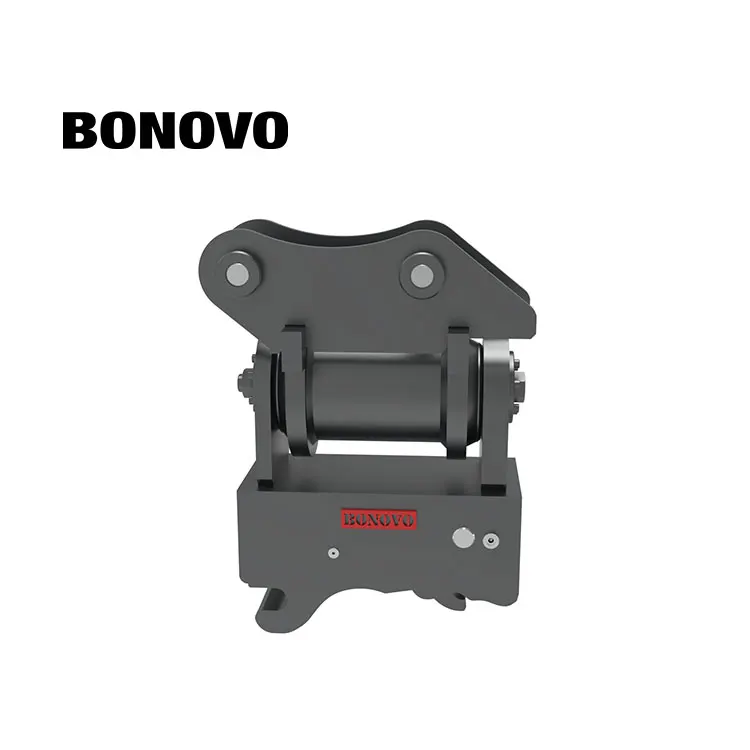

BONOVO Tilt Quick Hitch Coupler
Supply OEM & ODM Service
for machine weight: 1-24 ton
for machine weight: 1-24 ton
In order to achieve a more perfect flt, bonovo can customlze the size according to the needs of customers.
1-24Ton
MATERIAL
HARDOX450,NM400,Q355
WORKING CONDITIONS
Total tilting angle of 180 degrees allows efficient shaping of gradients and cambers
Total tilting angle of 180 degrees allows efficient shaping of gradients and cambers
Tilting angle
180°
180°

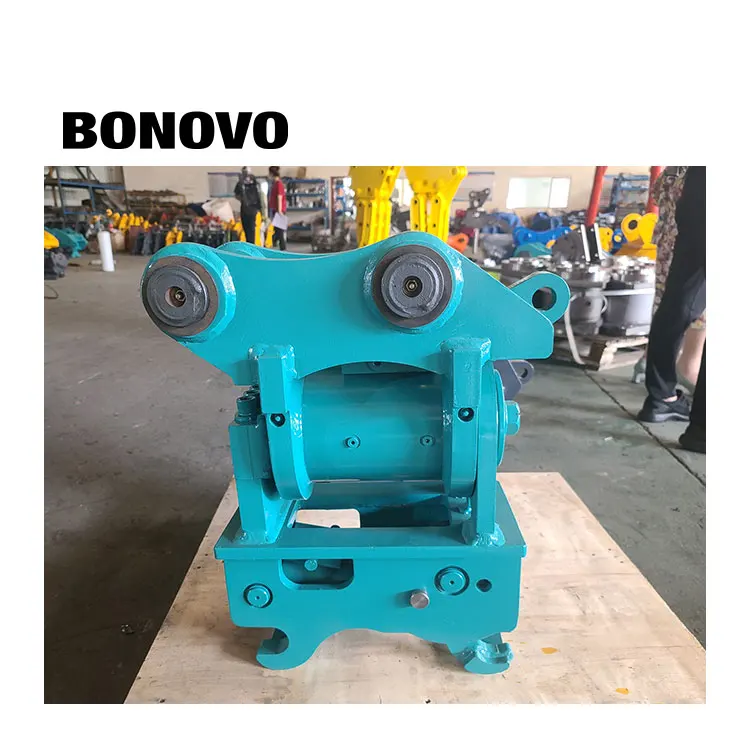

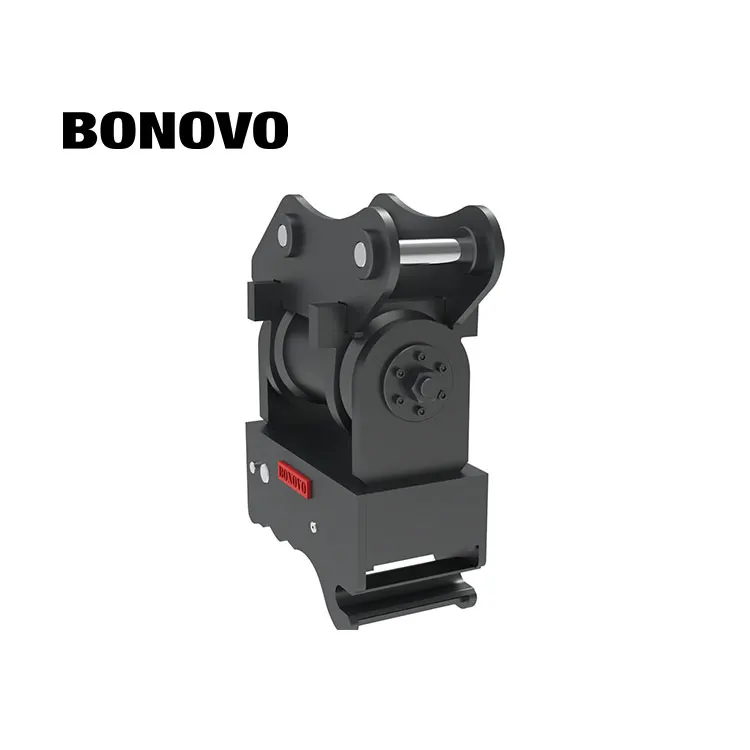

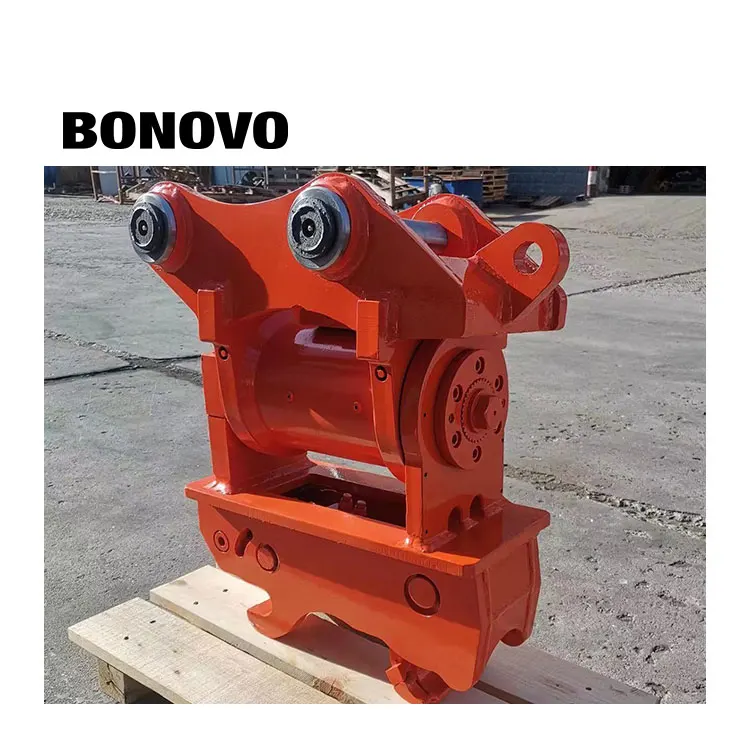

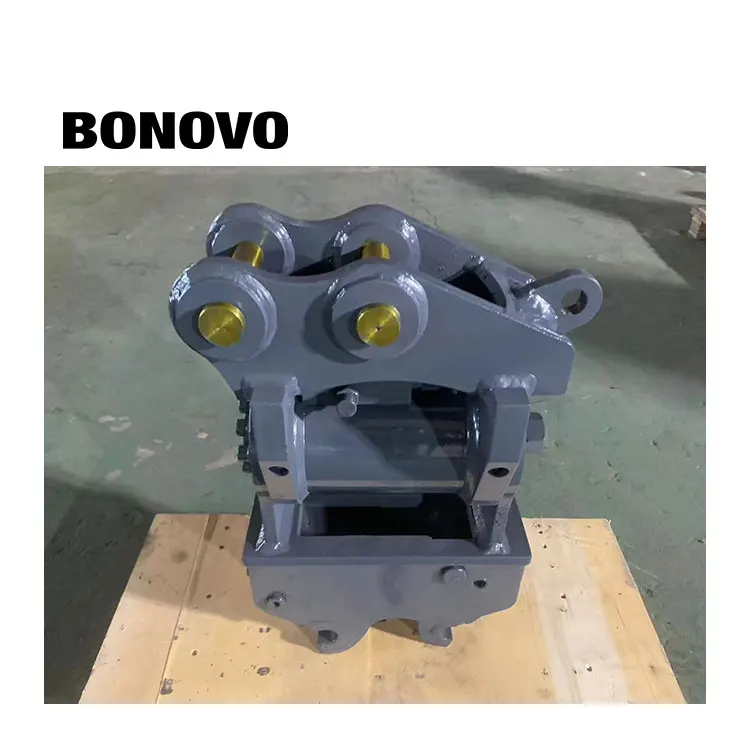

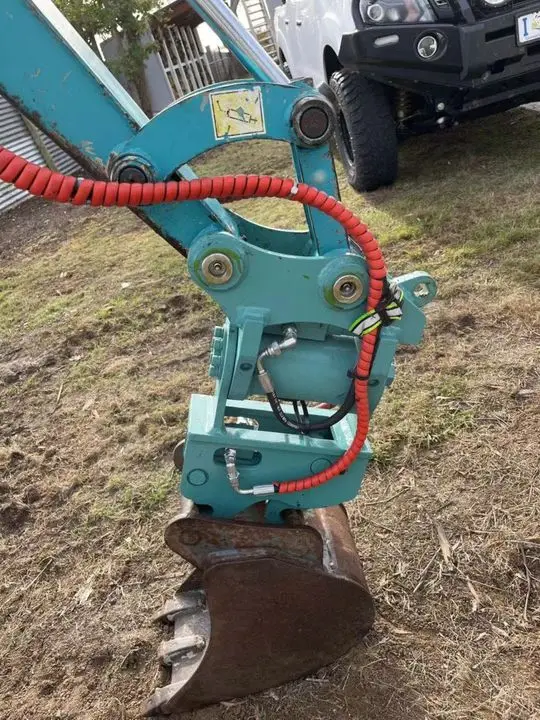

The BONOVO Tilt Quick Hitch Coupler
a revolutionary device that incorporates all the benefits of Multi-Lock quick couplers, providing unprecedented flexibility and asset utilization for modern excavator operations. Its core advantage is its 180-degree total tilt angle, a design that allows the excavator to easily handle slopes and cambers on a variety of complex terrains without unnecessary repositioning.
This connector features a high-quality hydraulic actuator ensuring solid angular stability under a wide range of angles and load conditions. Whether digging, loading or other operations, the BONOVO tilt quick hitch coupler ensures excavator stability and precision.
In addition, the high-quality hydraulic kit design is another highlight of BONOVO tilt quick hitch connectors. This design ensures smooth operation and control of the cooupler, reduces unnecessary vibration and deviation, and improves work efficiency. At the same time, the connector is compatible with all types of mainstream machines and accessories, further enhancing its applicability in various working environments.
All in all, the BONOVO tilt quick hitch connector not only inherits all the advantages of the Multi-Lock quick coupler, but also provides you with greater operational flexibility and asset utilization through its unique 180-degree tilt angle and high-quality hydraulic actuator design Rate. Whether you are digging, loading or other operations, the BONOVO tilt quick hitch coupler is the ideal choice.
This connector features a high-quality hydraulic actuator ensuring solid angular stability under a wide range of angles and load conditions. Whether digging, loading or other operations, the BONOVO tilt quick hitch coupler ensures excavator stability and precision.
In addition, the high-quality hydraulic kit design is another highlight of BONOVO tilt quick hitch connectors. This design ensures smooth operation and control of the cooupler, reduces unnecessary vibration and deviation, and improves work efficiency. At the same time, the connector is compatible with all types of mainstream machines and accessories, further enhancing its applicability in various working environments.
All in all, the BONOVO tilt quick hitch connector not only inherits all the advantages of the Multi-Lock quick coupler, but also provides you with greater operational flexibility and asset utilization through its unique 180-degree tilt angle and high-quality hydraulic actuator design Rate. Whether you are digging, loading or other operations, the BONOVO tilt quick hitch coupler is the ideal choice.
Details of our specifications
Tilt Quick Couper | ||||||||||||
Model | Unit | TQC04 | TQC06 | TQC08 | TQC15 | TQC20 | ||||||
Suitable Weight | Ton | 1-4T | 5-6T | 7-9T | 10-18T | 19-24T | ||||||
Swing angle | ° | 180 | 180 | 180 | 134 | 134 | ||||||
Working pressure | Bar | 210 | 210 | 210 | 210 | 210 | ||||||
working flow | L/min | 3-6 | 6-12 | 12-20 | 24-32 | 32-44 | ||||||
Weight | KG | 100 | 160 | 180 | 450 | 650 | ||||||
Package size | mm | 600*550*400 | 700*650*450 | 800*700*500 | 1000*800*600 | 1000*800*600 | ||||||
Latest swing oil cylinder to complete the tilting operation, adopts high-torque and high-load bearings, main components moving in a closed manner for a longer service life and a better sealing effect. Tilt angle can reach 180°
The oil cylinder of quick change adopts imported seals part, which have good sealing effect and longer lifespan.
All the supporting pipelines are all packaging, and the customer can install it immediately after receiving , so as to solve the trouble of lack of installation accessories.

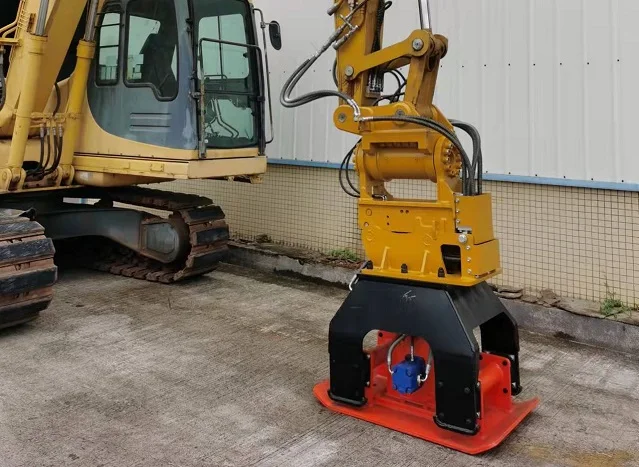

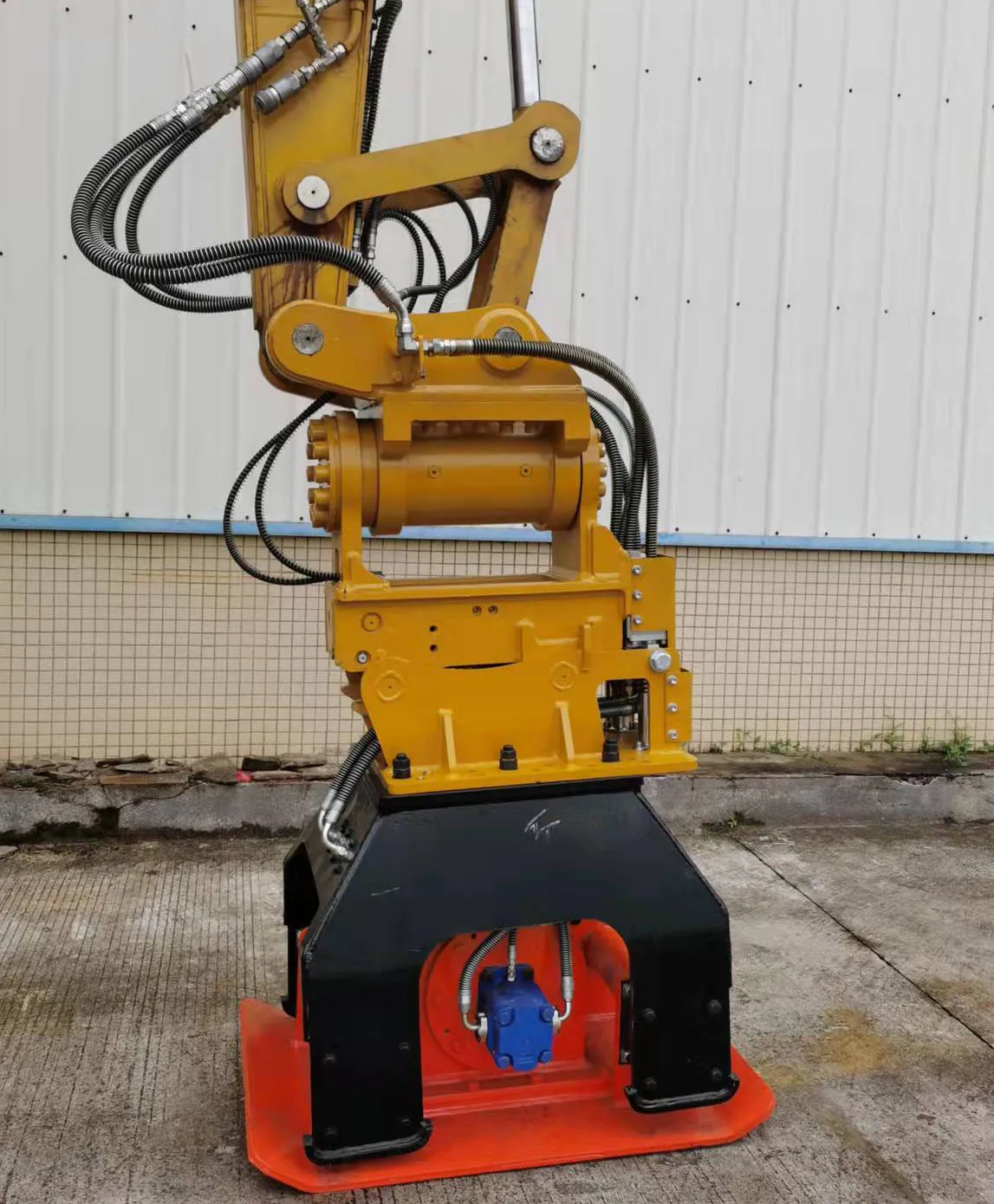

Application Scenario

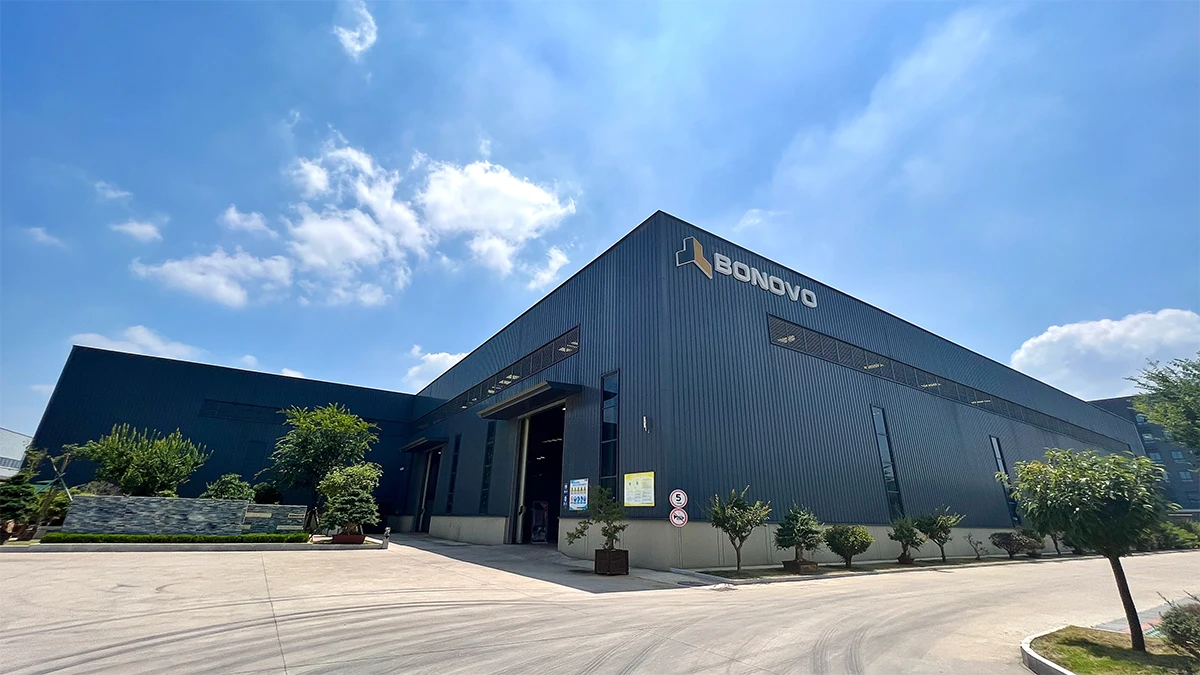

company introduction
Xuzhou Bonovo Machinery & Equipment Co., Ltd is located in Xuzhou city, which is the largest construction machinery production
base in China. We are a professional company integrating R & D, manufacturing of excavator
and loader attachments.From raw materials to finished products, the whole process is under strict quality nspection for each of
our products to keep our quality.Products of our company are mainly attachments for excavators and loaders to fully meet different
needs in engineering machineryconstruction and the best solution can be provided for all types of earthwork.
