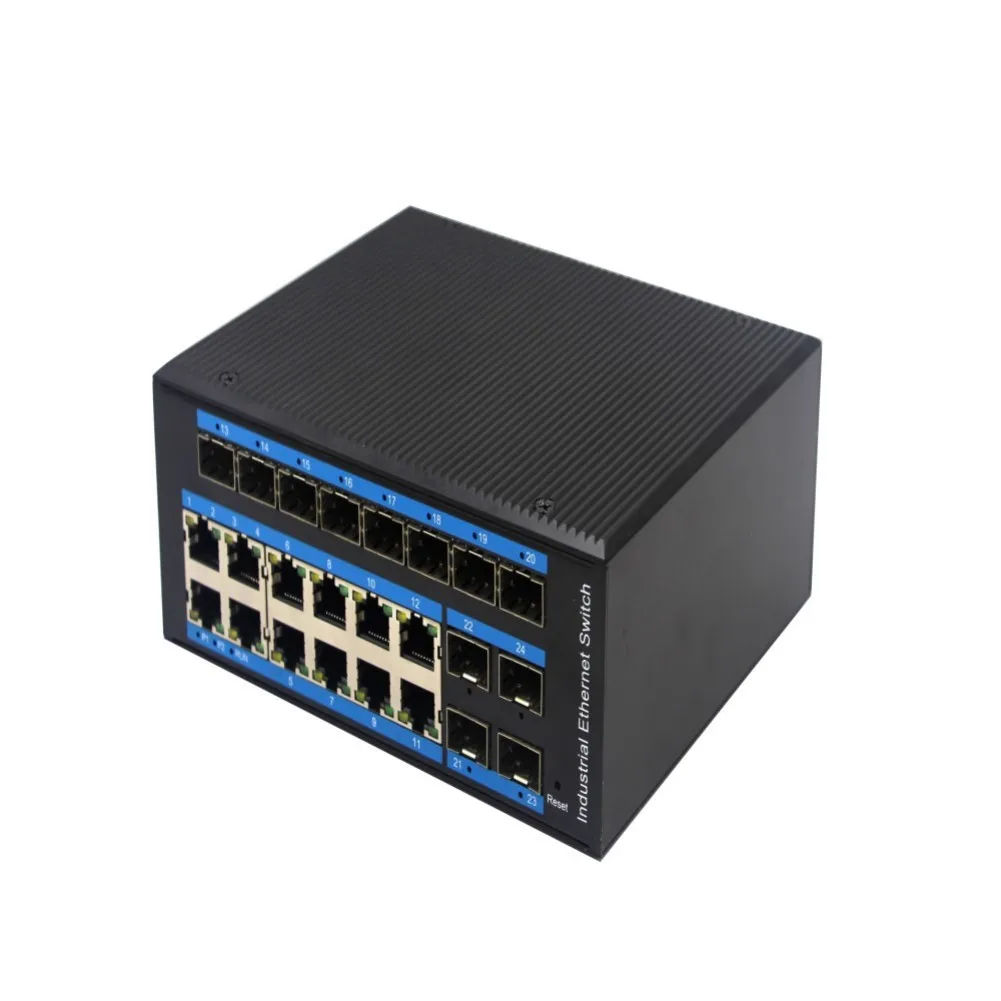

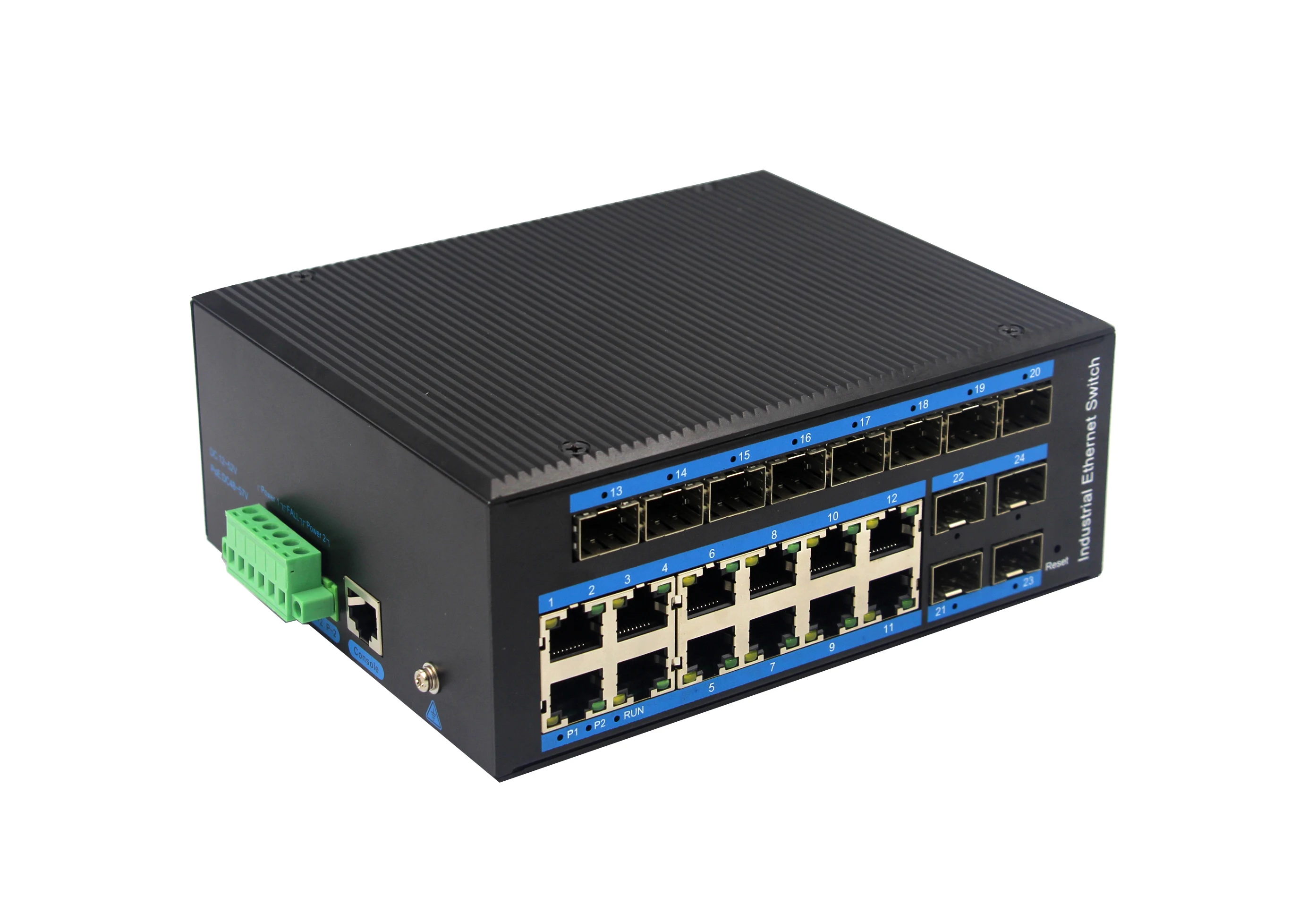

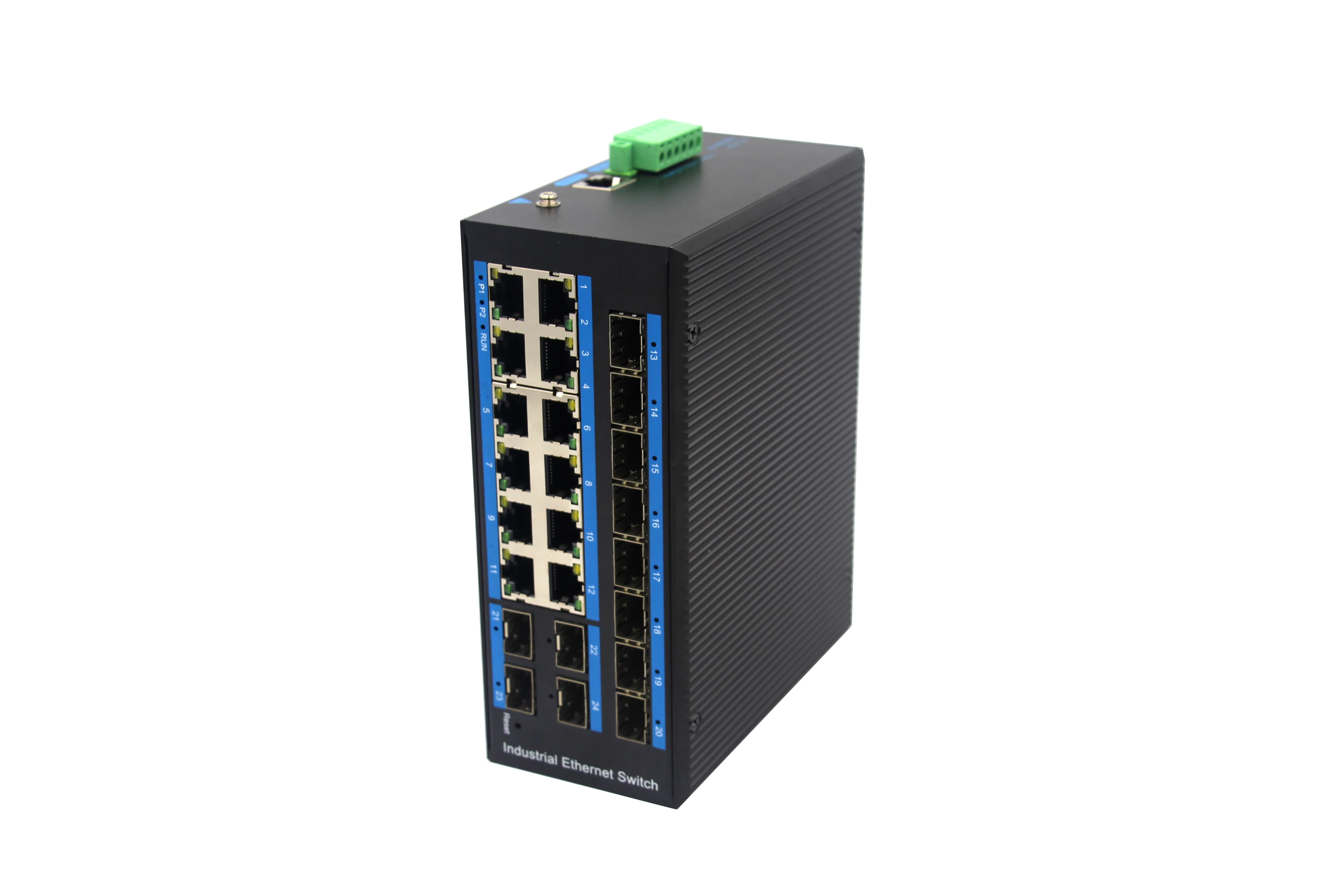

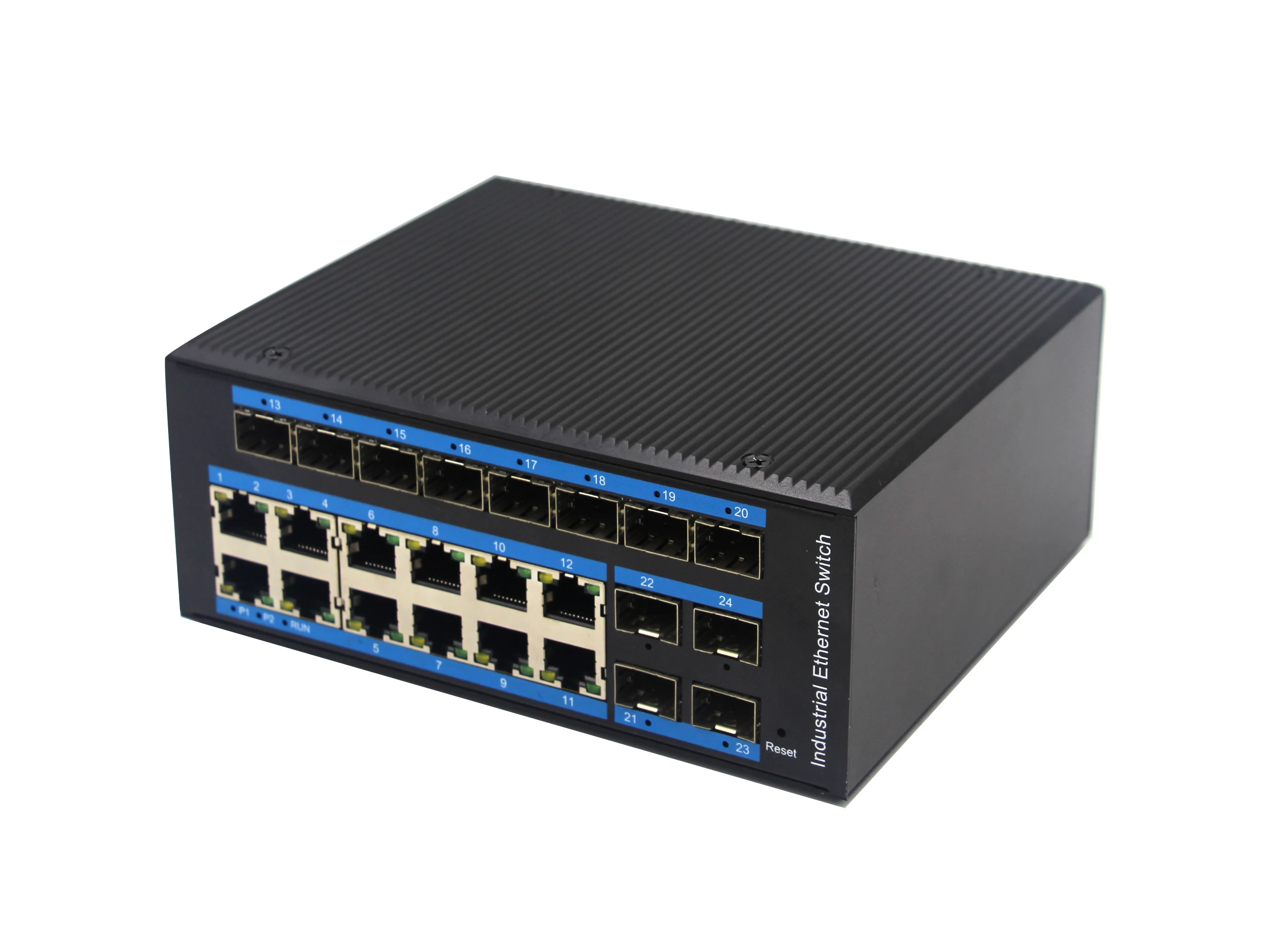

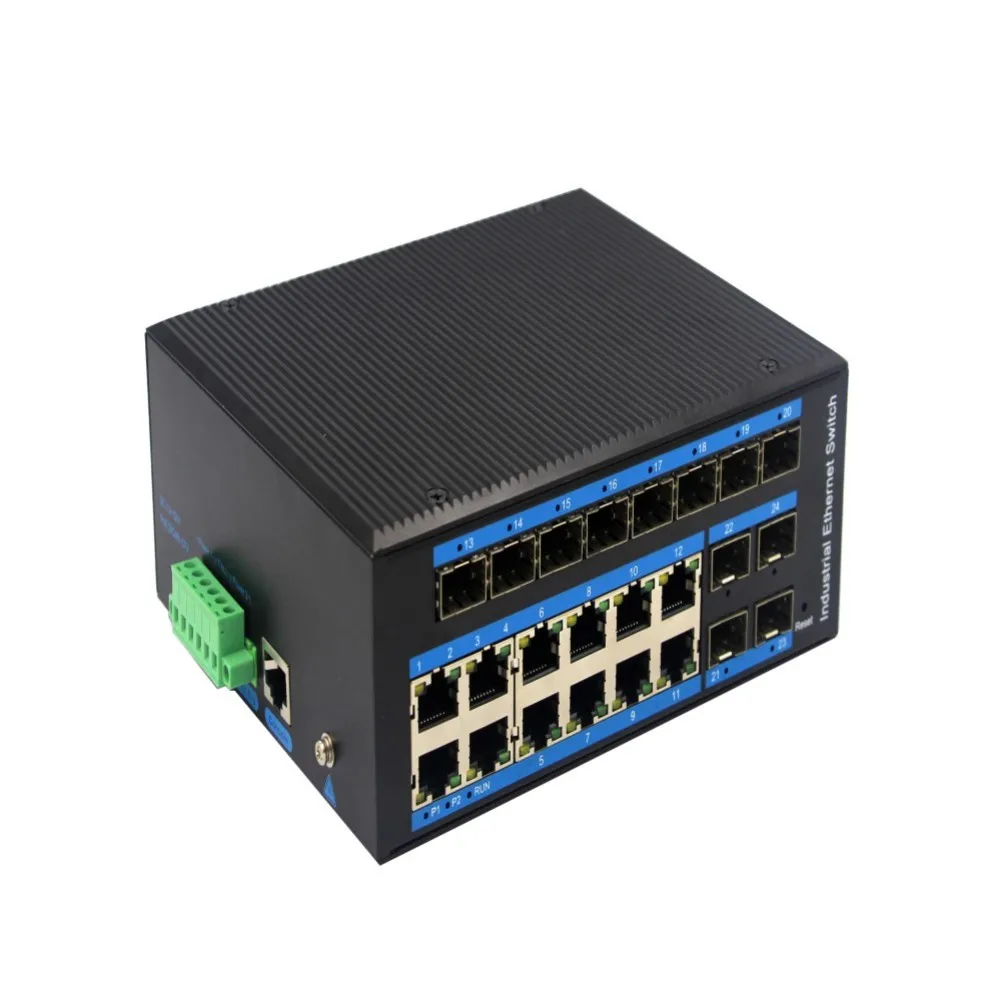

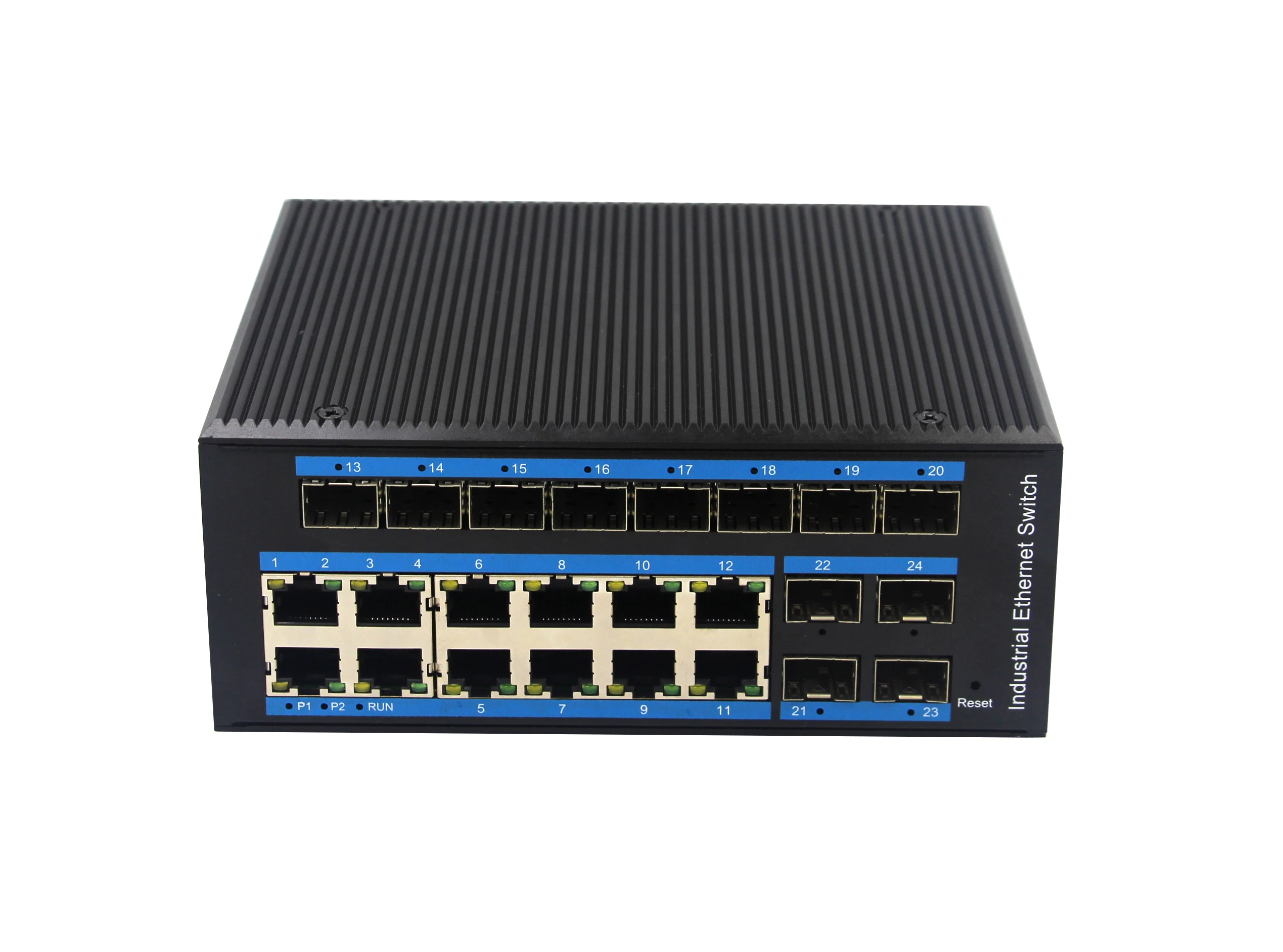

Hot Sell 12g Sfp Delivered Media Converter Single Mode Lc Fiber To Ethernet Ethernet Switch

ZX1212BGS-SFP

12 port RJ-45 auto-MDI / MDI-X

12G SFP Slot

Performance Specification

Bandwidth(switch capacity): 106Gbps
Packet Buffer Memory:16Mbit
Packet Forwarding Rate: 78Mpps
MAC Address Table: 8K

DIN rail

9600bytes

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

IP40 aluminum housing

LED Indicator

Power: Red
Fiber: Link 2(Green)
Ethernet: Yellow

12 to 52V DC redundant power

<10 watts

± 4KV

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

CE FCC Rohs compliance

>300,000hours

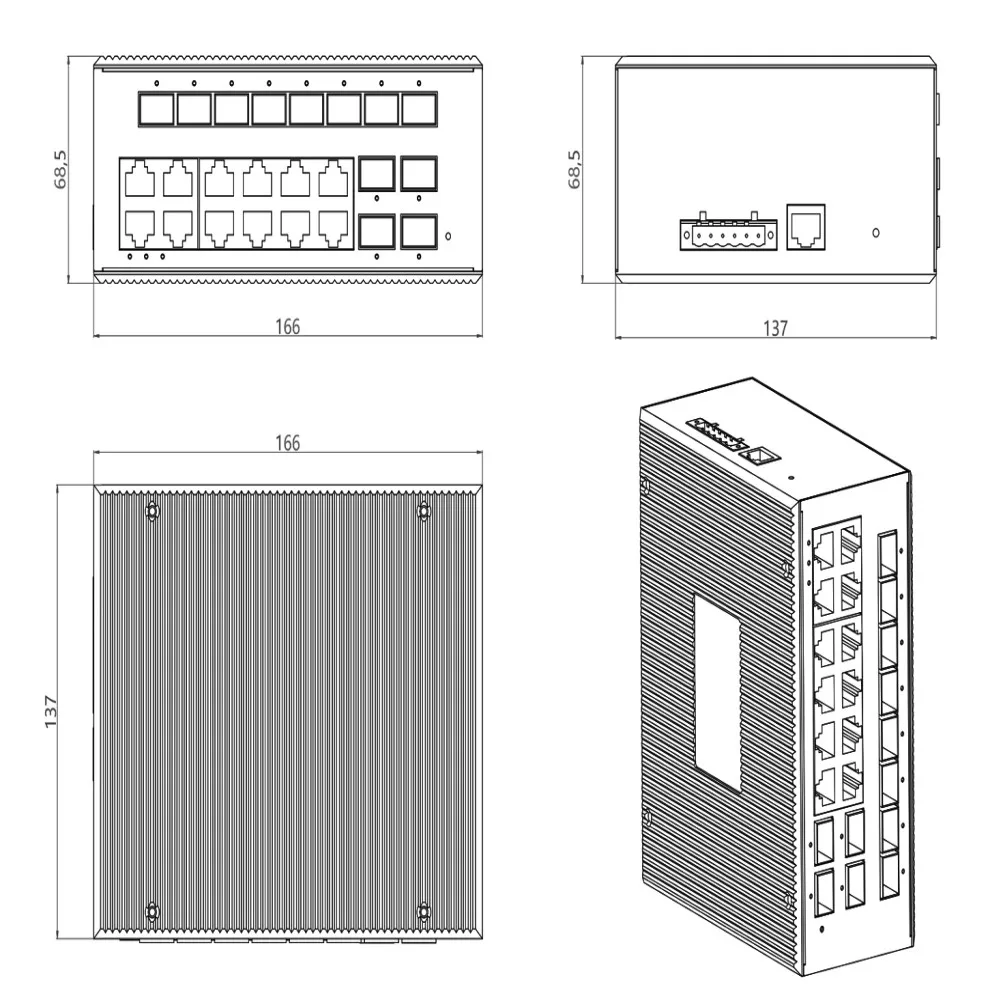

166×137×68.5mm

Product Weight: 1.35KG Packing Weight: 1.45KG

Working temperature: -40～80℃ ;
Storage temperature: -40～80℃
Relative Humidity: 5%~95 %( no condensation)

1-year replacement with new item; 3-years for main parts.

IEEE802.3X (Full-duplex), Port temperature protection setting
Port green Ethernet Energy-saving setting Broadcast storm control based
on port speed. The speed limit of the message flow in the access port.
The minimum particle size is 64Kbps.

Flow-based Rate Limiting Flow-based Packet Filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)

L2+ network management, IPV4/IPV6 management L3 soft routing forwarding,
Static route, Default route @ 128 pcs, APR@1024pcs

Port-based Issuing ACL,ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source,
Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range,
and VLAN, etc.

4K VLAN based on port, IEEE802.1q
VLAN based on the protocol
VLAN based on MAC
Voice VLAN, QinQ configuration
Port configuration of Access, Trunk, Hybrid

LACP, Static aggregation
Max 8 aggregation groups and 8 ports per group.

IP-MAC-VLAN-Port binding
ARP inspection, Anti-DoS attack AAA & RADIUS, MAC learning limit
Mac black holes, IP source protection IEEE802.1X & MAC
address authentication Broadcast storm control,Backup for host datum
SSH 2.0, SSL, Port isolation, ARP message speed limit
User hierarchical management and password protection

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

G.8032 (ERPS), Recovery time less than 20ms
250 Ring at most, Max 250 devices per ring. Multicast

MLD Snooping v1/v2,Multicast VLAN
IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay

Bidirectional data mirroring based on port

One-key recovery Cable Diagnose, LLDP
Web Management (HTTPS) NTP, System work log,Ping Test CPU
instant utilization status view
Console/AUX Modem/Telnet/SSH2.0 CLI
Download & Management on FTP, TFTP, X modem, SFTP, SNMP V1/V2C/V3

Category 5 Ethernet network cable
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome
V42 or higher, Microsoft Internet Explorer10 or later;
TCP/IP, network adapter, and network operating system
(such as Microsoft Windows, Linux, or Mac OS X) installed on each
computer in a network
