LED emergency explosion proof light IP66 30W CE RoHS Atex Explosion proof Flood Light
- Category: Emergency Lights >>>
- Supplier: Jiangyin,Yichuan,Electric,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product features
The light source adopts CREE brand LED luminous chip, with ultra-high luminous efficiency and an average service life of up to 100,000 hours. It is driven by first-line brand power supply and processed by wide voltage technology, with guaranteed quality and features of constant current output, short circuit and overvoltage protection.
The light source radiator adopts integral die-casting molding, the structure is tight, with excellent heat conduction and heat dissipation performance, effectively control the temperature rise of the lamp within a reasonable range, so as to ensure the service life of the lamp.
Product features
Products are in strict accordance with the national explosion-proof standard GB3836 series of documents research and development design and obtained national certification of explosion-proof certificate and test report, certificate complete, seiko manufacturing, explosion-proof performance is safe and reliable.
Usage scenarios
1, suitable for railway, electric power, metallurgy, petroleum, petrochemical, chemical, iron and steel, aviation, ships and all
kinds of factories, stations, large facilities, venues and other places of efficient lighting.
2, suitable for explosive gas environment 1 zone, 2 zone place;
3, suitable for IIA, IIB, IIC, explosive gas environment;
4, suitable for flammable dust environment 21, 22 area places;
5, applicable to T1-T6 (T5) group temperature group;
6, suitable for energy saving renovation projects and maintenance and replacement of difficult places;
7. Suitable for places with high protection requirements, damp and harsh environment;
kinds of factories, stations, large facilities, venues and other places of efficient lighting.
2, suitable for explosive gas environment 1 zone, 2 zone place;
3, suitable for IIA, IIB, IIC, explosive gas environment;
4, suitable for flammable dust environment 21, 22 area places;
5, applicable to T1-T6 (T5) group temperature group;
6, suitable for energy saving renovation projects and maintenance and replacement of difficult places;
7. Suitable for places with high protection requirements, damp and harsh environment;
Product features
1, product configuration: light source using (CREE) brand LED luminous chip, ultra-high luminous efficiency, the average service life of up to 100,000 hours, are driven by first-line brand power, wide voltage technology treatment, quality assurance, with constant current output, short circuit, overvoltage protection and other characteristics.
2, heat dissipation design: the light source radiator and the power supply cavity separate design, the structure is tight, with
excellent heat conduction and heat dissipation performance, effectively control the temperature rise of the lamp within a
reasonable range, so as to ensure the service life of the lamp.
3, explosion-proof performance: products are in strict accordance with the national explosion-proof standard GB3836 series of documents research and development design and obtained national certification of explosion-proof certificate and test report, certificate complete, seiko manufacturing, explosion-proof performance is safe and reliable.
4, protective lamp shade: the use of high borosilicate steel glass, corrosion resistance, impact resistance, high light
transmittance, light irradiation uniform soft, anti-glare.
5, protection and anticorrosion: the lamp body adopts high pressure electrostatic spray processing, the screw fasteners are made of stainless steel material, with high precision processing technology, with high anticorrosion, high waterproof, high dust and other characteristics.
6, convenient installation: according to the needs of the ceiling, derrick and other installation methods, to meet the low top,
platform, high top, high shed and other places as fixed lighting use, independent wiring cavity design, make the installation more convenient and convenient.
7, product appearance: the appearance follows the perfect integration of industrial elements and structure, elegant design,
angular, the use of special gray color, suitable for all kinds of factory environment.
2, heat dissipation design: the light source radiator and the power supply cavity separate design, the structure is tight, with
excellent heat conduction and heat dissipation performance, effectively control the temperature rise of the lamp within a
reasonable range, so as to ensure the service life of the lamp.
3, explosion-proof performance: products are in strict accordance with the national explosion-proof standard GB3836 series of documents research and development design and obtained national certification of explosion-proof certificate and test report, certificate complete, seiko manufacturing, explosion-proof performance is safe and reliable.
4, protective lamp shade: the use of high borosilicate steel glass, corrosion resistance, impact resistance, high light
transmittance, light irradiation uniform soft, anti-glare.
5, protection and anticorrosion: the lamp body adopts high pressure electrostatic spray processing, the screw fasteners are made of stainless steel material, with high precision processing technology, with high anticorrosion, high waterproof, high dust and other characteristics.
6, convenient installation: according to the needs of the ceiling, derrick and other installation methods, to meet the low top,
platform, high top, high shed and other places as fixed lighting use, independent wiring cavity design, make the installation more convenient and convenient.
7, product appearance: the appearance follows the perfect integration of industrial elements and structure, elegant design,
angular, the use of special gray color, suitable for all kinds of factory environment.
warehouse model | YCBF2878A | YCBF2878B | |||||
Rated power | 100-150W | 100-150W | |||||

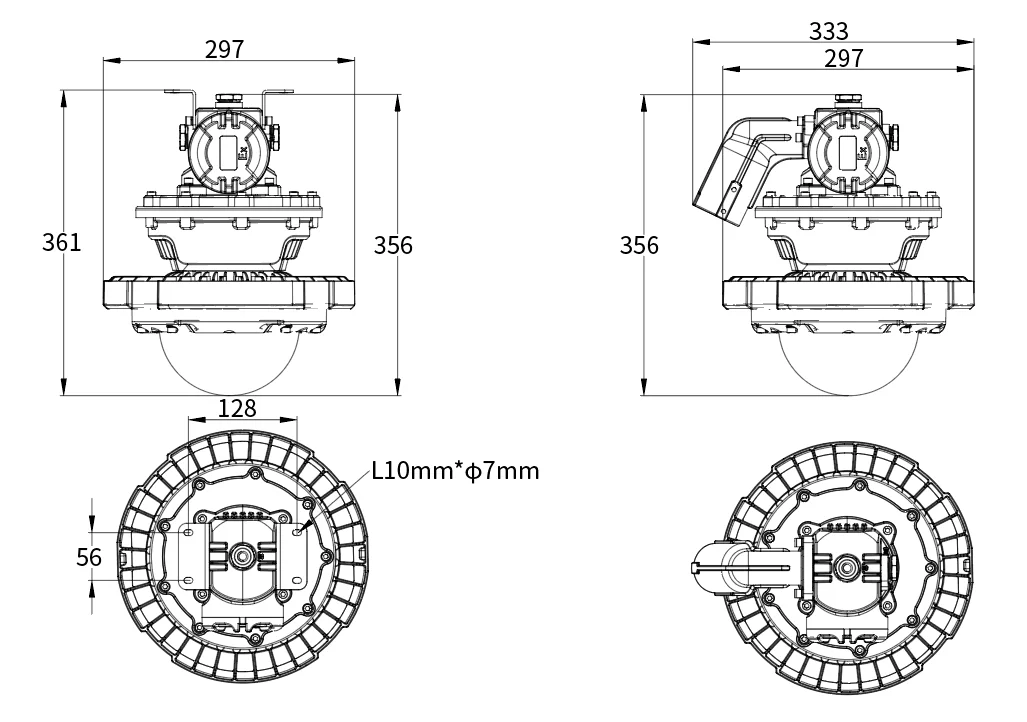

Product size | φ297×356mm | φ329×292mm | |||||
product weight | 7.3kg | 6.7kg | |||||
rated voltage | AC 220V 50/60Hz | ||||||
Protection grade | IP66 | ||||||
Explosion-proof grade | Exd IIC T6 Gb | ||||||
anti-corrosion class | WF2 | ||||||
Light photosynthetic efficiency | 120Lm/w | ||||||
The power factor | ＞0.95 | ||||||
Operating ambient temperature | -30~50℃ | ||||||
light source type | led | ||||||
Correlated color temperature | 3000-6500K | ||||||
Color rendering index | ≥70RA | ||||||
Light life | ＞100000h | ||||||
Execution standard | GB3836.1、GB3836.2 | ||||||
Lamp bead specifications | 3030 | ||||||

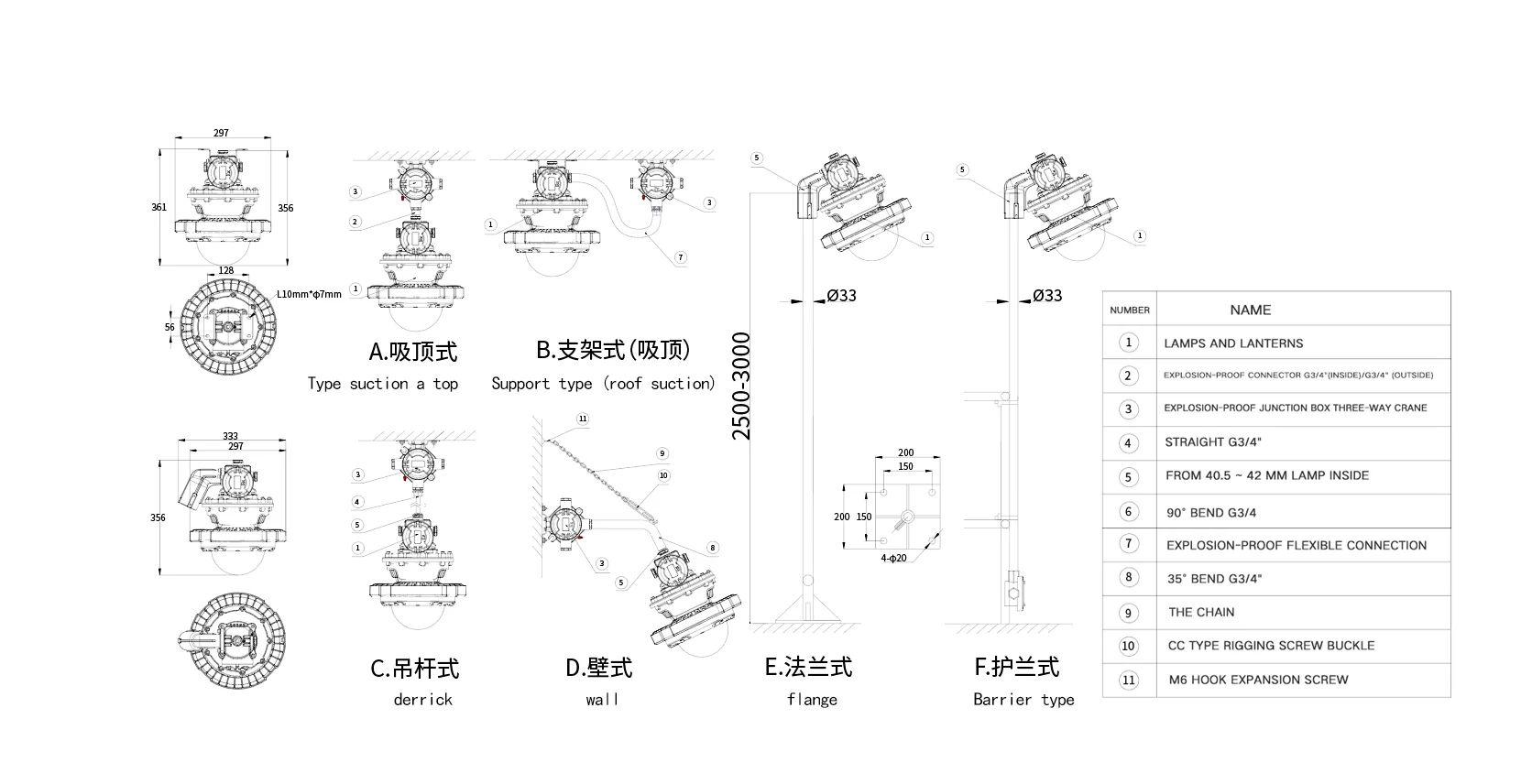

1. Installation Precautions
1. Before installation, it is necessary to check whether the actual conditions of use are consistent with the parameters listed on the lamp nameplate.
2, before installation, please first according to the lamp nameplate parameters for power lighting detection, to ensure that the lamp without quality problems before installation.
3. Before installation, the installation position and method
4. Connect the prepared cable with the input cable of the lamp according to the live wire (brown), neutral wire (blue) and ground wire (yellow and green), ensure that the connection is firm, and do insulation and waterproof measures at the connection.
5. The input end of the cable can be connected to the power supply of the corresponding voltage.
1. Before installation, it is necessary to check whether the actual conditions of use are consistent with the parameters listed on the lamp nameplate.
2, before installation, please first according to the lamp nameplate parameters for power lighting detection, to ensure that the lamp without quality problems before installation.
3. Before installation, the installation position and method
of the lamp must be determined according to the installation method provided by the product, combined
with the on-site use environment and lighting requirements, to ensure that the installation is firm and reliable.
4. Connect the prepared cable with the input cable of the lamp according to the live wire (brown), neutral wire (blue) and ground wire (yellow and green), ensure that the connection is firm, and do insulation and waterproof measures at the connection.
5. The input end of the cable can be connected to the power supply of the corresponding voltage.
2. Precautions for Use
2. During transportation, the lamps shall be packed in the equipped carton, and foam damping shall be added.
3. When in use, there is a certain temperature rise on the surface of the lamp, which is a normal phenomenon.
4, the power supply voltage in the rated voltage range can work normally, the power supply voltage is too high will damage the lamp; If the voltage is too low, the lamp will not start normally.
5. Lamps and lanterns must be reliably grounded.
Note: If the user fails to operate in accordance with the above precautions and causes adverse consequences, the user shall bear the adverse consequences.
1, this product is explosion-proof products, can be used in explosion-proof places.
2. During transportation, the lamps shall be packed in the equipped carton, and foam damping shall be added.
3. When in use, there is a certain temperature rise on the surface of the lamp, which is a normal phenomenon.
4, the power supply voltage in the rated voltage range can work normally, the power supply voltage is too high will damage the lamp; If the voltage is too low, the lamp will not start normally.
5. Lamps and lanterns must be reliably grounded.
Note: If the user fails to operate in accordance with the above precautions and causes adverse consequences, the user shall bear the adverse consequences.
Jiangyin Yichuan Electric Equipment Co., Ltd. is a professional LED lighting manufacturer. First of all,we are a international trader who has a independent brand and the right to free import and export. Second ,we are experts in the field of Product Design , customization and processing. We can also provide you with advanced quality management and after-sales service.
We have our own Brand Marketing Center and Entity shops.we are dominant producer. We have a very valuable brand-----"YICHUAN",our company's management is fully integrated with the international advanced level, and it has passed ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS 18001 occupational health and safety management system certification, CCC mandatory product certification, and also obtained the European Union Ro HS, European Union CE and other international Quality standard certification.
At the same time, we cooperated with the suppliers of international brands such as Osram, Philips, Honda, Schneider, ABB, etc., and introduced advanced technology and production testing equipment at home and abroad to achieve precision and automated production of machining, becoming the national grid, Huadian Group, Shenhua Group, and PetroChina, China National Chemical Industry Group and other quality suppliers.
High Qaulity,perfect service,always improving!
We are looking forward to your contact and cooperation.
We have our own Brand Marketing Center and Entity shops.we are dominant producer. We have a very valuable brand-----"YICHUAN",our company's management is fully integrated with the international advanced level, and it has passed ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS 18001 occupational health and safety management system certification, CCC mandatory product certification, and also obtained the European Union Ro HS, European Union CE and other international Quality standard certification.
At the same time, we cooperated with the suppliers of international brands such as Osram, Philips, Honda, Schneider, ABB, etc., and introduced advanced technology and production testing equipment at home and abroad to achieve precision and automated production of machining, becoming the national grid, Huadian Group, Shenhua Group, and PetroChina, China National Chemical Industry Group and other quality suppliers.
High Qaulity,perfect service,always improving!
We are looking forward to your contact and cooperation.
Qualification certificate
Packing&Shipping
FAQ
Q1. Can I have a sample order for light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What's your delivery time?
A:Sample needs 3-5 days, mass production time according to your quantity.
Q3. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive after payment.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly we quote price according to your requirements or our suggestions.
Thirdly customer confirms the contract and order,then arrange the payment.
Fourthly we arrange the production.
Q5. Can you do OEM led light product?
A: Yes. we can design the products according to your request.
Q6. Can you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty for our products.
Q7. How to deal with the faulty?
A: First, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Second, during the guarantee period, we will send new lights . For defective batch products, we will resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What's your delivery time?
A:Sample needs 3-5 days, mass production time according to your quantity.
Q3. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive after payment.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly we quote price according to your requirements or our suggestions.
Thirdly customer confirms the contract and order,then arrange the payment.
Fourthly we arrange the production.
Q5. Can you do OEM led light product?
A: Yes. we can design the products according to your request.
Q6. Can you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty for our products.
Q7. How to deal with the faulty?
A: First, our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Second, during the guarantee period, we will send new lights . For defective batch products, we will resend them to you or we can discuss the solution including re-call according to real situation.
