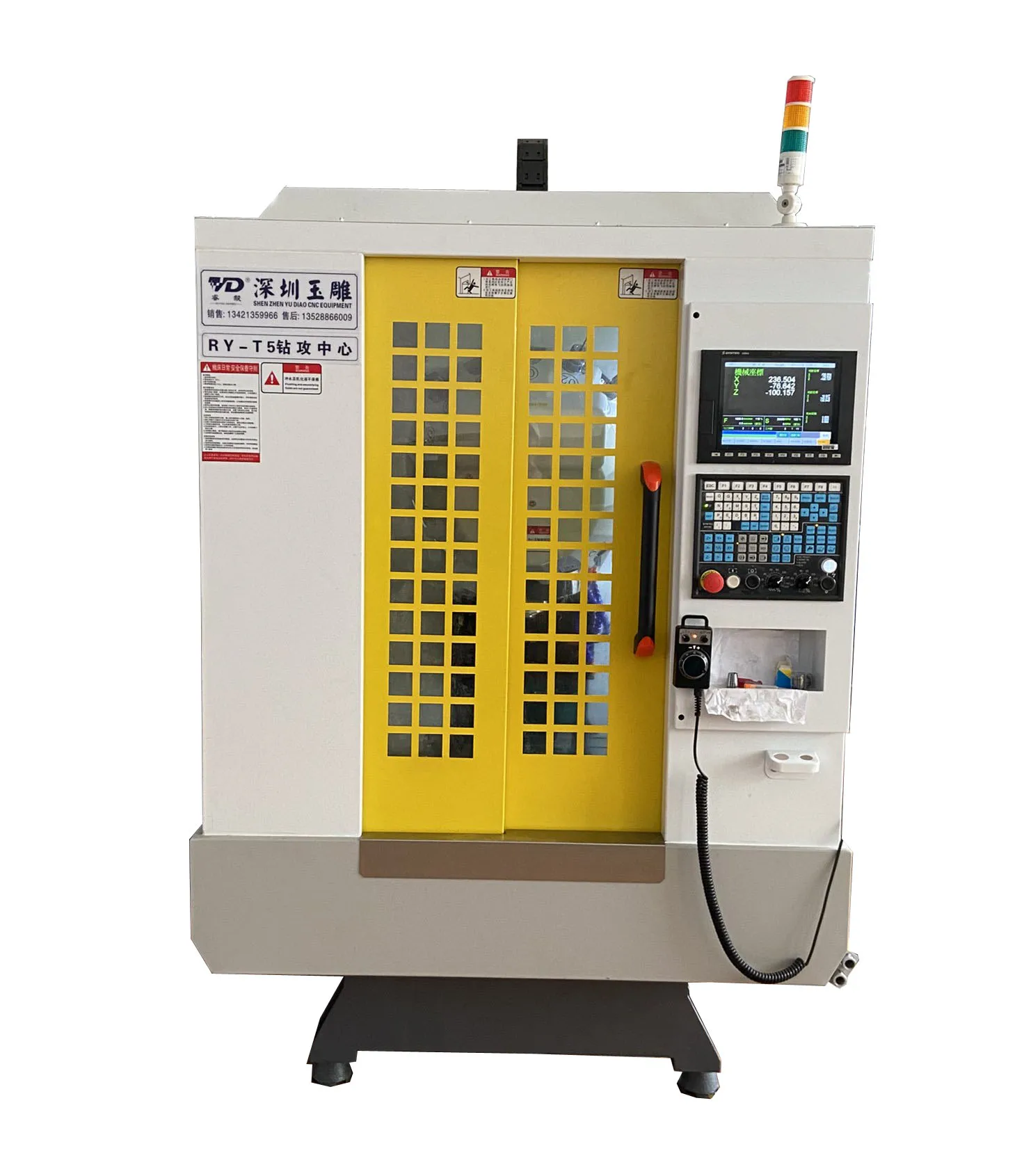

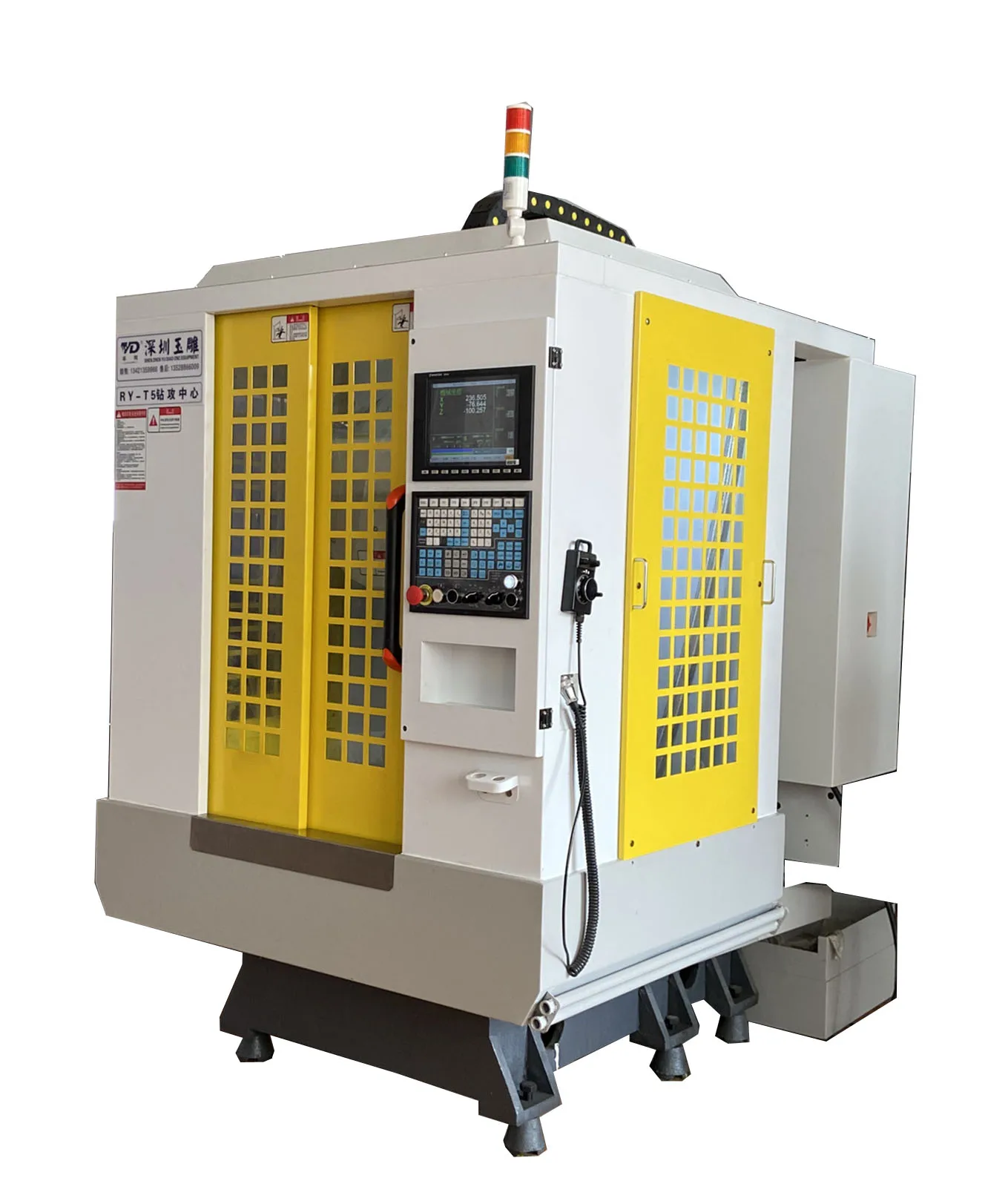

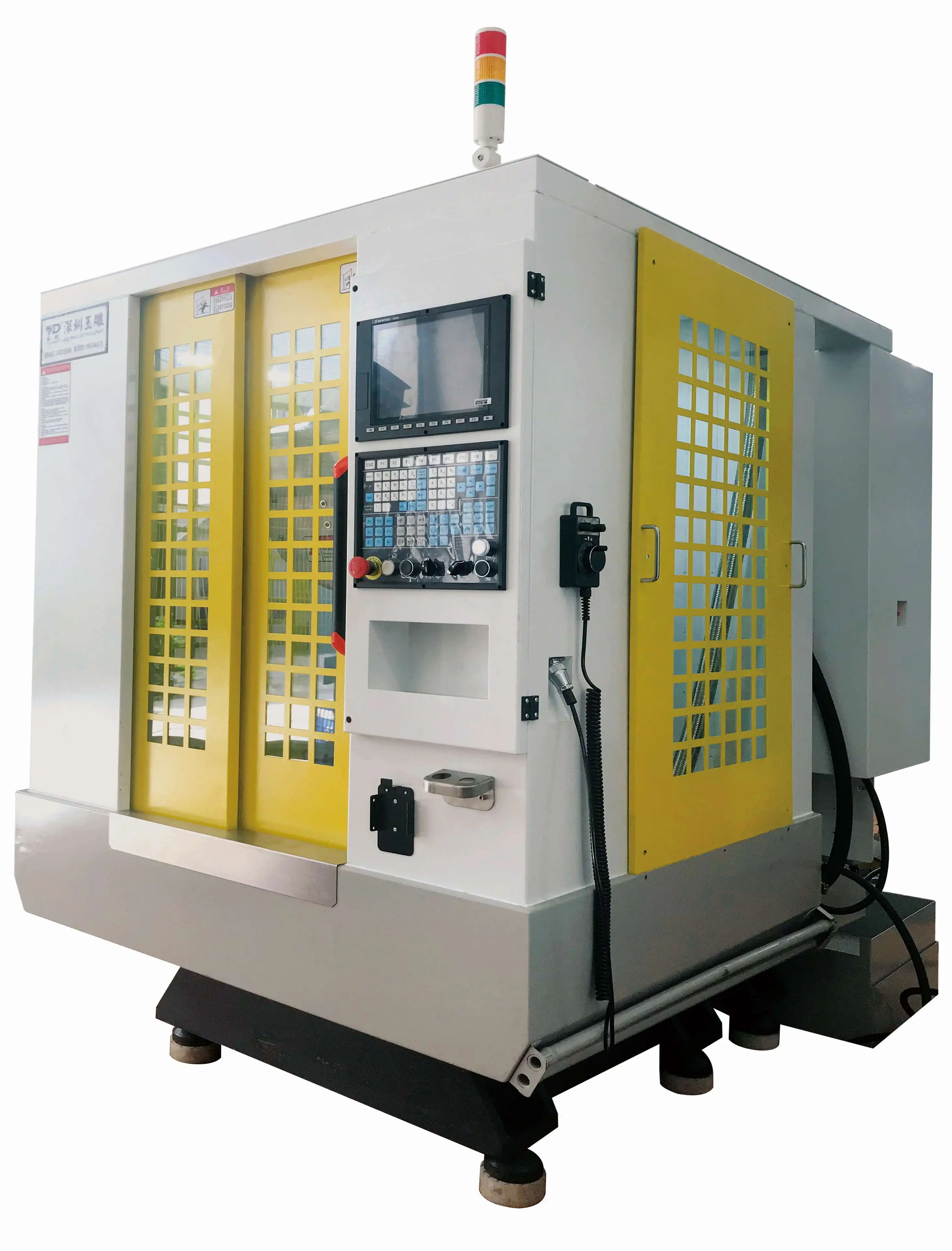

Ry T6 small CNC machine tool for medical device processing and stamping die manufacturing can be customized
- Category: >>>
- Supplier: Shenzhen Yu Diao Cnc Technology Co. Ltd.
Share on (1600620188073):
Product Overview
Description
Products Description
Product parameters
A | Technical parameters of machine tool： | ||||||||
1 | The machine body and all parts are made of nano castings | ||||||||
2 | Table size | 600×400mm | |||||||
3 | T-groove (width x quantity x spacing) | 11×5×88mm | |||||||
4 | The largest load | 300KG | |||||||
5 | Maximum feed height | 450mm | |||||||
6 | Distance from spindle face to work | 150－450mm | |||||||
7 | Triaxial travel X/Y/Z | 600/400/350mm | |||||||
8 | The spindle diameter | Ǿ100 | |||||||
9 | Spindle speed | 20000RPM | |||||||
10 | Spindle motor power | 7.5KW | |||||||
11 | Spindle tool library capacity | 16 | |||||||
12 | Tool change time | 1S | |||||||
13 | The spindle taper | BT30 | |||||||
14 | Knife library classes | Clip arm type rotary knife library | |||||||
15 | Fast moving rate X/Y/Z | 48/48/48m/Min | |||||||
16 | Processing speed | 6－36m/Min | |||||||
17 | Positioning accuracy | ±0.006/300mm | |||||||
18 | Repetitive positioning accuracy | ±0.006/300mm | |||||||
19 | Machined surface accuracy | ≤Ra1.6 | |||||||
20 | The machining accuracy | ±0.01mm | |||||||
B | 5 axis motion parameters of machine tool： | ||||||||
1 | Angle of rotation of axis A | / | |||||||
2 | Fifth axis C axis rotation Angle | / | |||||||
3 | Turntable response time | / | |||||||
4 | Five-axis linkage mode | / | |||||||
5 | Working voltage | 380V/50HZ±10% | |||||||
6 | Machine size (l * W * H) | 1850×2050×2800mm | |||||||
7 | The body weight | 3500KG | |||||||
C | Machine tool configuration details brand parameters： | ||||||||
1 | The system configuration | Taiwan Syntec 22MA control system | |||||||
2 | The spindle | Taiwan Weilong spindle/Kenturm | |||||||
3 | Ball screw | HIWIN/PMI | |||||||
4 | Linear guide | Taiwan HIWIN/ABBA high precision guide | |||||||

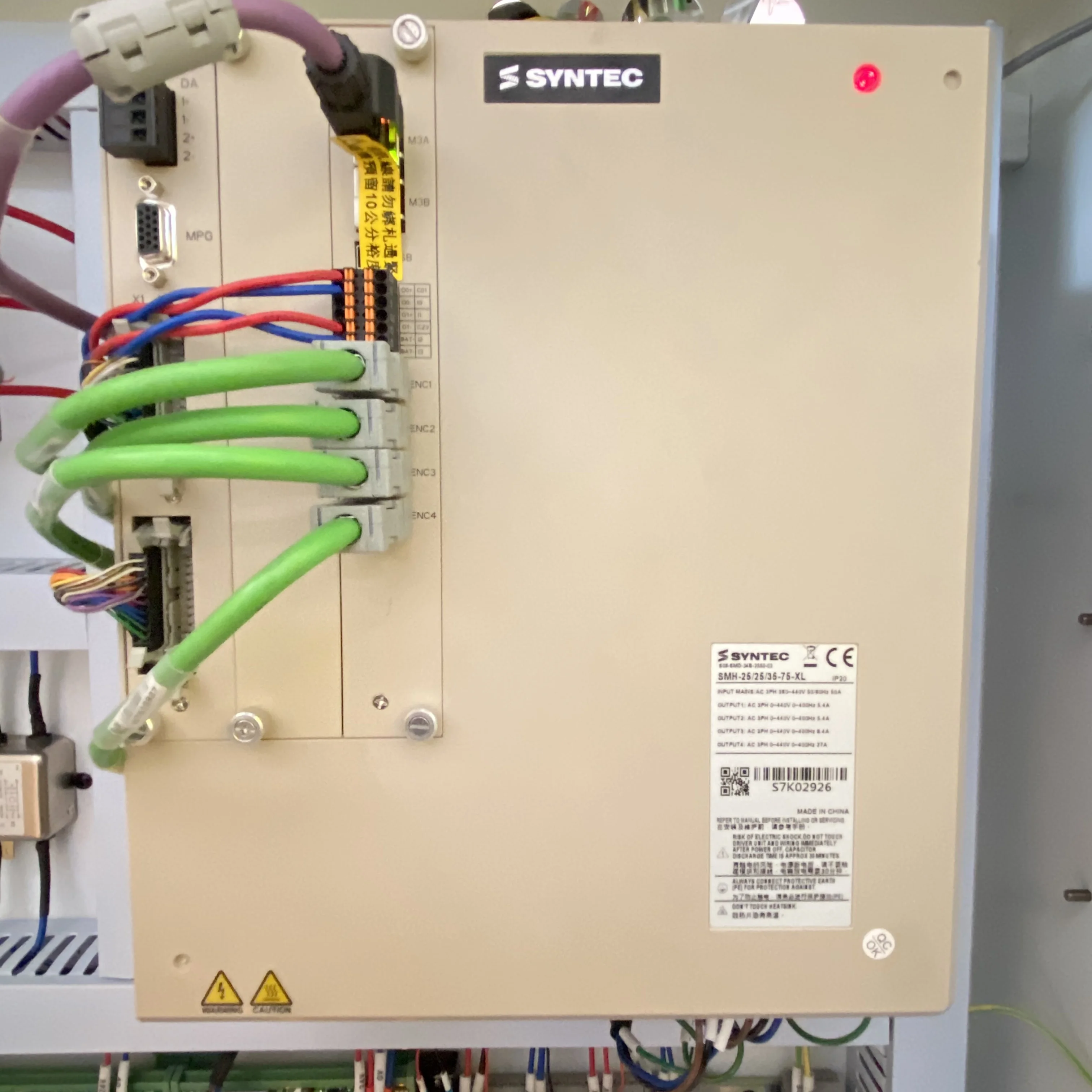

5 | Servo unit | Taiwan Syntec servo motor | |||||||
6 | Wire rod bearing | Japan/Germany NSK/FAG | |||||||
7 | Switching power supply | France sinade | |||||||
8 | Spindle servo unit | Mitsubishi servo motor7.5KW | |||||||
9 | Lubrication system | China Xiangda automatic | |||||||
10 | coupling | China dacheng | |||||||
11 | The knife instrument | China dacheng | |||||||
12 | The handwheel | China dacheng | |||||||
13 | converter | TaiWan yadeke | |||||||

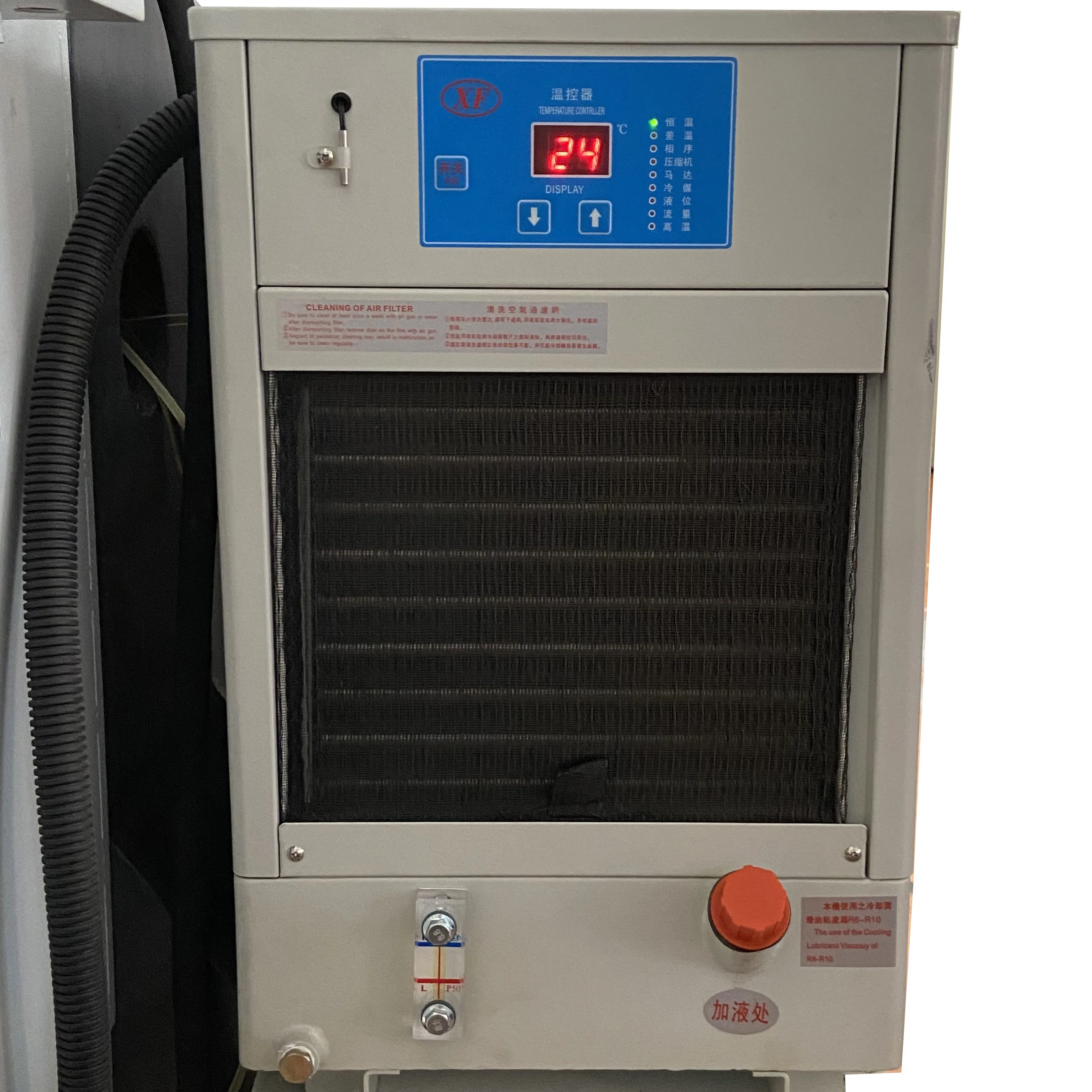

14 | Spindle cooling system | China snow fung oil cooler with live cabinet cooling | |||||||
15 | Cooling pump head | 24M | |||||||
16 | Disc servo cutter library | TaiWan Shengjie | |||||||
17 | Machine tool processing bin closed | fully enclosed (optional) | |||||||
18 | The equipment can run continuously for a long time | 7*24 hours/week | |||||||
