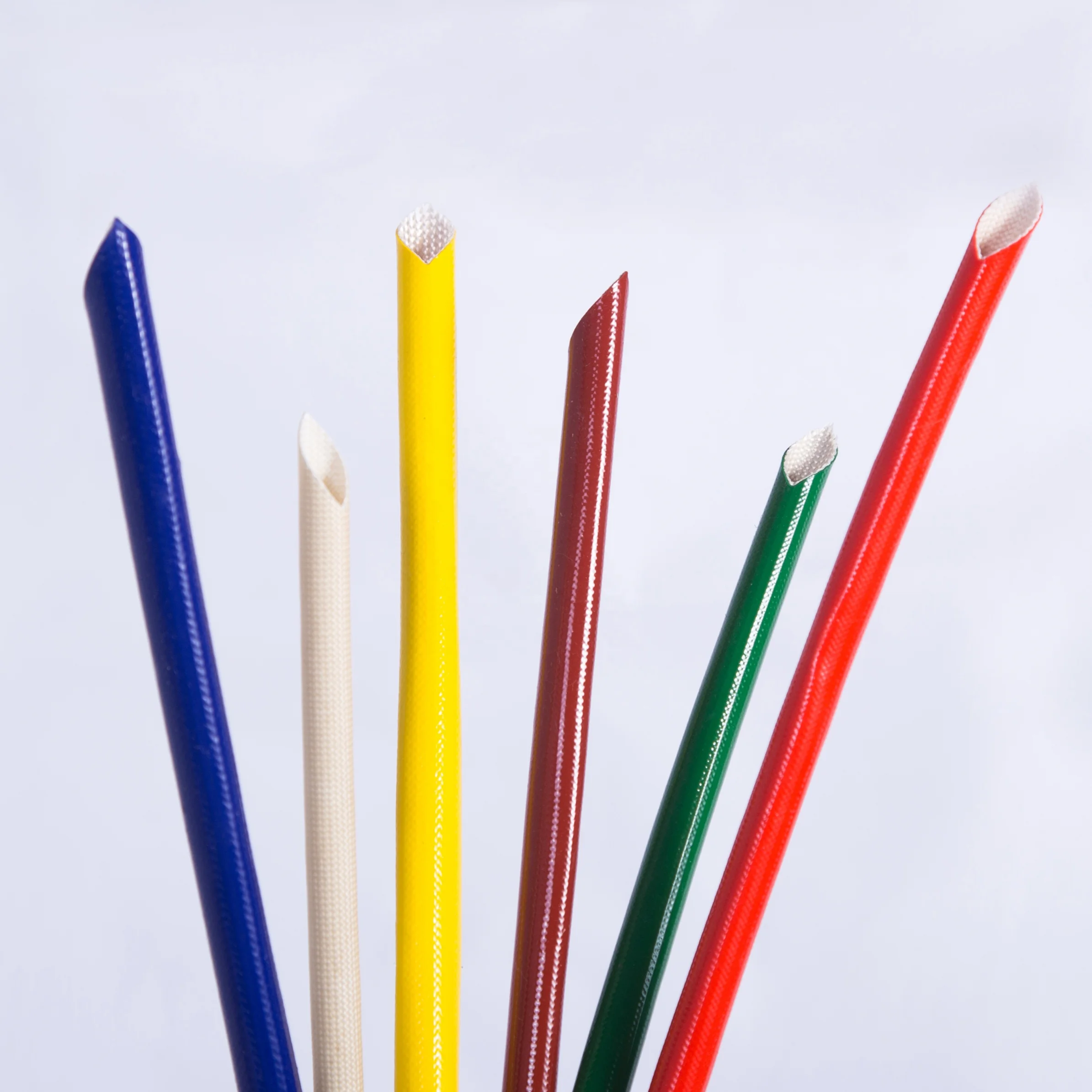

2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding
2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding
2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding
2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding
2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding
2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding
2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding

2.5 mm 4KV Silicon Resin Coated Fiberglass Sleeving for Electric Motor Winding

Share on (1600620189008):


Price:

Quantity:


Product Overview

Description



Product Description


Thermal Class
H
Breakdown Voltage
1.5KV to 10.0KV
Operating Temperature
 -60℃ to 180℃
Short time peaks
250℃
Standard color
 black, brick red and white, others on request
Diameters
0.5mm to 30mm


  • Product performance description

• For roll packaging:
-diameter 0.5 to 4mm: 200m
-diameter 5 to 20mm: 1 OOm
-diameter 22 to 24mm: 50m
-diameter 26 to 30mm: 25m

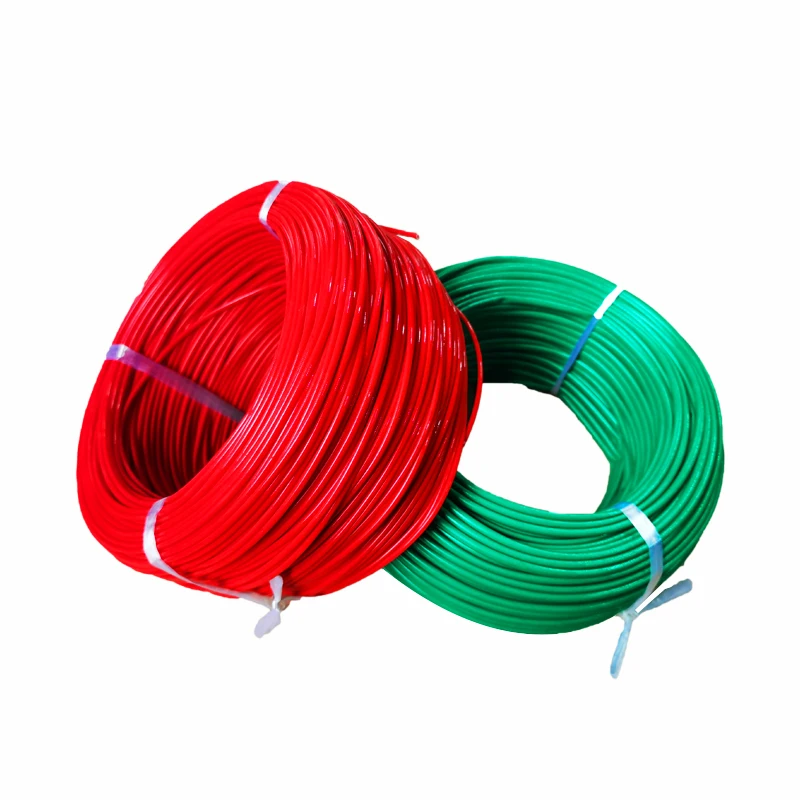

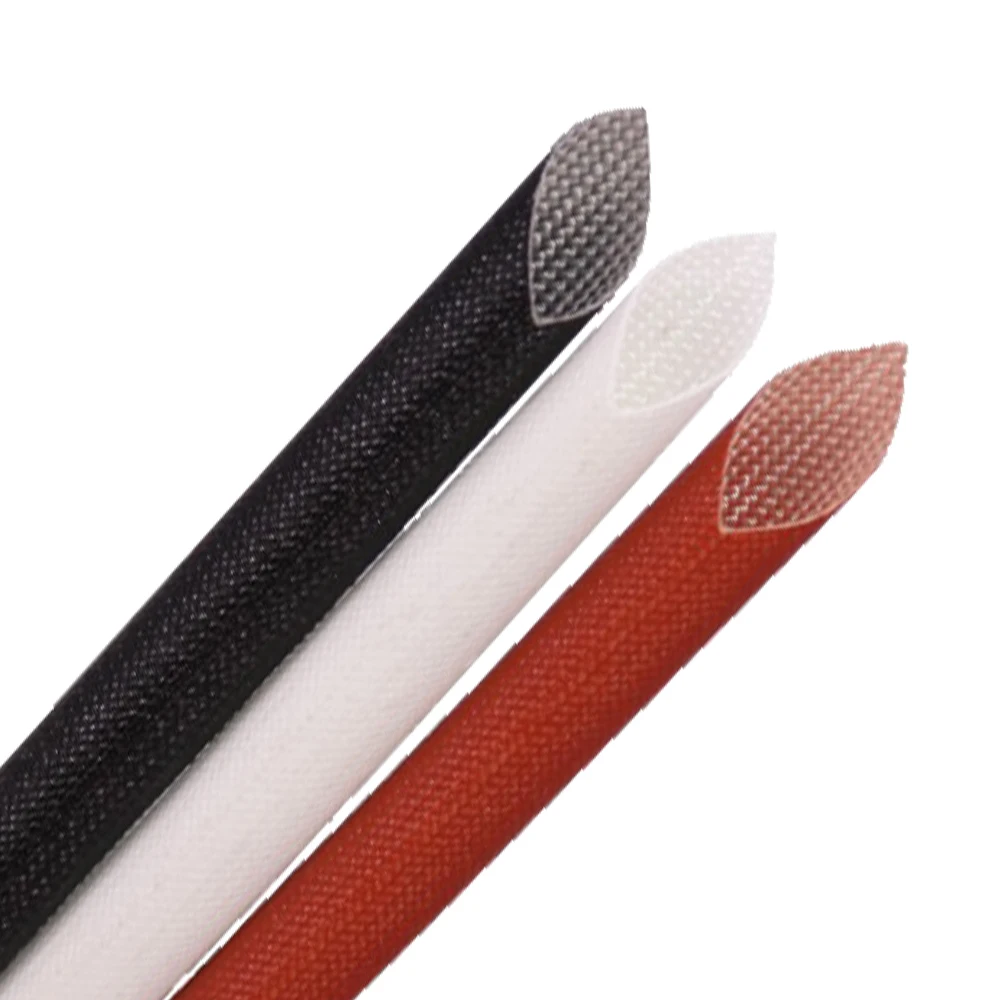

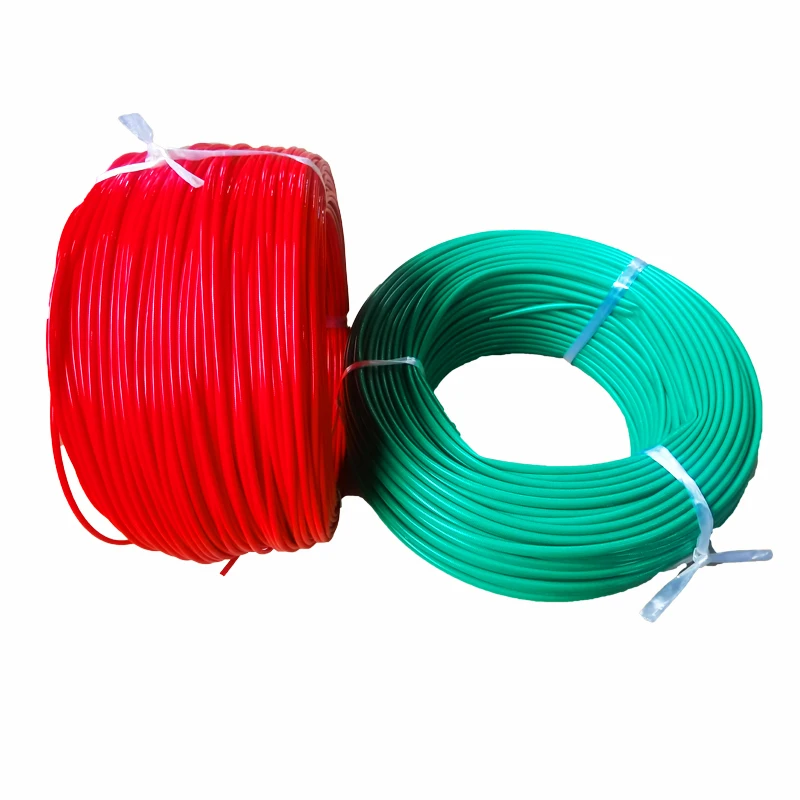

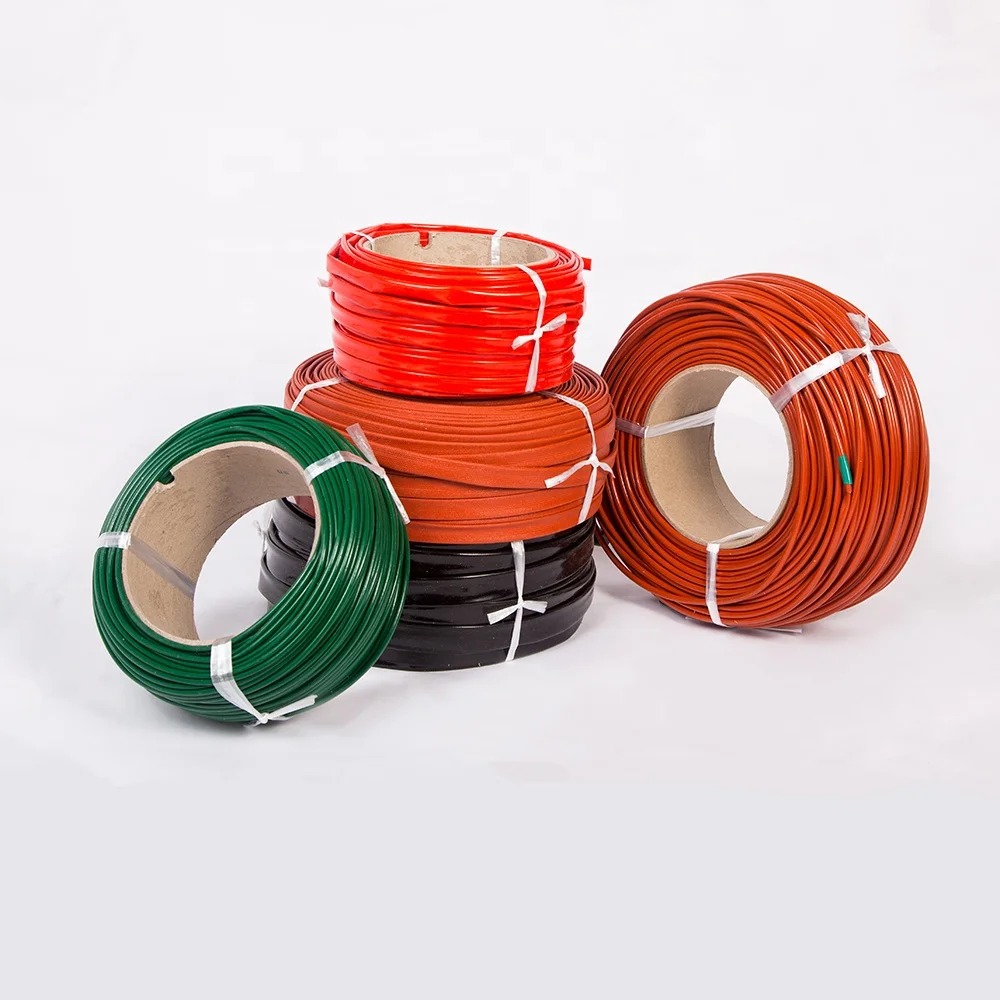

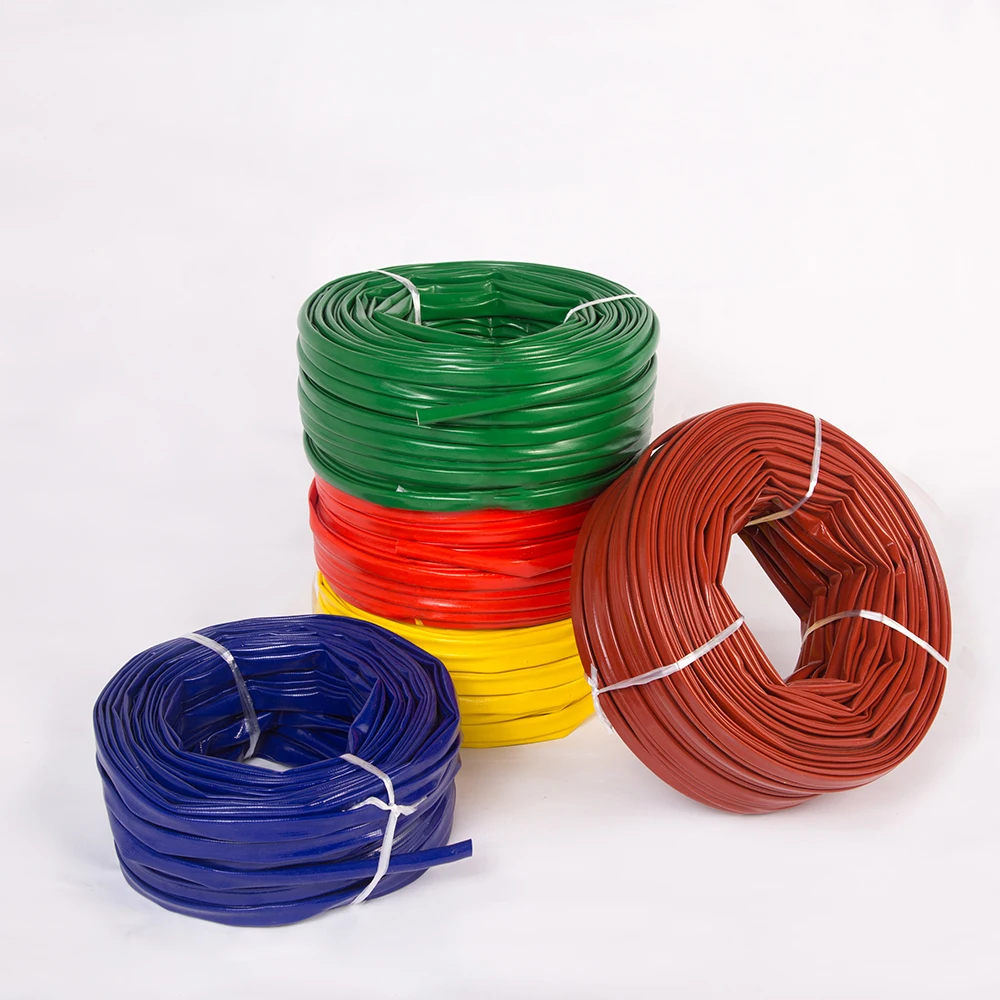

Details Images


Self- extinguishing fiberglass sleeving is braided with non-alkali fiberglass yarn and then coated with a special kind of silicone resin. It possesses good properties of dielectric, heat resistance, self- extinguishing, softness and elasticity etc.




• Flammability : non flammable
• Good resistance to UV
• Resistance to transformer oils
• Good compatibility with same class impregnation varnishes
• Good behaviour with soldering iron : no retraction
 • Good behaviour with liquid fuels : no decomposition • Flexible

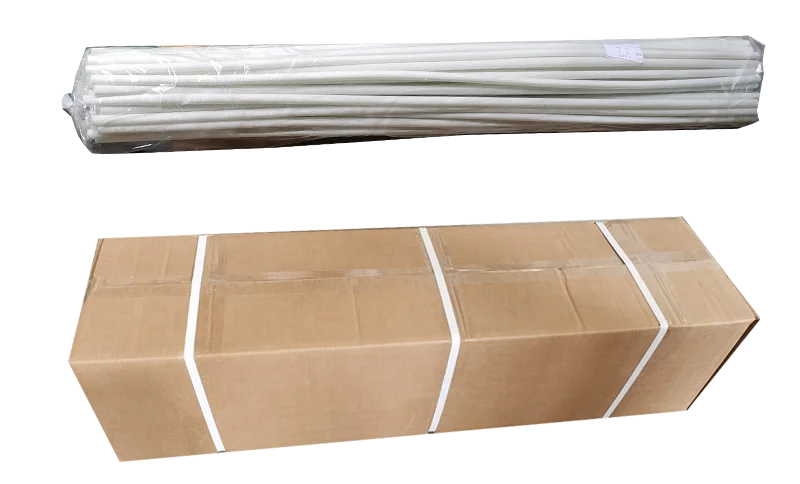

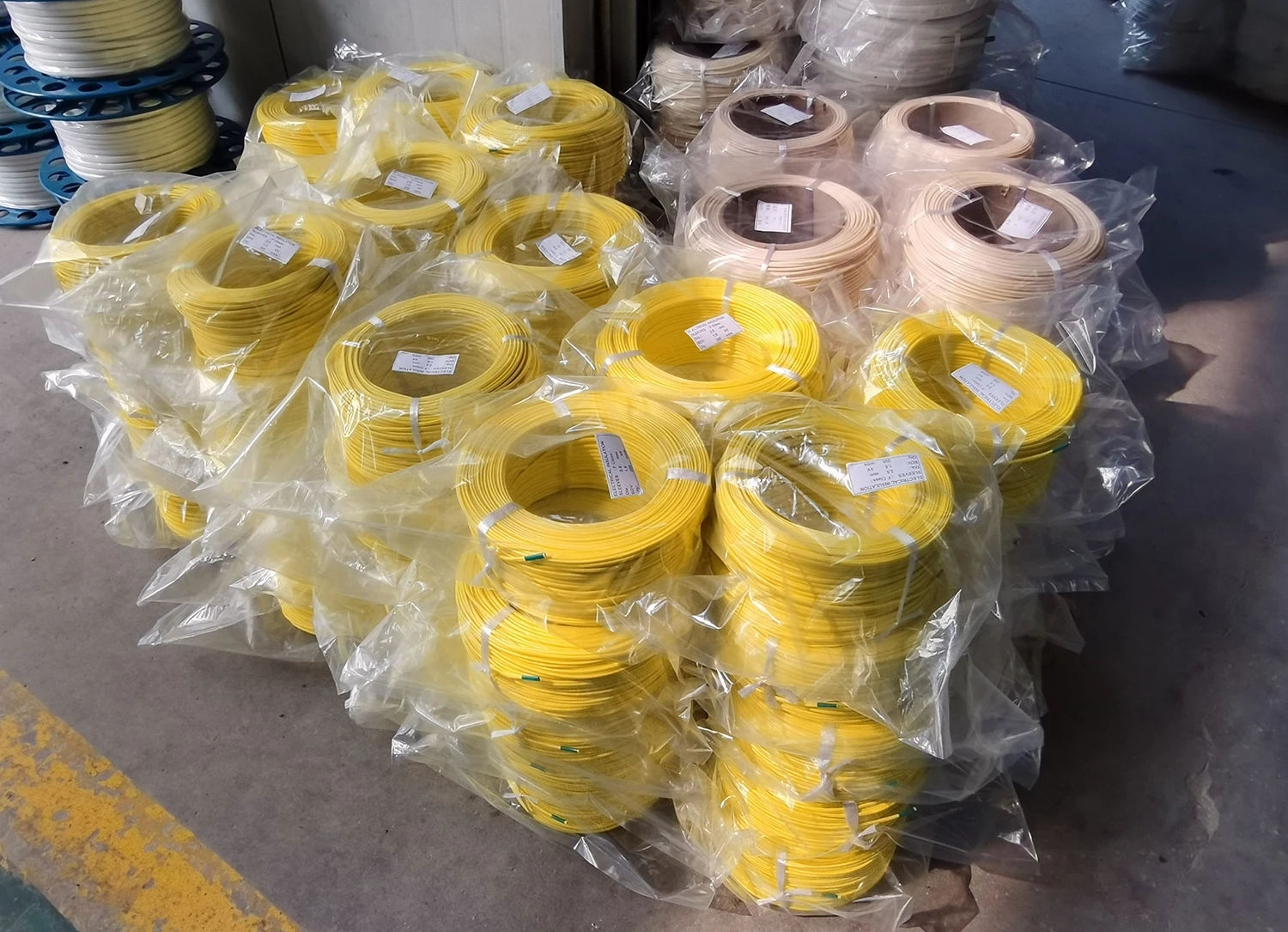

Packing&Shipping


1. Three different packing methods: Robbins, Cut Length, Rolls.
2. Inner packing: plastic bag
3. Outer packing: cartons(dimension:33X33X57cm , 40×40×60cm, 102.5x27x25cm)
4. Our insulation sleeving accept to shipping by sea, by air and courier, base on your quantity and request.




Company Introduction


Chizhou Pusheng Electrical & Material Co.,Ltd. is a manufacturer of insulation fiberglass sleeving in China.
Our main products including :

Silicone coated fiberglass sleeving,
Acrylic coated fiberglass sleeving,
Polyurethane(PU) coated fiberglass sleeving,
Self-extinguishable fiberglass sleeving,
Heat treat fiberglass sleeving
Fire-proof fiberglass sleeving.

We also produced kinds of insulation papers and tapes, slot wedge etc.
Our products have SGS and UL approval, ROHS compliant and ISO9001 quality certification.
Welcome to contact to us to get the direct competitive price.




ISO9001
UL-Silicone Fiberglass Sleeving
UL- Polyurethane Fiberglass Sleeving
