High quality extruder cooling chiller recirculating water chiller recycling water chiller
- Category: >>>
- Supplier: Dongguan Sixing Machinery Manufacturing Co. Ltd.
Share on (1600620195286):
Product Overview
Description
SX-5W
Name： water cooled chiller
Cooling capacity：12.9kw
Power: 4.5kwRefrigerant：R-134A/R-404A/R-407A

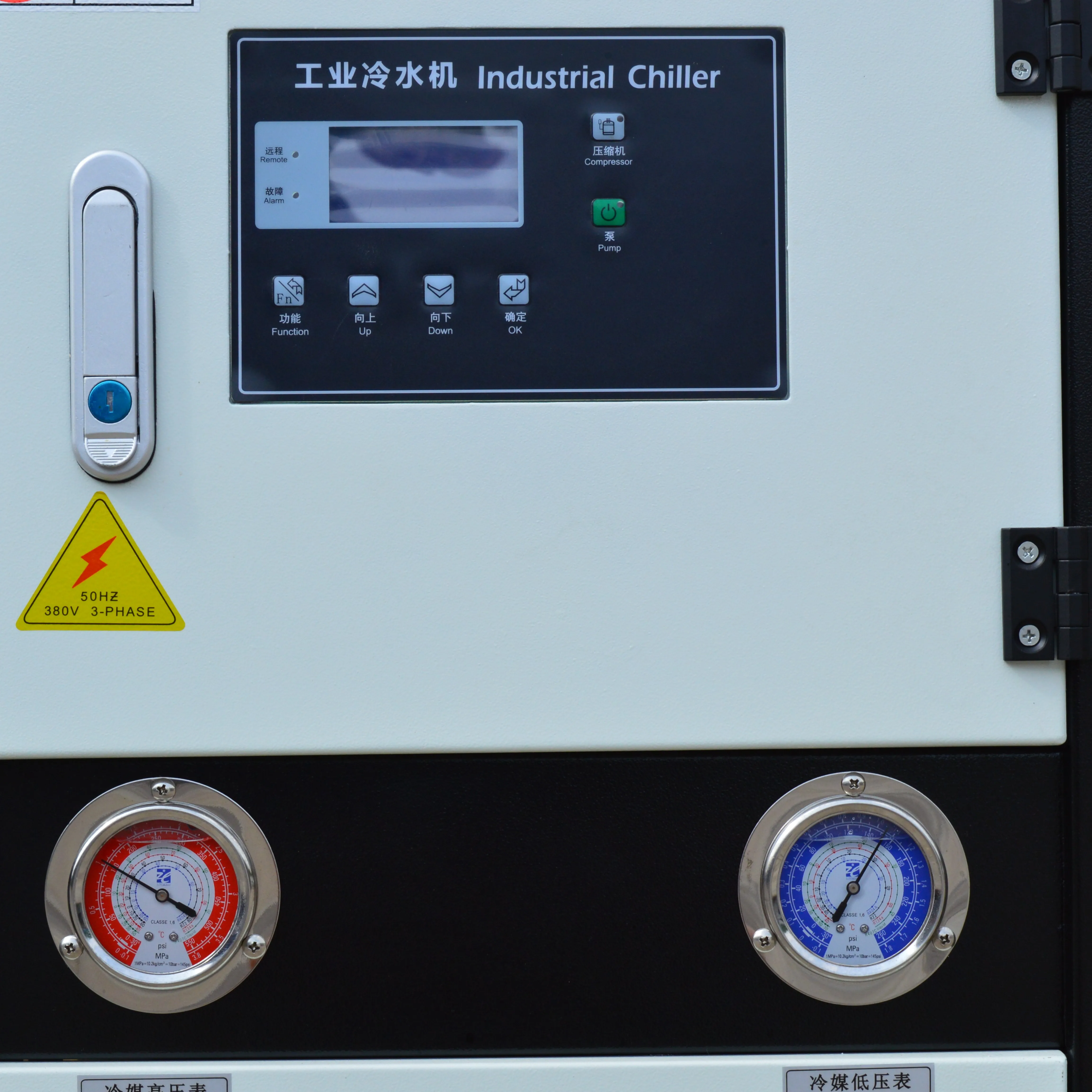

Control panel：PLC
Voltage:Customized
Electrical appliance brand：SCHNEIDER
Dimension: 870*550*1000mm
Weight: 160kg
Electrical appliance brand：SCHNEIDER
Dimension: 870*550*1000mm
Weight: 160kg

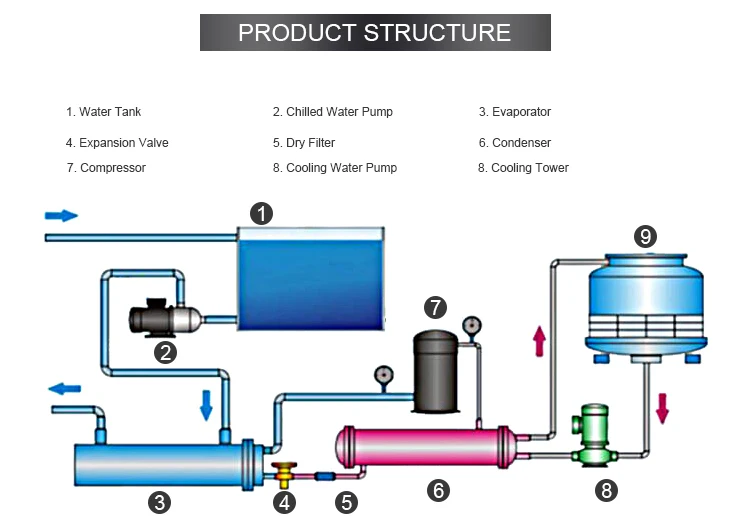

The function of water cooled chiller is to reduce the temperature of normal temperature water or high temperature water. It is widely used in plastic, chemical, food and other industries.
Model | Cooling capacity | Power | Pump distance | Tank capacity | Dimensions | Weight |
SX-5W | 15kw | 5HP | 19m | 70L | 870*550*1000mm | 160kg |
SX-8W | 24kw | 8HP | 19m | 110L | 1300*650*1350mm | 430kg |
SX-10W | 30kw | 10HP | 19m | 110L | 1300*650*1350mm | 460kg |
SX-12W | 36kw | 12HP | 19m | 110L | 1500*650*1350mm | 500kg |
SX-15W | 45kw | 15HP | 19m | 200L | 1700*650*1350mm | 540kg |
SX-20W | 60kw | 20HP | 19m | 350L | 1650*700*1400mm | 720kg |
SX-25W | 75kw | 25HP | 19m | 350L | 1800*750*1450mm | 780kg |
SX-30W | 90kw | 30HP | 19m | 420L | 1800*750*1500mm | 880kg |
