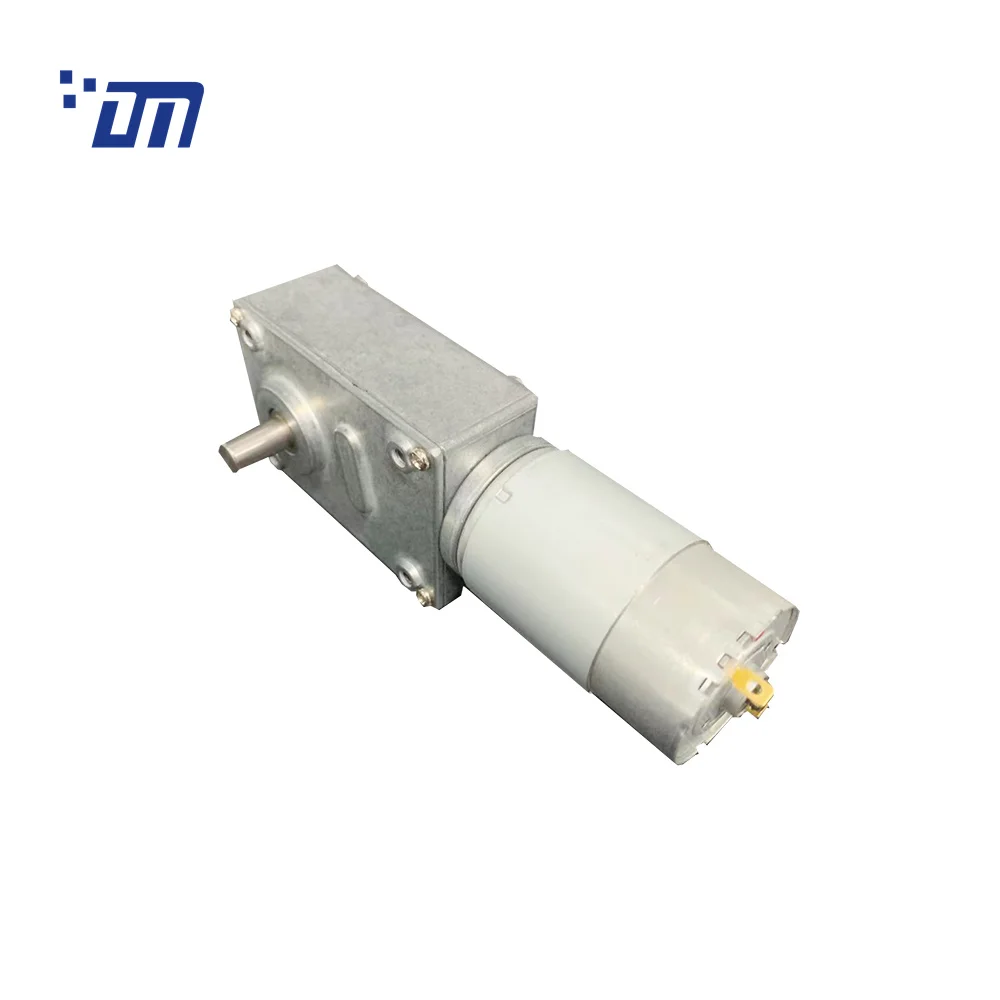

Factory low Speed 12v electric 12v worm drive motor Gearbox Worm Motor worm gear motor with encoder
- Category: >>>
- Supplier: Shenzhen Dongming Motor Co. Ltd.
Share on (1600620195295):
Product Overview
Description

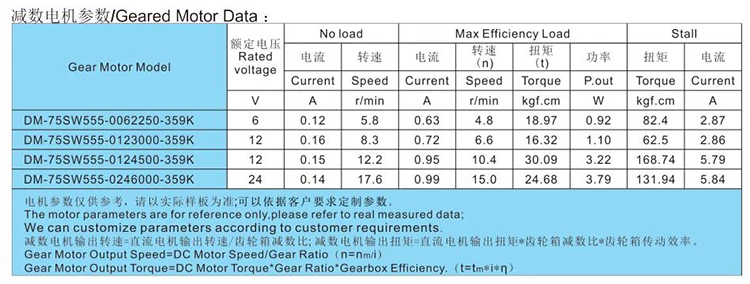

Products Specification
Product Name | High Torque Worm Gear Motor |
Model | DM-75SW555 |
Voltage | 6V~24V |
Speed | 2RPM~120RPM |
Torque | 0.1kgf.cm~50kgf.cm |
Materials | Metal |
Advantage | High torque, Low-noise, Durable and High efficiency, Impressive precision, Compact size, Longer gear life, |
Output Shaft | D-cut or Customization |
Certification | CE, ROHS, SGS, ISO9001 |
Application | Smart Home, Robotics, Health Medical Care, Valve&Meter, Vending Machine, Industrial&Commercial products, etc |
Output Shaft

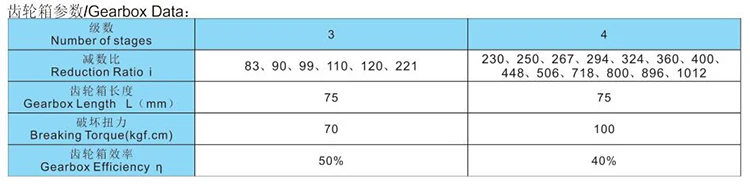

Gearbox
Motor Back Cover
Applications
Advantages of Our DC Gear Motor
High torque
With more teeth in contact, the mechanism can transmit and withstand greater torque in a more uniform manner.
Low-noise
The multiple gears enable more surface contact. Rolling is much softer, and jumps are virtually nonexistent.
Durable and High efficiency
The bearing can reduce friction by connecting the shaft directly to the gearbox. It allows for better rolling and smooth running, simultaneously enhancing efficiency.
Impressive precision
The rotation angle is fixed, which improves the accuracy and stability of the rotation movement.
Compact size
The planetary gear motor can be compact and small due to the planetary structure, in which multiple gears mesh together and orbit around a sun gear.
Lifetime
Longer gear life at similar loads
Small Dimension
Small diameter with high torque, high speed
Customization
Shaft: D-cut, with hole, with screw hole, with ring-lot, etc
Geabox: DONGMING support customized gearbox as your special performance requirement
DC Motor: We can custom the motor's data as your requirement
Load Speed and Voltage: Customized Spee and voltage.
Encoder: We also provide encoder with DC gear motor to support you control the position for output shaft.
