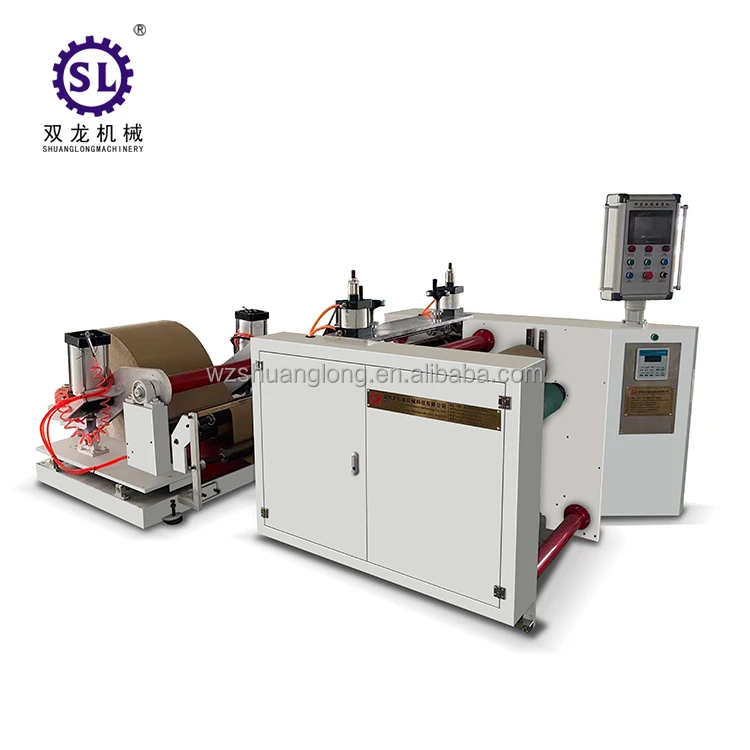

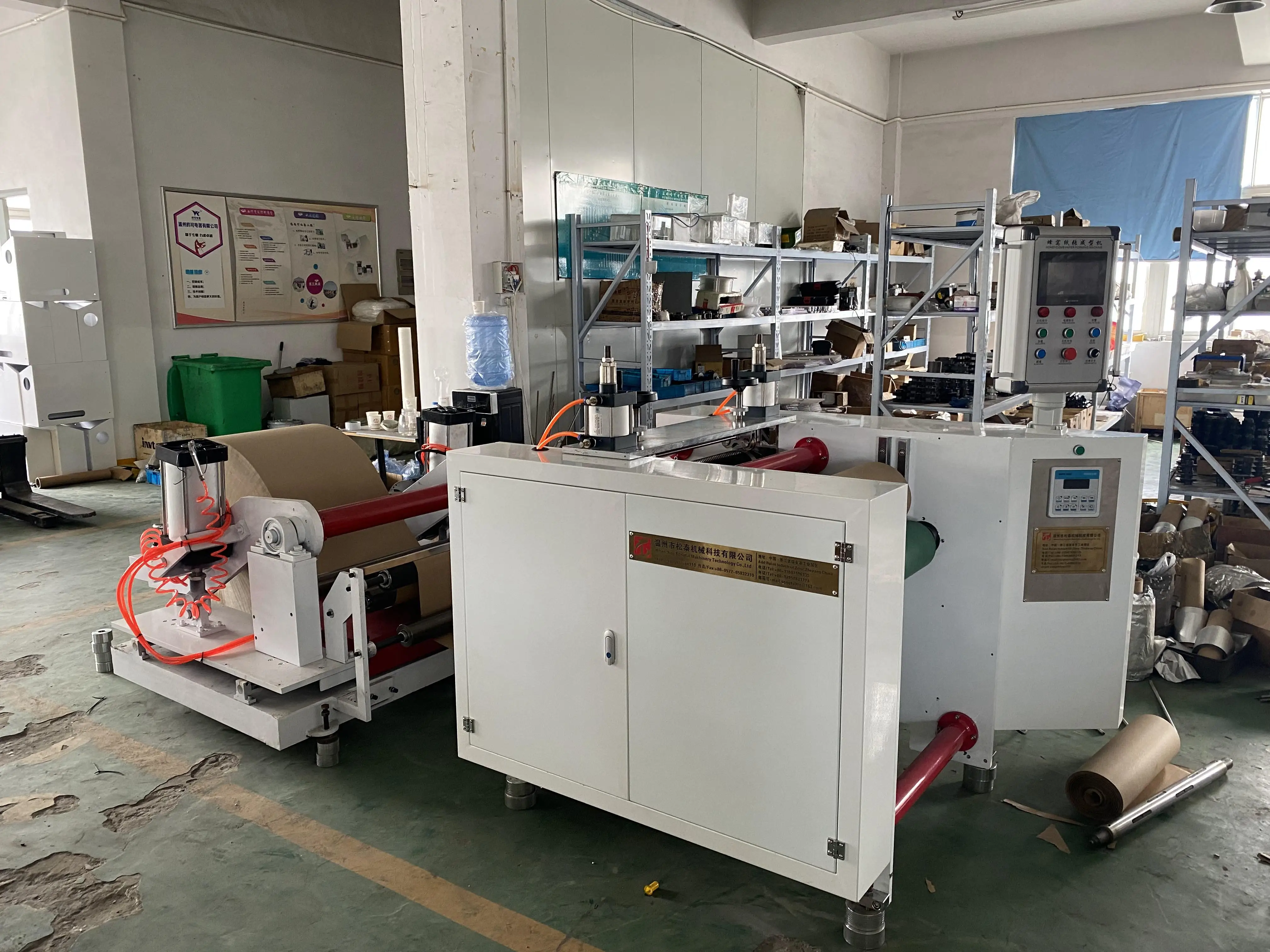

Fully automatic Eco friendly honeycomb paper making machine
- Category: >>>
- Supplier: Wenzhou Shuanglong Machinery Co. Ltd.
Share on (1600620202542):
Product Overview
Description
Honeycomb Paper Making Machine
Emma Mob/Waht'sapp: +86-18858769792
Product Description

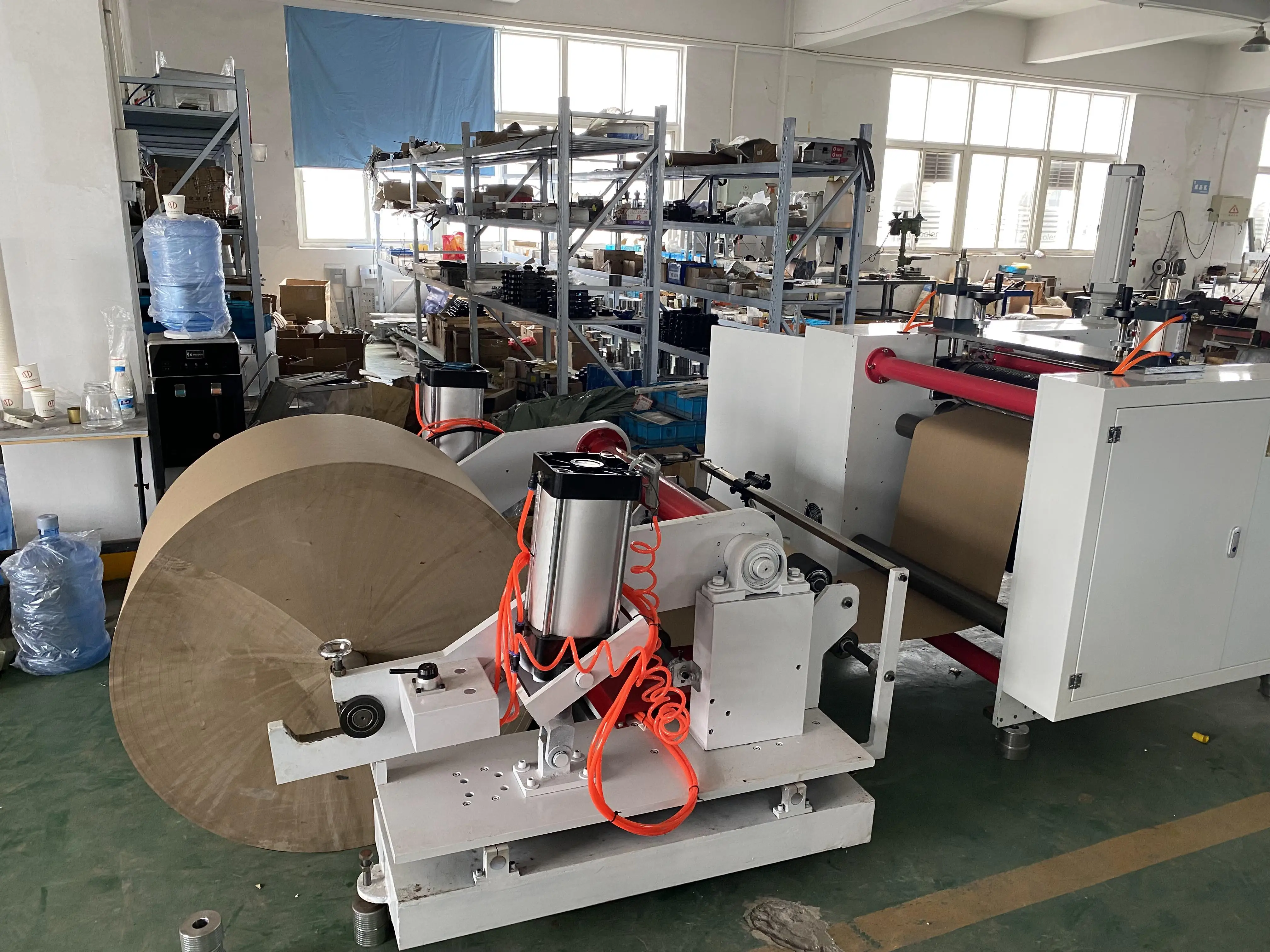

A.Roll roll unit:
1.Roll out diameter Φ1200mm
2.Unwind tension control: 10kg magnetic powder, Automatic tension control
3.Loading and unloading: 3 inch air shaft, pneumatic loading
B.Rewind Unit 1:
1.Single station rewind diameter 300mm,
2.2KW inverter motor
2.Tension display: PLC control
3.Loading way: 1.5-inch air shaft (2 bars)

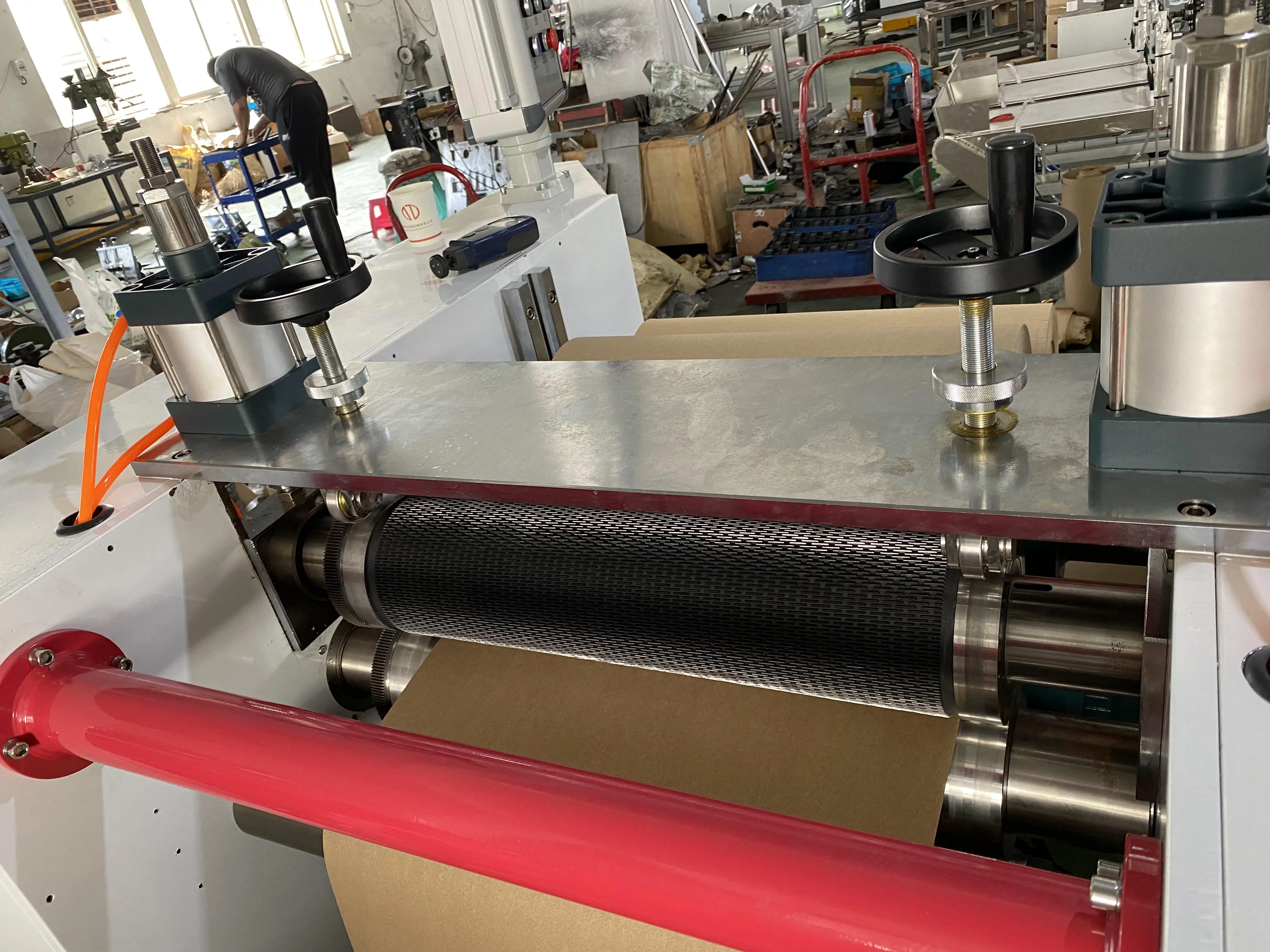

C.Cutting Unit：
1.Upper cutting roller:\t144x520mm
2.Down cutting roller:\t380x520mm
3.Main motor:\t4kw 1 set
4.Cutting mould life time: 900,000 meter (Can polish 3 times, every time need RMB1500-2000, upper cutting roller price RMB50000/set
E.Main drive:
1.Structure: upper cutting roller + down cutting roller
2.Main panel
3.The drive mode is the synchronous belt drive
4.Guide roller: aluminum guide roller brown color dynamic balance
F.Auxiliary unit:

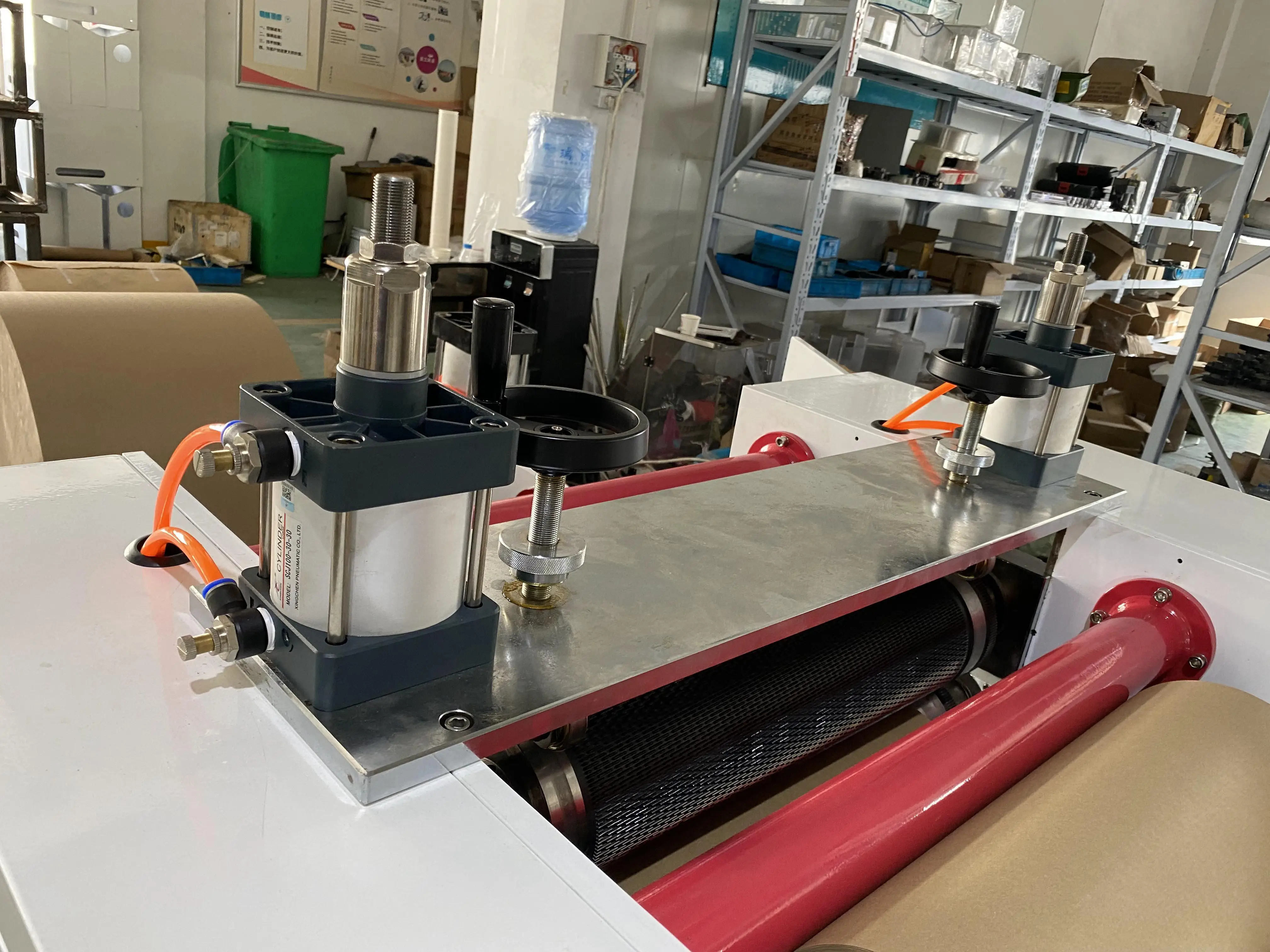

1.Main machine pressure: air cylinder with manual fine adjustment
2: Tool box
3. PLC control
4.7-inch touch screen
Main Parameters | ||||||||||
Maximum Unwind Diameter | 1200mm | |||||||||
Maximum Rewind Diameter | 300mm | |||||||||
Paper Core Size | 76mm,38mm | |||||||||
Machine speed | 120m/min | |||||||||
Tension setting range | 0-80N.m | |||||||||
Total power of the whole machine | 8Kw | |||||||||
Machine weight | 1100kg | |||||||||
Machine size LxWxH | 2900*1900*1500mm | |||||||||
Main configuration list | ||||||||||
Electrical Components | CHNT | |||||||||
Main Motor | China | |||||||||
Inverter | China | |||||||||
Magnetic powder | Wenzhou City | |||||||||
Drive Way | Sync-belt drive | |||||||||
Useful Tools | 1 set | |||||||||
PLC control | Siemens or Huichuan | |||||||||
Touch-screen | Taiwan Weview or Huichuan | |||||||||

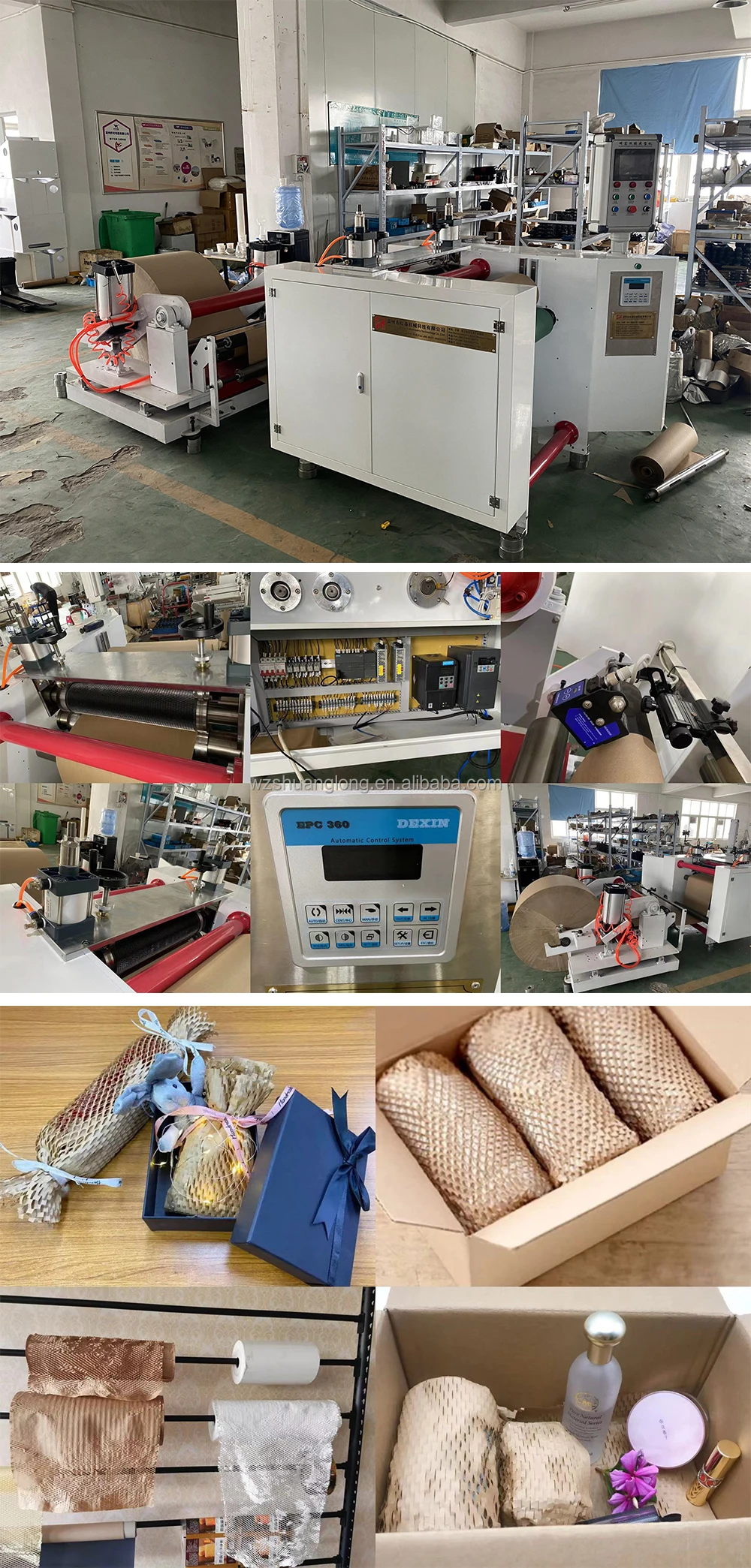

Production Details
Why Choose Us
1. We have more than 15 years experience;
2. We are manufacturer who have been exported more than 15 countries;
3. Large production capacity that ensures the shipment on time;
4. Quick responses with full attention
5. Sample fee could be returned after the order has been placed.
6. We guarantee our products quality and pre-sales and after-sales service.
Packaging & Shipping
Packing Details: Packed by pearl cotton and plastic film, some items will packed in wooden ply box
Delivery Time: Within 40-60 days after got deposit
Hot Sale Products
FAQ
Question 1: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC.
