12V 24V 40A SPDT DC Power 4 Pin Car Auto Battery Relay
US $0.75-$0.85
Meishuo MAX 12v auto relay 30a with high quality and miniature
- Category: Auto Relays >>>
- Supplier: Zhejiang,Meishuo,Electric,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Related Products
Product Description

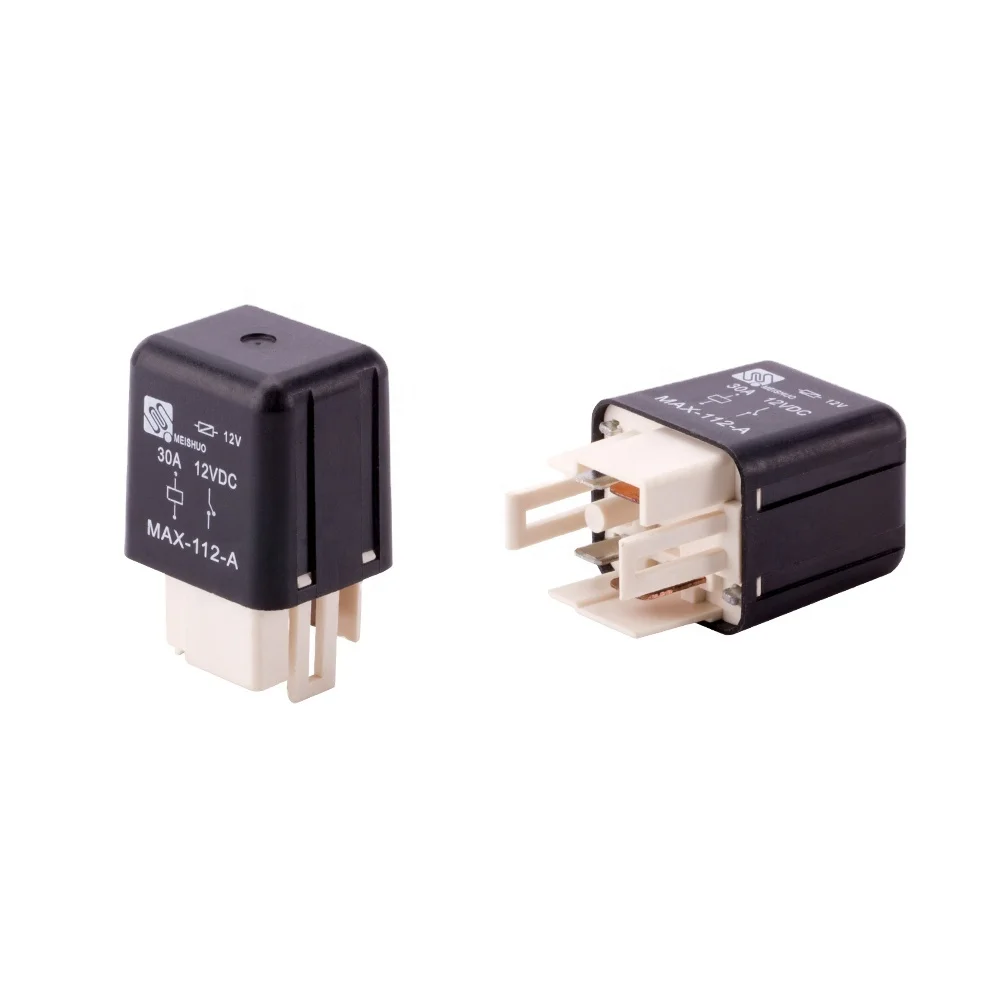

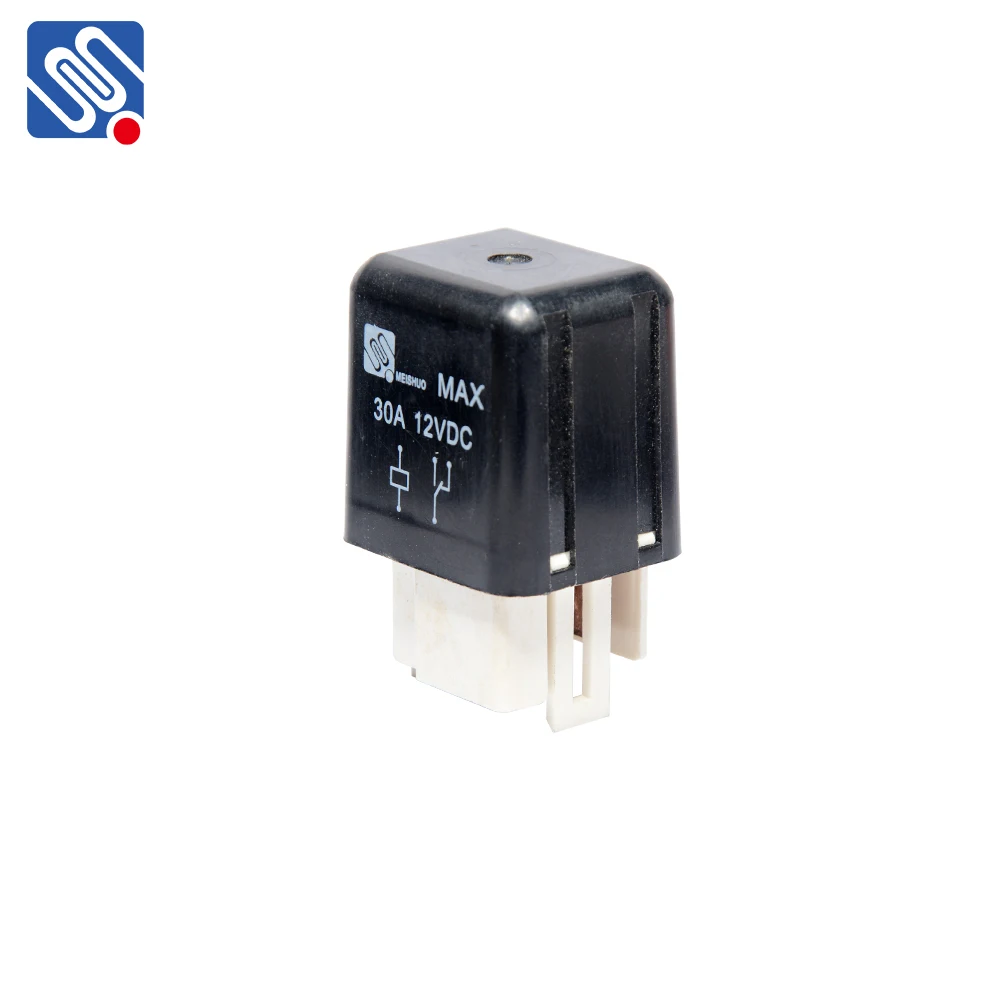

Meishuo MAX 12v auto relay 30a with high quality and miniature
Features:
* 30A switching capability
* 1 form A & 1 form C contact capability
* Ambient temp can up to 125℃
* Oultine dimension: 32.0*26.4*32.9mm

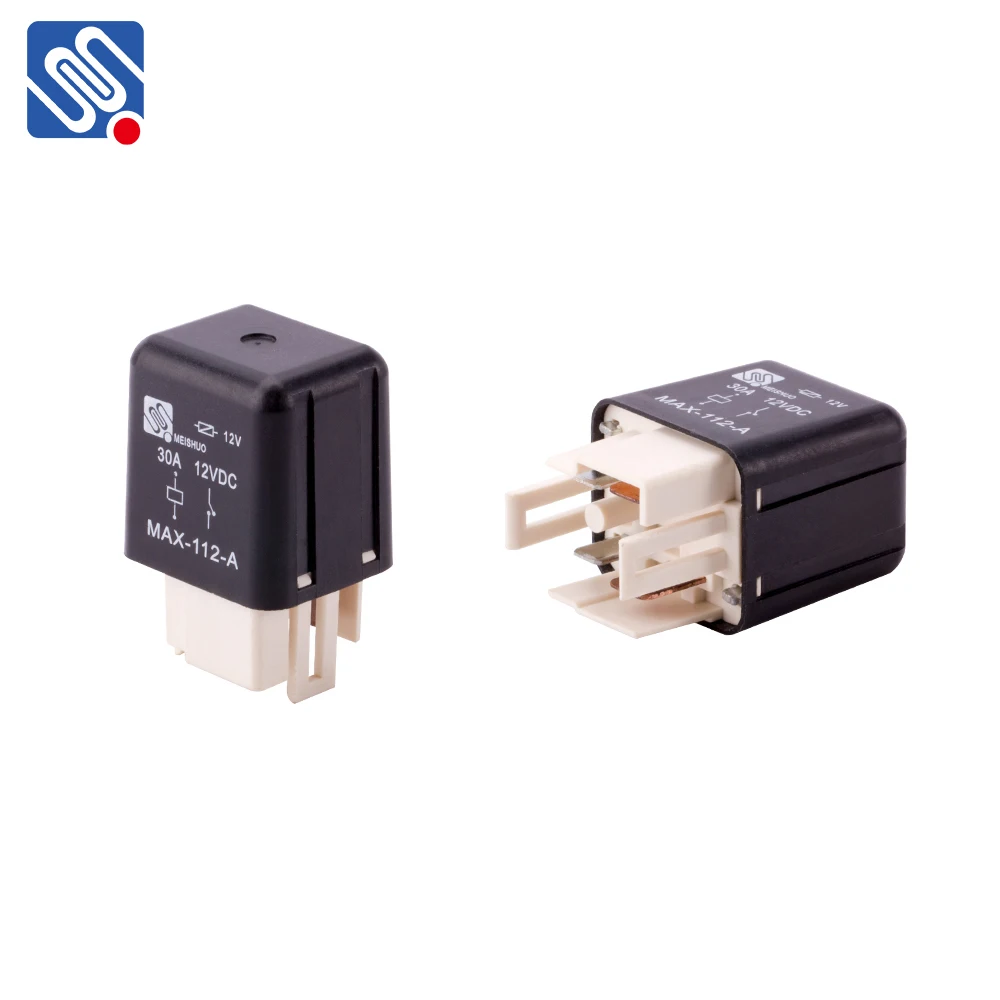

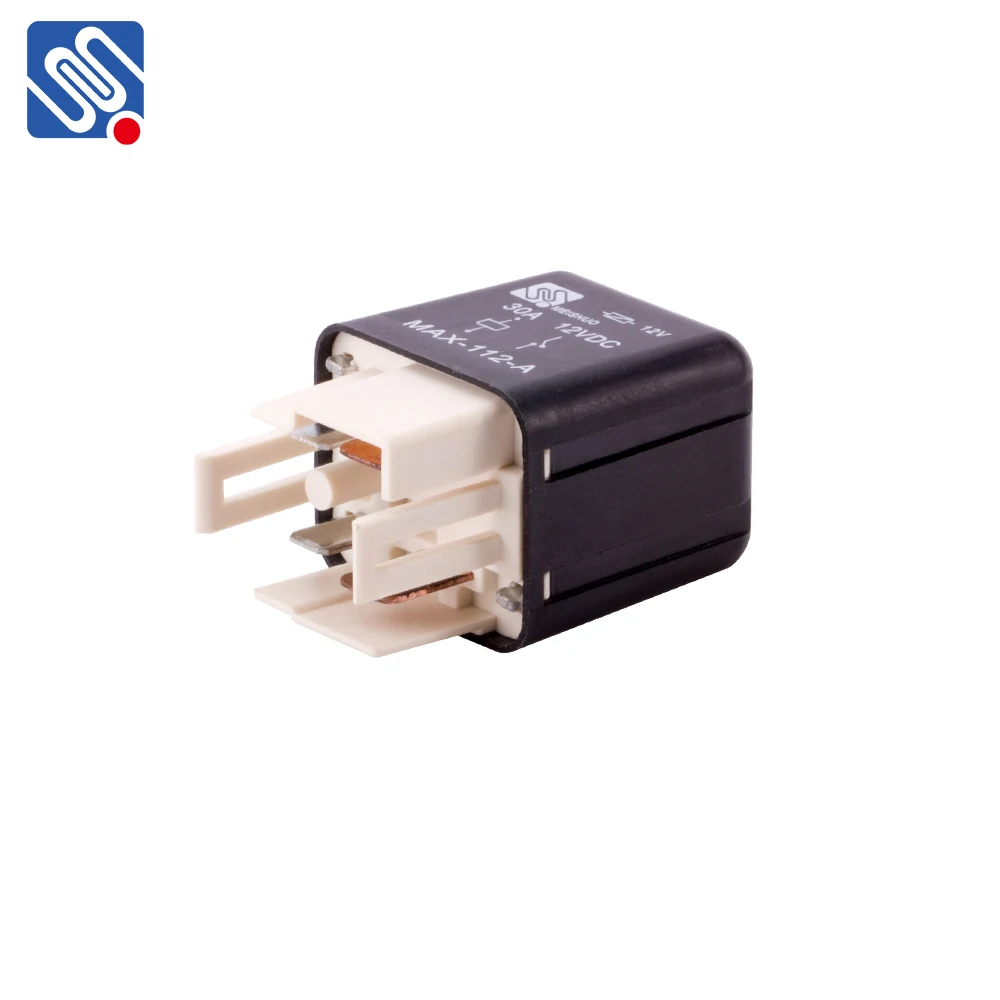

Details Images

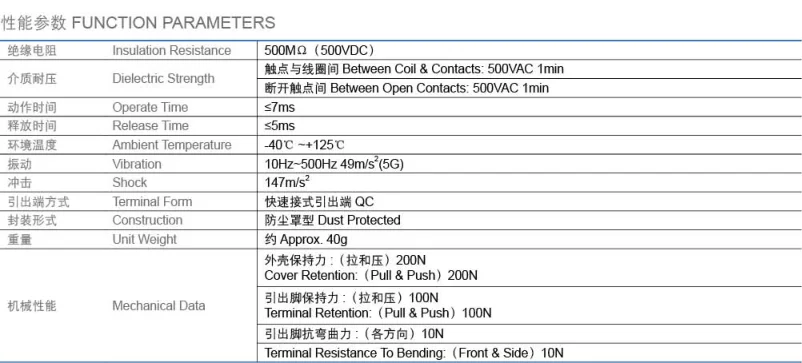

MAH Relay Information Sheet
Contact Arrangement | 1A 1C | Max. Switching Voltage | 30VDC |
Contact Material | Silvor Alloy | Electrical Life | 100,000 OPS |
Voltage Drop | Standard: 50mV Max.:300mV | Mechanical Life | 1,000,000 OPS |
Max. Continuous Current | 30A | Unit Weight | Approx. 40g |

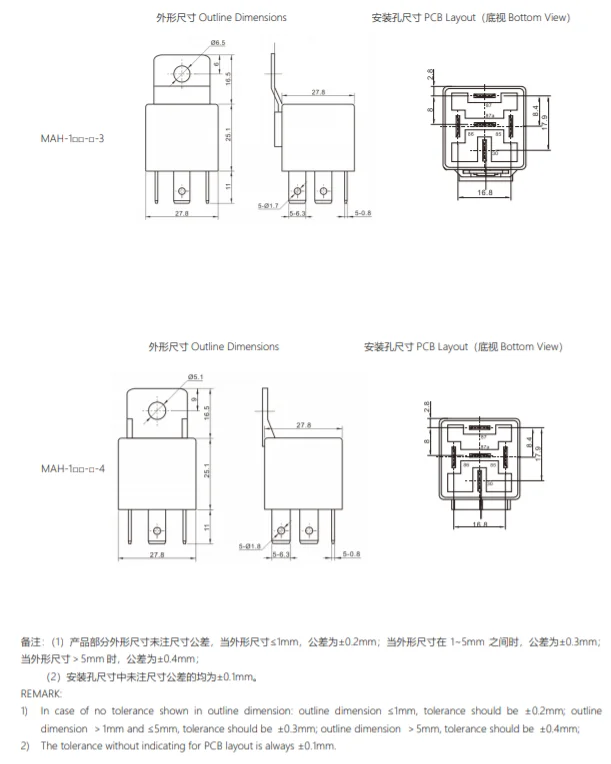

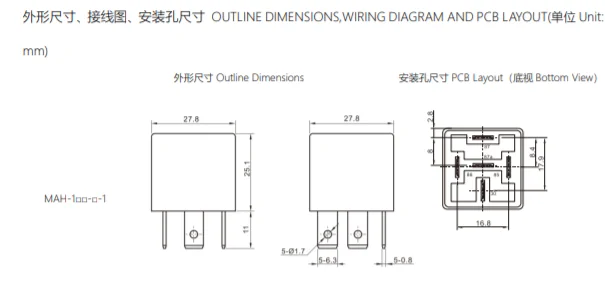

Wiring Diagram
Relay MAH3 is smaller than Relay MAH

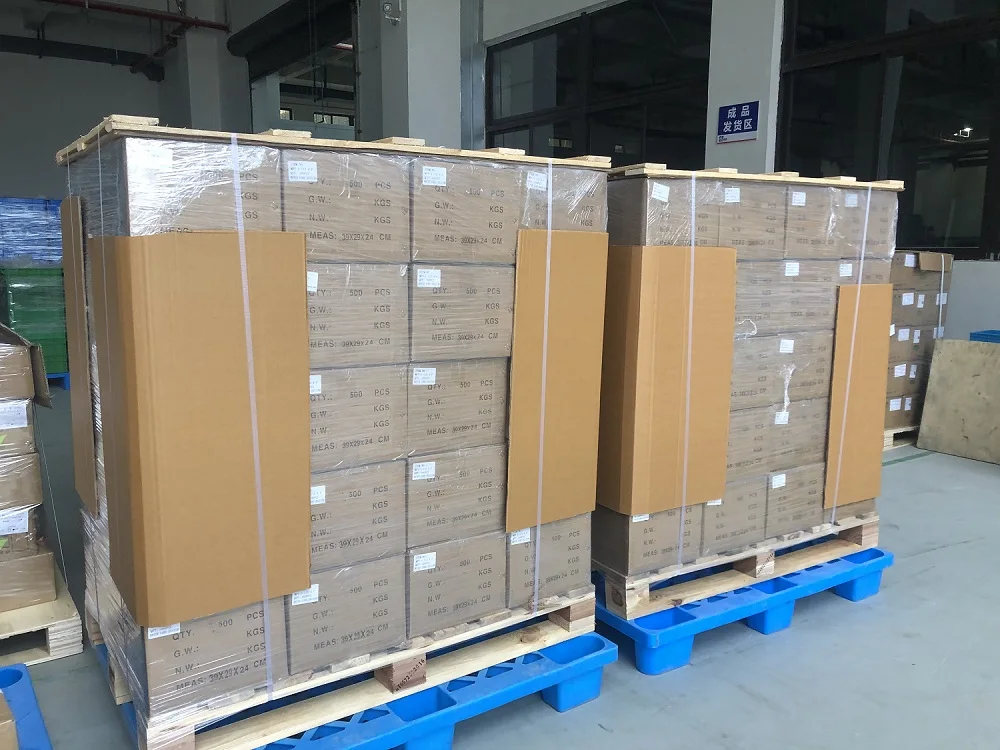

Packing&Shipping
MAX Relay Packaging
50 pcs/plastic box10 plastic boxes/master box
500 pcs/master box
shockproof packing: packing filler corrugated board
Meas: 45*40*22cm
G.W.:18.5kgs
N.W.:17.5KGS
500 pcs/master box
shockproof packing: packing filler corrugated board
Meas: 45*40*22cm
G.W.:18.5kgs
N.W.:17.5KGS
